10′ Tech Tripod Basic
SKU# 022-11029
$458.81 off
$2,59990
$3,05871
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
10′ Tech Tripod Basic
$2,59990
$3,05871
Unit price
/
Make a Selection
Tripod Kits

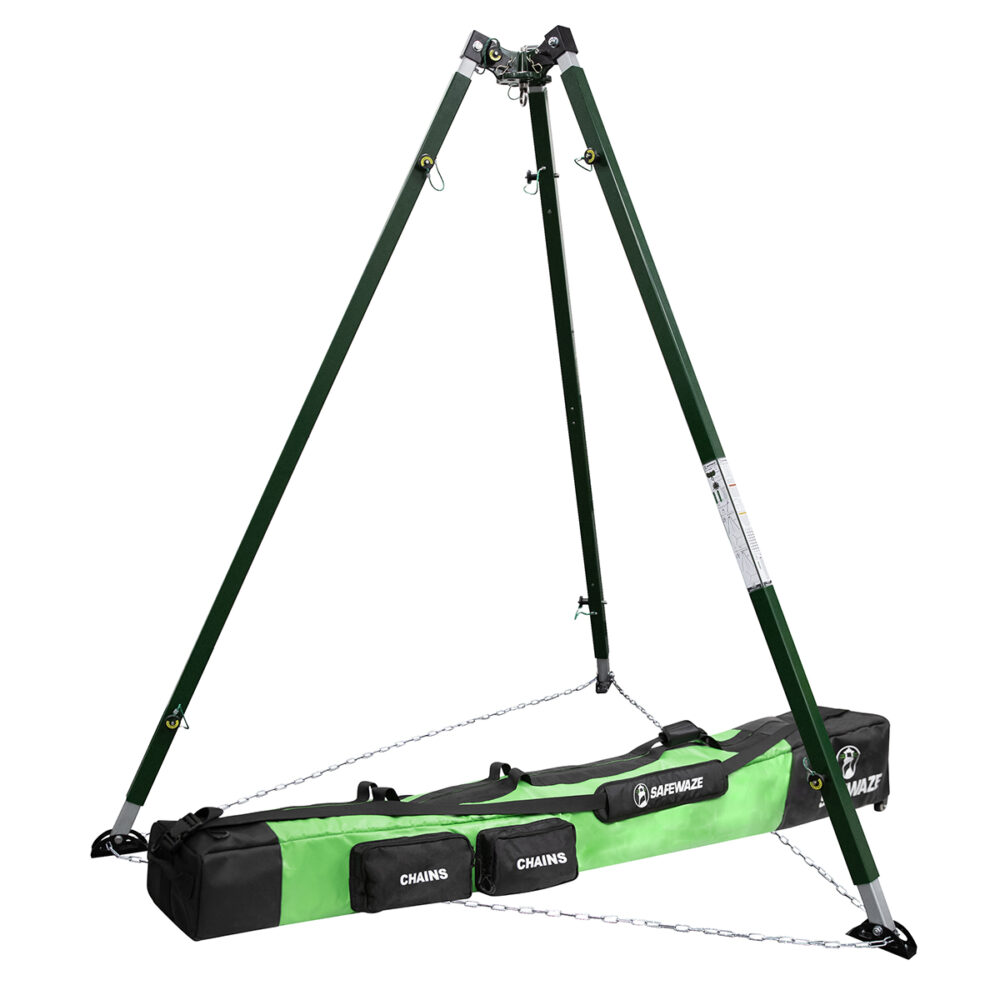

The 10′ Tech Tripod Basic is the standard version of our premium tripod with multiple configurations to fit a wide variety of work zones. The massive stance adjusts up to 18′ to cover confined space, trenches, bridges, mines, rescue, inspections and more. The unique design allows use in over-edge scenarios such as cliffs or vertical walls. Basic system is lightweight with quick setup and adjustability and comes with what you need to get started.
Features:
- Lightweight yet durable aluminum construction
- Quick setup with detent pins for easy height and diameter adjustment
- Multiple stance configurations fit a variety of work zones, including an over-edge scenario
- (7) Individual 5,000 lb. anchor points in head unit with a centered 360° captive eye

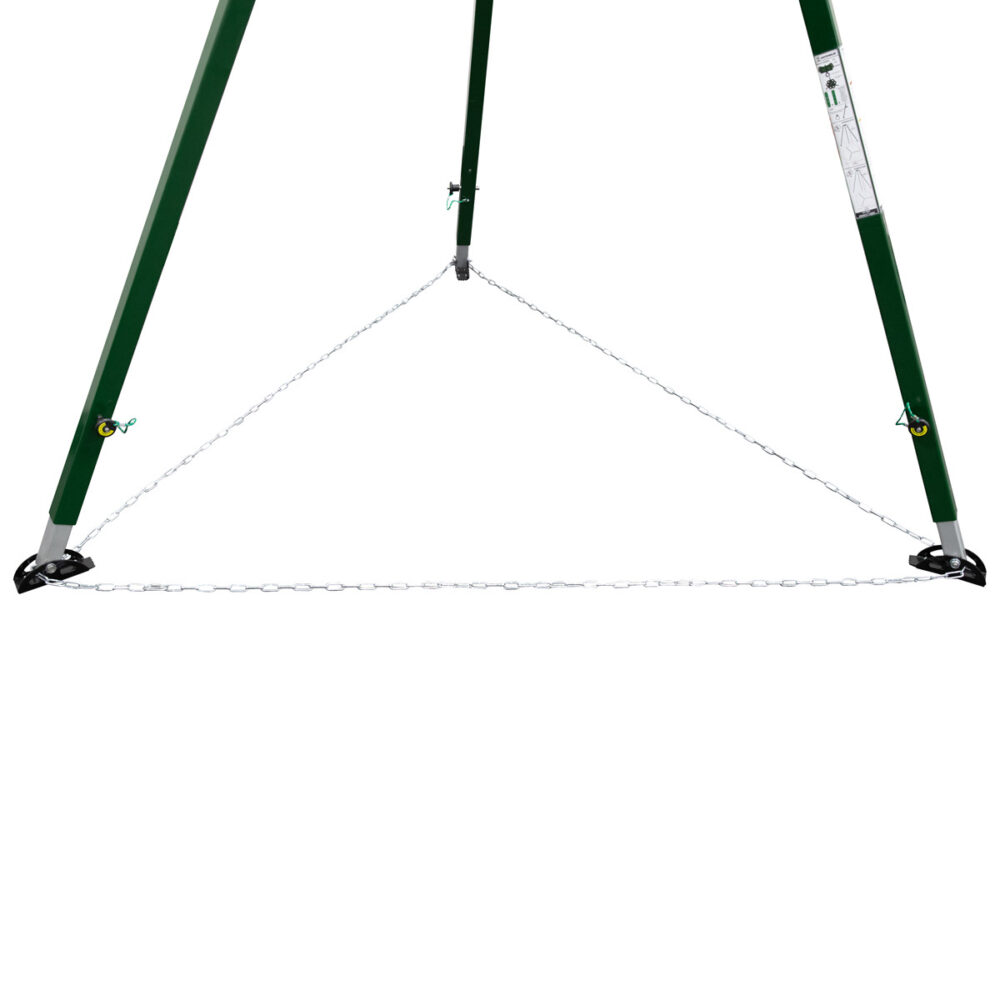

Secure foundation with rubber pads on multi-surface steel feet - Equipped with (included):
-Safety chain and quick link
-Heavy-duty storage bag with wheels for easy transport, multiple handles, padded shoulder strap and labeled pockets for organization
Optional accessories (not included): Device mounting bracket, Tripod step, Perimeter warning line
Specifications:
| Materials: | Aluminum tripod and head unit, stainless steel captive eye, powder coated steel feet with rubber foot pads, zinc plated steel chain and fasteners, nylon and stainless steel detent pins |
| Packed Length: | 97.2" (247 cm) |
| Packed Width: | 12" (30.5 cm) |
| Working Height: | Tallest stance 119" (302.3 cm), Shortest stance 53.5" (135.9 cm) |
| Working Diameter: | Narrowest stance 86.6" (219.9 cm), Widest stance 218" (553.7 cm) |
| Weight: | 64.3 lbs. (29.2 kg) |
| Tripod Attachment Points: | 1 captive eye, 6 anchor points on tripod head |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (190 kg) |
| Maximum Material Capacity: | 620 lbs. (281 kg) |
| ANSI Standards: | Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022 |
| OSHA Standards: | 1910.140, 1926.502 |
