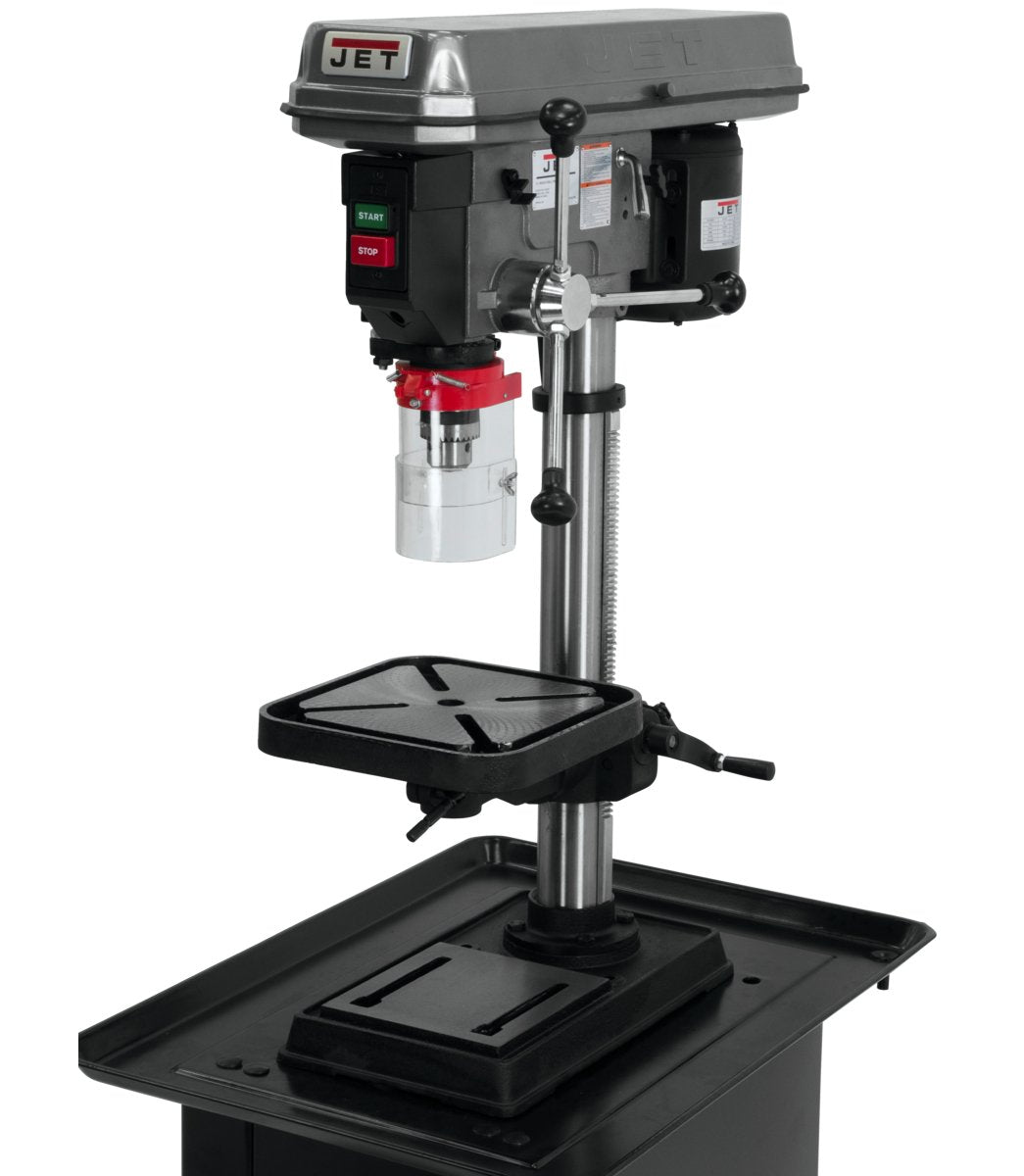

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class.

Features

• 3-1/8" stroke for deep hole applications
• Cast iron head
• Constructed to provide a solid base for drilling
• Large ground steel column for maximum head and table support
• Large quill allows greater accuracy
• Telescoping safety spindle guard
• The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

Specifications

Stock Number	354401
Base Dimensions (In.)	18 x 10-1/2
Base Work Table (In.)	8 x 8
Column Diameter (In.)	2-7/8
Distance Column to Spindle (In.)	7-1/2
Drilling Capacity Cast Iron (In.)	5/8
Drilling Capacity Mild Steel (In.)	1/2
Drills to Center of Circle (In.)	15
Motor (HP)	3/4 HP, 115/230V, 1Ph
Number of Spindle Speeds	16
Overall Dimensions (L x W x H) (In.)	31 x 13 x 39-1/2
Prop 65	Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)	200, 290 ,350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
Spindle Distance to Base (In.)	24
Spindle Distance to Table (Max.) (In.)	15
Spindle Taper (In. x TPI)	MT-2
Spindle Travel (In.)	3-3/8
Style (Type)	Belt Drive
T-Slots Number and Size (In.)	3 - 5/8
Table Size (L x W) (In.)	11-1/2 x 11-1/2
Table Travel (In.)	15-1/2
Weight (Lbs.)	157
Work Table Weight Capacity (Lbs.)	44
