Powermatic | SKU: PM9-1791213

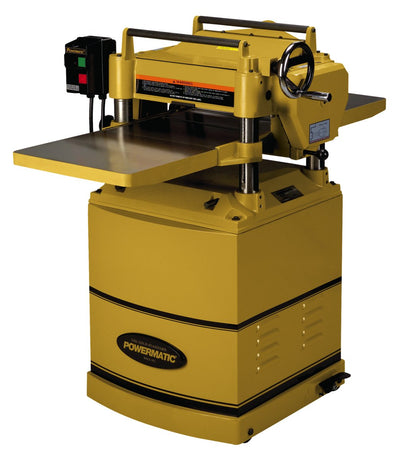

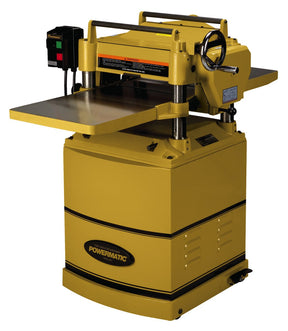

15HH Planer, 3HP 1PH 230V

Name: 15HH Planer, 3HP 1PH 230V
Brand: Powermatic
SKU: PM9-1791213
Price: 4299.99 USD
Availability: InStock

$4,299⁹⁹ ~~$5,282⁸⁴~~

Shipping calculated at checkout.

Safe & Secure Payments.

The helical cutterhead on this Planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing.

Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4" dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.

Features

Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection
Large cast iron handwheel positions table quickly and easily
Large, precision ground cast iron table and extensions provide maximum workpiece support
Lockable built-in caster system allows for mobility in the shop
Steel top-mounted return rollers speed repetitive cuts
The helical cutterhead with 74 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Three V-belts transfer maximum power to the cutterhead
Two speed gearbox features automatic chain tensioner

Specifications

More Information
Stock Number	1791213
Cuts Per Minute	Not Applicable
Cutterhead Diameter (In.)	2-7/8
Cutterhead Speed (RPM)	4500.0000
Dust Collection Minimum CFM Required (CFM)	800
Dust Port Outside Diameter (In.)	4
Feed Rate (FPM)	16/20
Maximum Depth of Cut (In.)	3/16
Maximum Full Width Depth of Cut (In.)	1/8
Maximum Planing Thickness (In.)	6
Maximum Planing Width (In.)	14-7/8
Minimum Planing Length (In.)	8
Motor Amps	15
Motor Phase	1
Motor Power (HP)	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	30
Style (Type)	Floor
Table Support	4 Column
Type of Cutterhead	HELICAL
