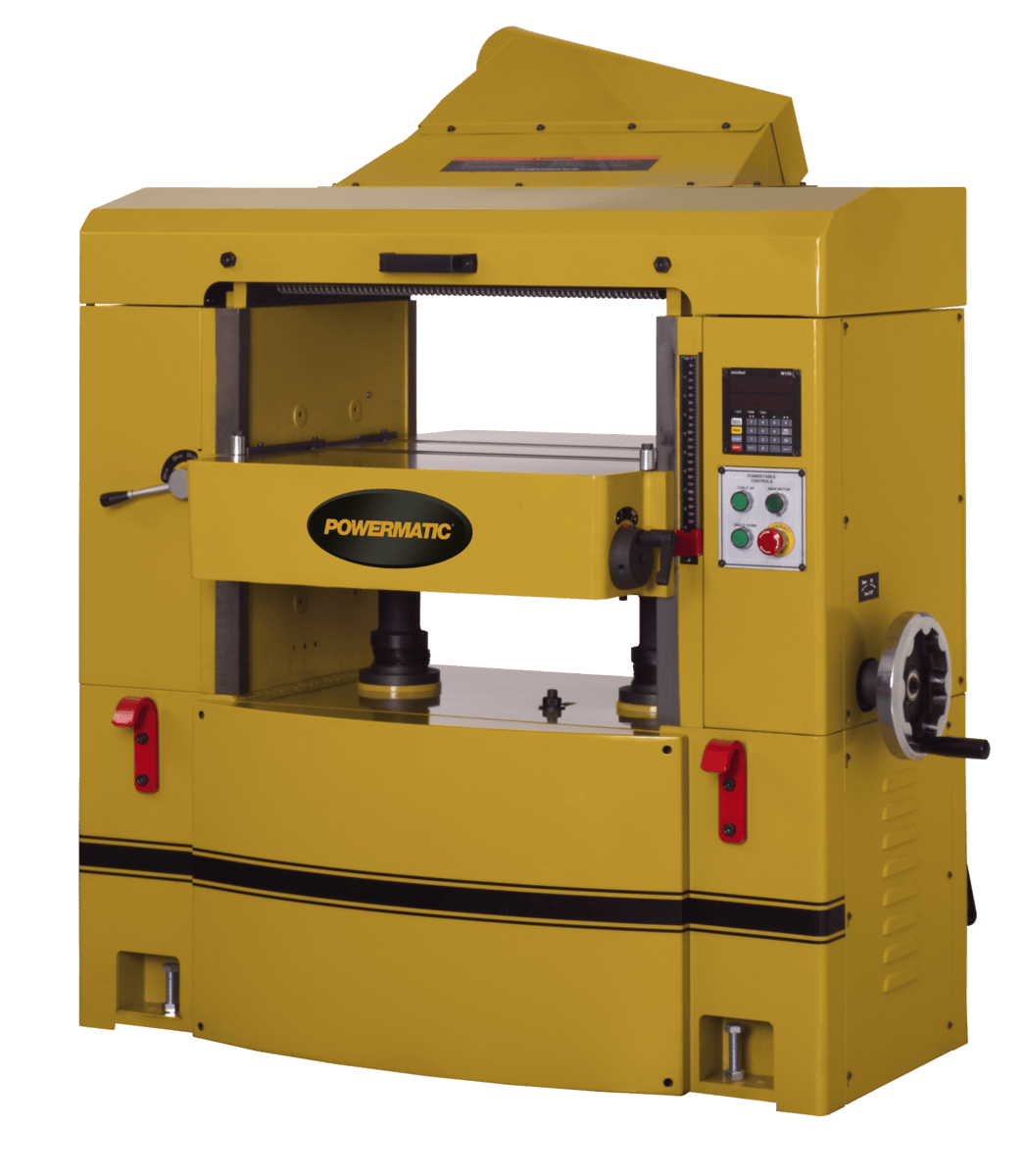

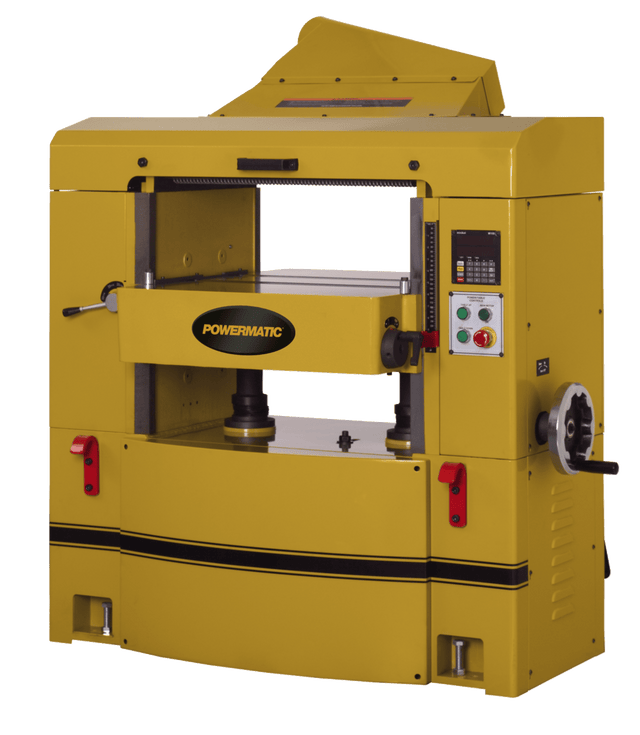

WP2510 Planer, 15HP 3Ph 230VHelical Head

SKU# PM9-1791303

Regular price $21,339.00
Shipping calculated at checkout.

Secure Checkout

Safe & Secure Payments

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Meta Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

Flexible financing available

Discover your options →

Centra Funding

Orders $10,000+
Apply Now

You might also be interested in

  • 201HH Planer, 7.5HP 3PH 230V Powermatic

    Powermatic

    201HH Planer, 7.5HP 3PH 230V

    Regular price $12,539.00
    View details
  • 201HH Planer, 7.5HP 1PH 230V Powermatic

    Powermatic

    201HH Planer, 7.5HP 1PH 230V

    Regular price $12,539.00
    View details
  • Powermatic

    201 Planer, 7.5HP 1PH 230V

    Regular price $9,899.00
    View details
  • Powermatic

    209HH, 20" Planer, 5HP 3PH 230

    Regular price $6,269.00
    View details
  • Powermatic

    209HH, 20" Planer, 5HP 1PH 230V

    Regular price $6,269.00
    View details
  • Powermatic

    209 Planer, 5HP 1PH 230V

    Regular price $5,169.00
    View details
  • Powermatic

    209 Planer, 5HP 3PH 230

    Regular price $5,169.00
    View details
  • Powermatic

    15HH Planer, 3HP 1PH 230V

    Regular price $4,399.00
    View details
  • Worcraft

    WorCraft 20V Brushless Cordless Router Kit with 4.0Ah Battery Options & Charger

    Regular price$209.00 – $219.00
    View details
  • Worcraft

    WorCraft 20V Cordless Router — Brushless, Variable Speed

    Regular price $149.00
    View details
  • Sale

    Bora

    BORA 3.25hp Soft Start Router Motor

    Sale price $429.99 Was: Regular price $537.49 Save $107.50
    View details
  • Jet

    JAT-700, High Speed Sander

    Regular price $104.99
  • Powermatic

    Powermatic Micro Dust Air Filtration System | PM1250

    Regular price $659.99
    View details
  • Jet

    Air Filtration 1000CFM | AFS-1000C

    Regular price $659.99
    View details
  • Powermatic

    Powermatic PM1200 Air Filtration System

    Regular price $813.99
    View details

Product Description

The WP2510 Planer has a large 32-3/16" x 26" precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock.

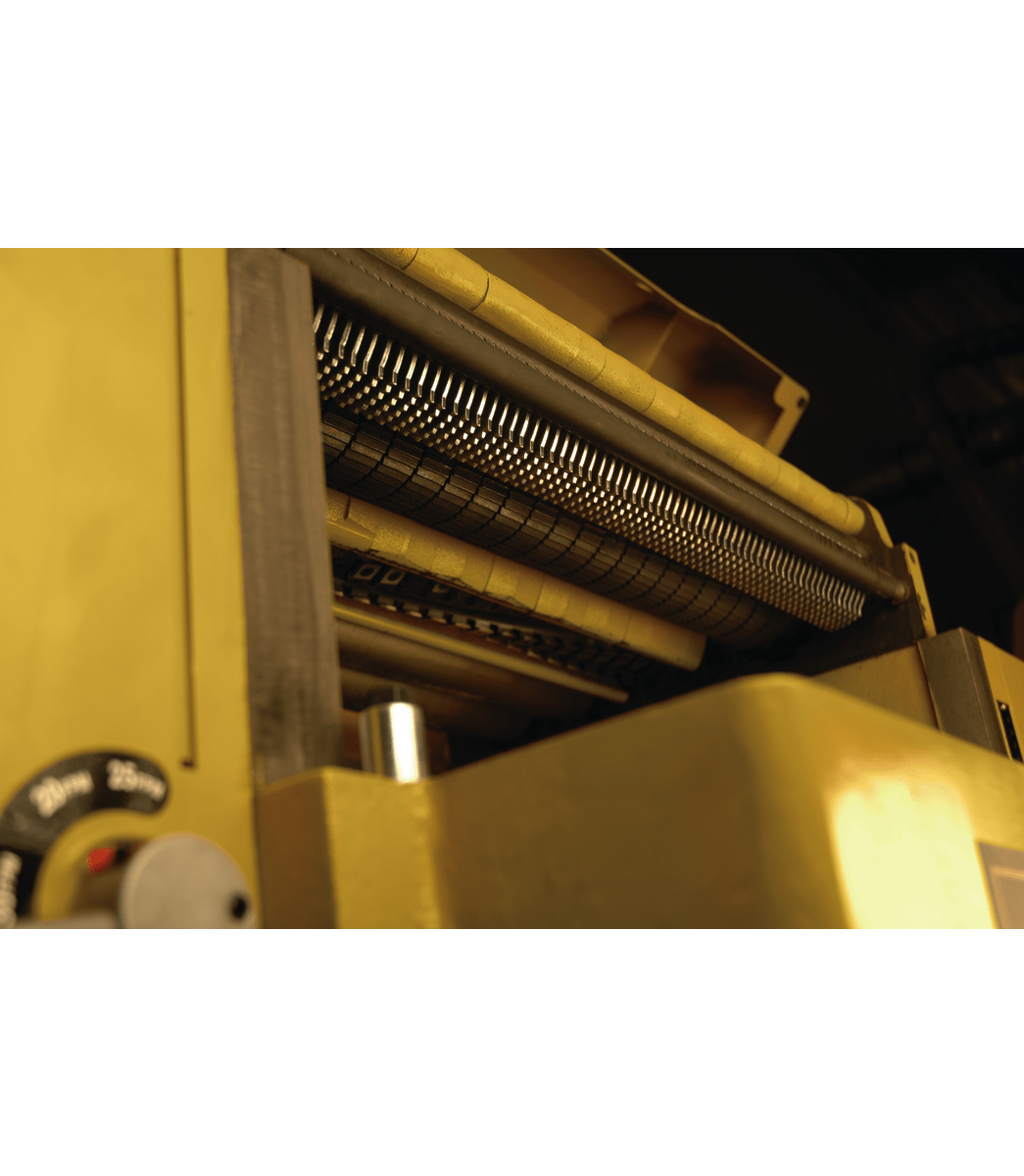

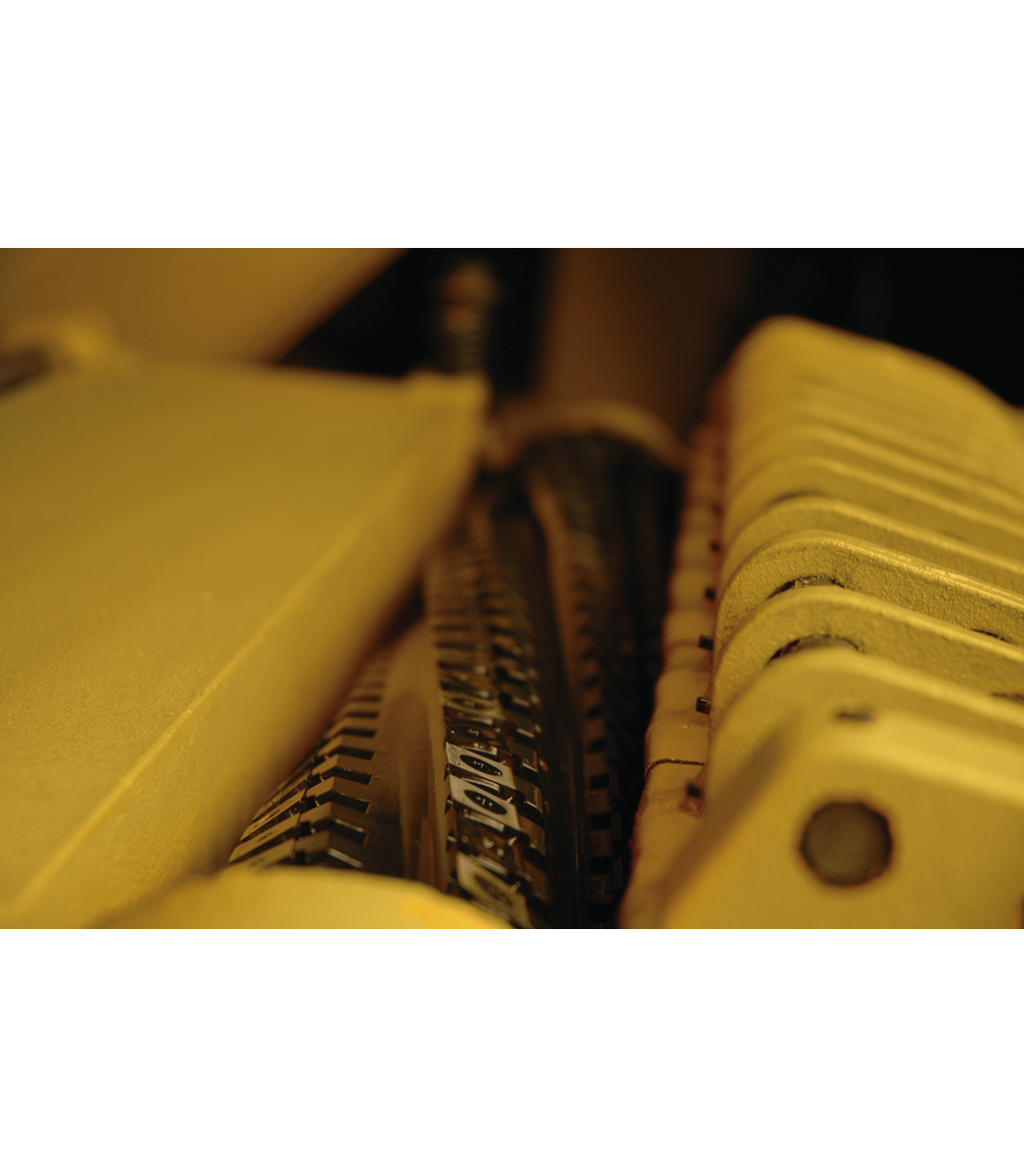

The Powermatic® WP2510 Planer has a solid steel helical cutterhead with 174 four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. The planer's segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gear box powers the 3" diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily.

  • 3" diameter infeed and outfeed rollers are supported by four large needle bearings for long life
  • Adjustable table
  • Massive gear box maintains positive feed by using a large chain drive with automatic tensioners to power infeed and outfeed rollers
  • Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
  • Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
  • Solid steel helical insert head with 174 four-sided carbide inserts eliminates need for adjustment after changing knives, reduces sound levels
More Information
Stock Number 1791303
Column Diameter (In.) 2-1/2
Cuts Per Minute 30,000
Cutterhead Diameter (In.) 3-3/8
Cutterhead Speed (RPM) 5000.0000
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 5
Feed Rate (FPM) 20/25/30
Infeed Roller Diameter (In.) 3
Maximum Depth of Cut (In.) 1/4
Maximum Full Width Depth of Cut (In.) 1/8
Maximum Planing Width (In.) 25
Minimum Planing Length (In.) 10
Motor Amps 37/18.5
Motor Phase 3
Motor Power (HP) 15
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Style (Type) Floor
Type of Cutterhead HELICAL
