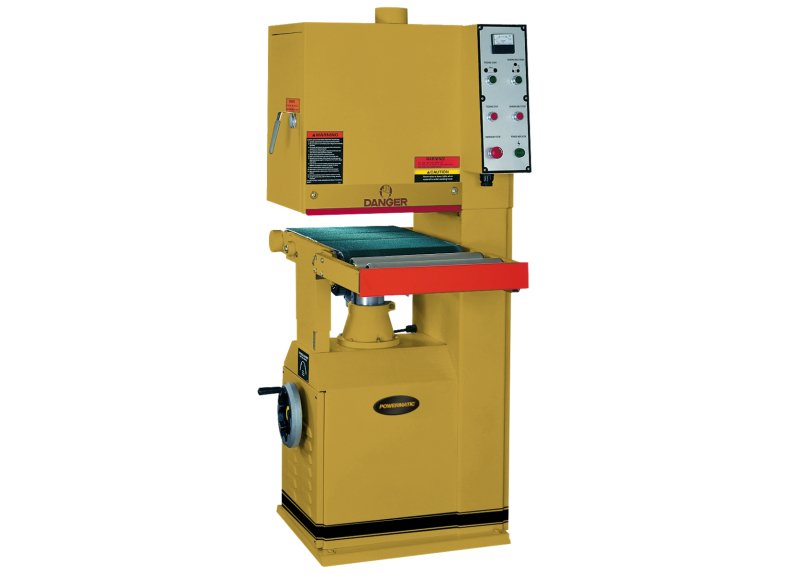

The 16" Open-End Belt Sander has front mounted controls and a load meter, which maintains a constant check during operation.

Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.


  • Air pressured oscillating movement for smoother surfaces
  • Choose from 15 or 32.5 FPM dual feed speed
  • Conveniently mounted load meter maintains constant check during operation
  • Extendable workpiece support arm
  • Front facing emergency safety stop
  • Limiters will stop sander instantly if belt breakage occurs
  • Pneumatic sanding belt tracking keeps belt centered
  • Side access door for easy belt changes
  • Combination head promotes a more consistent finish
More Information
Stock Number 1791250
Air Required 4 at 5 atm
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
Feed Motor Power (HP) 1/4
Feed Rate (FPM) 15/32.5
Maximum Board Thickness (In.) 5
Maximum Board Width (In.) 16
Minimum Board Length (In.) 13-3/4
Motor Phase 1
Motor Power (HP) 5
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 40
Sanding Belt Speed (FPM) 2,200
Style (Type) Wide Belt Sander
