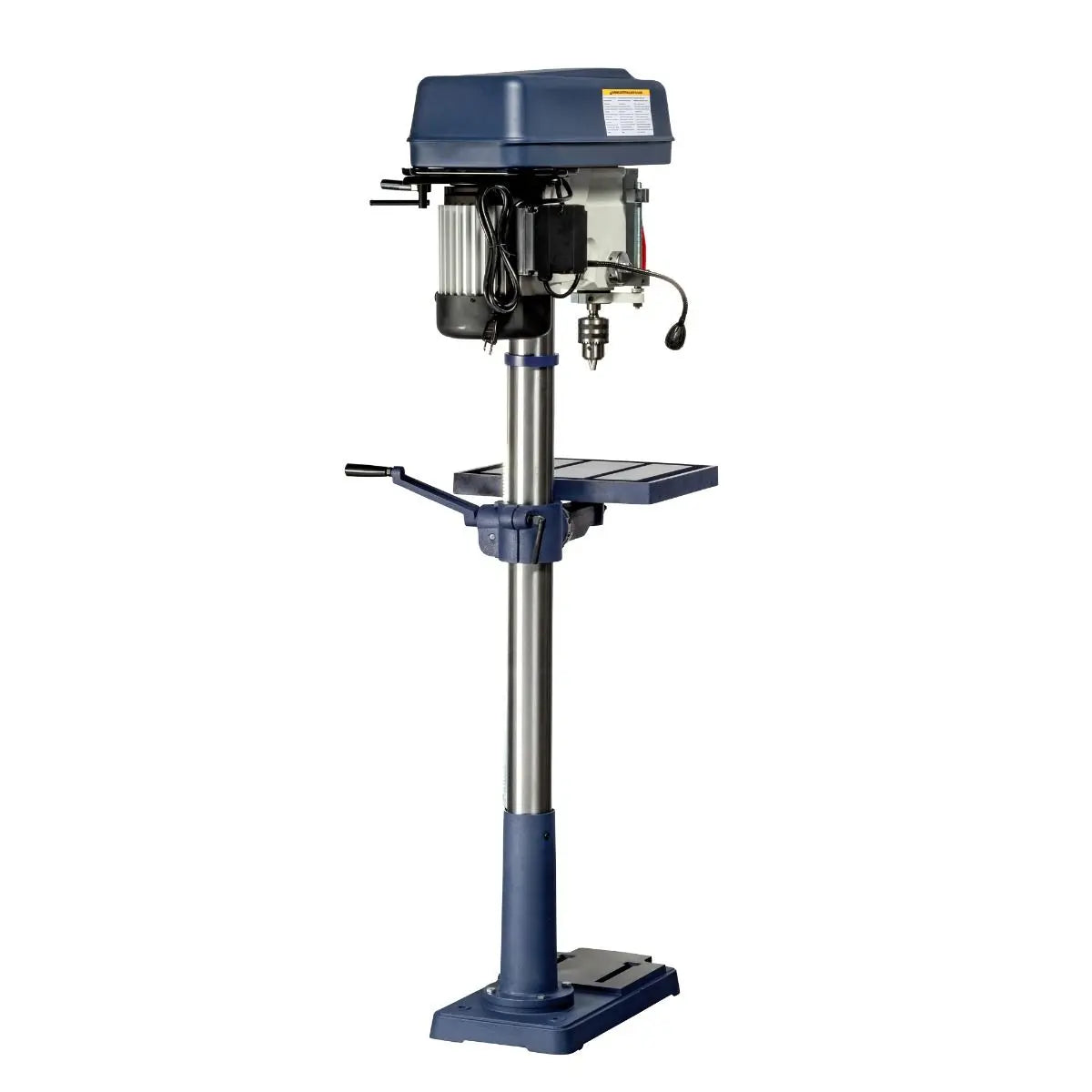

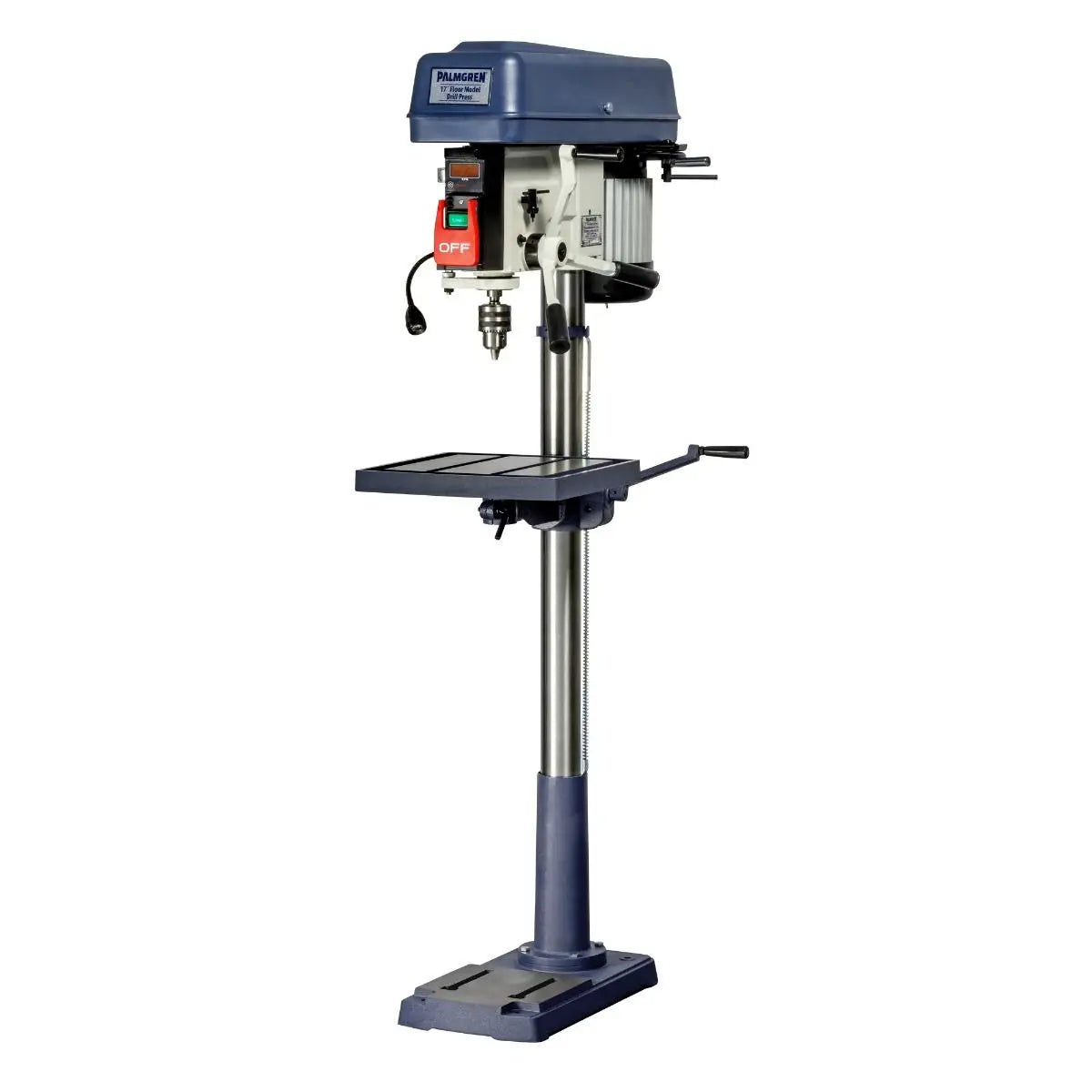

17" 16-Speed Floor Step Pulley Drill Press (120/240V 1 Phase)
SKU# 9680177
$1,62500
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
17" 16-Speed Floor Step Pulley Drill Press (120/240V 1 Phase)
$1,62500
Unit price
/
Make a Selection
Palmgren's step pulley drill presses are substantially constructed to provide a solid base for all your drilling operations, and offer a greater range of spindle speeds than any others in their class.
They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.
- Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
- Maximum spindle run out of 0.0005"
- Extended quill/spindle travel ideal for deep hole applications

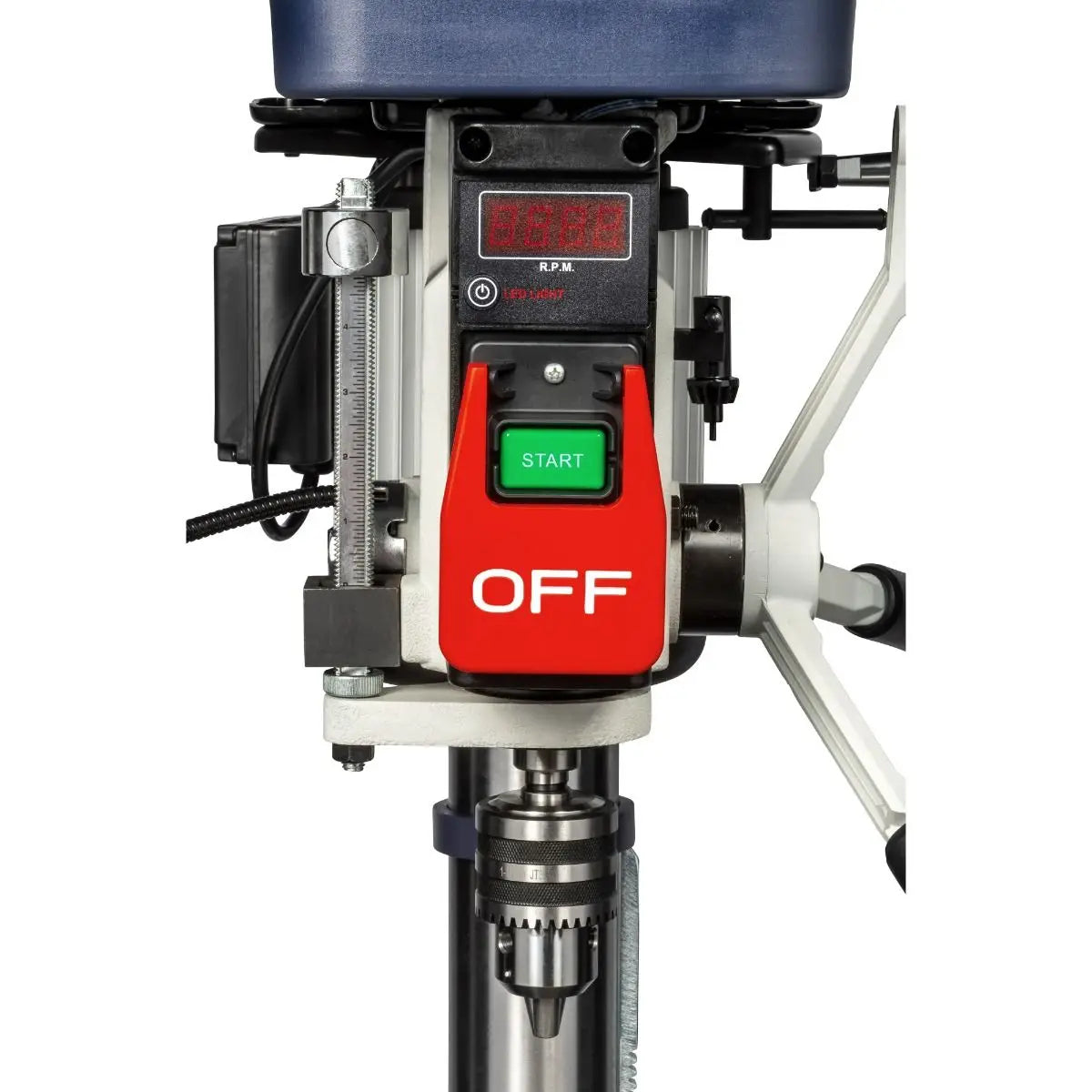

- LED readout for spindle speeds
- Quick change vertical depth stop for accurate, repeatable feed length
- Includes chuck with key and arbor
- Rack and pinion table raiser
- Table tilts 45 degrees right and left and rotates 360 degrees around the column
- Front mounted industrial paddle type power switch
| AMPS | 10.2/5.1 |
|---|---|
| Capacity Cast Iron | 7/8" |
| Country of Origin | CN |
| Drill Press Model | Floor Model |
| Drill Press Type | Step Pulley |
| Motor HP | 1 |
| Overall Dimensions (LxWxH) | 68" H x 15-1/2" W x 28" D |
| Phase | Single |
| RPM | 138 - 3476 |
| Spindle Taper | MT2/JT3 |
| Spindle Travel | 5 |
| Swing | 17" |
| Table Dimensions | 14-3/8" x14-3/8" |
| Table Slots | 5/8" |
| Voltage | 120/240 |
| Warranty | 3 Year |
| UPC | 726896801773 |
| Unit of Measure | Each |
| Product Height (in) | 10.5 |
| Product Length (in) | 54.3 |
| Product Width (in) | 25.8 |
| Product Weight (lbs) | 216 |
Product Manual
