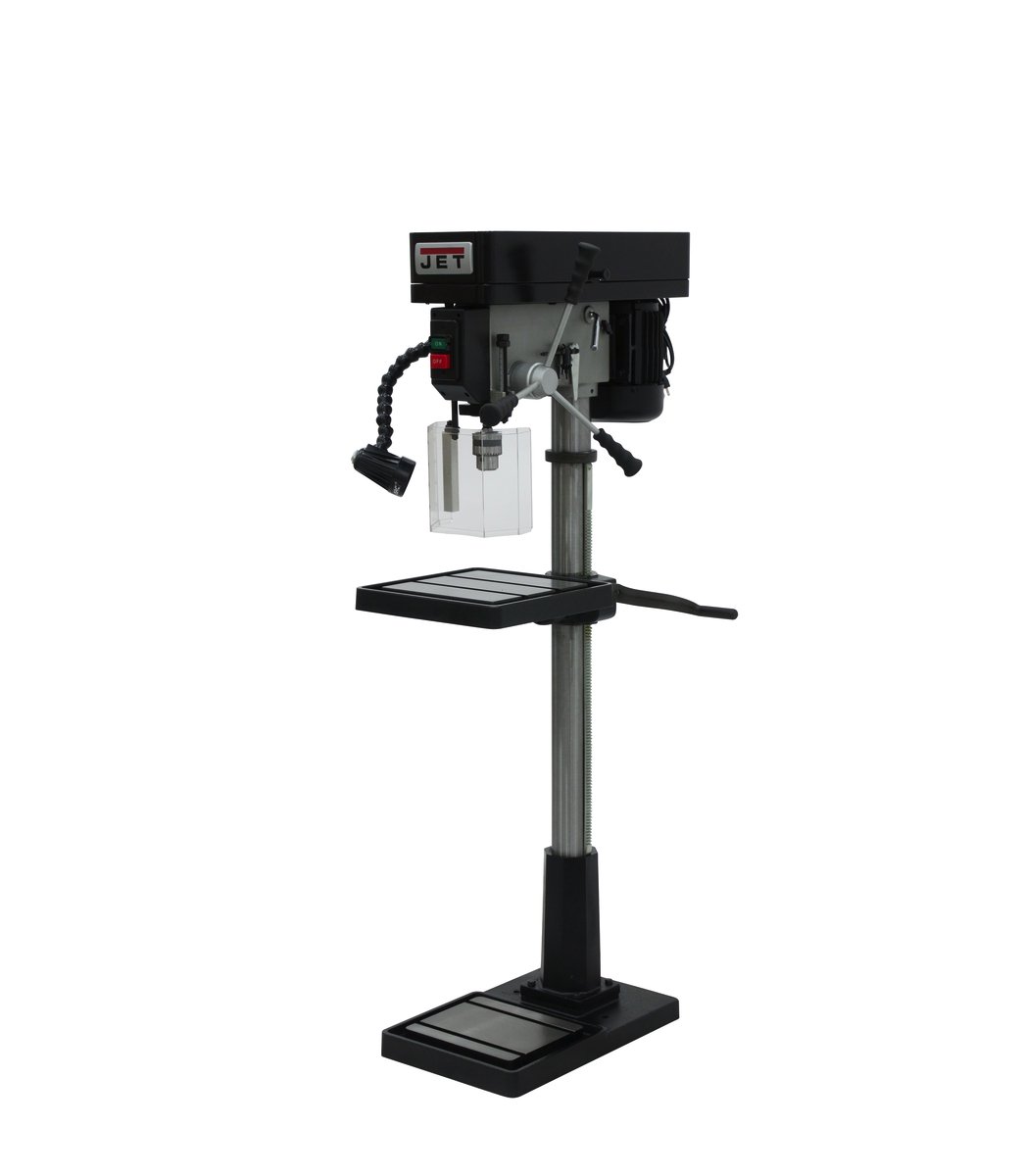

17" Industrial Floor Model Drill Press | IDP-17

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses.

This heavy-duty industrial line of JET Drill Presses come standard with oversize cast iron tables and base and are CSA/CUS Certified.

Features

• 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Drill chuck and key attach to the side of the drill press always within reach of the operator
• Hinged metal belt and pulley cover
• Large Hand Grips designed with the users comfort in mind
• On/off switch located on front of the drill press head
• Rotating, 45° tilting, crank-operated worktable with quick release clamp
• Spindle is supported by high quality ball bearings
• Table ground for accuracy

Specifications

Stock Number	354300
Base Dimensions (In.)	21-3/4 x 13-3/4 x 2-3/16
Base Work Table (In.)	16-15/16 x 10-13/16
Chuck Size (In.)	5/8
Column Diameter (In.)	3-1/8
Distance Column to Spindle (In.)	8-3/8
Drilling Capacity Cast Iron (In.)	3/4
Drilling Capacity Mild Steel (In.)	5/8
Drills to Center of Circle (In.)	17
Motor (HP)	1 HP, 115/230V, 1Ph
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	27-1/2 x 15-3/4 x 63
Prop 65	Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)	350 - 2,800
Spindle Distance to Base (In.)	50
Spindle Distance to Table (Max.) (In.)	30-1/2
Spindle Taper (In. x TPI)	MT-2
Spindle Travel (In.)	3-5/16
Style (Type)	Belt Drive
T-Slot Centers (In.)	9/16
T-Slots Number and Size (In.)	2 and 1/2
Table Size (L x W) (In.)	14 x 14
Weight (Lbs.)	276
