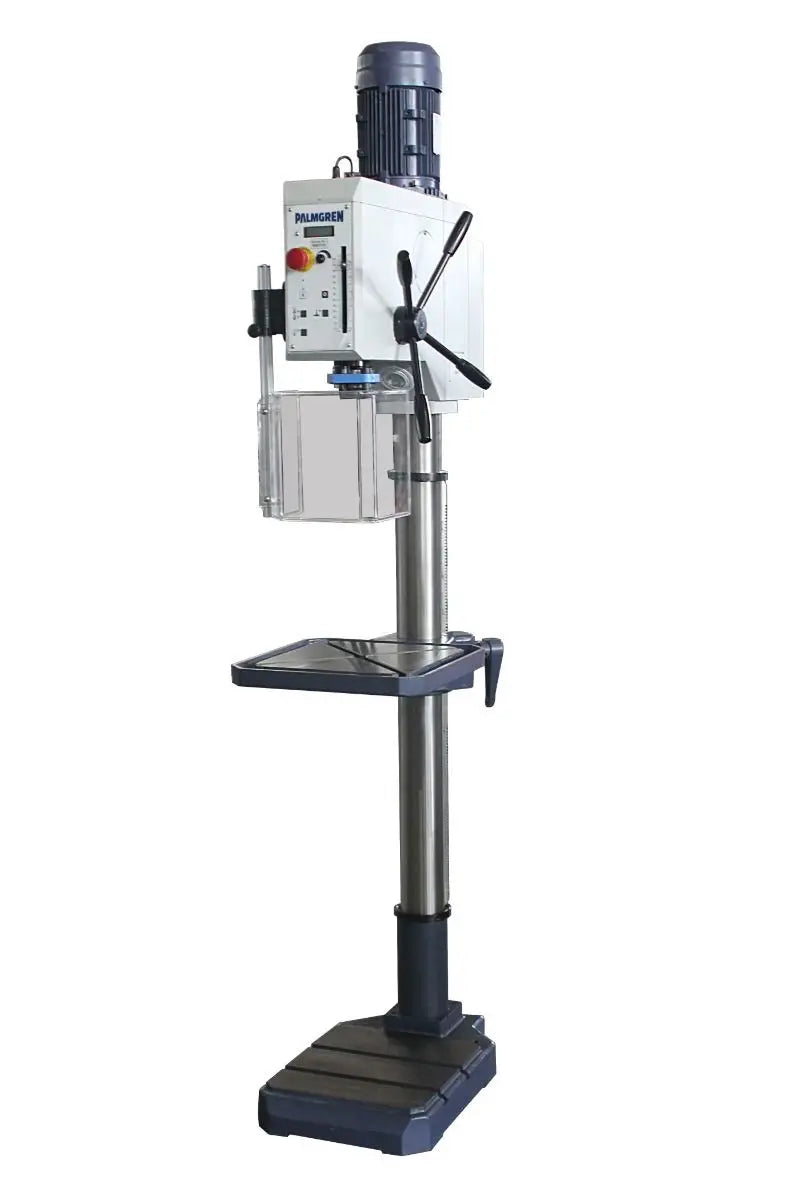

Gear Head Drill Machine VS 460V 20"

These versatile, gear driven, drill presses are ruggedly constructed with an all gear driven transmission to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower. The drill ensures positive and quiet operation by the use of steel and reinforced fiber gears.

• Wide speed range with 4 different speed settings
• Simple knob selectors for operator ease in controlling spindle speeds
• Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection
• Front mounted control panel designed for operator convenience
• T-slotted production table and base
• Rack and pinion table raiser
• Front mounted dial adjusted work stop
• Interlocking chuck guard
• Maximum spindle runout of 0.0005"
• Work light

Specification	Details
AMPS	3.2
Capacity Cast Iron	1-1/8"
Capacity Steel	1"
Column Diameter	3.62"
Country of Origin	CN
Drill Press Model	Floor Model
Drill Press Type	Gear Head
Max. Spindle To Base	47"
Motor HP	2
Number of Spindle Speeds	Variable
Phase	Three
Quill Diameter	62mm
Spindle Taper	MT3
Spindle Travel	5"
Swing	20"
Table Dimensions	15.5" x 14.75"
Table Slots	4
Table Slot Size	14mm
Voltage	460
Warranty	3 Year
UPC	726896801384
Unit of Measure	Each
Product Weight (lbs)	405.6

Product Manual
