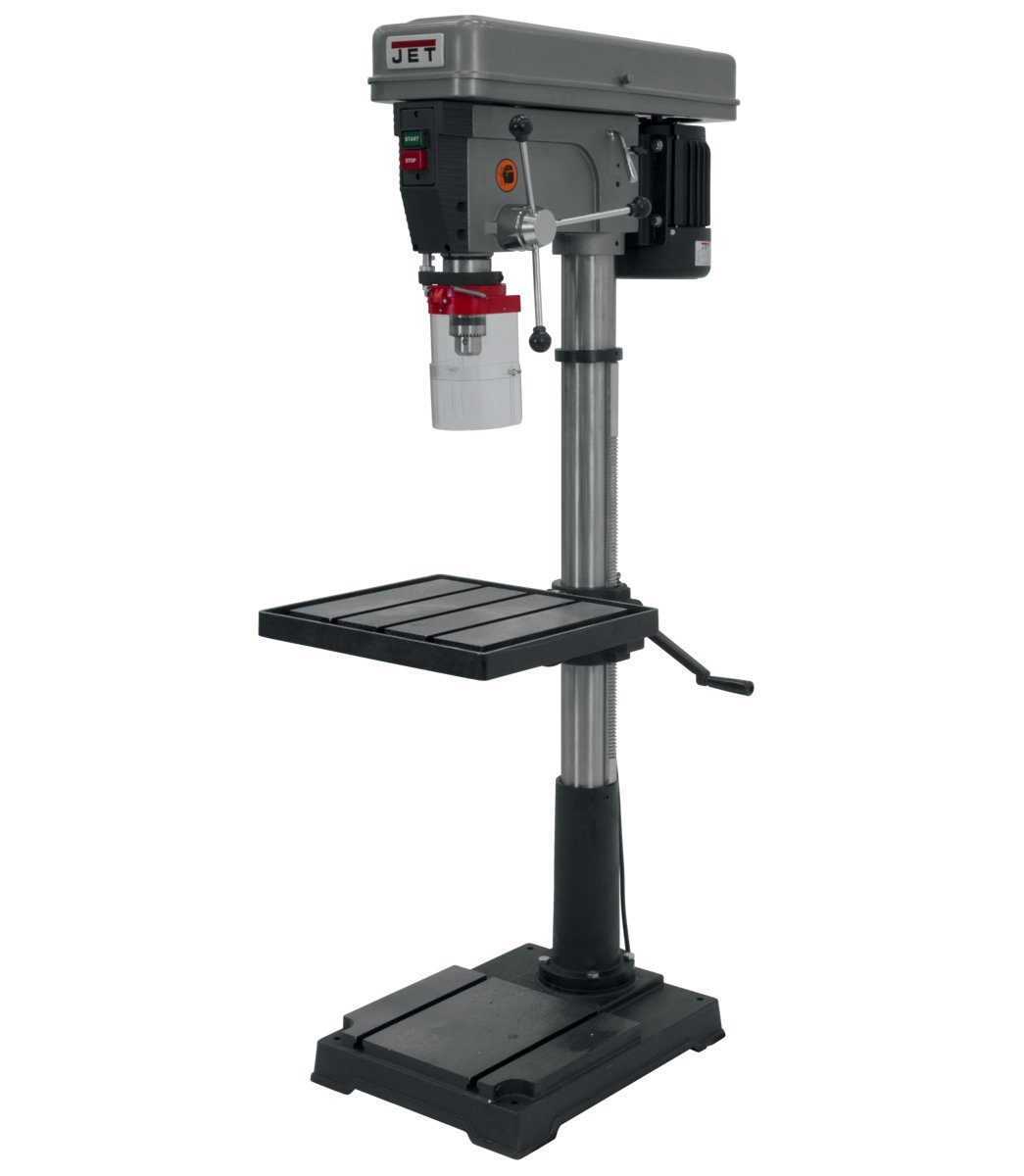

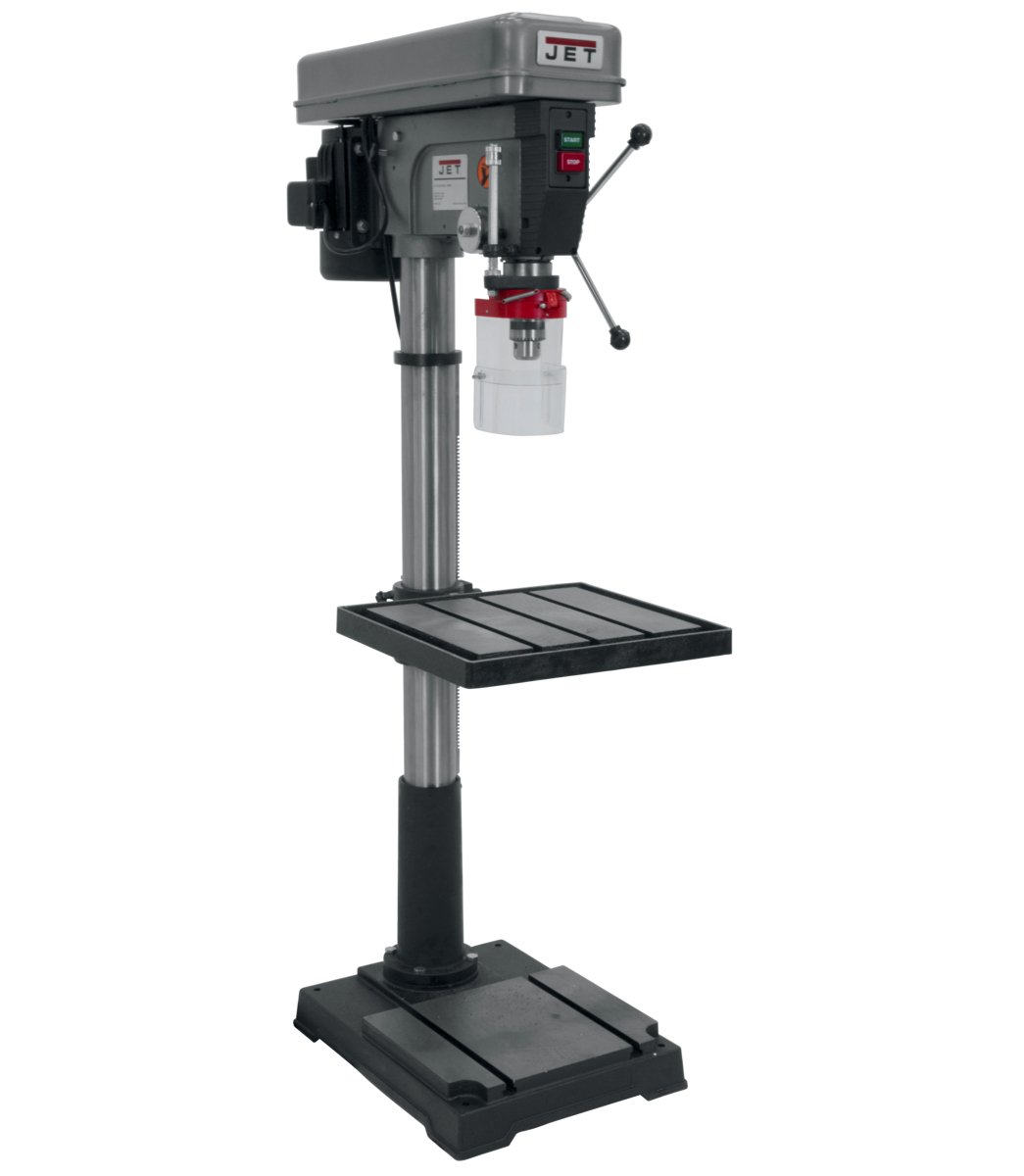

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class.

Features
  • 4-3/4" stroke for deep hole applications

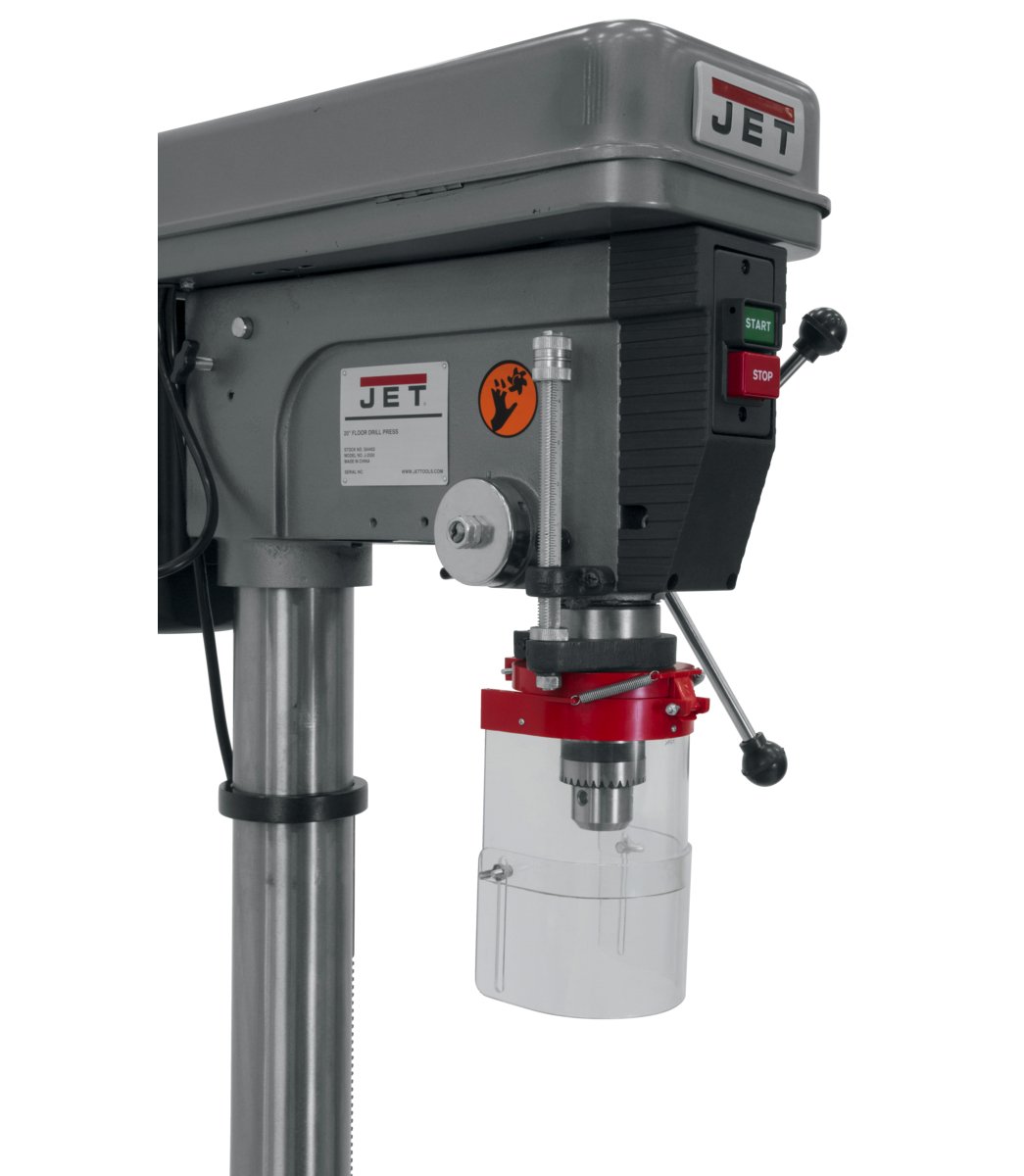

  • Cast iron head
  • Constructed to provide a solid base for drilling
  • Large ground steel column for maximum head and table support

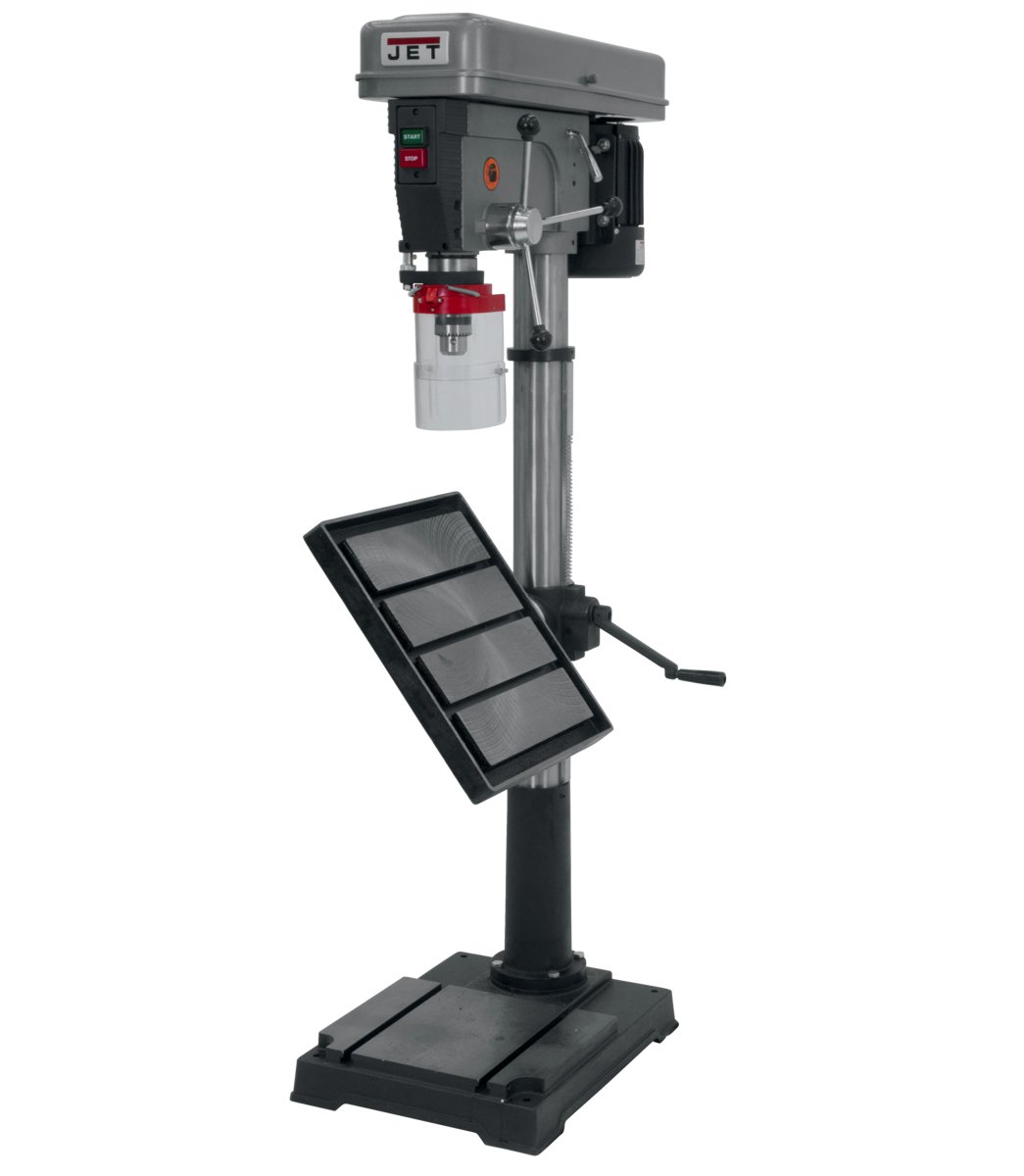

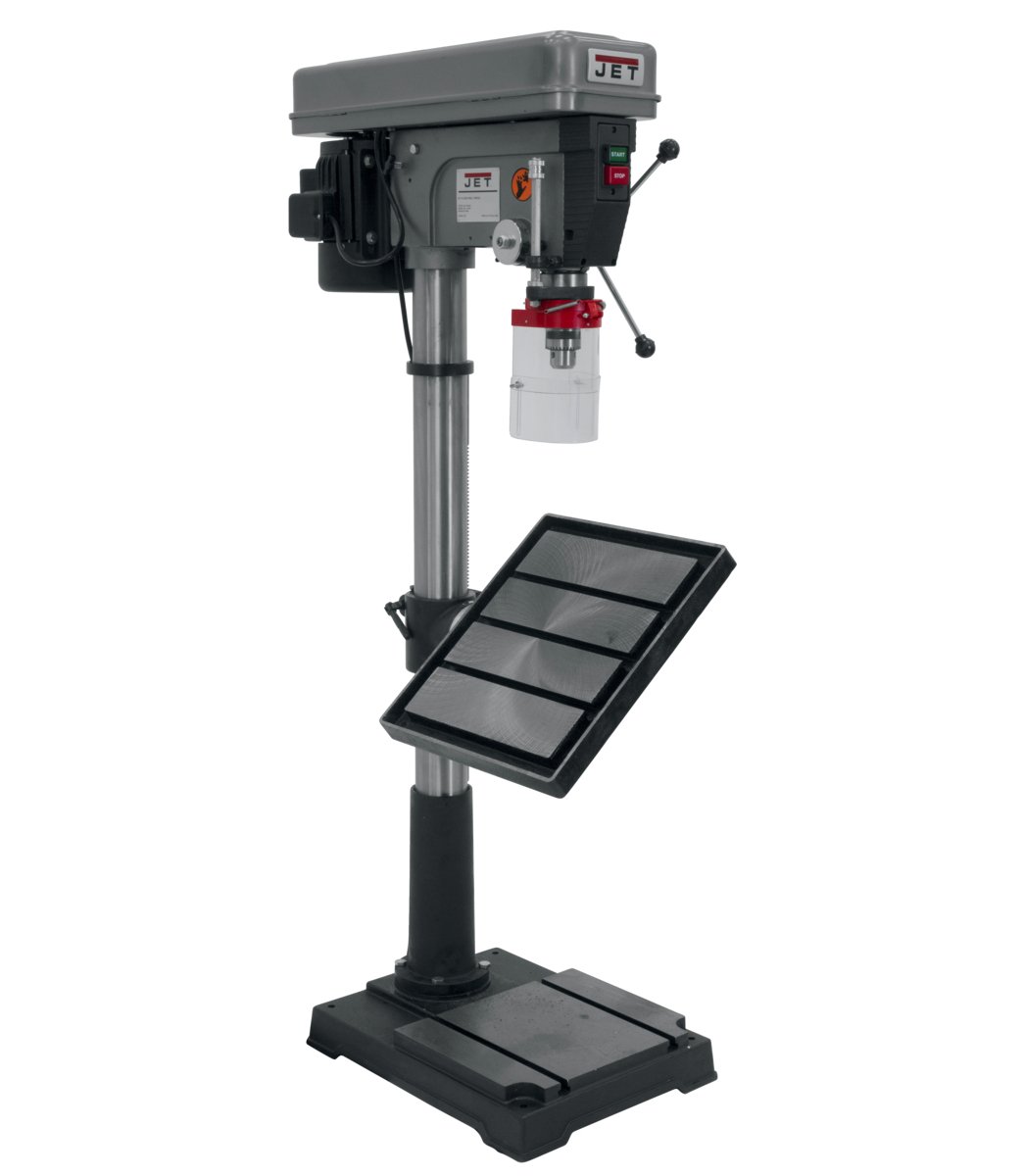

  • Large production table tilts 45°
  • Large quill allows greater accuracy

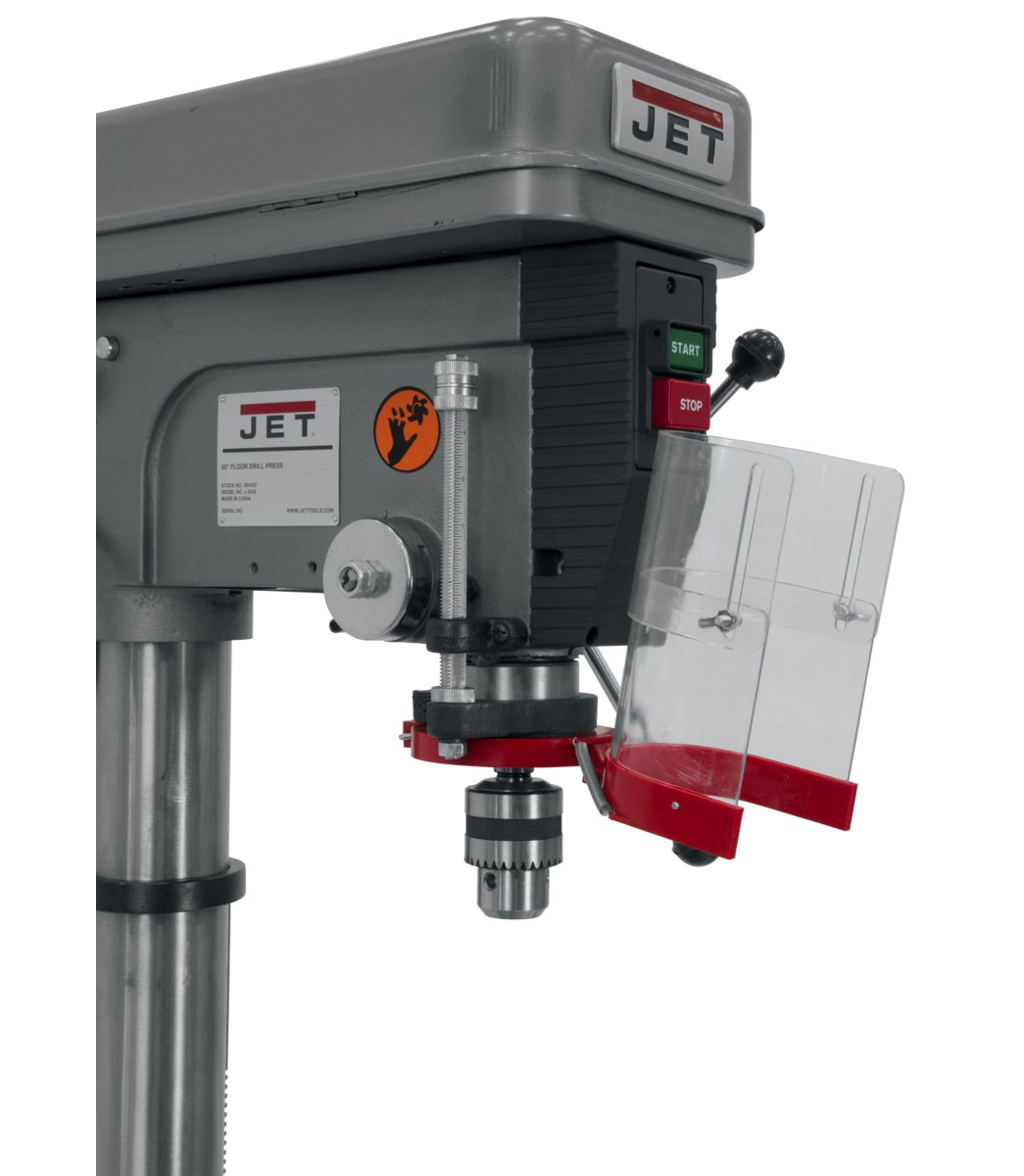

  • Telescoping safety spindle guard
  • The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
Specifications
Stock Number 354402
Base Dimensions (In.) 22-3/4 x 17-3/4
Column Diameter (In.) 3-5/8
Distance Column to Spindle (In.) 10
Drilling Capacity Cast Iron (In.) 3/4
Drilling Capacity Mild Steel (In.) 5/8
Drills to Center of Circle (In.) 20
Motor (HP) 1 HP, 115/230V, 1Ph
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 33-1/2 x 18-1/2 x 67
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200
Spindle Distance to Base (In.) 43-1/2
Spindle Distance to Table (Max.) (In.) 24
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-3/4

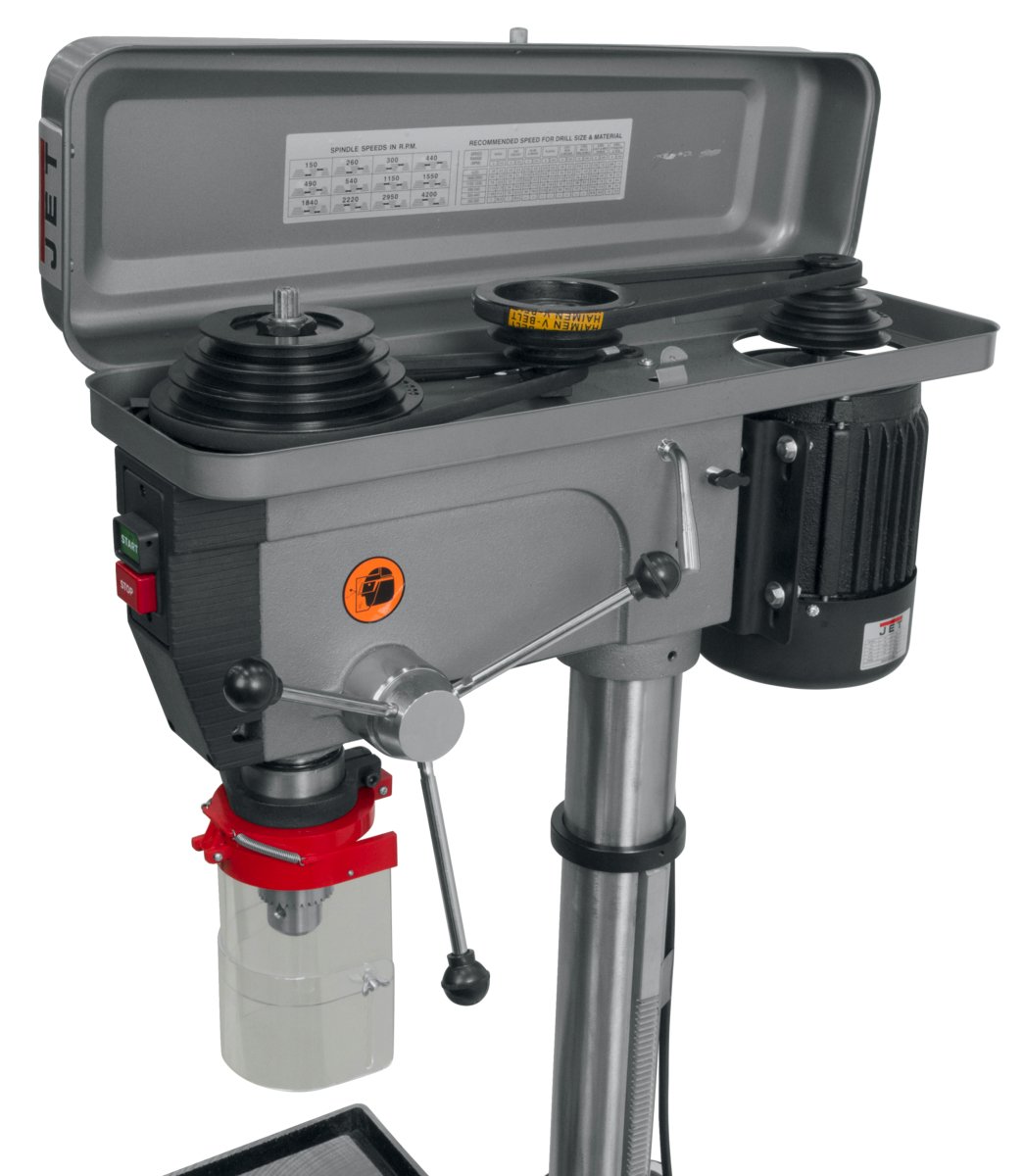

Style (Type) Belt Drive
T-Slot Centers (In.) 4
T-Slots Number and Size (In.) 3 and 1/2
Table Size (L x W) (In.) 18-11/16 x 16-3/4
Table Travel (In.) 21-1/2
Weight (Lbs.) 304
Work Table Weight Capacity (Lbs.) 66
