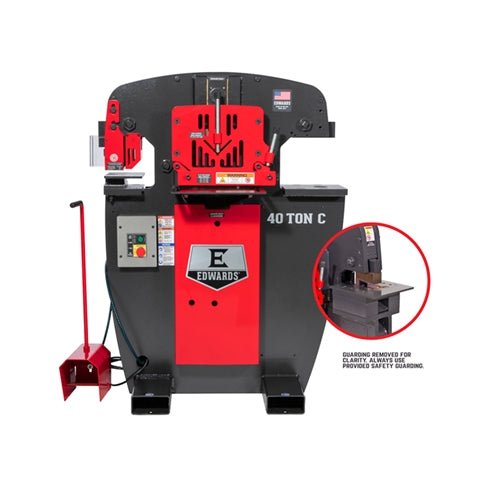

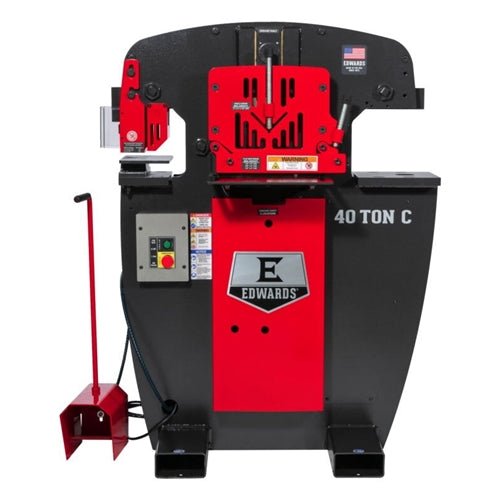

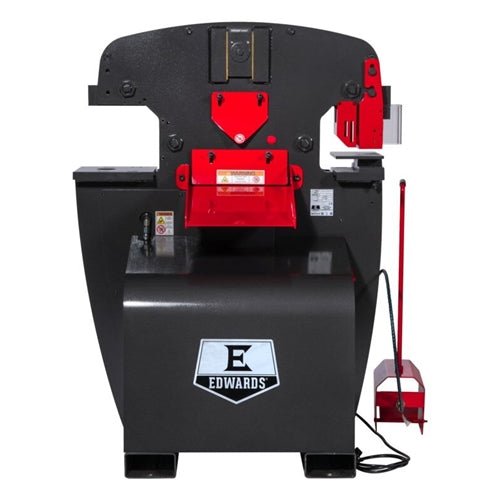

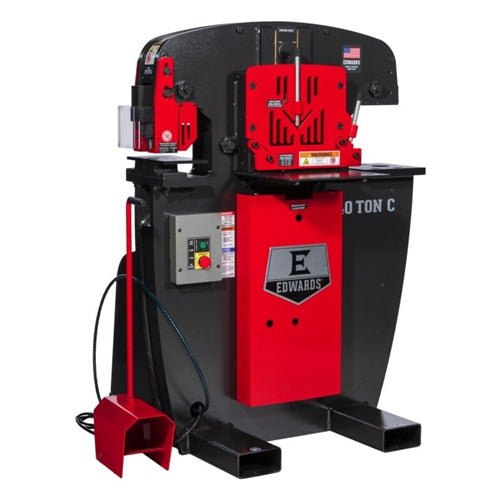

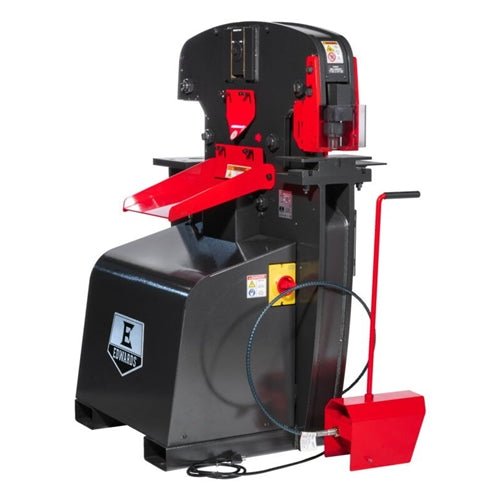

40 Ton C Ironworker

40 Tons on 115 Volts Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.

• Four Available Workstations
• Universal Open Tooling Station
• Operates on 115V Power
• ANSI B11.5-198802) Compliant Guarding
• ETL Certified Controls
• Integrated Lock-out/Tag-out

The Edwards 40 Ton C Ironworker is ideally suited for home, farm fabrication and medium-sized job shops. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories. There are 11 interchangeable Attachments and 16 Accessories available allowing customization of an Ironworker to your needs.

PUNCH

• Rating (tons) 40

• Max Capacity (in.) 1 diam. in 1/2 mild steel

• Work Height (in.) 34-1/2

• Throat Depth (in.) 7

• Stroke (in.) 1-5/8


FLAT BAR SHEAR

• Max. Capacity (in.) 1/4 x 8
• 3/8 x 6
• 1/2 x 4

• Work Height (in.) 34-3/4
