Our Best Value

• Four Loaded Workstations
• Dedicated Coper Notcher Station
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

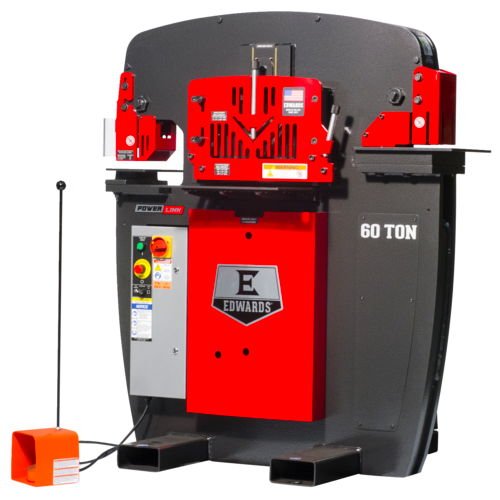

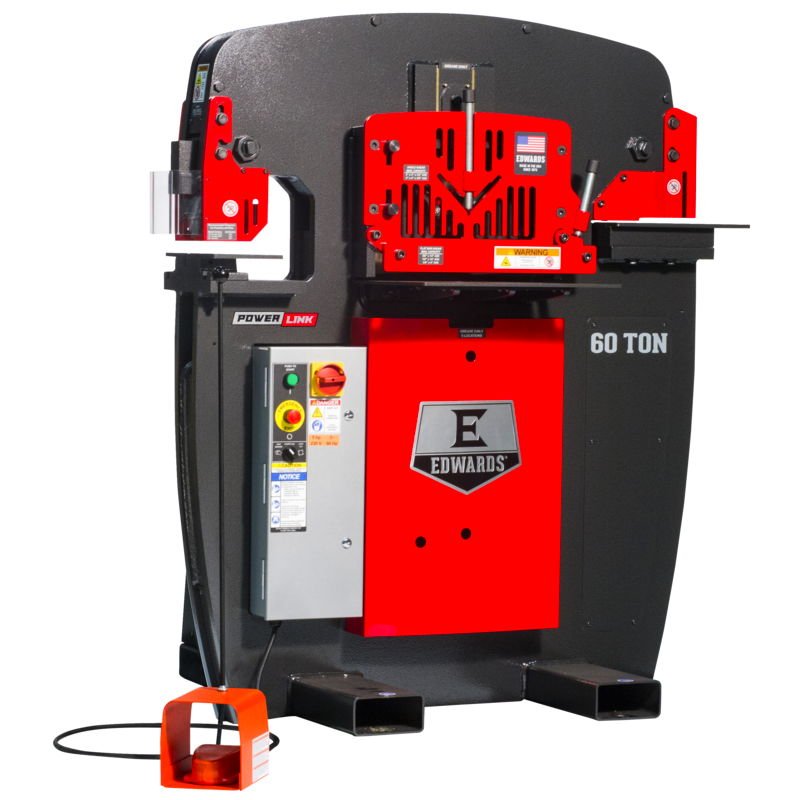

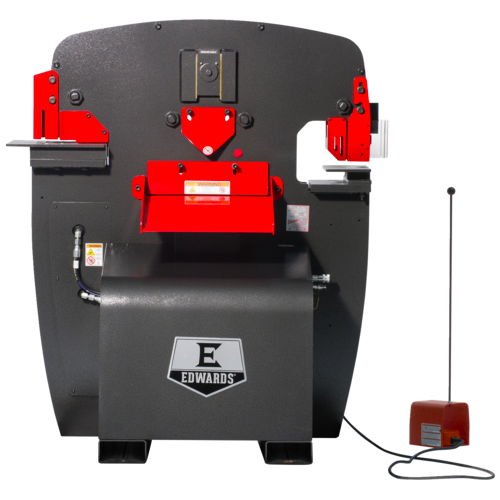

The Edwards 60 Ton Ironworker is a robust machine featuring a dedicated Coper Notcher station, adding strength and stability to this great tool. Standard features include a Punch Assembly with Pedestal Die Table, 14" wide Flat Bar Shear, Angle Shear and Coper Notcher.

• PUNCH

• Rating 60 Tons

• Max. Capacity 1" Dia. in 3/4" A36

• (65,000 PSI Tensile)

• Stroke 1-1/4"

• Throat Depth 8-7/8"

• Open Height 8-1/8"

• Shut Height 6-7/8"

• Work Height 36-9/16"

FLAT BAR SHEAR

• Max. Capacity 3/8" x 14"

• 1/2" x 12"

• 3/4" x 4"

• Max. Round 7/8"

• Max. Square 7/8"

• Work Height 34-1/2"

ANGLE SHEAR

• Max. Capacity 3" x 3" x 1/2"

• 4" x 4" x 3/8"

• Work Height 39-7/8"

COPER NOTCHER

• Max. Capacity 2-1/2" x 4" x 3/8"

• Work Height 39-1/2"

GENERAL SPECIFICATIONS

• Standard Motor 5 HP 3~ 208 V or 230 V

• 1725 RPM 14 A

• Optional Motors 5 HP 3~ 460 V

• 1725 RPM 7 A
• 5 HP 3~ 575 V

• 1725 RPM 6 A
• 5 HP 1~ 230 V

• 1725 RPM 23 A

• Hydraulic Pump 3-1/2 GPM - 1 Stage

• Valve Pressure 2500 PSI

• Reservoir 7 Gallons

• Cylinder 2-1/2" Ram

DIMENSIONS

• Height 56-1/8"

• Width 46-1/8"

• Depth 36-1/8"

• Shipping Weight 2550 lb
