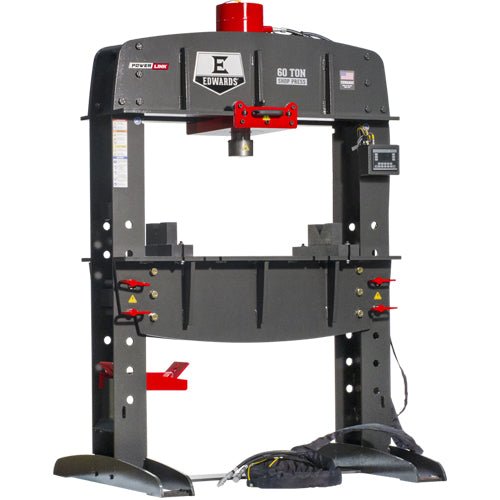

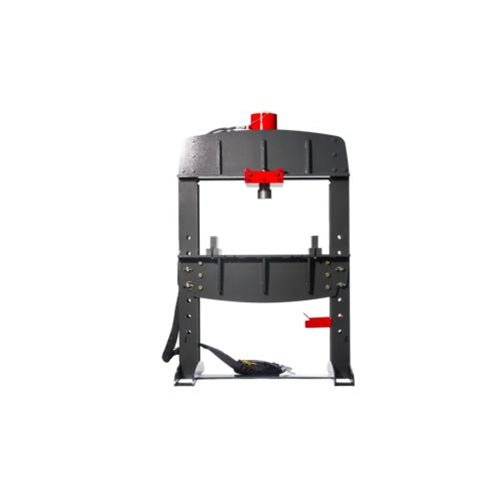

60 Ton Shop Press with PLC  Availability: Build to order; approx. 2 week lead time

Product Features:

• 1/2" and 3/4" Heavy-Duty Steel Construction
• Easy-to-Use Foot Pedal
• Versatile Rolling Cylinder
• Working Area of 42" x 39"
• Pressure Gauge
• Quick-Disconnect Hoses
• Hydraulic-Assist Table Height Adjustment
• 2 V-Blocks Included

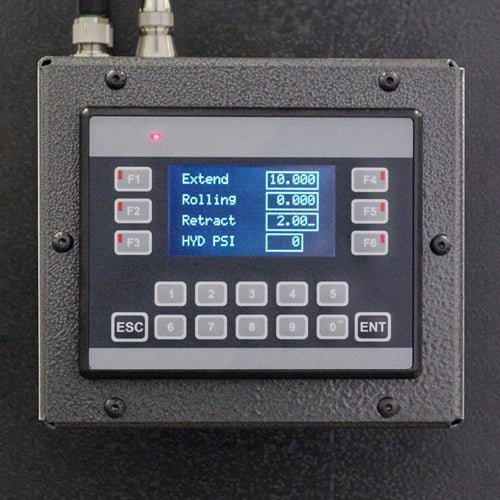

Improved Productivity with PLC (Programmable Logic Control)

Programmable Logic Control improves press accuracy with precision pressure and increased efficiency with automatic returns creating shorter cycle times. Up to 50% time savings.  Set your pressure with adjustable PSI.  The magnetic base allows for easy mounting of the PLC anywhere on the machine.  A perfect fit for shops that produce repeatable pieces that cannot justify a fully automatic press brake.

With the Press Brake Tooling, your Shop Press easily becomes a brake. Check out our bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.

Our 60 Ton Shop Press solves a variety of demands to improve user’s productivity. Smooth & precise, heavy-duty and versatile, our unique, open side design allows for material to pass through. Power it up with an Edwards Ironworker with factory installed PowerLink System or an Edwards Portable Power Unit.

GENERAL SPECIFICATIONS

EDWARDS IRONWORKER/

PORTA-POWER

Standard Motor 5 HP 3~ 208 V or 230 V

1725 RPM 14 A

Optional Motors 5 HP 3~ 460 V

1725 RPM 7 A

5 HP 1~ 230 V

1725 RPM 23 A

Hydraulic Pump 3-1/2 GPM - 1 Stage

Valve Pressure 2750 PSI

Reservoir 7 Gallons

GENERAL SPECIFICATIONS

Rating 60 Tons

Cylinder 4" Ram

Stroke 12-1/4"

DIMENSIONS

Height 84.3"

Width 54"

Depth 48"

Shipping Weight 1,874 lb
