Horizontal Press

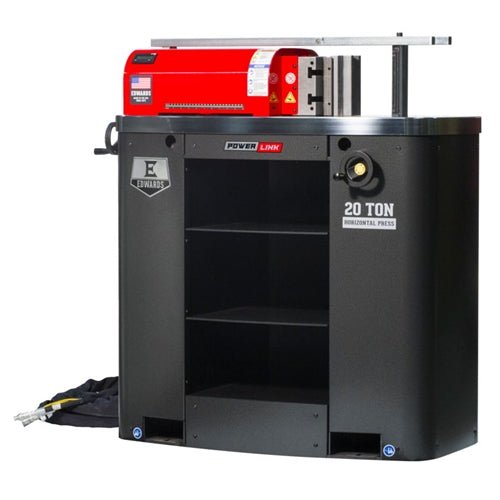

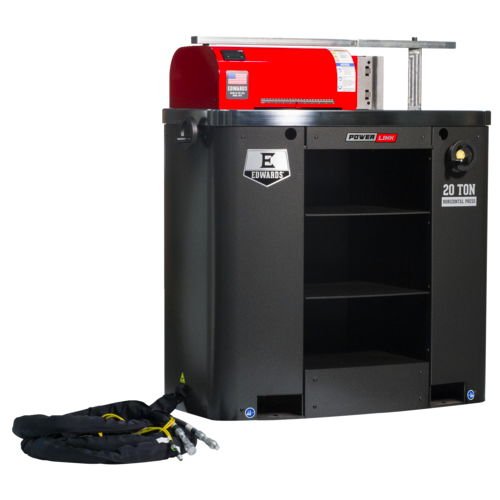

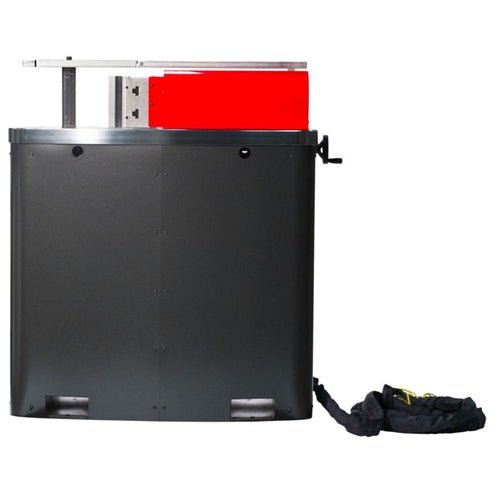

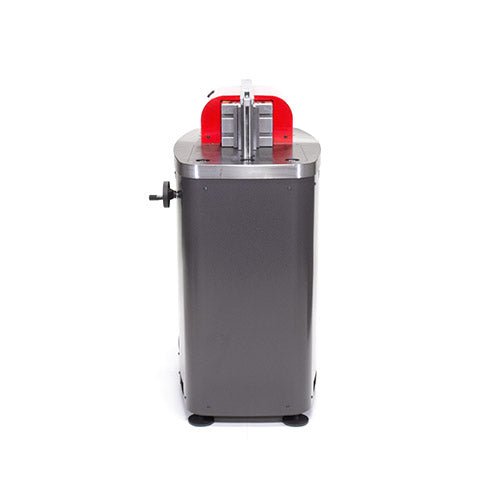

With 20 tons of force, the Edwards Horizontal Press accepts a great variety of tooling to form, brake, and straighten mild steel.

This compact powerhouse quickly connects to your Edwards Ironworker with a PowerLink System or Edwards Portable Power Unit to greatly expand your fabrication capabilities. Designed for maximum tooling flexibility, the 4 pin locations are locked with a simple crank for inboard tool squaring. The included digital encoder reads positive stop for accurate repeatability. The potential of this tool is only limited by your imagination.

GENERAL SPECIFICATIONS

EDWARDS IRONWORKER/

PORTA-POWER

Standard Motor 5 HP 3~ 208 V or 230 V

1725 RPM 14 A

Optional Motors 5 HP 3~ 460 V

1725 RPM 7 A

5 HP 3~ 575 V

1725 RPM 6 A

5 HP 1~ 230 V

1725 RPM 23 A

Hydraulic Pump 13.3 LPM - 1 Stage

Valve Pressure 18960.6 kPa

Reservoir 26.5 Liters

GENERAL SPECIFICATIONS

Rating 20 Tons

Cylinder 57.15mm Ram

Stroke 254mm

Work Height 965.2mm-1016mm

Table Dimensions 609.6mm x 1066.8mm

Weight 612.35 kg

TOOLING DETAILS

Pin Diameter 50.8mm

Dimensions 248.66mm min to 343.91mm max

(tool chuck to pin centers)

Pin Height 152.4mm max

(standard tooling)

Tooling Head 12.7mm T Nut/Set Screw &

American Standard Brake Punch Tooling
