60HH 8" Jointer, 2HP 1PH 230V, Helical Head

SKU 1610086K
Save $800.00 Save $800.00
Original price $4,299.99
Original price $4,299.99 - Original price $4,299.99
Original price $4,299.99
Current price $3,499.99
$3,499.99 - $3,499.99
Current price $3,499.99
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

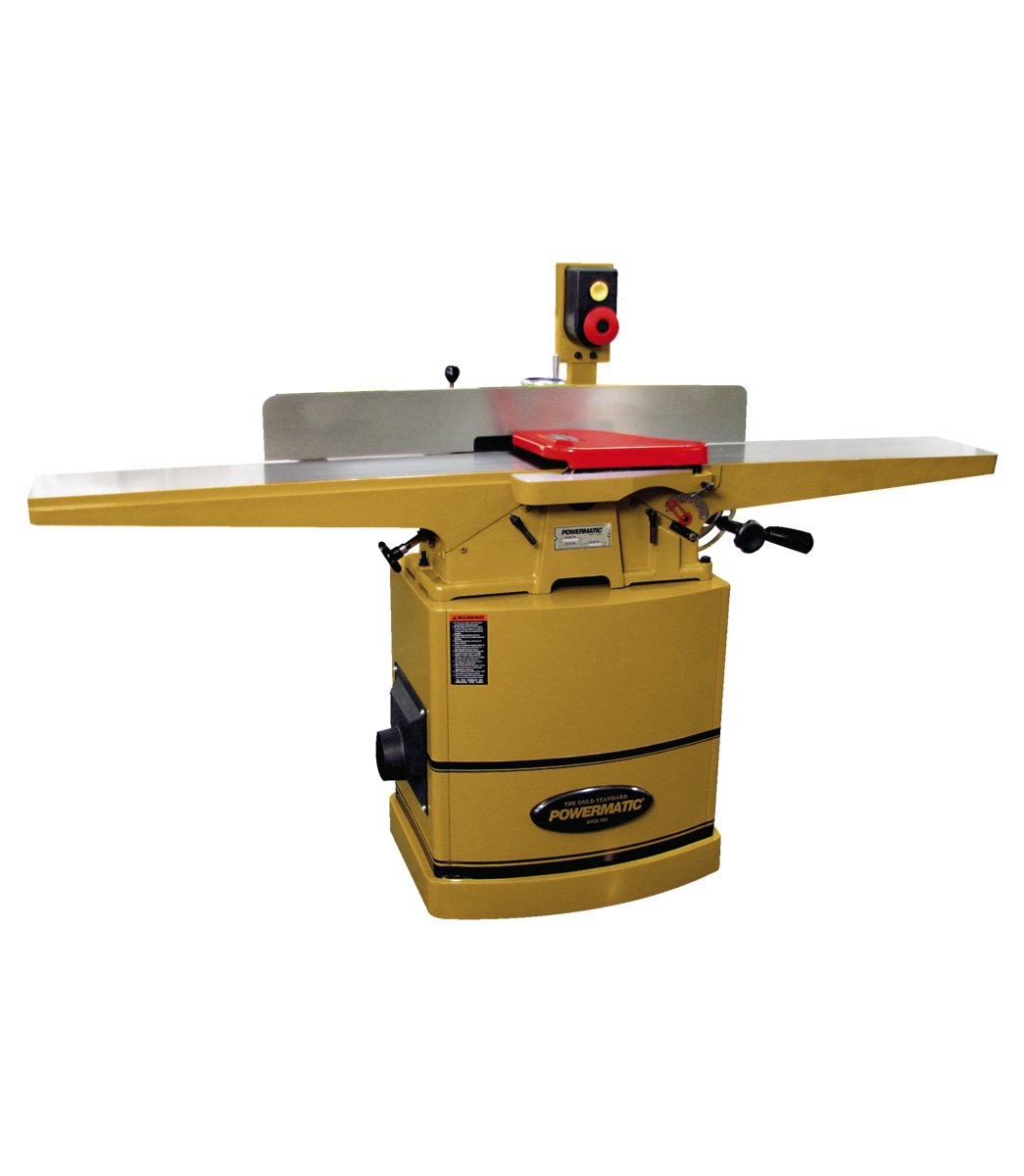

This 8" Jointer meets the demand for accuracy while combining unique, user-friendly functions.

The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.

  • Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
  • Extra long tables are mounted on dovetailed ways for extended workpiece support
  • Handwheel operated worm gear system for smooth fence tilting
  • High mount switch for operator convenience
  • Magnetic push blocks can be stored on the machine within constant reach
  • Non-mar fence insert protects table surface

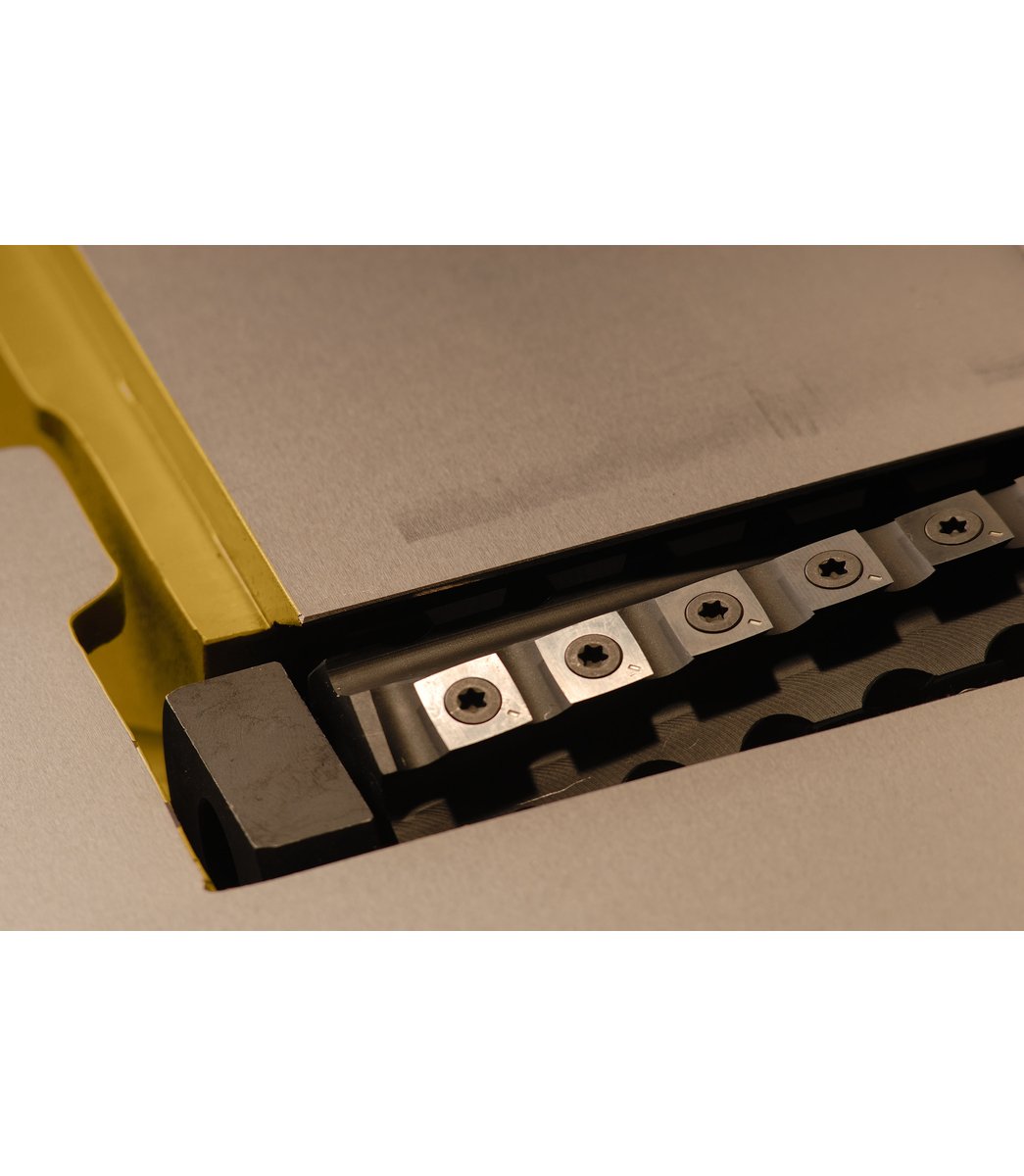

  • The helical cutterhead with 54 four sided carbide inserts provides smoother, quieter cutting and a superior finish
More Information
Stock Number 1610086K
Cuts Per Minute Not Applicable
Cutterhead Diameter (In.) 3
Cutterhead Speed (RPM) 7000.0000
Cutting Capacity (W x D) (In.) 8 x 1/2
Dust Collection Minimum CFM Required (CFM) 450
Dust Port Outside Diameter (In.) 4
Infeed Table Length (In.) 35-1/4
Motor Amps 9
Motor Phase 1
Motor Power (HP) 2
Motor Voltage (V.) 230
Number of Knives 54
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 20
Type of Cutterhead HELICAL
