PJ1696 Helical Head Jointer, 7.5HP 3PH 230/460V

SKU# PM9-1791283

Regular price $13,804.00
Shipping calculated at checkout.

Secure Checkout

Safe & Secure Payments

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Meta Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

Flexible financing available

Discover your options →

Centra Funding

Orders $10,000+
Apply Now

You might also be interested in

  • Powermatic

    1285 Jointer, 3HP 1PH 230V, Helical Head

    Regular price $10,449.00
    View details
  • Powermatic

    1285 Jointer, 3HP 3PH 230, Helical Head

    Regular price $10,339.00
    View details
  • Powermatic

    1285 Jointer, 3HP 1PH 230V

    Regular price $8,579.00
    View details
  • PJ-882HH Jointer, 2HP 1PH 230V Powermatic

    Powermatic

    PJ-882HH Jointer, 2HP 1PH 230V

    Regular price $5,202.00
    View details
  • Powermatic

    PJ882 Jointer, 2HP 1PH 230V

    Regular price $4,509.00
    View details
  • Powermatic

    60HH 8" Jointer, 2HP 1PH 230V, Helical Head

    Regular price $3,519.00
    View details
  • Powermatic

    60C 8" Jointer, 2HP 1PH 230V

    Regular price $3,343.00
    View details
  • 54HH Jointer, 1HP 1PH 115/230V Powermatic

    Powermatic

    54HH Jointer, 1HP 1PH 115/230V

    Regular price $2,364.00
    View details
  • Powermatic

    54A Jointer, 1HP 1PH 115/230V

    Regular price $2,199.00
    View details
  • Worcraft

    WorCraft 20V Brushless Cordless Router Kit with 4.0Ah Battery Options & Charger

    Regular price$209.00 – $219.00
    View details
  • Worcraft

    WorCraft 20V Cordless Router — Brushless, Variable Speed

    Regular price $149.00
    View details
  • Sale

    Bora

    BORA 3.25hp Soft Start Router Motor

    Sale price $429.99 Was: Regular price $537.49 Save $107.50
    View details
  • Jet

    JAT-700, High Speed Sander

    Regular price $104.99
  • Powermatic

    Powermatic Micro Dust Air Filtration System | PM1250

    Regular price $659.99
    View details
  • Jet

    Air Filtration 1000CFM | AFS-1000C

    Regular price $659.99
    View details

Product Description

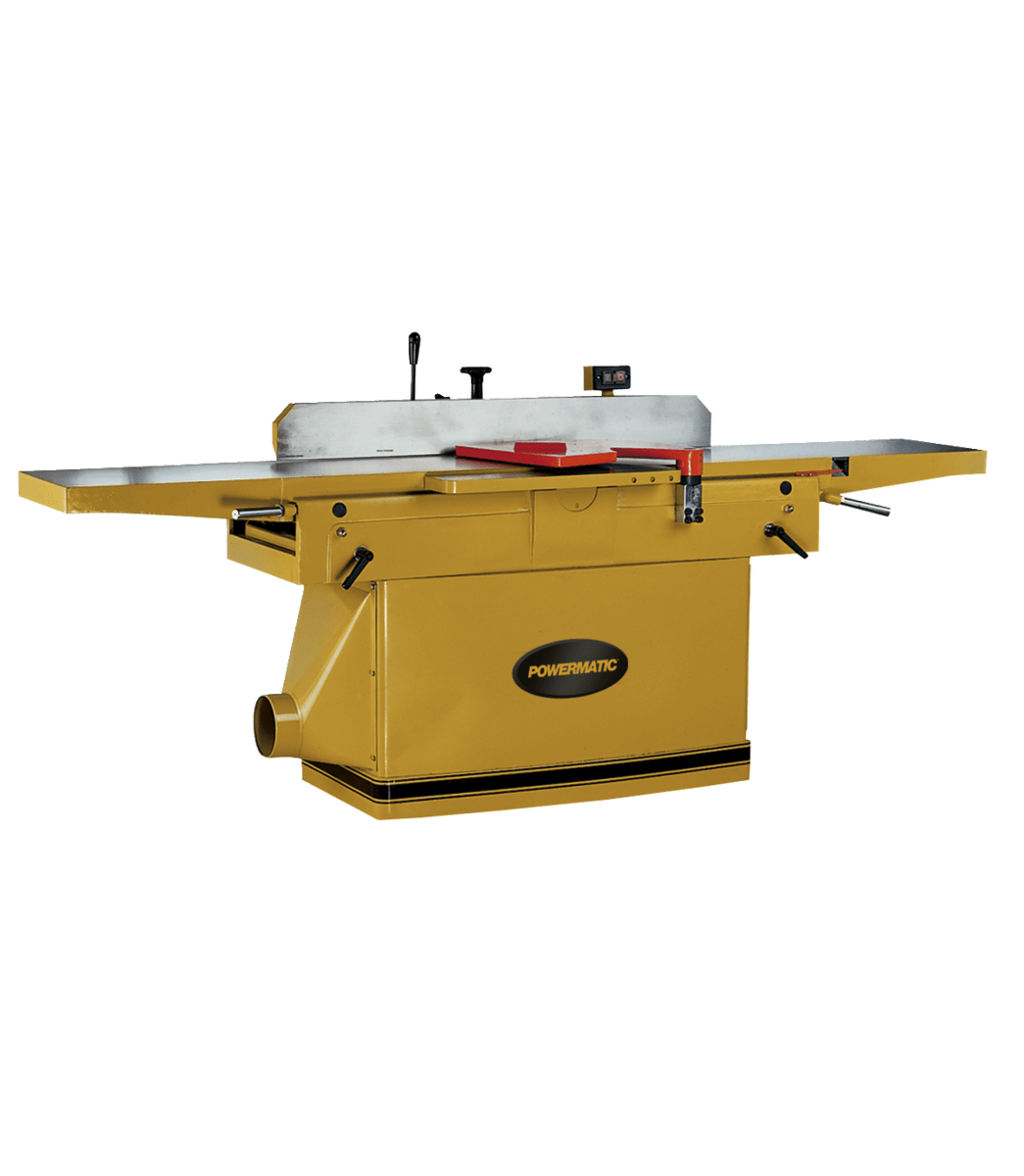

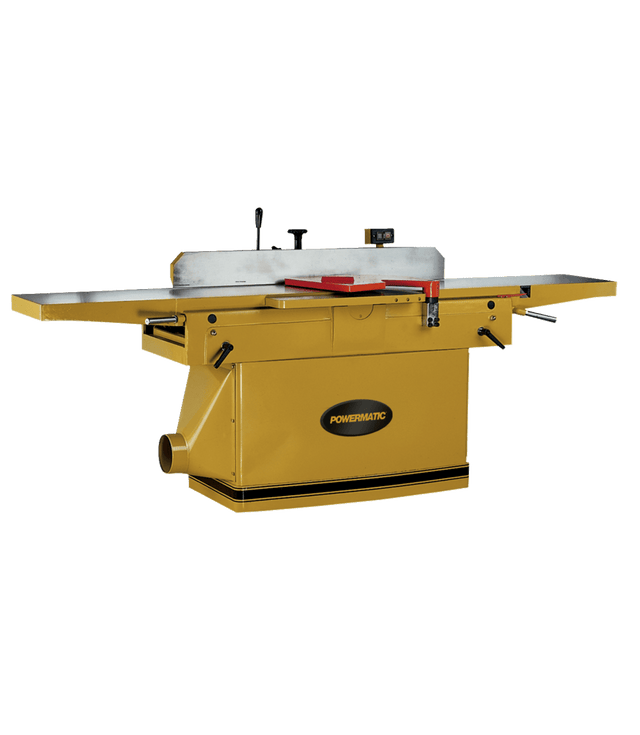

This 16" Jointer offers big capacity and performance in a machine that is loaded with features.

Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.

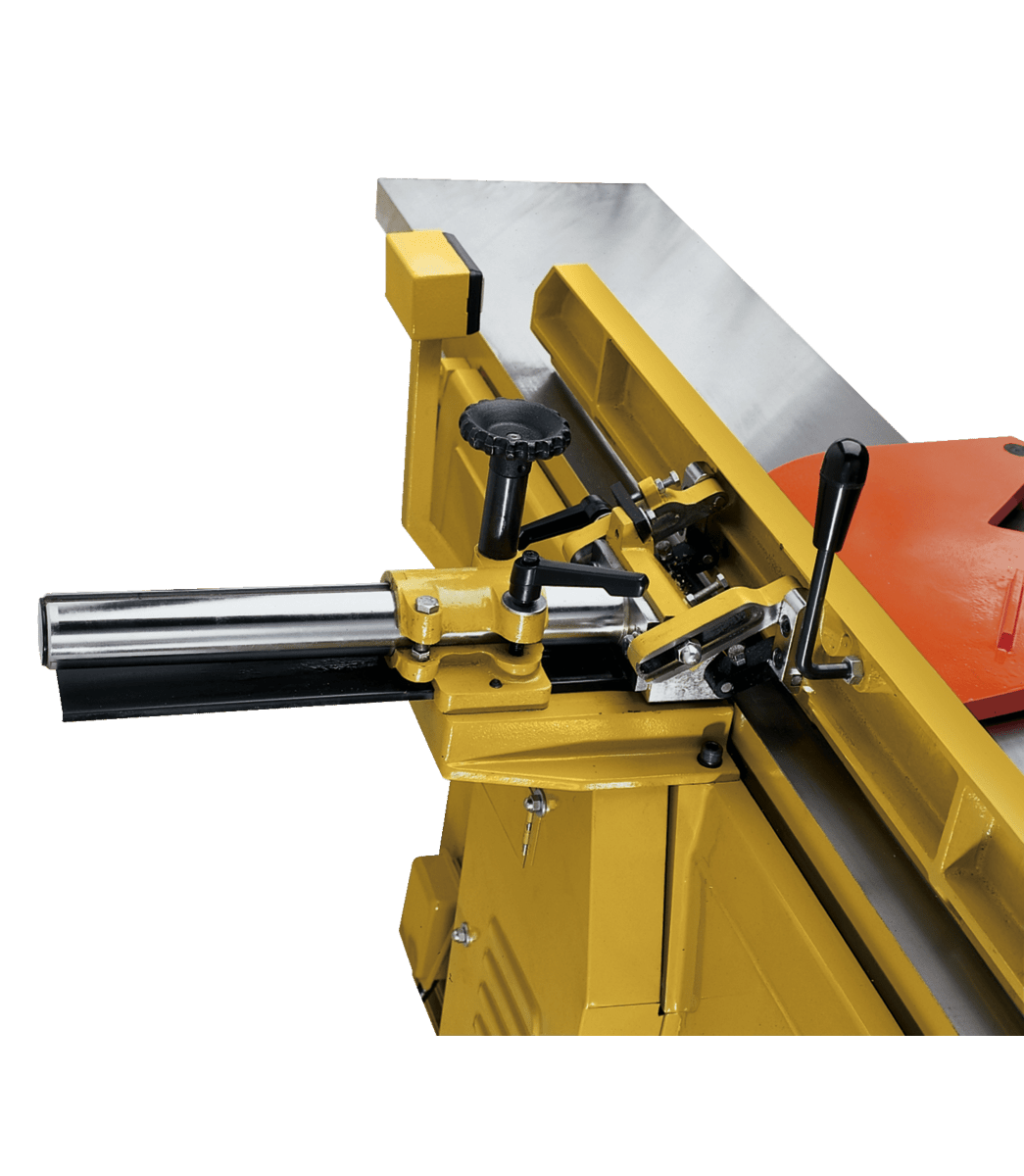

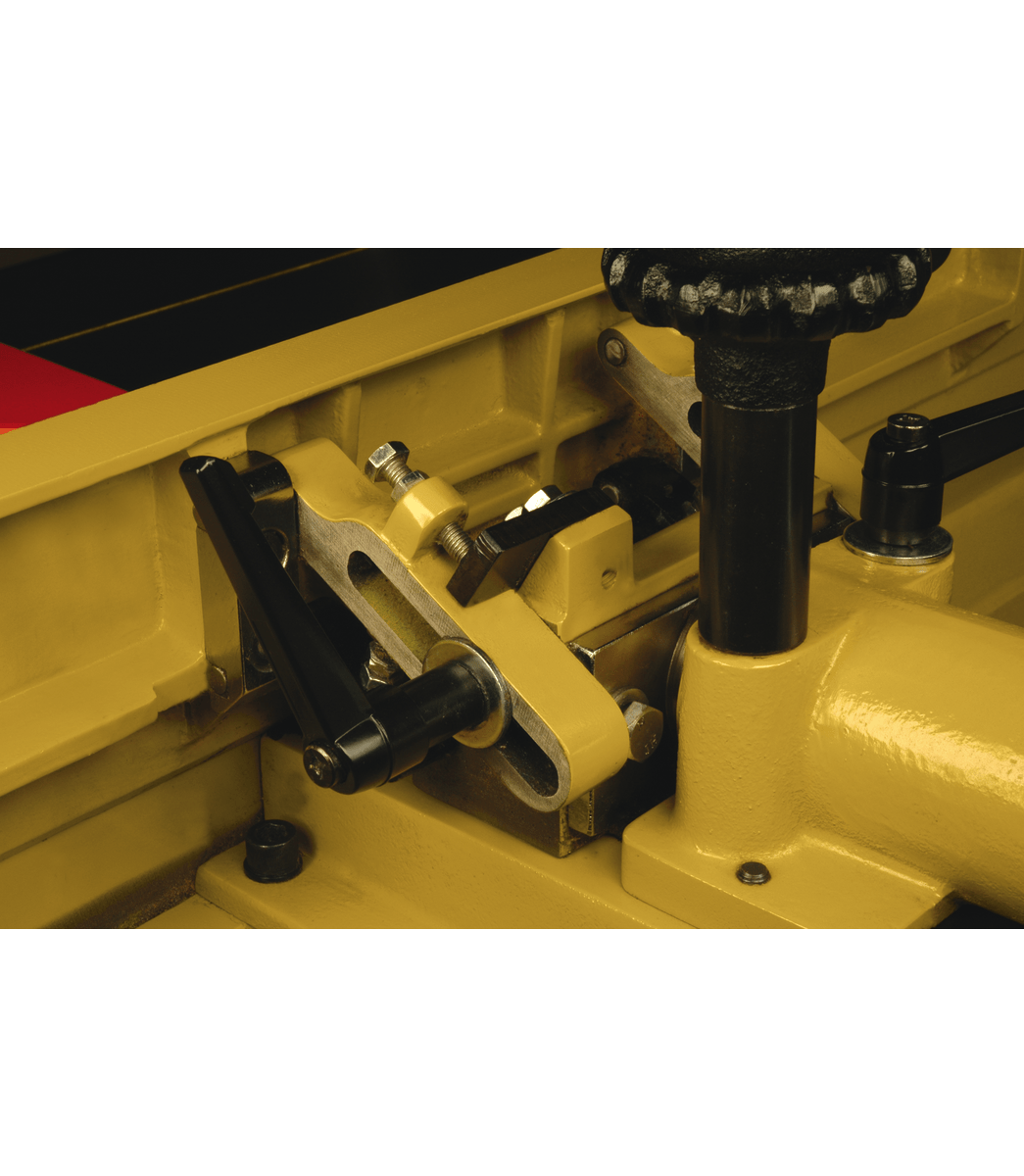

  • Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees
  • Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep

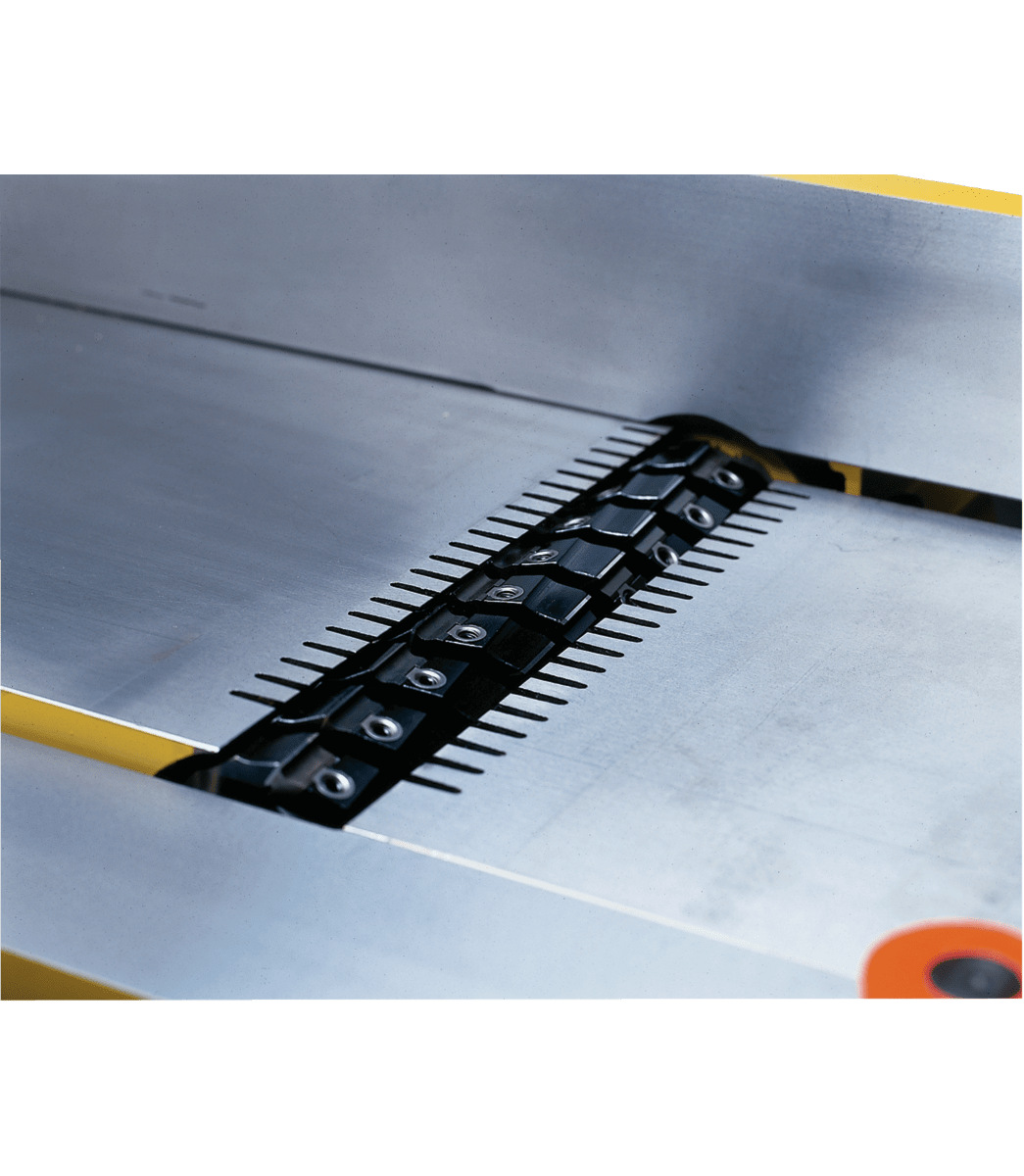

  • Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change

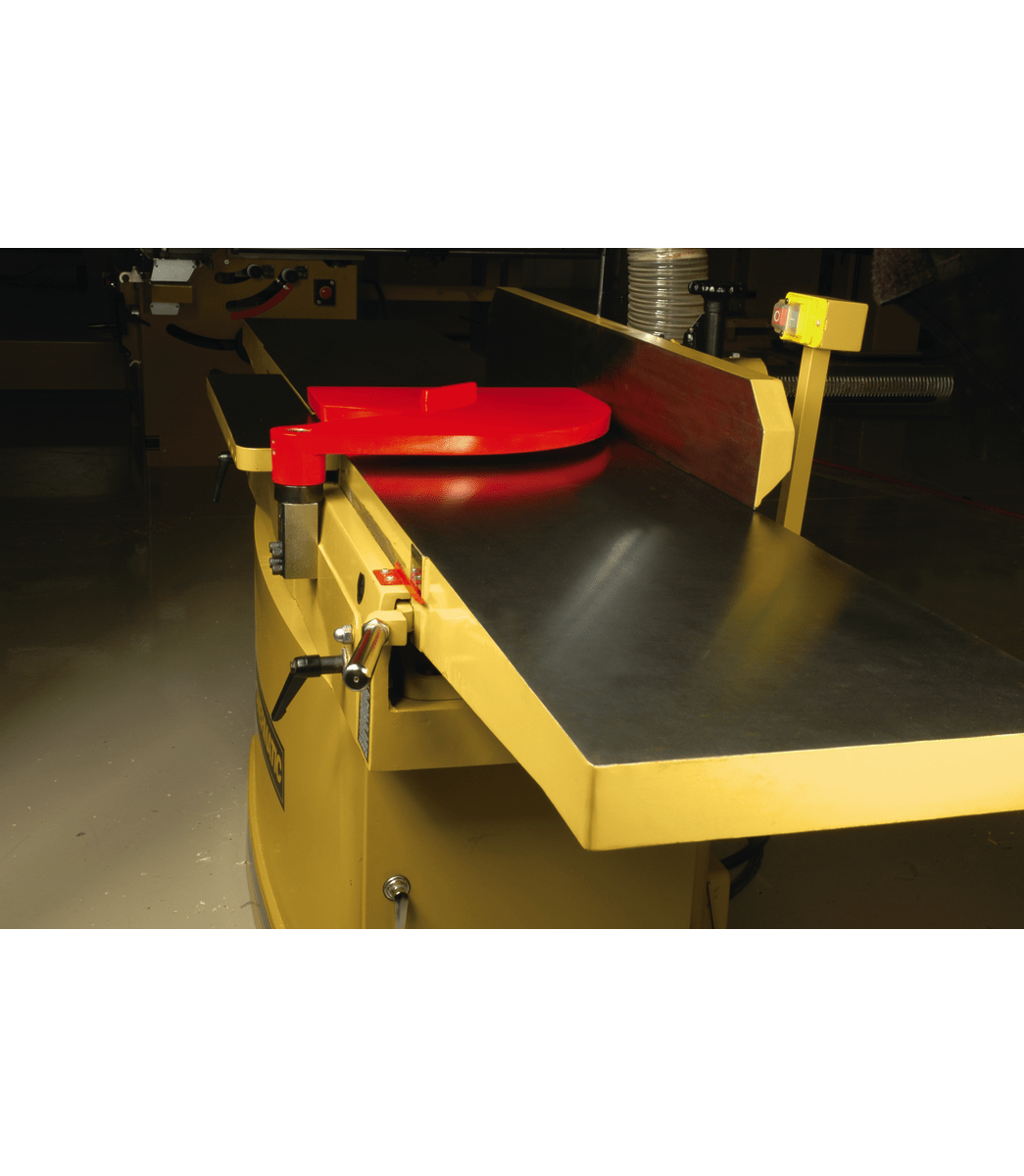

  • Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish

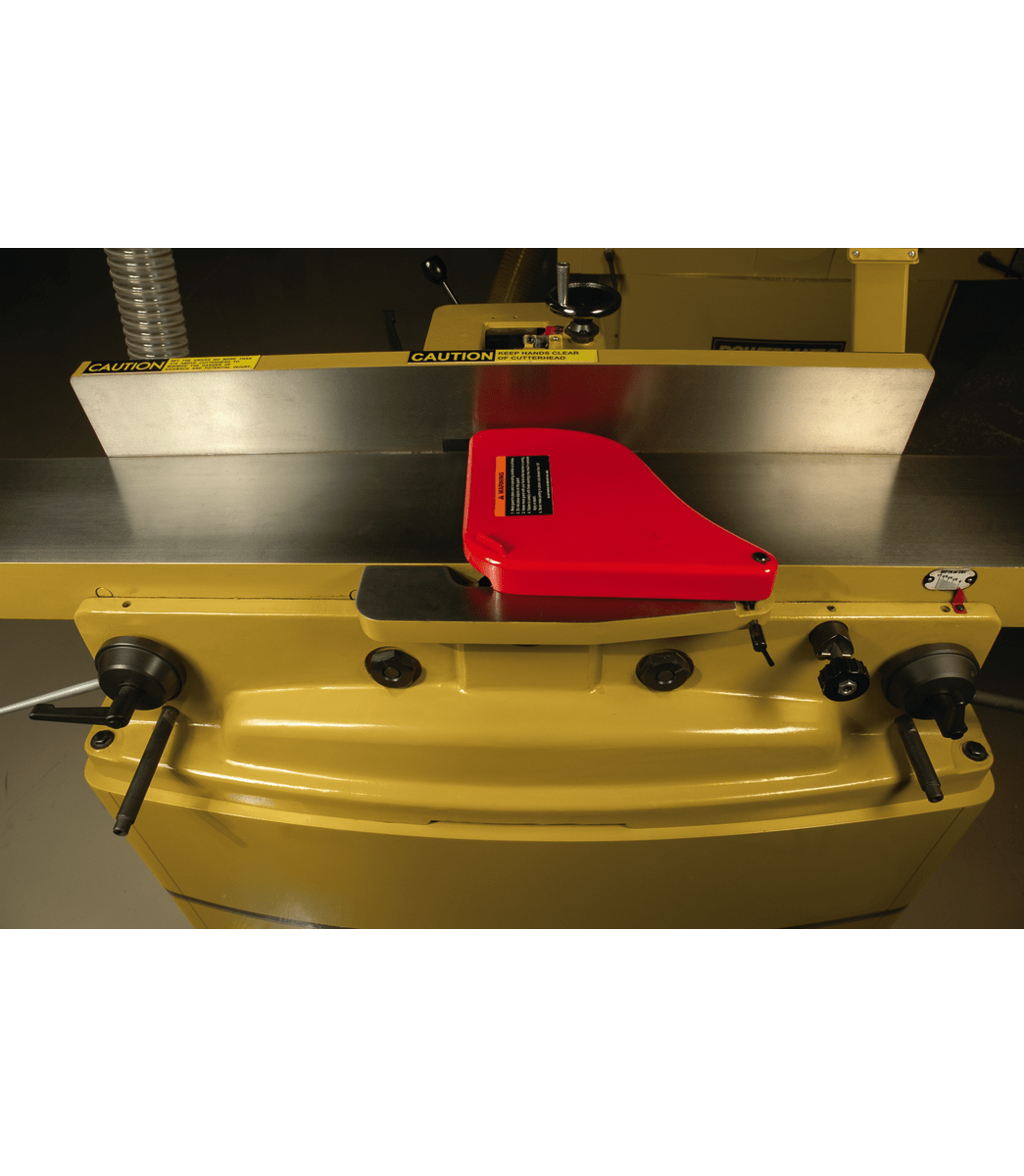

  • Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism

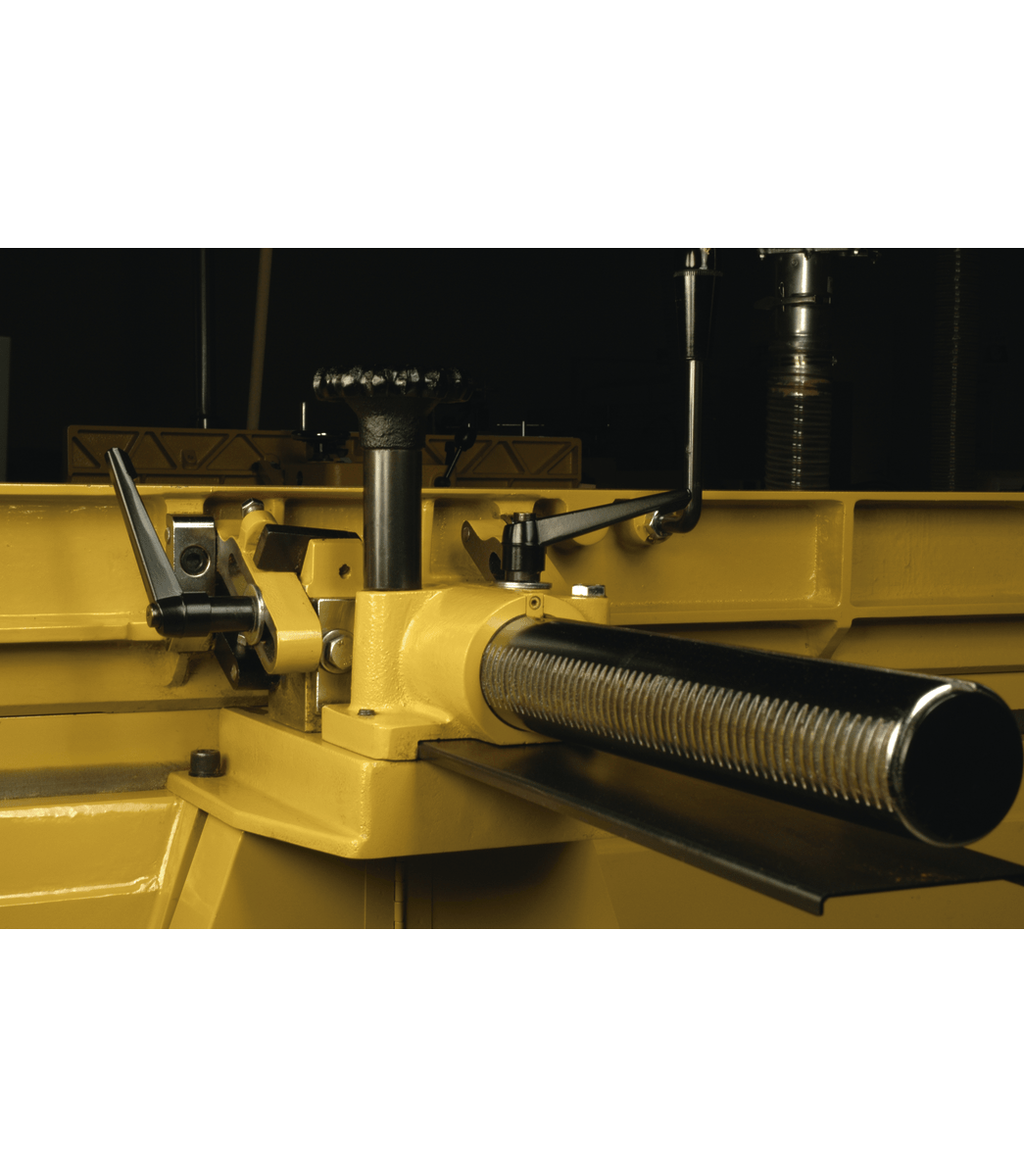

  • Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
More Information
Stock Number 1791283
Cuts Per Minute 20,800
Cutterhead Diameter (In.) 4
Cutterhead Speed (RPM) 5200.0000
Cutting Capacity (W x D) (In.) 16 x 3/4
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 6
Infeed Table Length (In.) 47-1/2
Motor Phase 3
Motor Power (HP) 7-1/2
Motor Voltage (V.) 230/460
Number of Knives 58
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Table Height from Floor (In.) 37-1/2
Type of Cutterhead HELICAL
