Sale
Shop Palmgren

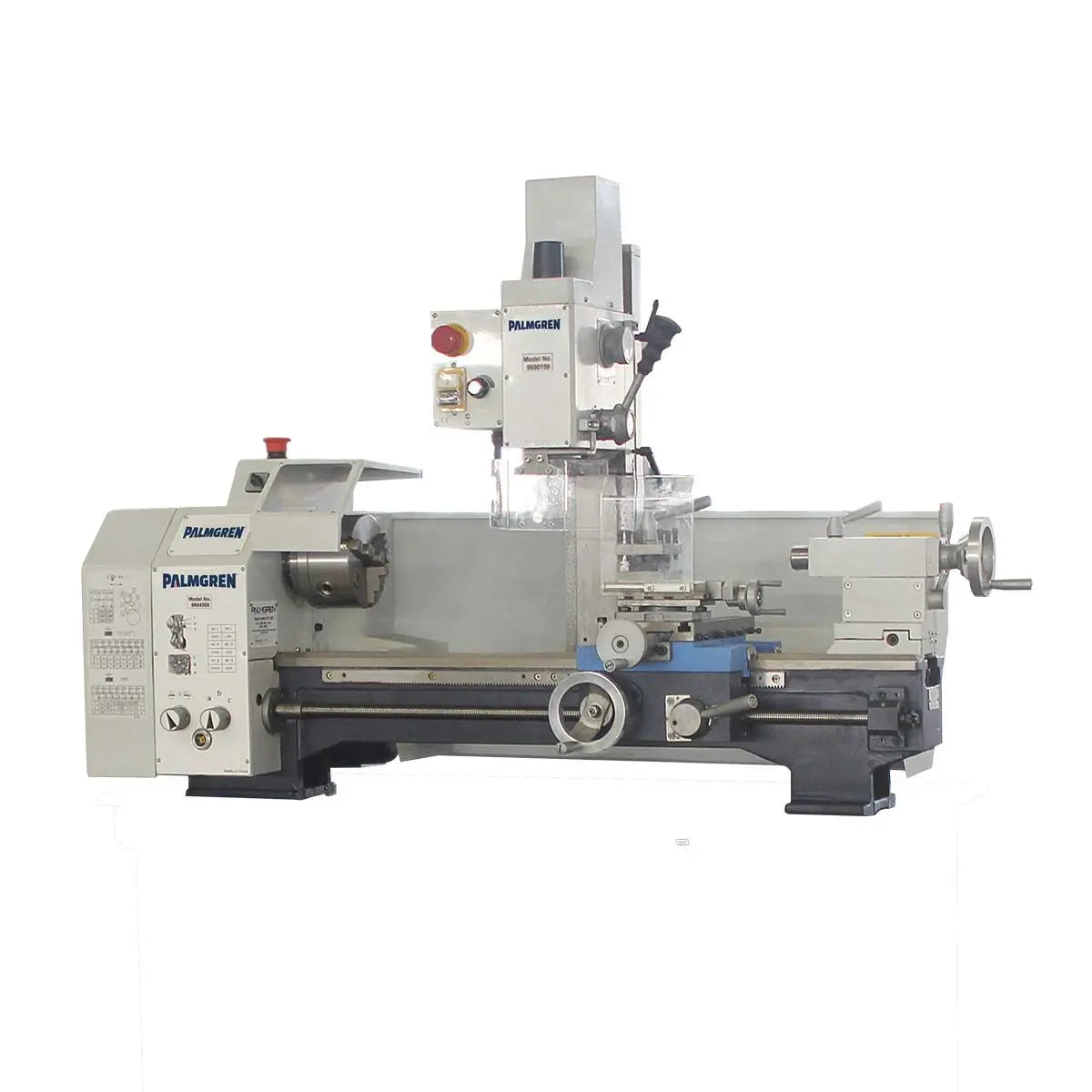

9"X20" Bench Combo Lathe and Vari-Speed Mill

SKU# 9680213

Sale price $5,834.00 Was: Regular price $6,863.53 Save $1,029.53
Shipping calculated at checkout.

Secure Checkout

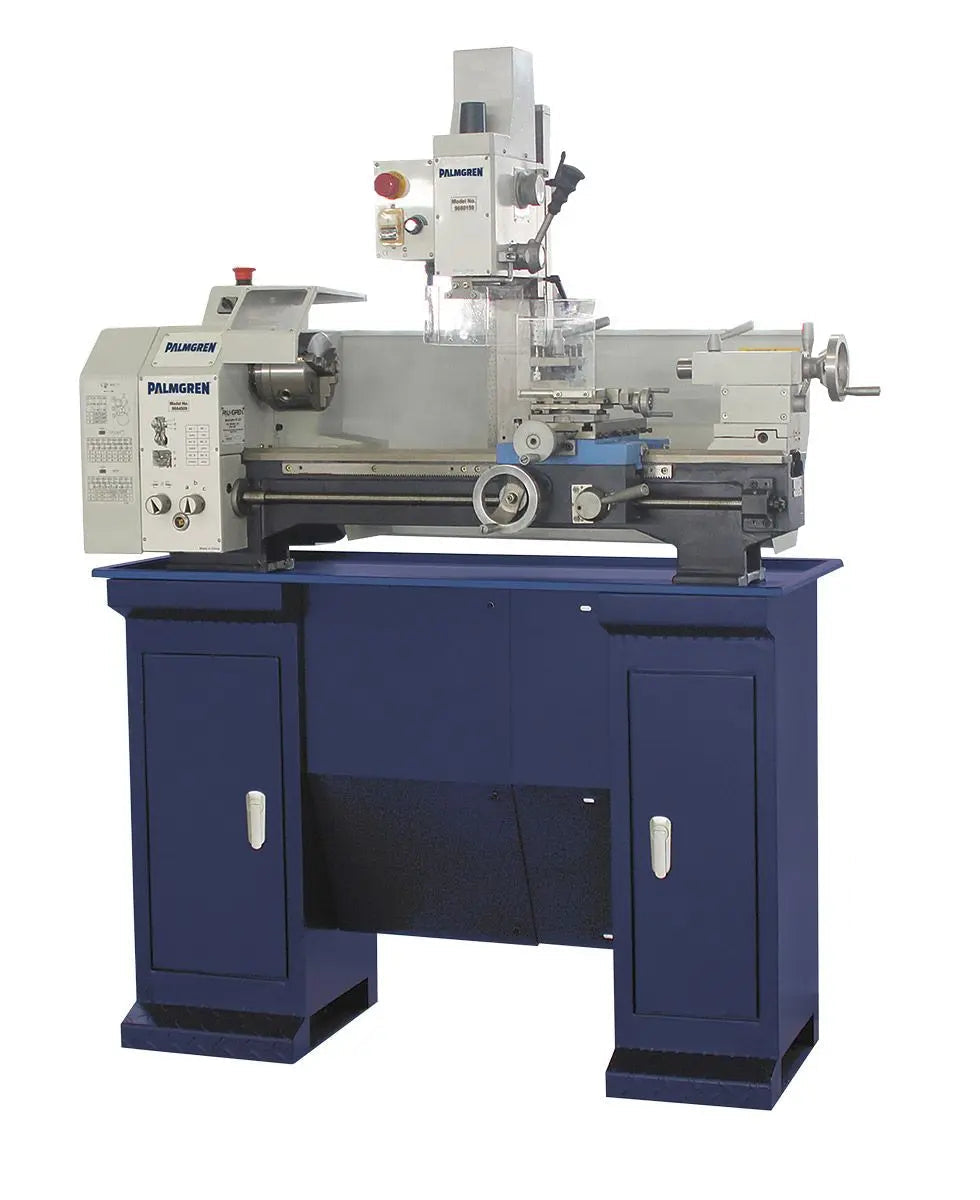

Picture shown with optional base

Safe & Secure Payments

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Meta Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

You might also be interested in

  • Lathe 22 x 80" 230/460V Palmgren
    Sale

    Palmgren

    Lathe 22 x 80" 230/460V

    Sale price $48,334.00 Was: Regular price $56,863.53 Save $8,529.53
    View details
  • Lathe 18 x 80 230/460V Palmgren
    Sale

    Palmgren

    Lathe 18 x 80 230/460V

    Sale price $43,334.00 Was: Regular price $50,981.18 Save $7,647.18
    View details
  • D420 LatheEng 16x60" DRO 230V 3PH Palmgren
    Sale

    Palmgren

    D420 LatheEng 16x60" DRO 230V 3PH

    Sale price $33,334.00 Was: Regular price $39,216.47 Save $5,882.47
    View details
  • Lathe 14x40 Dlx w/2" Bore 230V Palmgren
    Sale

    Palmgren

    Lathe 14x40 Dlx w/2" Bore 230V

    Sale price $21,666.00 Was: Regular price $25,489.41 Save $3,823.41
    View details
  • Lathe 14x40 Dlx w/2" Bore 460V Palmgren
    Sale

    Palmgren

    Lathe 14x40 Dlx w/2" Bore 460V

    Sale price $21,666.00 Was: Regular price $25,489.41 Save $3,823.41
    View details
  • 13" X 40" Engine Lathe Palmgren
    Sale

    Palmgren

    13" X 40" Engine Lathe

    Sale price $14,834.00 Was: Regular price $17,451.76 Save $2,617.76
    View details
  • 12" x 36" Engine Lathe 115V 1PH Palmgren
    Sale

    Palmgren

    12" x 36" Engine Lathe 115V 1PH

    Sale price $14,166.00 Was: Regular price $16,665.88 Save $2,499.88
    View details
  • Sale

    Palmgren

    11"X27" Bench Combo Lathe and Vari-Speed Mill

    Sale price $6,334.00 Was: Regular price $7,451.76 Save $1,117.76
    View details
  • Sale

    Palmgren

    10" X 21" Bench Lathe

    Sale price $3,834.00 Was: Regular price $4,510.59 Save $676.59
    View details
  • Sale

    Palmgren

    9"X20" Bench Top Lathe

    Sale price $3,666.00 Was: Regular price $4,312.94 Save $646.94
    View details
  • 8"X12" Bench Top Lathe Palmgren
    Sale

    Palmgren

    8"X12" Bench Top Lathe

    Sale price $2,666.00 Was: Regular price $3,136.47 Save $470.47
    View details
  • Sale

    Palmgren

    Steel floor stand for 9", 10", 11" and Combo Lathes

    Sale price $791.00 Was: Regular price $930.59 Save $139.59
    View details
  • 5/8" Carbide Lathe Tool Bit Set Palmgren
    Sale

    Palmgren

    5/8" Carbide Lathe Tool Bit Set

    Sale price $135.00 Was: Regular price $158.82 Save $23.82
    View details
  • 9"X20" Bench Top Lathe Palmgren
    Sale

    Palmgren

    Follow rest for 9684504 9" lathe

    Sale price $116.00 Was: Regular price $136.47 Save $20.47
    View details
  • 1/2" Carbide Lathe Tool Bit Set Palmgren
    Sale

    Palmgren

    1/2" Carbide Lathe Tool Bit Set

    Sale price $106.00 Was: Regular price $124.71 Save $18.71
    View details

Product Description

Palmgren's combination 9" bench engine lathe and gear head mill delivers the precision, power and versatility to handle a wide range of turning, milling and drilling operations normally found in much larger machines.

Heavy cast iron construction, smooth power transmission with precision thrust and ball bearings in the head stock and spindles, hardened and ground ways all designed to go give you years of trouble-free, precise turning, milling and hole making machining. Built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100% of available horsepower and torque. With such a wide range of versatility and features, this all-purpose combination lathe/mill is one of the most function manual machine centers that can operate in all types and sizes of shops.

Frequently Bought Together

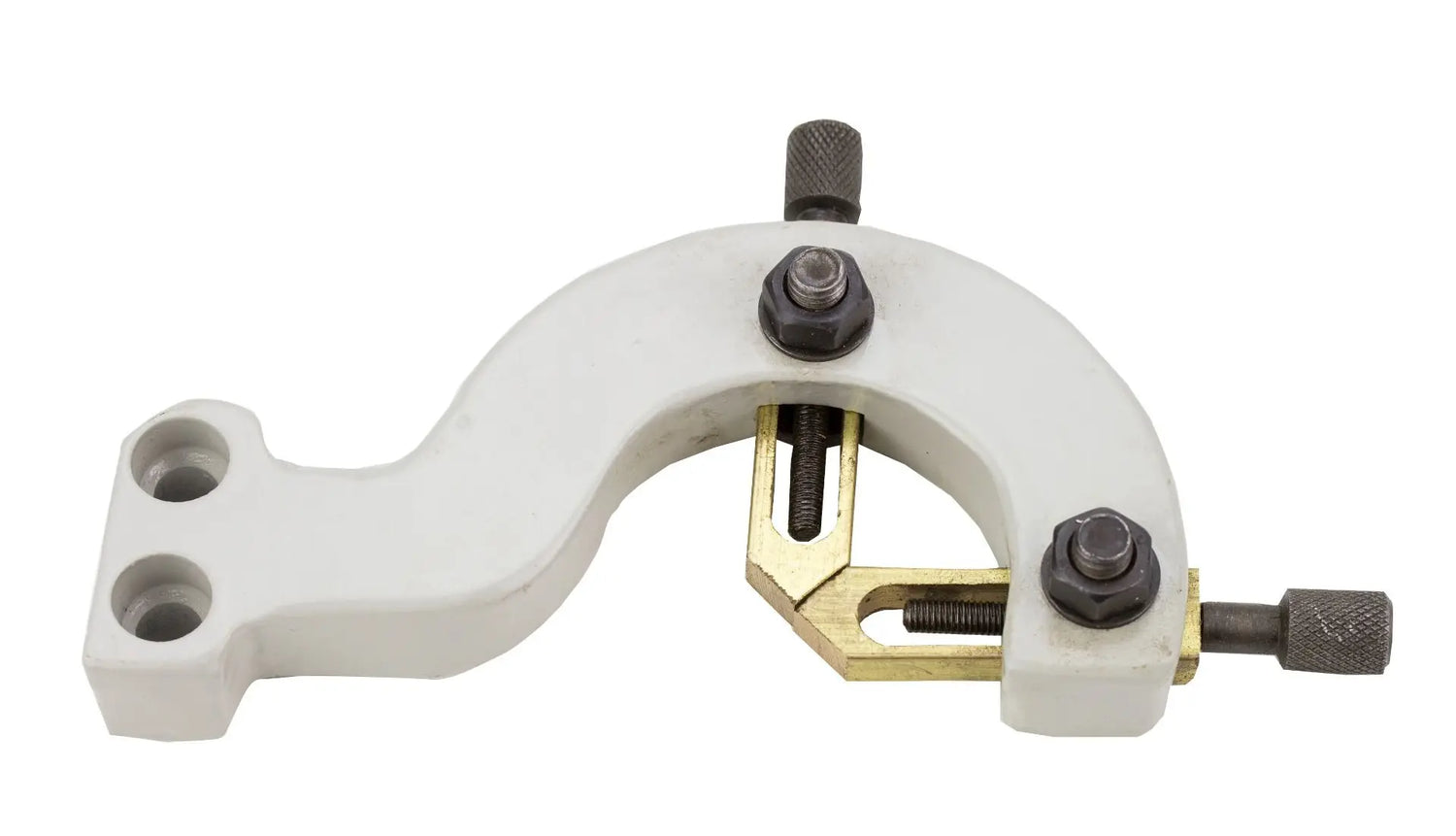

Follow Rest For 9684504 9" Lathe

Steel floor stand for 9", 10", 11" and Combo Lathes



Specification

Value

4 Position Tool Post Height

3-3/4"

Bed Width

5-7/8"

Chuck Size

5"

Compound Travel

3-9/16"

Country of Origin

CN

Distance Between Centers

20"

Dist. Btwn. Cntr. & Comp. Tab.

3"

Drilling Capacity in Cast Iron

5/8"

Gear Stages

2

Height Of Center

4-3/4"

High Range

200 - 3000

Lathe Motor

1PH - 115V - 13.6 Amps - 1PH - 60 Hz

Lathes Type

Gear Head

Lathe Weight

452

Longitudinal Feed Rates

0.003", 0.004", 0.006", 0.008, 0.012", 0.016"

Low Speed

100 - 1500

Max Turning Diameter

9-7/8"

Mill Weight

132

Milling Cap Inserted Tooth Cut

2-1/2"

Milling Cap of End Mill Cutter

3/4"

Motor HP

5/8

Number of Spindle Speeds

6

Overall Dimensions (LxWxH)

33-1/2" x 49" x 23"

Phase

Single

Pitch

0.2 - 4 / 8 - 56

Spindle Holding Fixture

MT2 3/8"-16 Draw Bar

Table Dimensions

10" x 4-3/4"

Spindle Hole

1"

Spindle Travel

2"

Swing Over Bed

9"

Swivel of the Milling Head

± 90°

Tailstock Sleeve Travel

2-1/2"

Tailstock Taper

MT2

Travel Top Slide

19-1/2"

T-Slot Size/Distance/Quantity

5/8"

Voltage

115

Working Radius

6-3/4"

Warranty

3 Year

Z-Axis Travel

10-1/2"

UPC

726896802138

Unit of Measure

Each

Product Height (in)

41

Product Length (in)

54

Product Width (in)

26

Product Weight (lbs)

463


Product Manual - Lathe

Product Manual - Milling Head
