8"X12" Bench Top Lathe
Interested in financing? Discover your options here.
8"X12" Bench Top Lathe is backordered and will ship as soon as it is back in stock.
Safe & Secure Payments.

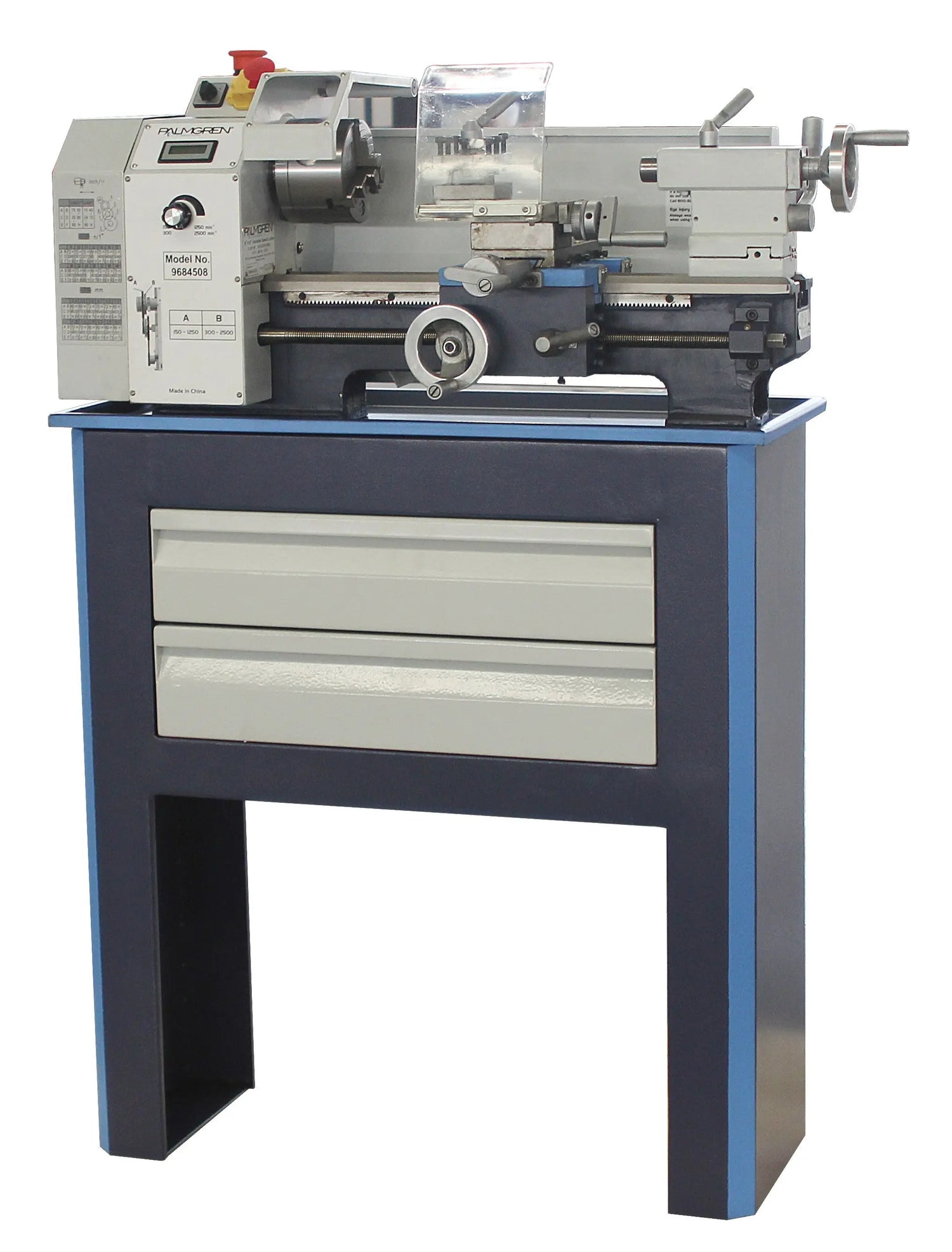

Palmgren's 8" bench model engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines.
Heavy cast construction, smooth power transmission with helical gears, hardened and ground ways all designed to give you years of trouble-free, precise turning. All Palmgren lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and is used in proto type shops, home machinists, jewelry manufacturing, tool rooms, fabrication shops and maintenance shops.
- EACH LATHE COMES STANDARD WITH: 3 jaw lathe chuck
- Safety chuck and tool post guards
- 4 way tool post
- Centers
- Chip tray
- Precision thrust and ball bearings in the head stock
| Specification | Value |
|---|---|
| Bed Width | 3-15/16" |
| Carriage Travel | 10-1/2" |
| Compound Travel | 2-1/4" |
| Country of Origin | CN |
| Cross Slide Travel | 4" |
| Distance Between Centers | 12" |
| Lathes Type | Bench Top |
| Longitudinal Feed Rates | 0.004 to 0.0008 |
| Motor HP | 7/8 |
| Number of Spindle Speeds | Variable |
| Optional Accessories | Item # 9684499 - Steel floor stand |
| Overall Dimensions (L x W x H) | 33" x 16-3/4" x 14-1/4" |
| Phase | Single |
| Spindle Bore | 3/4" |
| Swing Over Bed | 8" |
| Tailstock Taper | MT 2 |
| Tailstock Travel | 2" |
| Thread Range (In.) | 8" x 44" |
| Thread Range (mm) | 0.2 to 4.0 |
| Voltage | 115 |
| Warranty | 3 Year |
| UPC | 726896845081 |
| Unit of Measure | Each |
| Product Weight (lbs) | 135 |
Product Manual
-
