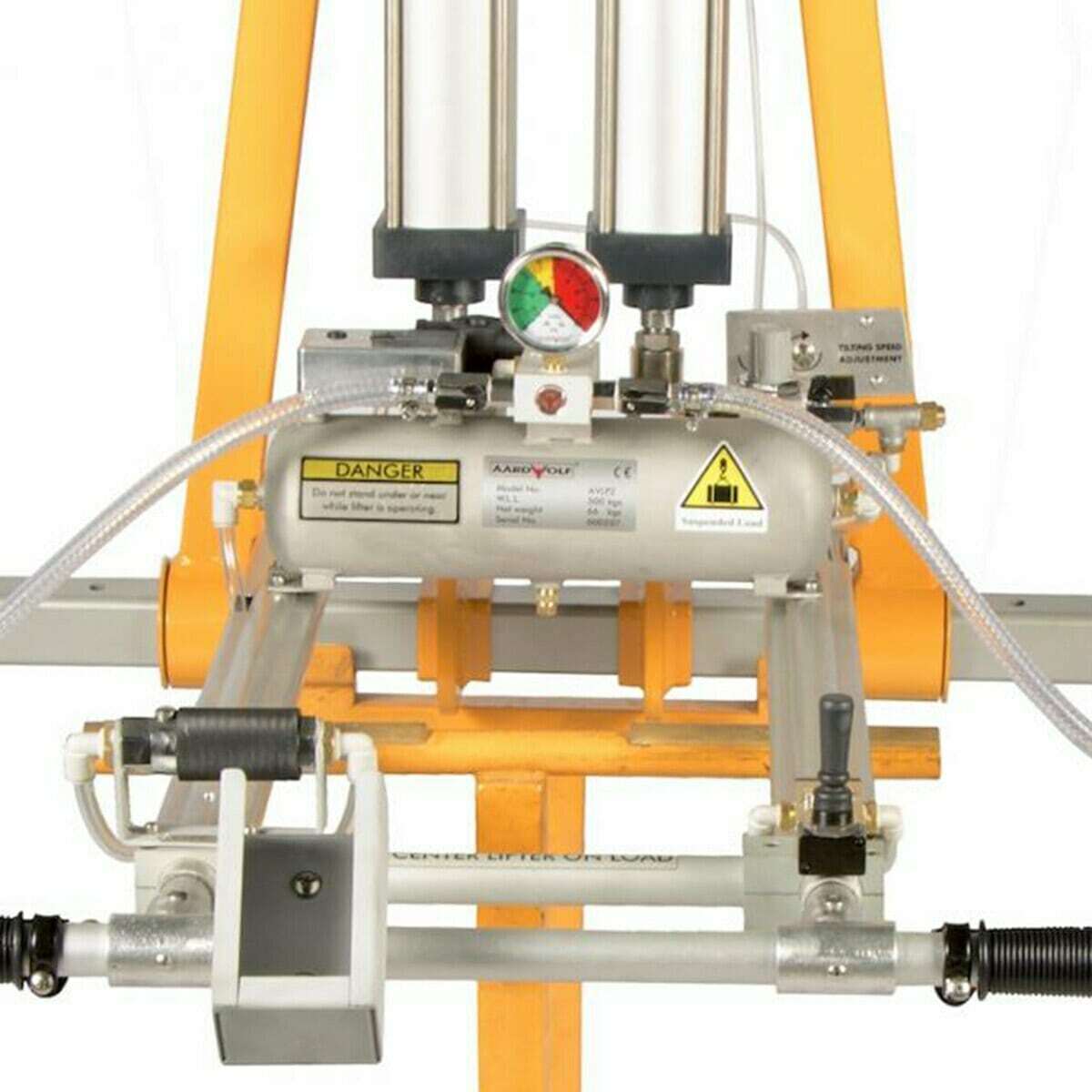

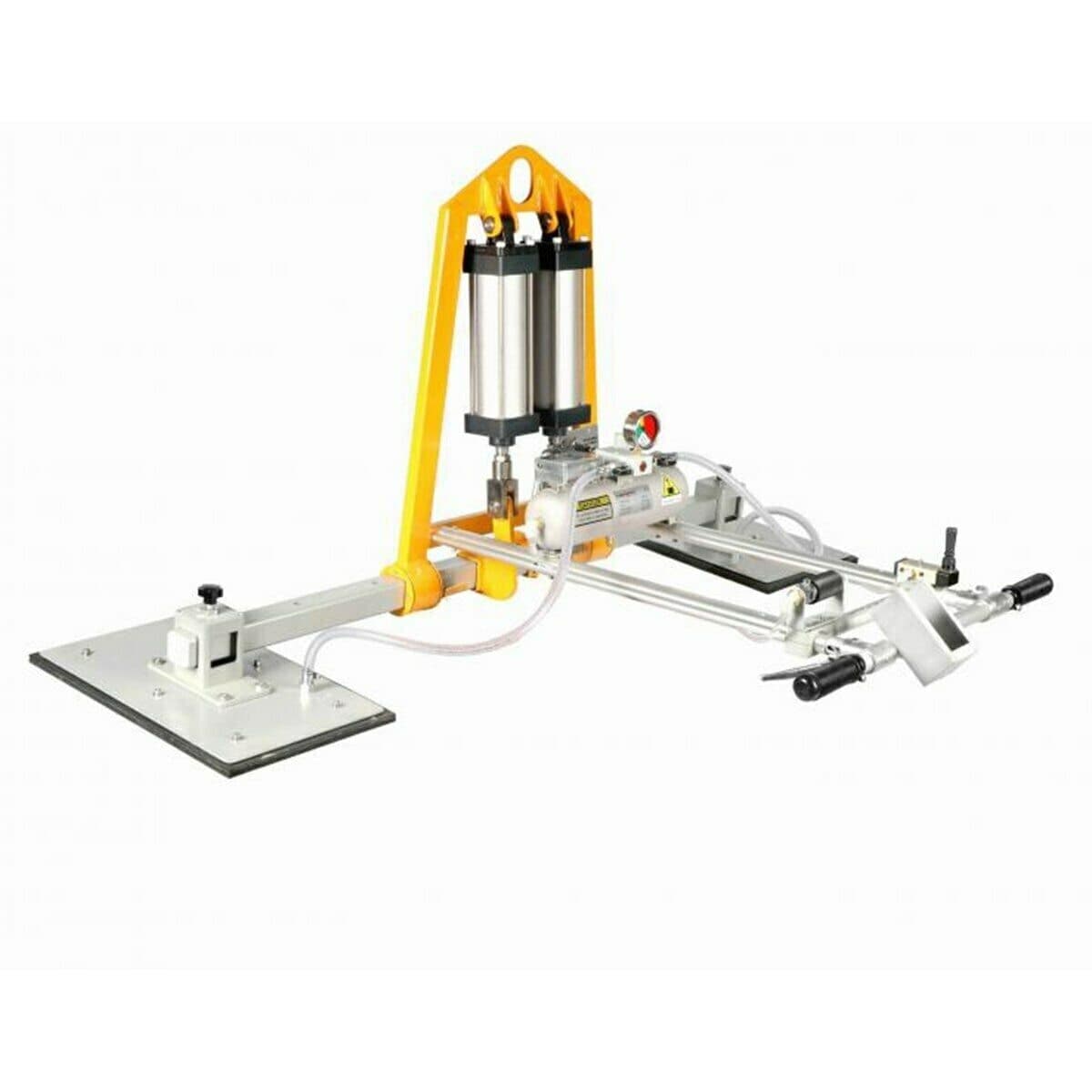

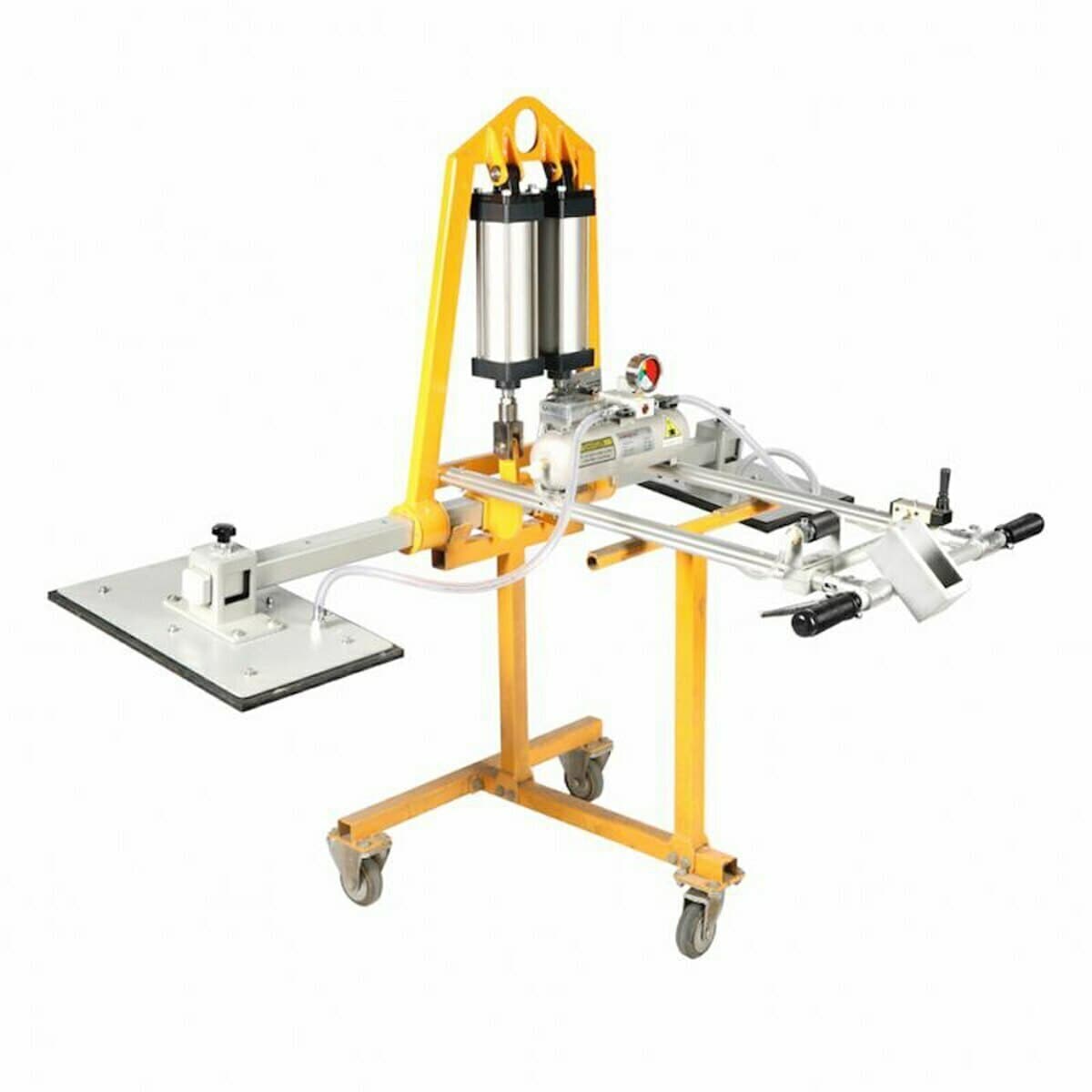

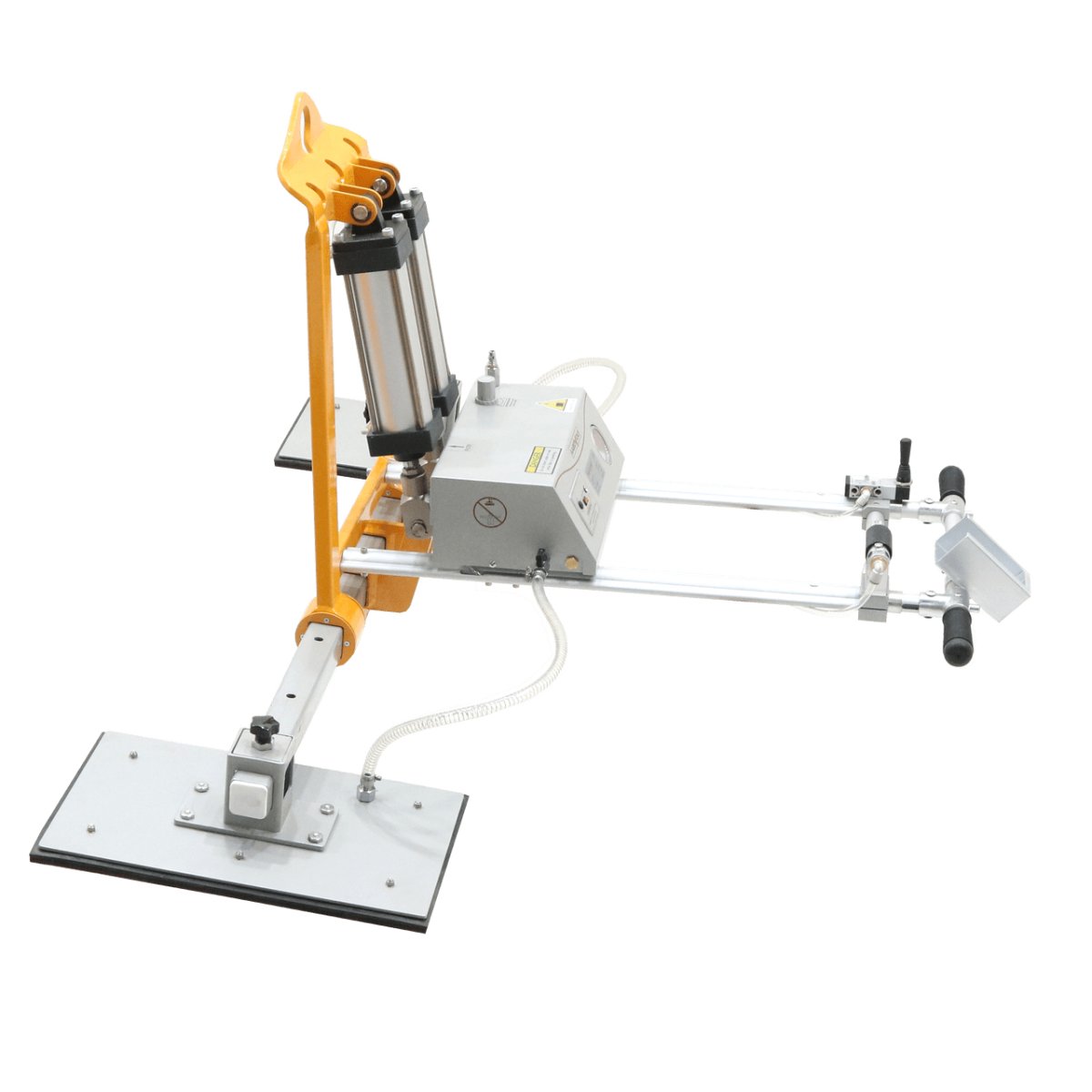

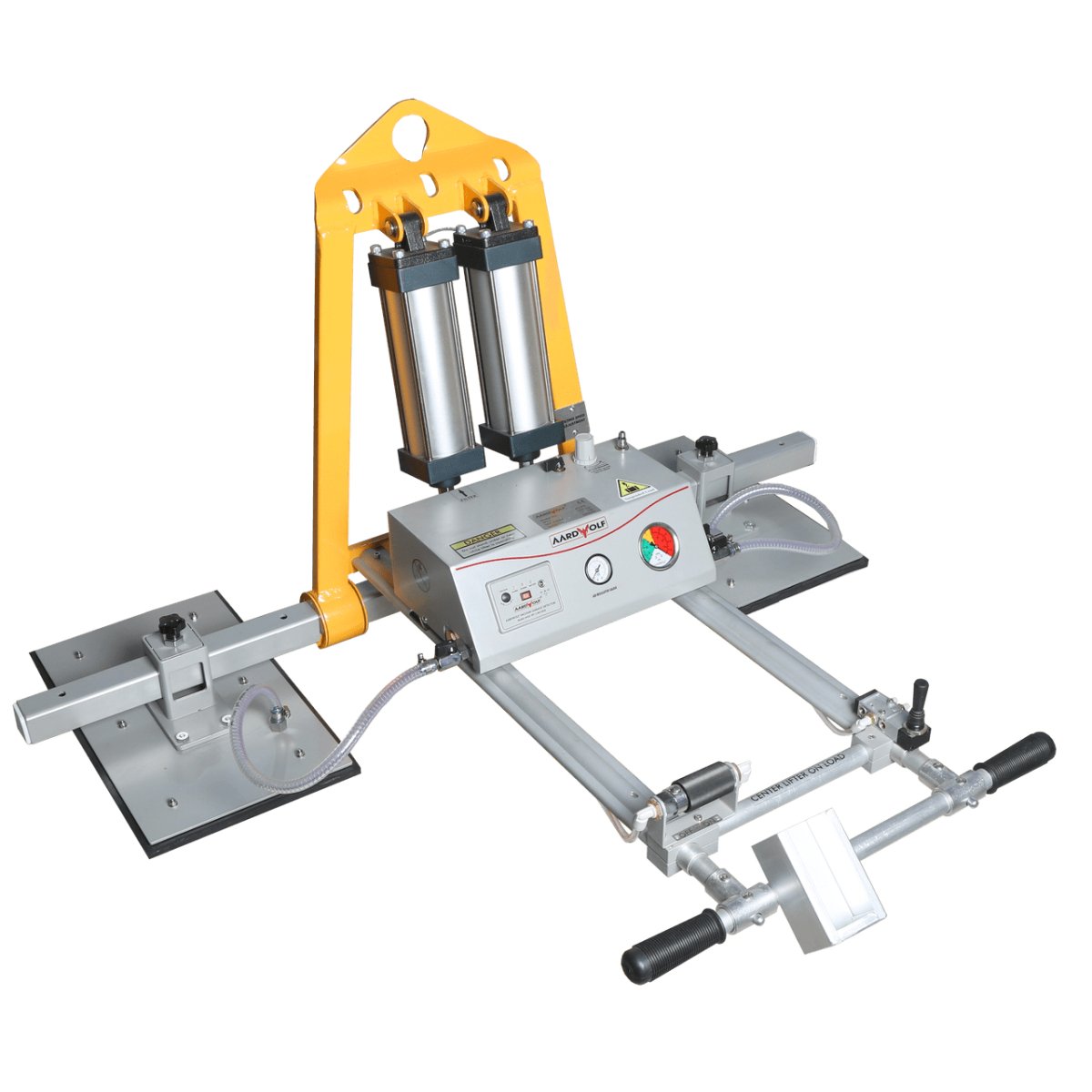

Aardwolf 2 Pad Stone Vacuum Lifter with a lifting capacity over 1,000 pounds

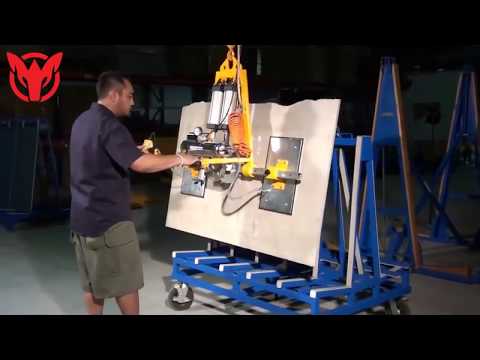

This vacuum lifter is designed to lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air.
Features:
- Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston
- Vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump
- Acoustic and visual alarm system powered by a rechargeable 12V Li-on battery
- Slide valve with ON/OFF position for attaching and releasing of material
Specifications:
| Metric (mm-kg) | Imperial (inch-lb) | |
| Number of Pads | 2 | - |
| Pad Size | 520 x 320 | 20.5" x 12.6" |
| Working Load Limit | Vertical: 250 Horizontal: 500 |
551 1102 |
| Net Weight | 71 | 157 |
| Gross Weight | 109 | 240 |
| Packaging Dimensions | 1480 x 390 x 960 | 58.3" x 15.3" x 37.8" |
Battery Information for the Device:
| Code Battery | GBA 12V 2.0Ah Bosch |
| Type Battery | Lithium-ION |
| Voltage | 12V |
| Current | 2.0Ah |
| Quantity | 1 |
| Continuous Operation Time with Mode Saving Pressure | 2 Hours |
| Working Wime with Mode Saving Pressure | 6 Hours |
| Continuous Operation Time with Mode Audio Alarm Only | 120 Hours |
| Working Time with Mode Audio Alarm Only | 360 Hours |
Battery Charger:
| Code Battery | GAL 12V-40 Bosch |
| Input Supply Voltage | 220-240VAC |
| Output Voltage | 12V |
| Output Current | 4.0Ah |
| Quantity | 1 |
| Full Charger Time | ½-hour |
| Weight | 460 Grams |
Compressed Air Requirement:
| Air Consumption | 180 Liters/Minute |
| Supply Air Pressure | 5 bars (72 psi) |
Some of Aardwolf Vacuum Lifter Models:
- AVLP 4 - 4 Pad Vacuum Lifter
- ABL380 - Block Lifter
- ABL1000 - Block Lifter
- ARGL0500DC - Vacuum Glass Lifter
- AHVL500 - Handy Vacuum Lifter
