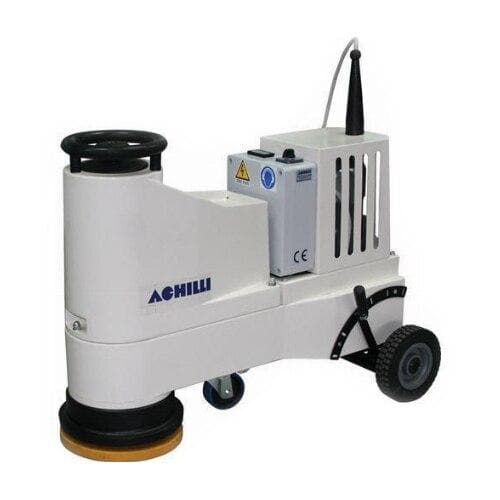

Achilli LM30-CE 115 volt Single Speed Floor Grinding and Polishing Machine


The Achilli LM30 Floor machine is an outstanding machine for grinding, polishing, and refinishing floors: Marble Floors, Travertine Floors, Limestone Floors, Concrete Floors, Terrazzo Floors, concrete (and similar) floors.

The Achilli floor machine comes with a 12" Frankfurt head attachment that allows any type of frankfurt abrasive to be attached to it. The 3 head frankfurt plate can accept diamond and cement based abrasives, depending on what type of stone and polish work that needs to be achieved.

The Achilli LM30-CE Floor Machine is also used with granite, marble, and stone slabs for honing, resurfacing, brushing, leathering, texturing, and polishing the back side of granite and stone slabs.

The Achilli LM 30-CE Floor Machine is a 115 Volt single speed 3 HP motor. This motor creates a Plate RPM and Peripheral Speed of 439 rpm. This speed is excellent for this machine to grind and polish with frankfurt abrasives on a 12" frankfurt plate.

The Achilli LM 30-CE Floor Machine has a 6.8 gallon water reservoir in the head of the machine that sits over the top of the head. There is a knob that adjusts the flow of water. By having the water over the head, it allows easy water application as well as adding weight to the head.

Around the head of the frankfurt plat there is a shock absorbing ring. This allows the machine to perform lippage removal as well as absorb vibration from the floor to the machine.

There is a level adjustment on the back of the Achilli Floor Machine to adjust the level of the machine to the abrasives being used on the front of the machine.

A weight system can be mounted in the center of the machine to create added pressure if necessary.

Weha offers a full line of frankfurt abrasives by Tenax for granite, marble, terrazzo, travertine, all natural stone, and concrete material.



Sturdy and compact structure.
115 volt motor Machine level adjustment by eccentric wheel axis.
Transport handle and pivoting wheel facilitate machine movements.
Power 3 hp
Voltage: 230v
Abrasive 300mm holding plate Plate
Plate RPM and peripheral speed: 439 rpm - 413 m/min.
Water tank 6.8 Gallon capacity
Size 20" x 39" x 37" (533mm x 991mm x940mm)
Dimensions of palatalized carton: 21" x 40" x 38"
Weight of the Machine: 198 lbs

Comes with:
12" (300mm) Frankfurt plate
Shock-absorbing spring (inner type)
Plastic splash guard ring
Squeegee
Set of Wrenches
