Alpha Quad Turbo Diamond Blade

Quad - The Ultimate Dry Flush Cutting Blade for Stone Fabricators

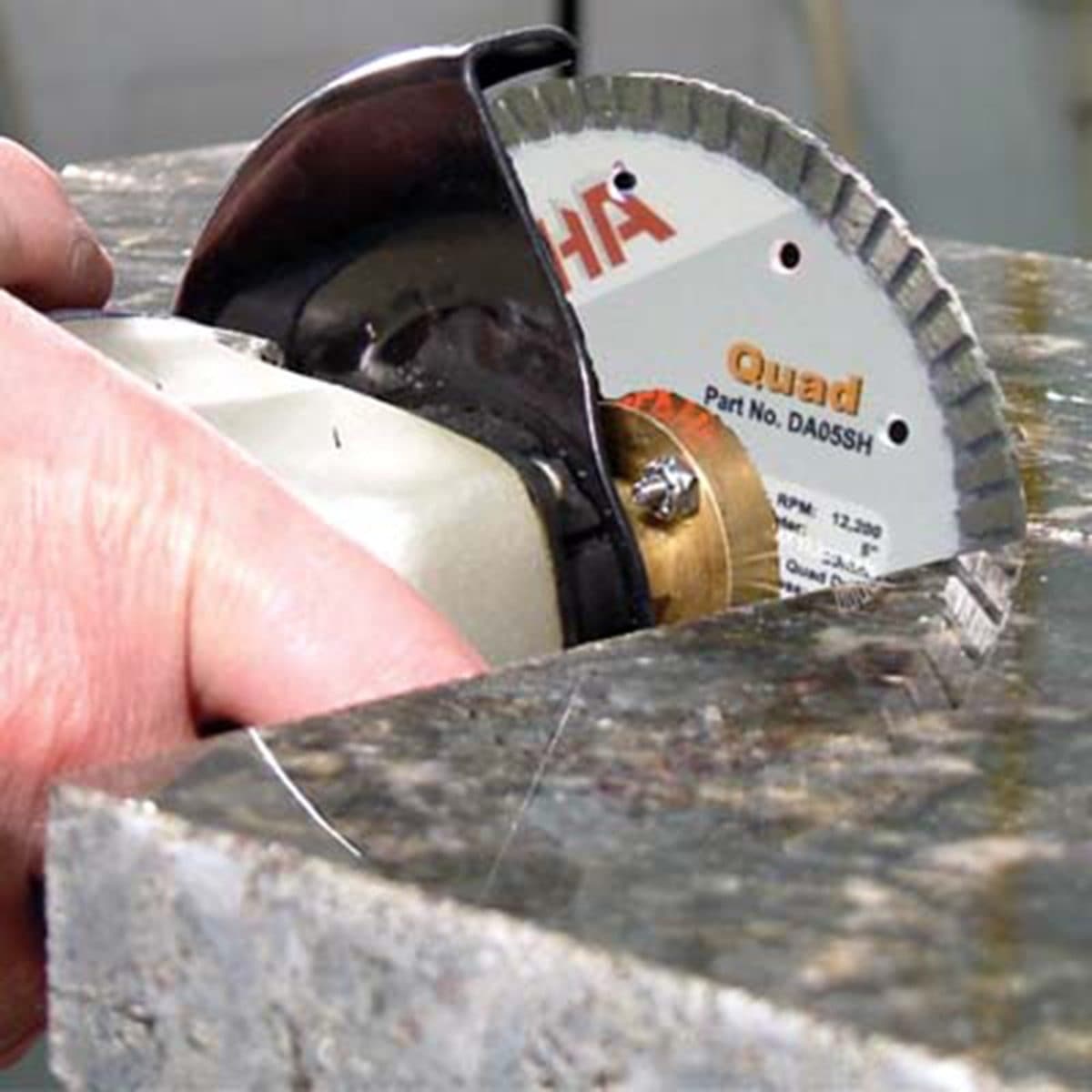

Alpha® Quad combines the performance of Alpha® Plus, the ultimate diamond blade, with our unique design for flush cutting applications. Unlike other blades, Alpha® Quad accepts our exclusive Quad Drive Adapter, which eliminates the required lock nut. The Quad Drive Adapter has a threaded arbor that permits mounting on angle grinders for "flush cutting" applications. The quad driver designed for larger diameters enables angle grinders to be used for cutting applications with their existing safety guard in place. Fabricators use Alpha® Quad to make 90 degree inside corners cleanly and efficiently. Monument builders can easily clean up marks left from large diameter saw cuts with Alpha® Quad. General contractors love to convert their angle grinder into a cutting tool on the job site by using Alpha® Quad. This blade is also very popular for sculptors who want to reach tight corners and hard to reach areas. Alpha® Quad and the Quad Drive Adapter offer unique features with the performance of the ultimate diamond blade for special applications.

• Requires Quad Drive to fit High-Speed Angle Grinder
• Fits most popular High-speed Angle Grinders
• Specially Designed for Flush Cutting
• Best Dry Cutting Turbo Blade on the Market
• Chip-Free Cutting on Most Demanding Applications

Part No.	Size	Thickness	Maximum RPM	Arbor(s)	For Use On
DA04AH	4"	2.1mm	14,500	20mm Quad Drive	Angle Grinder

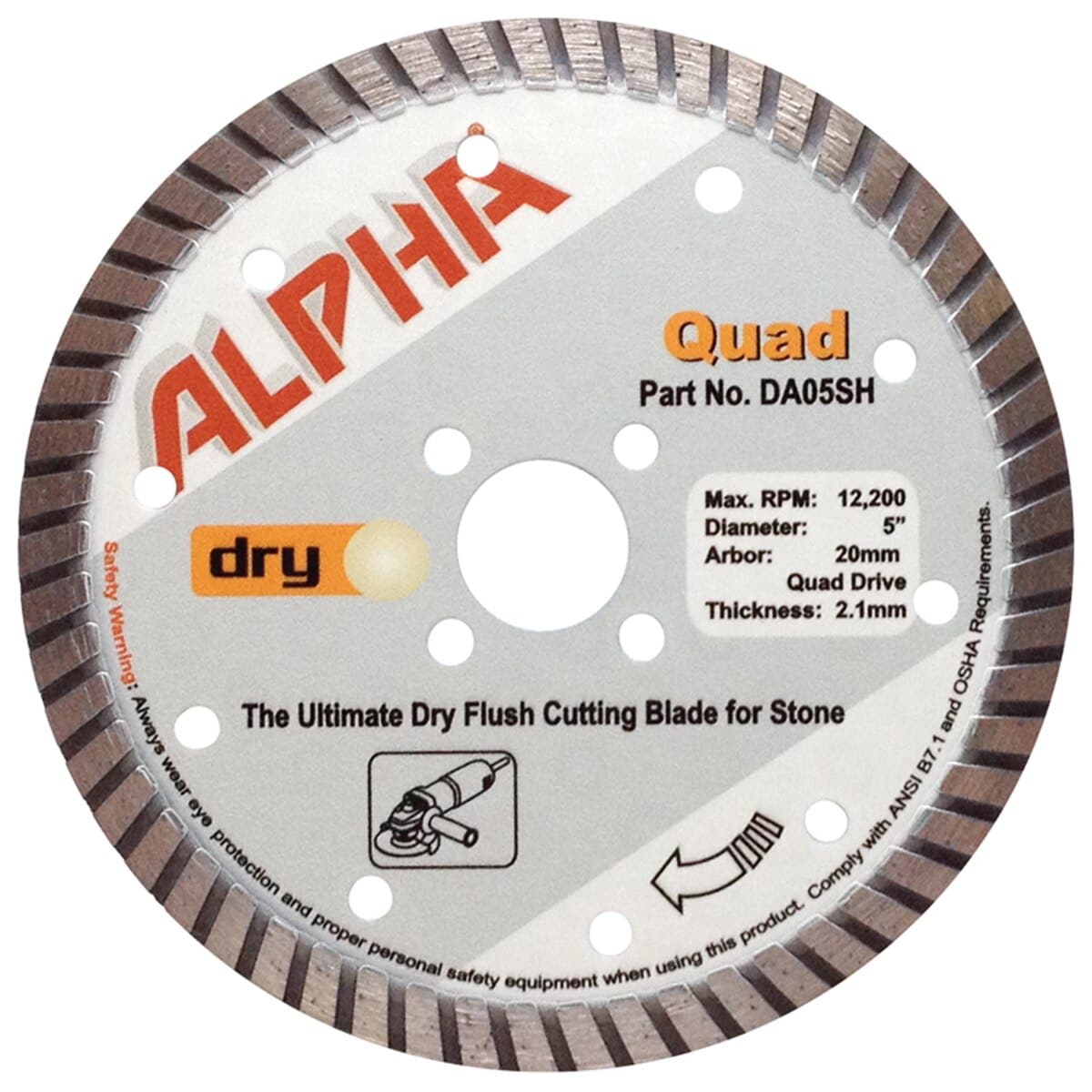

DA05SH	5"	2.1mm	12,200	20mm Quad Drive	Angle Grinder
DA06AH	6"	2.1mm	10,100	20mm Quad Drive	Angle Grinder

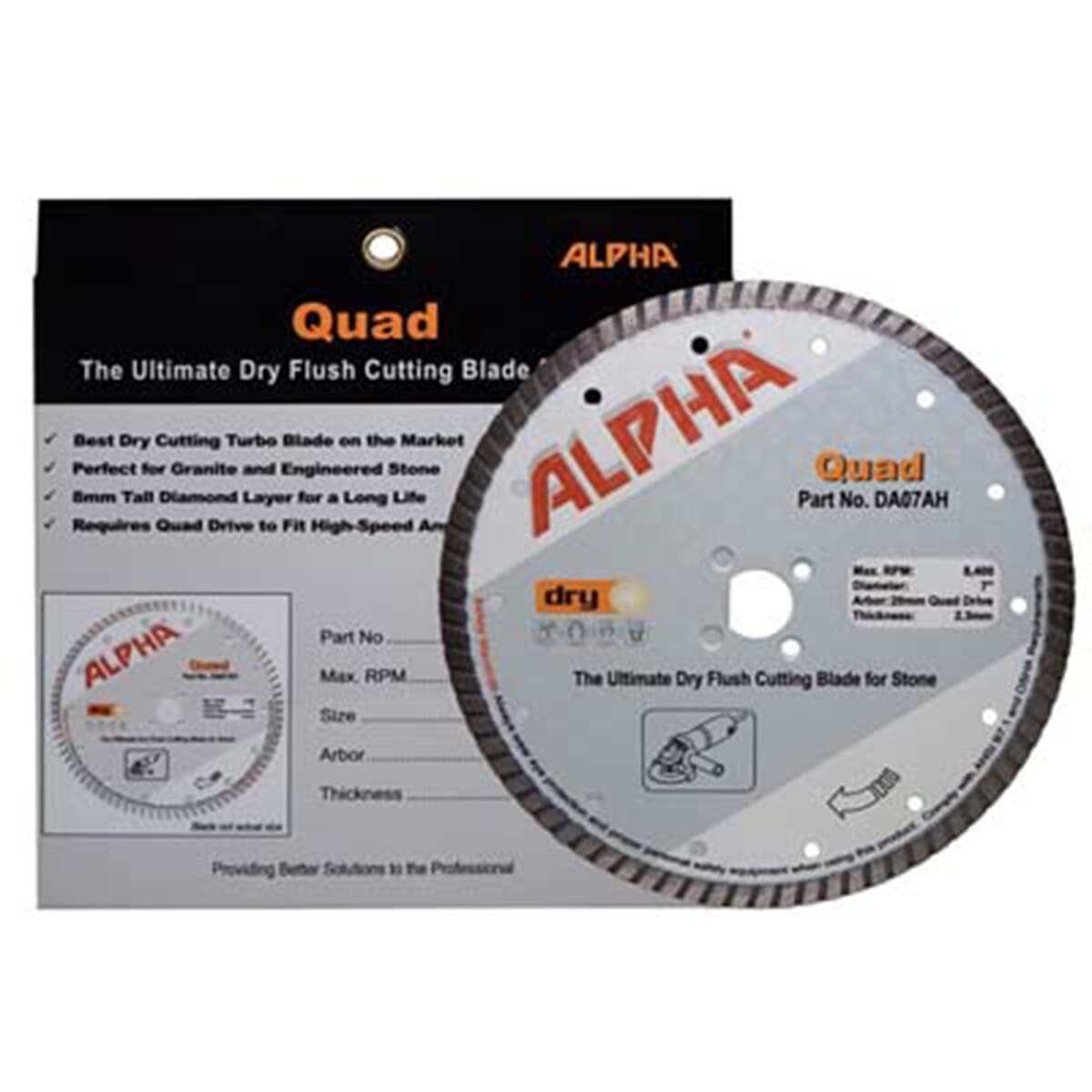

DA07AH	7"	2.3mm	8,400	20mm Quad Drive	Angle Grinder

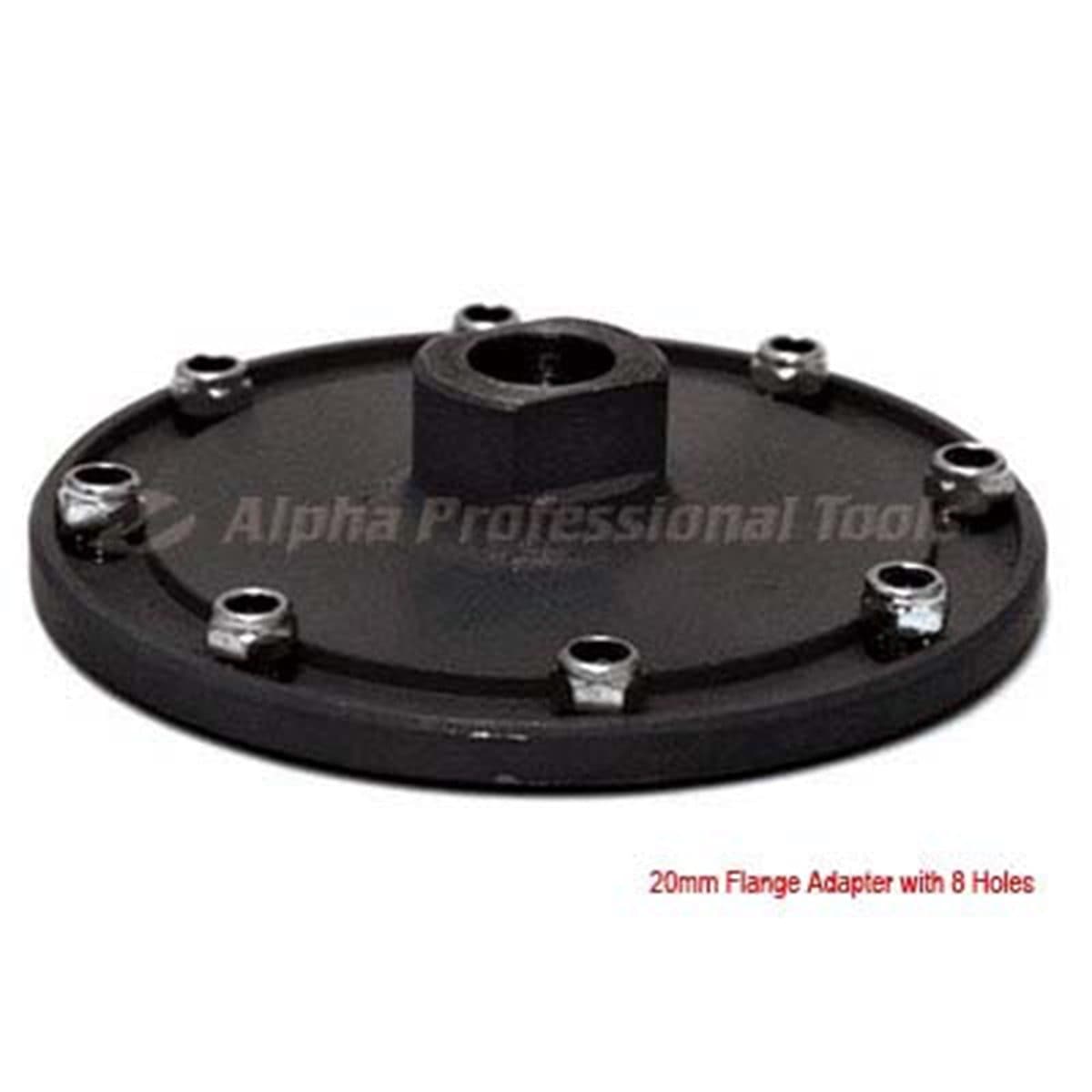

DA08AH	8"	2.3mm	7,400	20mm Flange with 8 holes	Angle Grinder
DA09AH	9"	2.5mm	6,600	20mm Flange with 8 holes	Angle Grinder
DA11AH	10"	2.5mm	5,900	20mm Flange with 8 holes	Angle Grinder
