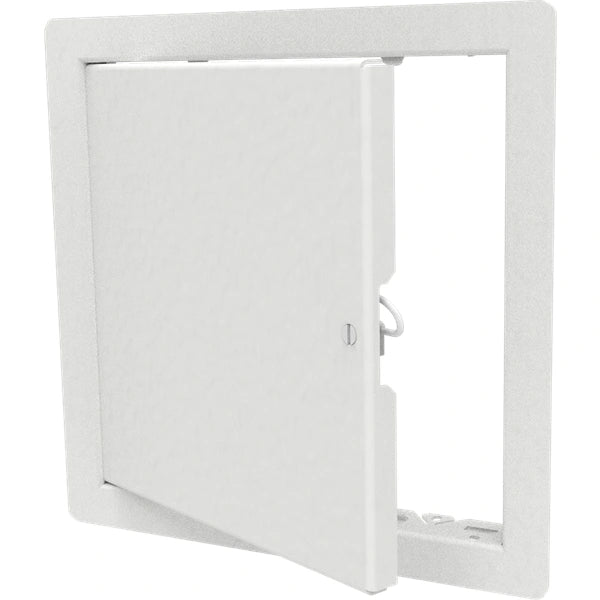

The Babcock-Davis Architectural Access Door is designed with the architect in mind.

Constructed with an industry-standard 16 gauge steel door, the updated design provides superior strength and design aesthetics.

Features:
  • Anti-flex frame
  • Removable and repositionable door
  • Painless installation
  • Optional stainless steel
  • Double door available
Model BNT/BNW
Door BNT/BNW: 16 gauge Steel (removable) or 16 gauge Type 304 Stainless Steel
BNP: 14 gauge Steel or 16 gauge Type 304 Stainless Steel
Frame 16 gauge Steel or 16 gauge Type 304 Stainless Steel
Size (in.) Single Door
Minimum: 6" by 6"
Maximum: 24" by 72" or 48" by 48"
Double Door
Minimum: 24" by 24"
Maximum: 36" by 72" or 48" by 64" or 72" by 48"
Installation Wall or Ceiling
Flange 1 inch exposed, Drywall Bead or Plaster Bead
Hinge Concealed spring button or Flush continuous piano
Pan Depth 1/2 inch
Latch Screwdriver Cam Latch, Key Operated Cam Latch, or Mortise Lock (1-1/8 inch) Prep
Finish White Powder Coat (steel) or #4 Satin (stainless steel)
Warranty 1 year

Base Flange Latch Width x Length Options

BN


  T - 1 inch Flange C - Screwdriver Cam Latch Standard Sizes (in.) B - Galvannealed
W - Drywall Bead L - Key Operated Cam Latch 6" x 6" 20" x 30" F14 - 14 gauge frame & door
P - Plaster Bead M - Mortise Lock Prep (1-1/8") 8" x 8" 22" x 22" L - Louvered Door
    10" x 10" 22" x 30" S - Type 304 Stainless Steel
12" x 12" 24" x 24" D14 - 14 gauge door
12" x 18" 24" x 30" D - Double door
12" x 24" 24" x 36"
14" x 14" 24" x 48"
16" x 16" 30" x 30"
16" x 20" 30" x 36"
18" x 18" 32" x 32"
18" x 24" 36" x 36"
