Babcock-Davis | SKU:
Architectural Access Door - Drywall Bead
$2837
Unit price
/
Unavailable
Shipping calculated at checkout.
Access doors are customized and are final sale
Architectural Access Door - Drywall Bead - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Safe & Secure Payments.
Architectural Access Door - Drywall Bead
From
$2837
Unit price
/
Unavailable

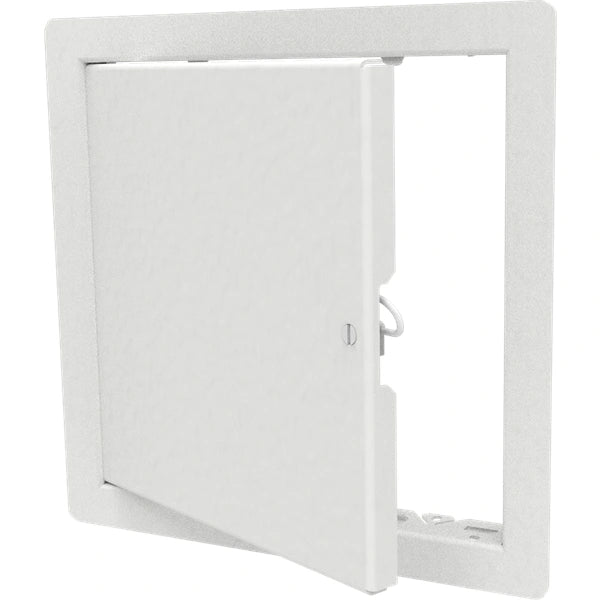

The Babcock-Davis Architectural Access Door is designed with the architect in mind.
Constructed with an industry-standard 16 gauge steel door, the updated design provides superior strength and design aesthetics.
Features:- Anti-flex frame
- Removable and repositionable door
- Painless installation
- Optional stainless steel
- Double door available
| Model | BNT/BNW |
|---|---|
| Door | BNT/BNW: 16 gauge Steel (removable) or 16 gauge Type 304 Stainless Steel |
| BNP: 14 gauge Steel or 16 gauge Type 304 Stainless Steel | |
| Frame | 16 gauge Steel or 16 gauge Type 304 Stainless Steel |
| Size (in.) | Single Door |
| Minimum: 6" by 6" | |
| Maximum: 24" by 72" or 48" by 48" | |
| Double Door | |
| Minimum: 24" by 24" | |
| Maximum: 36" by 72" or 48" by 64" or 72" by 48" | |
| Installation | Wall or Ceiling |
| Flange | 1 inch exposed, Drywall Bead or Plaster Bead |
| Hinge | Concealed spring button or Flush continuous piano |
| Pan Depth | 1/2 inch |
| Latch | Screwdriver Cam Latch, Key Operated Cam Latch, or Mortise Lock (1-1/8 inch) Prep |
| Finish | White Powder Coat (steel) or #4 Satin (stainless steel) |
| Warranty | 1 year |
| Base | Flange | Latch | Width x Length | Options | |
|---|---|---|---|---|---|
BN |
|||||
| T - 1 inch Flange | C - Screwdriver Cam Latch | Standard Sizes (in.) | B - Galvannealed | ||
| W - Drywall Bead | L - Key Operated Cam Latch | 6" x 6" | 20" x 30" | F14 - 14 gauge frame & door | |
| P - Plaster Bead | M - Mortise Lock Prep (1-1/8") | 8" x 8" | 22" x 22" | L - Louvered Door | |
| 10" x 10" | 22" x 30" | S - Type 304 Stainless Steel | |||
| 12" x 12" | 24" x 24" | D14 - 14 gauge door | |||
| 12" x 18" | 24" x 30" | D - Double door | |||
| 12" x 24" | 24" x 36" | ||||
| 14" x 14" | 24" x 48" | ||||
| 16" x 16" | 30" x 30" | ||||
| 16" x 20" | 30" x 36" | ||||
| 18" x 18" | 32" x 32" | ||||
| 18" x 24" | 36" x 36" | ||||
