Automatic Dry Dust and Sludge Collection Booth

Automatic Dust and Sludge Collection Booth made to eliminate 99.99% of dust particles. These Dust Collection Booths are also available Wet.

Filter Project 6 Ft Automatic Self-Cleaning Dry Dust Collection Booth Dry Dust collector is made to trap 99% of Dust from Granite, Marble, Engineered Stone, Quartz, Quartzite, and other airborne particles

The Dust Collection Booths require Filtering Sleeves. View and purchase the amount needed for your machine here.

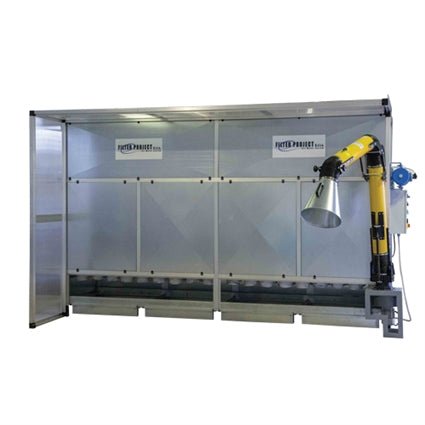

Filter Project 6 Ft (2 meter) Dry Dust Collection Booths are all stainless steel, heavy duty, dry dust collectors made to eliminate 99.99% of dust particles.
With the additional requirements initiated by OSHA for Silica in the granite and engineered stone, the Filter Project Clean Air Dry Dust Collection Booths will be a major advantage in removing silica dust from the air.
The operation of the Dry Dust Collector is extremely simple. Simply push the button and work in front of it. The dust will be vacuumed horizontally into the dry dust collector without the fabricator breathing any of the dust.
How does the Dry Dust Collection Booth Work?

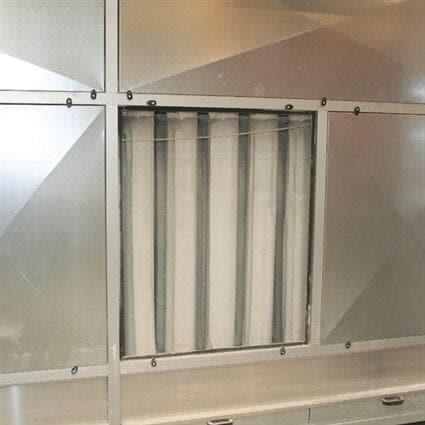

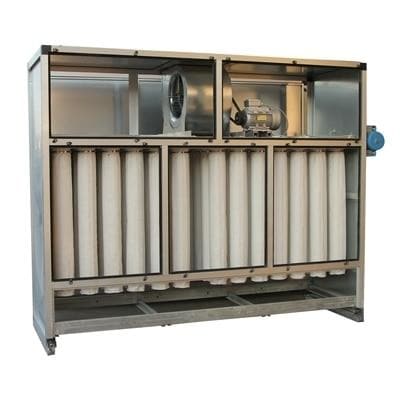

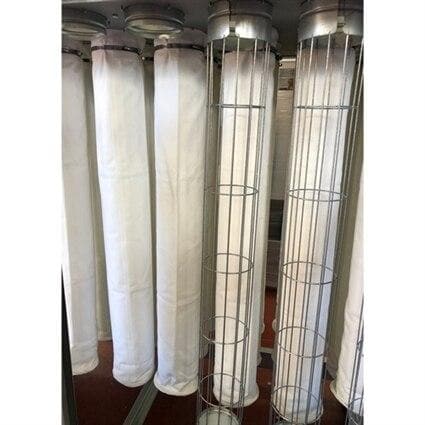

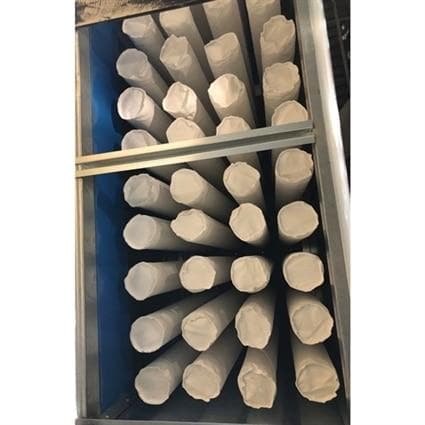

The Filter Project Dry Dust Collectors have specially designed cloth filtering sleeves inside the Dust Collector. When turned on the Dry Dust Suction Walls very powerful motors create a strong vacuum that pulls the dust particles horizontally from the work bench directly into the dust suction wall, then pulls it down to the bottom of the wall and inside the unit. There the many cloth filtering sleeves trap the dust and only allows 99.99% clean air to come out of the top.

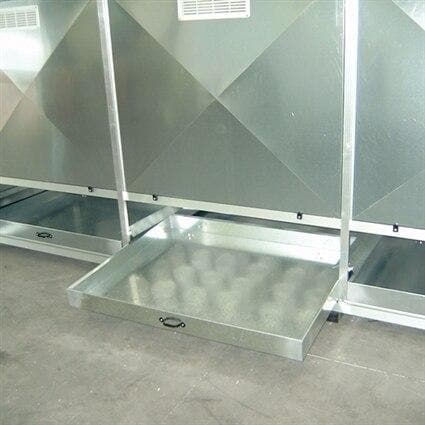

The dust is then collected in the catch basin draw at the bottom of the dry dust collection booth. Every day or once a week simply empty the dust that has been collected in the bottom of the catch basin.
The Filter Project Dry Dust Collection Booth comes with a 3 ft (1 meter) extension enclosure that provides additional dust control and greater vacuum efficiency. 6 ft (2 meter) extension enclosures are available as options
Also the Dry Dust Collectors come in 2 versions:

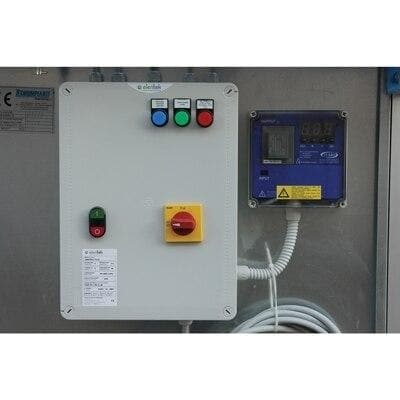

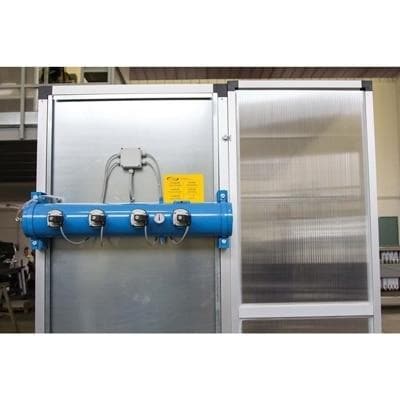

Dry Dust Collectors in Automatic Self Clean mode: a self-cleaning system with compressed air, made by a pressurized tank, and a series of membrane electrovalves with specific blowing tubes inside the cloth filter sleeves and controlled by an automatic sequencer. That means that the unit is self cleaning.
Dry Dust Collectors in Manual Clean mode: This unit offers all the same dust extraction services as the automatic dust collector but the cloth filter sleeves will be cleaned by a worker.
Filter Project Dry Dust Collection Booths are available in other sizes in both Manual Dust Collection and Automatic Dust collection:
Automatic Dry Dust Collector

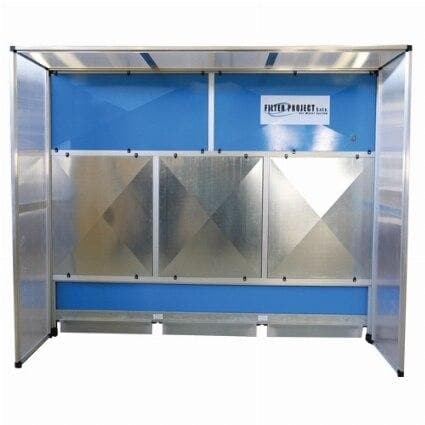

10 ft (3 meter) Automatic Cleaning Dry Dust Collection Booth. Normal Stocking Item
12 ft (4 meter) Automatic Cleaning Dry Dust Collection Booth. Special Order
Manual Dust Collector
6 1/2 ft (2 meter) Manual Dry Dust Collection Booth. Special Order
10 ft (3 meter) Manual Dry Dust Collection Booth. Normal Stocking Item
12 ft (4 meter) Manual Dry Dust Collection Booth. Special Order
Designed to trap 99%

Filter Project Dry Dust Collector Booths can be used for all types of airborne particle:

Granite Dust Collection
Marble Dust Collection
Quartz Dust Collection
Quartzite Dust Collection
Concrete Dust Collection
Cultured Marble Dust Collection
Fiberglass Dust Collection
Porcelain Dust Collection
Dry Dust Collector Electrical Requirements:
220 (208) 3 Phase Power
30 Amp Breaker
