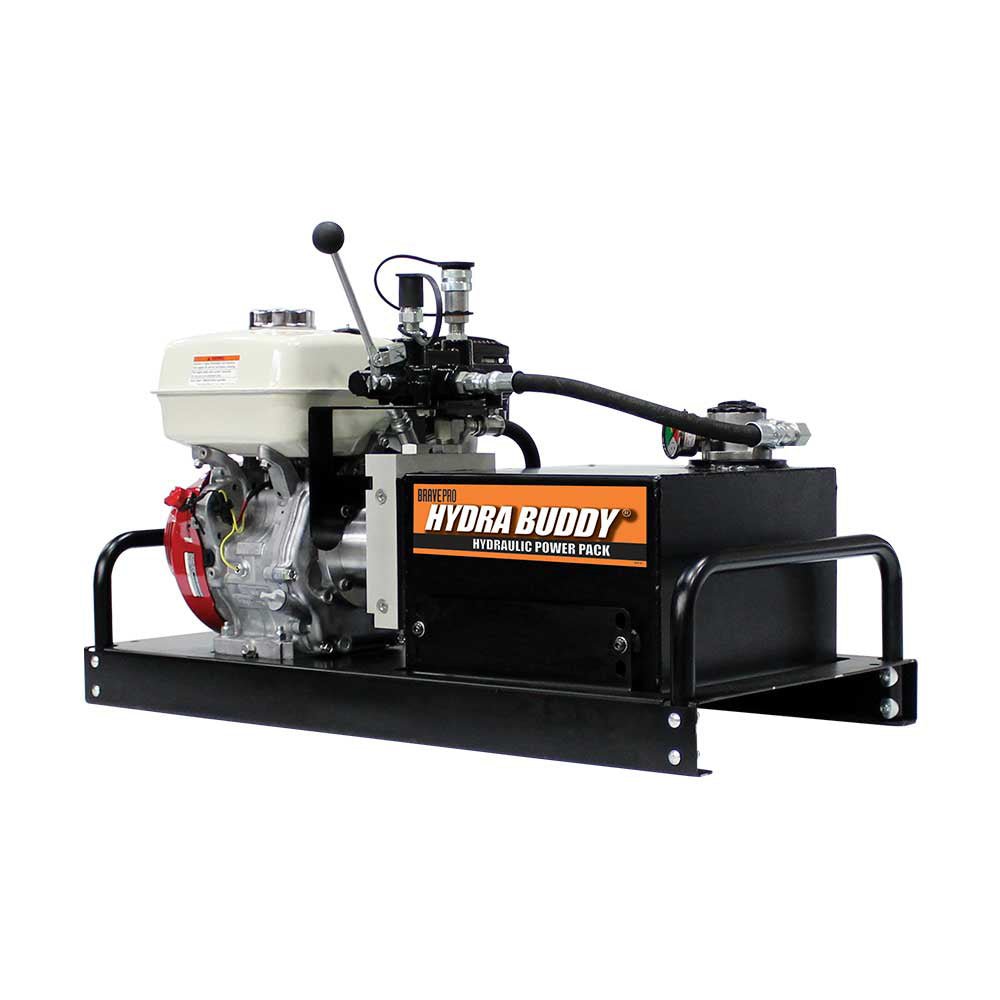

Brave Hydraulic Power Pack

The remote hydraulic power pack features handles for two-person transportation making it ideal for job sites where no power or air is accessible. Compatible for use with single or double-acting cylinders. This unit comes standard with a control valve and quick disconnect couplings. Check flow/pressure levels to ensure you have the right model for your needs.

Features and Benefits

  • Portable power to run power conveyors, augers, lifts, hydraulic motors, and other implements
  • Save money on fuel costs as well as hours and maintenance running your tractor
  • Four-directional control valve lever
  • Sight gauge for volume and temperature
  • Filter indication gauge
  • Convenient handles for portable, mobile use
  • Not intended to be plumbed into a closed-center hydraulic system

Product Specifications

Equipment Type Hydraulic Power Pack
Displacement 270cc
Dry Weight 155 Lbs
Engine Gx270
Engine Brand Honda
Flow 5.5 Gpm
Hydraulic Tank Drain Port 1/2 In.npt
Hydraulic Tank Material 12 Gauge Steel
Hydraulic Tank Volume 8 Nominal, 7.3 Actual, 5.4 Useable
Hydraulic Valve Inlet 12 Orb Plumbed To Reservoir
Hydraulic Valve Outlet 8 Male Jic Adapter Installed
PSI 2000
Pump Displacement .36 Cir
Pump Ports Inlet: 1-1/16-12 Orb; Outlet: 7/8-14 Orb
Pump Rotation Direction Clockwise
Starter Recoil
