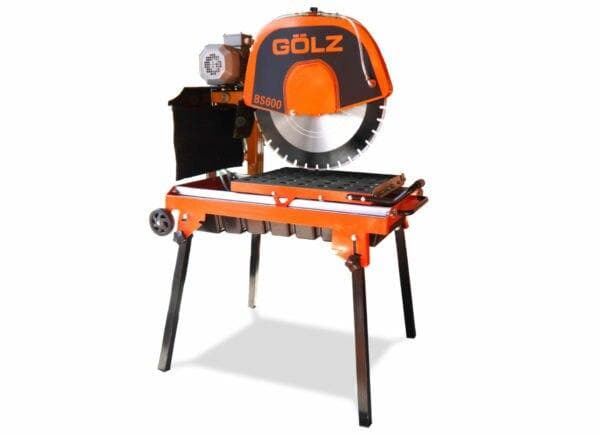

Compact 24 in. Block saw - with electric motor. Ideal for cutting bricks, poroton blocks and marble blocks

_______

Cutting length 16 in. (400 mm) / 24 in. (600 mm)
Blade-Ø 24 in. (600 mm)
Cutting depth 9.25 in. (235 mm)

  • Cutting head with elastic device, easy for operation
  • Electric water pump with quick coupling, easy for changing the pump
  • Max. cutting length up to 24 in. (600 mm)
  • Max. cutting depth up to 9.25 in. (235 mm)
  • Removable water tub, easy for cleaning
  • Foldable legs
  • Removable blade guard for easy blade change
  • Special water nozzle for optimized water cooling
  • Transportation wheel, easy for moving
Specifications
GÖLZ BS600-E
Motor Electric, 230 V / 400 V, 50 Hz
Power 2,2 kW
Max. cutting depth 9.25 in. (235 mm)
Max. blade size 24 in. (600 mm)
Arbor hole 1 in. (25,4 mm)
Cutting length 16 in. (400 mm) 11 in. (280 mm material height)
24 in. (600 mm) 2 in. (50 mm material height)
Shaft speed 1440 min-1
45° miter-cut no
Water pump S2, 230 V, 50 Hz, 55Watt
Blade flange size ø 5 in. (130 mm)
Transport wheels yes
Cutting table (LxW) 24x21 in. (600x525 mm)
Dimensions: (LxWxH) 43x34x58 in. (1100x870x1480 mm)
Weight 209 lbs (95 kg)
