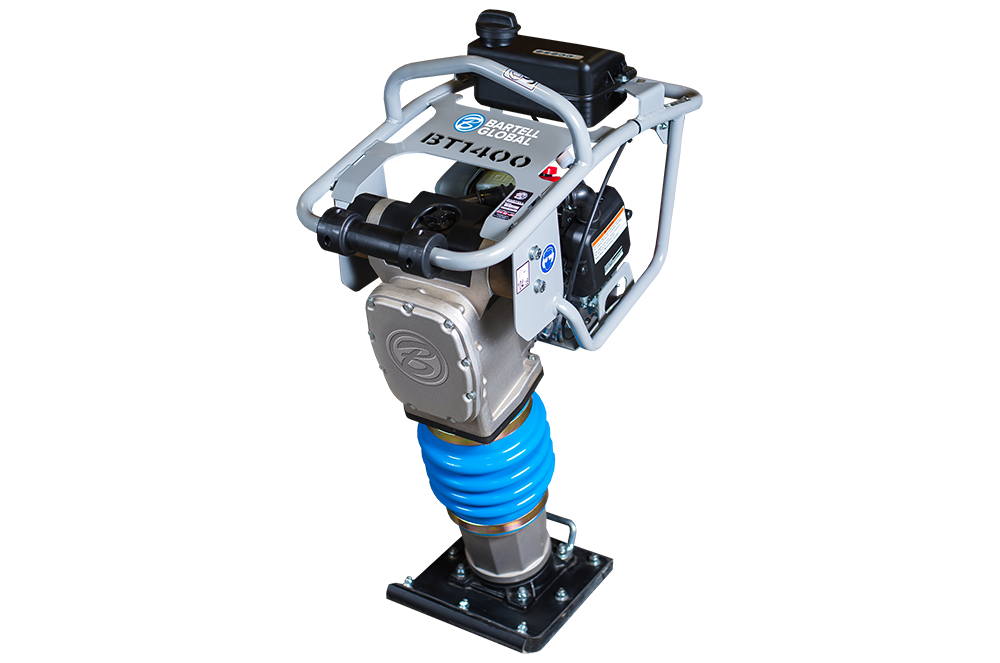

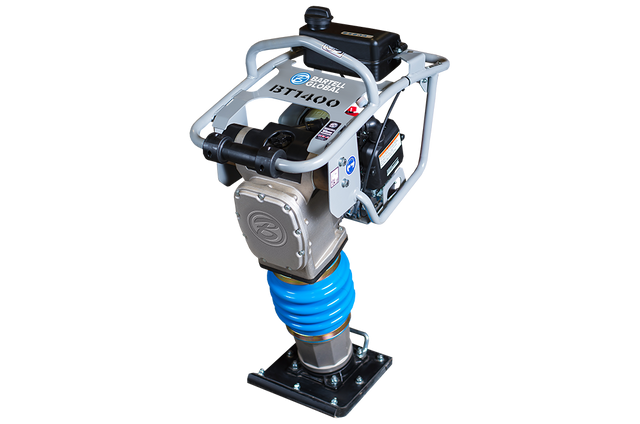

The Contractor Proven Rammer With Even More Power

The BT1400 is Bartell's standard tamping rammer that is perfect for general compaction applications suited for a rammer. This jumping jack is equipped with a GX120 engine rather than a GX100 like most to provide more power when needed. For example in higher elevations.

  • Adjustable height operators handle for operator comfort
  • Honda GX120 powered with diaphragm carburetor for extra power at higher elevations
  • Heavy-duty throttle control provides longer service life
  • Dual air filtration keeps the dirt where it belongs: out of your engine
  • Integrated fuel valve provided for easy starting
  • Heavy shock mount system to reduce hand-arm vibration and improve operator comfort
  • Protective roll cage prevents possible damage on job site
  • Integrated roller and lift handle makes loading and unloading a one-person job
  • Rammer dolly included

Part No.



Honda GX120

Power Output

3.5hp (2.6kW)



Fuel Capacity

0.5 GAL (2L)

Starting System


Jumping Stroke

2.8" (70mm)

Compaction Force

3080lbf / 13.7kN (1400kgf)


164lbs (74kg)

Plate Size

11" x 11.8" (280mm x 300mm)
