BW-200S - 200A Stick (SMAW) Welder

SKU# BA9-1021967

Regular price $384.00
Shipping calculated at checkout.

Secure Checkout

Safe & Secure Payments

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Meta Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

You might also be interested in

  • Baileigh

    BW-200T - 200A AC/DC Pulse Tig Welder

    Regular price $1,319.00
    View details
  • Baileigh

    BW-200MP - 200A Multi-Process Welder

    Regular price $1,209.00
    View details
  • Baileigh

    BW-160M - 160A Mig Welder

    Regular price $439.00
    View details
  • Sale

    Dia Plus

    Double Bar 12mm Floor Grinding Segments for Lavina Machines

    Sale price$30.00 – $270.00Save up to $10.00
    View details
  • 9 " Honeycomb Diamond Floor Pad - Sale HC-90400 Diamond Tool Store 400 Grit
    Sale

    Diamond Tool Store

    9 " Honeycomb Diamond Floor Pad - Sale

    Sale price$7.00 – $10.00Save up to $23.00
    View details
  • Sale

    Dia Plus

    Universal Bulls Eye Segment - STI Style

    Sale price$35.00 – $42.00Save up to $7.00
    View details
  • Dia Plus

    Dia Plus PCD Shoe Left and Right

    Regular price $55.00
    View details
  • White Floor Polishing Pads: 3 Inch Diamond Tool Store
    Sale

    Diamond Tool Store

    White Floor Polishing Pads: 3 Inch

    Sale price$12.50 – $23.20Save up to $10.70
    View details
  • Dia Plus

    Double Bar 12mm Floor Grinding Segments for Husqvarna Machines

    Regular price $35.00
    View details
  • Diamond Marble Floor Polishing Pad- 3 inch Diamond Tool Store

    Diamond Tool Store

    Diamond Marble Floor Polishing Pad- 3 inch

    Regular price $15.00
    View details
  • Sale

    Diamond Tool Store

    Green Floor Scrubbing Pads

    Sale price$8.00 – $35.02Save up to $2.58
    View details
  • Dia Plus

    Dia plus 3 Step Concrete Pads

    Regular price$18.00 – $27.00
    View details
  • Diamond Products

    Diamond Products Resin Polishing Pads

    Regular price$13.00 – $88.00
    View details
  • Sale

    Diamond Tool Store

    Tan Buffer Floor Pads

    Sale price$8.16 – $35.02Save up to $2.58
    View details
  • Sale

    Diamond Tool Store

    Black Stripping Floor Pads - 17"

    Sale price$8.16 – $35.02Save up to $2.58
    View details

Product Description

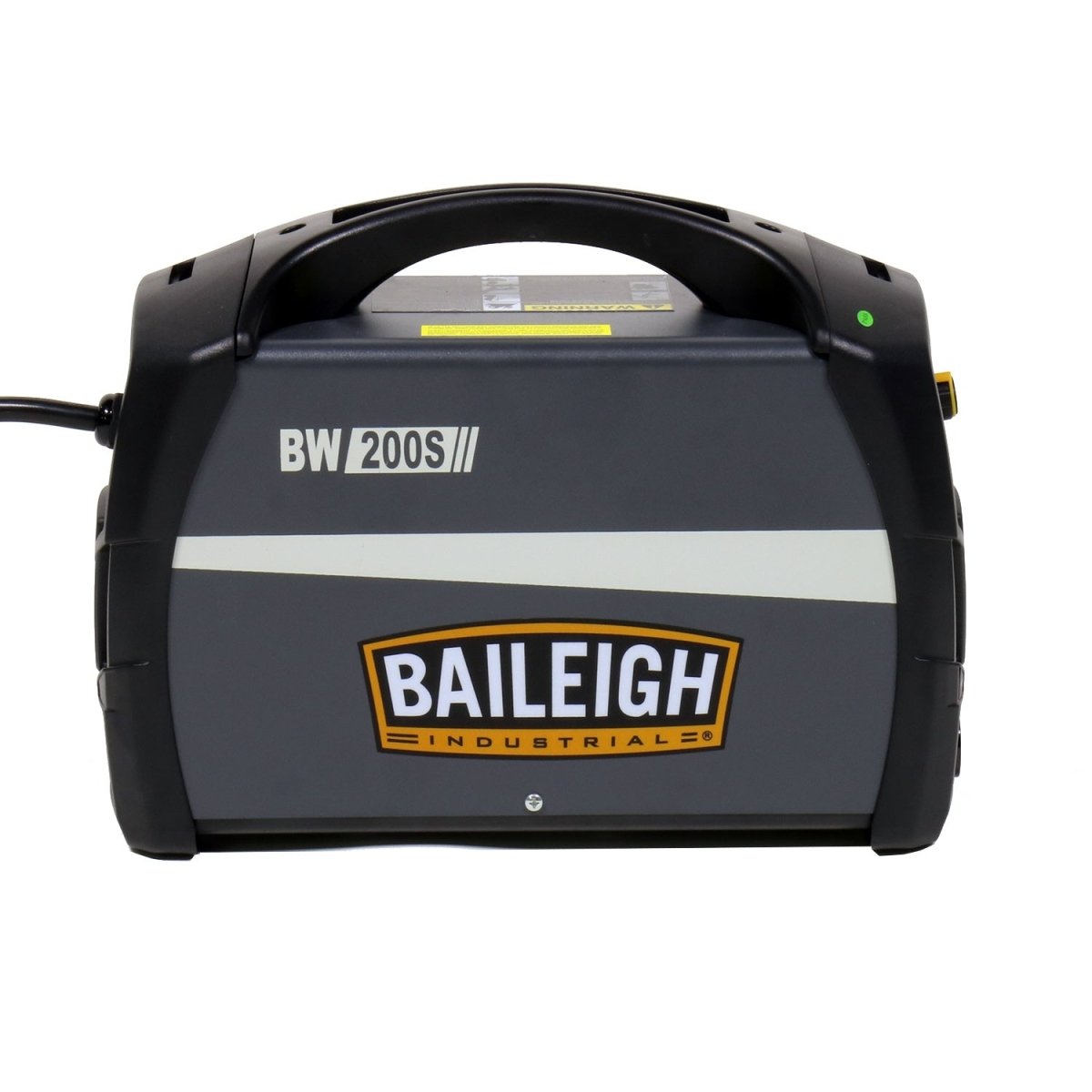

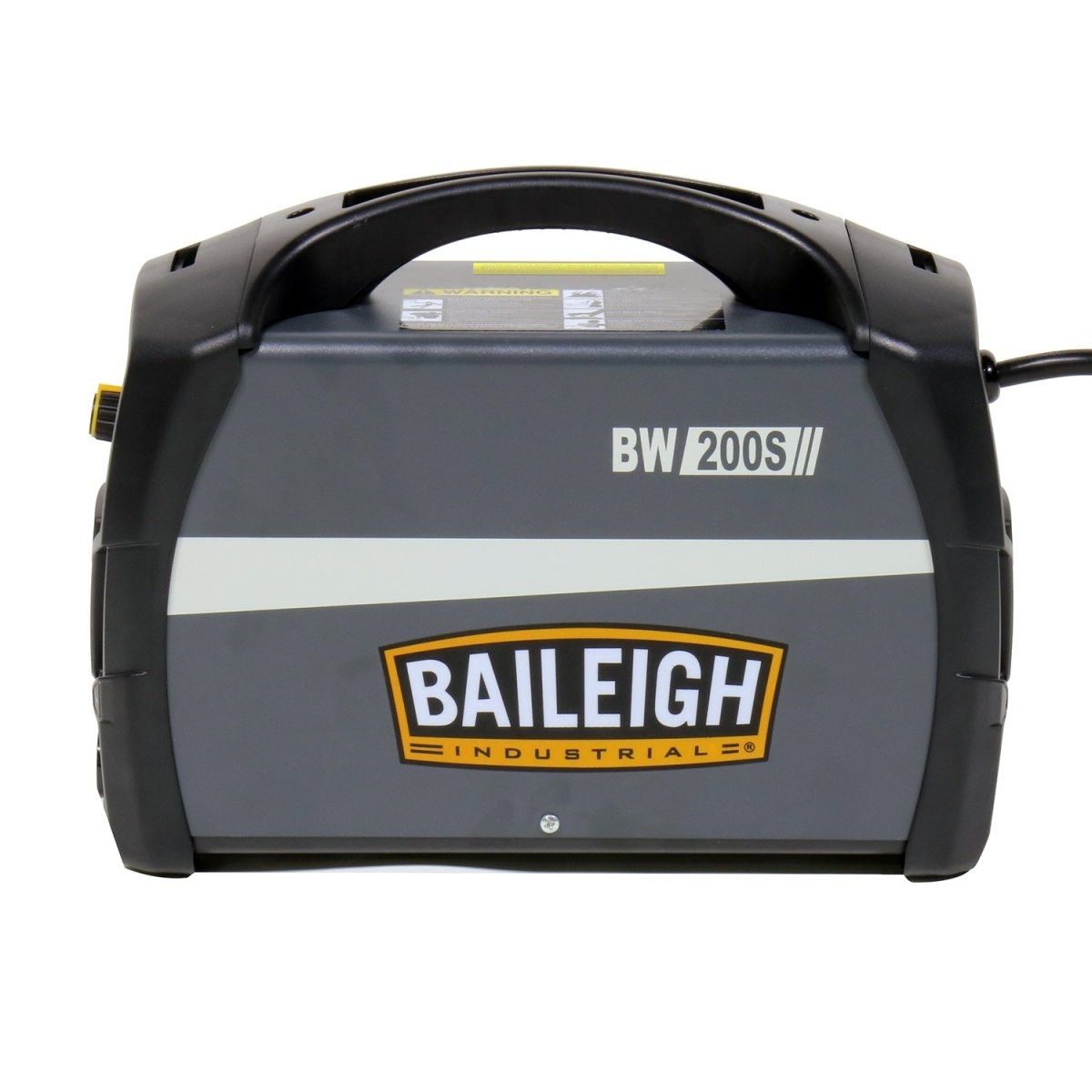

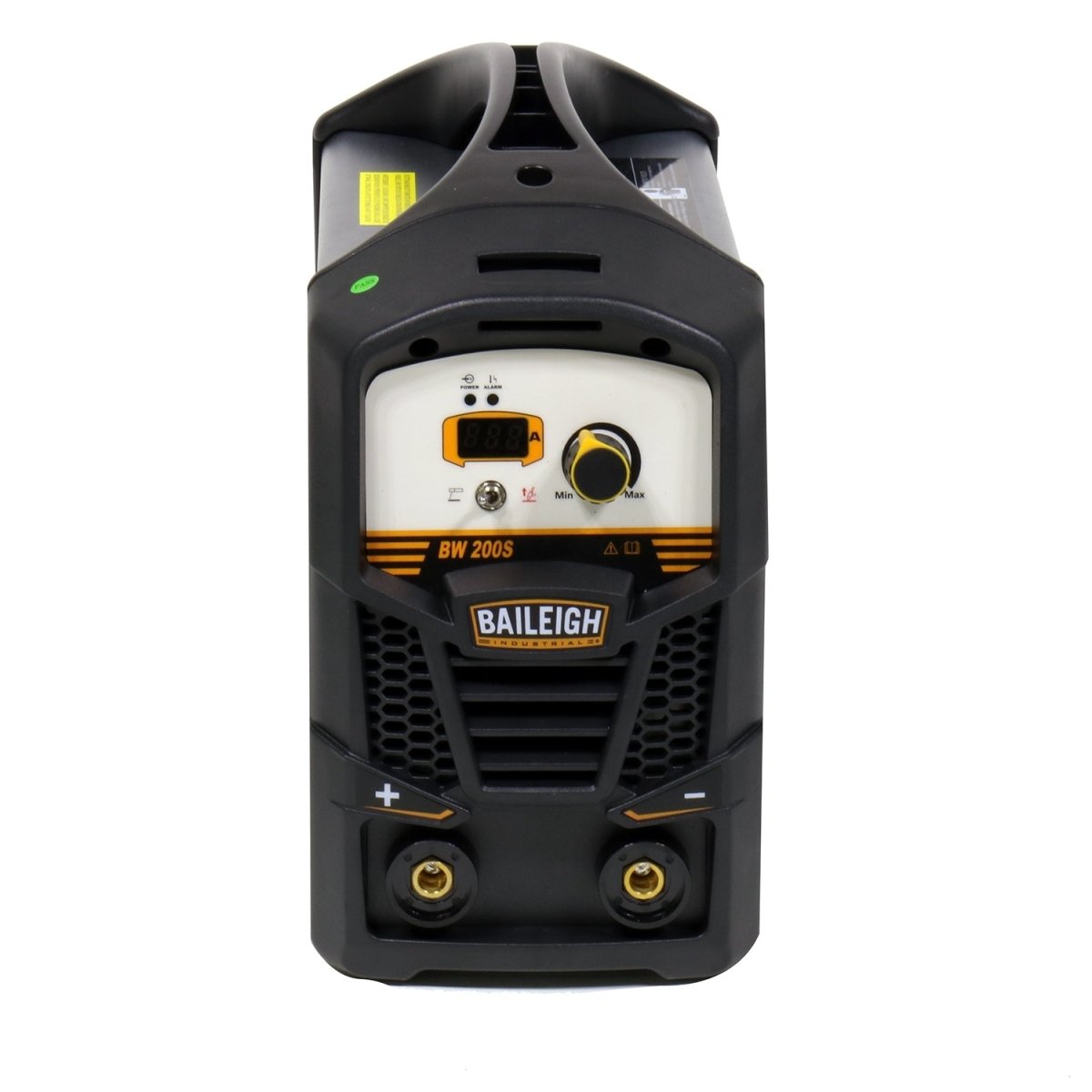

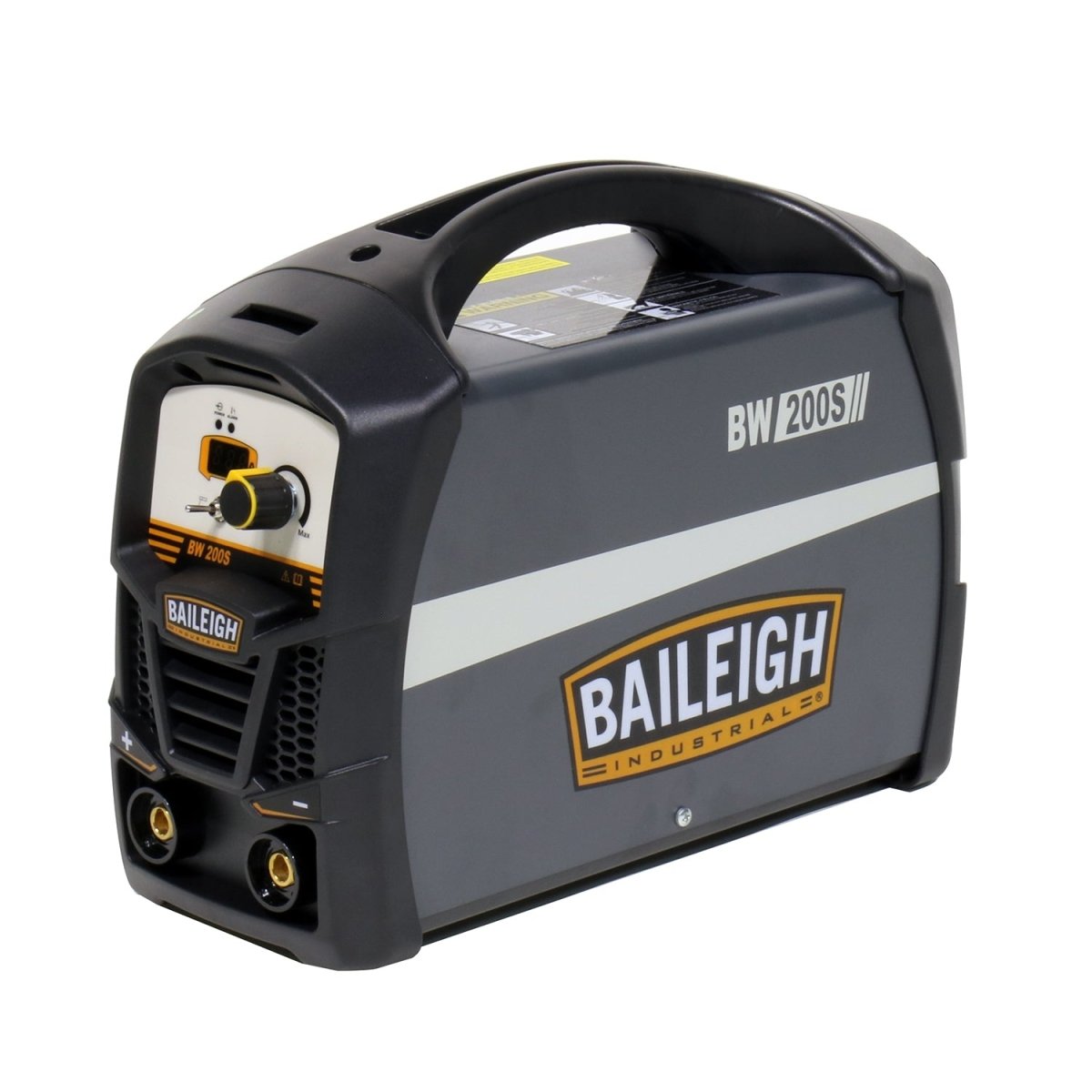

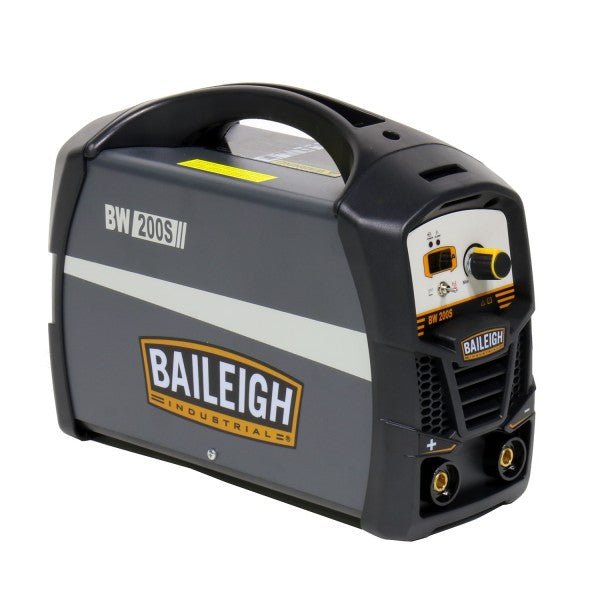

The BW-200S from Baileigh Industrial is an industrial level 200 Amp Arc welder

It features extremely solid construction but remains very portable at only 16 lbs. This BW-200S Industrial welding machine is the ideal choice for a welder working at the job site in during extreme conditions.

  • Portable IGBT Inverter stick welder

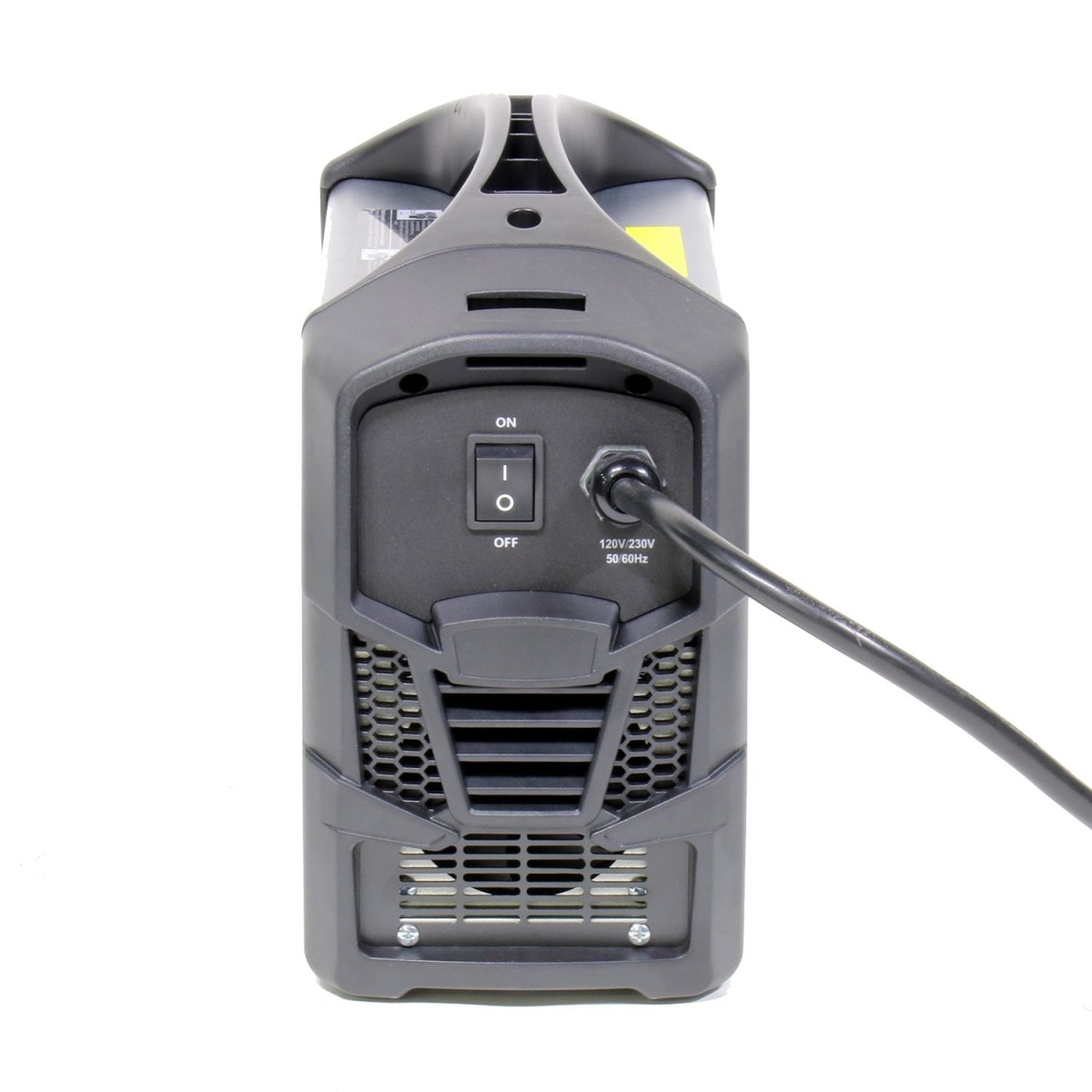

  • Dual voltage can run on 120 volt or 230 volt single-phase power
  • Intelligent voltage sensing – This welder knows what voltage it is plugged into and (when plugged into 120V) will limit the output of the welder

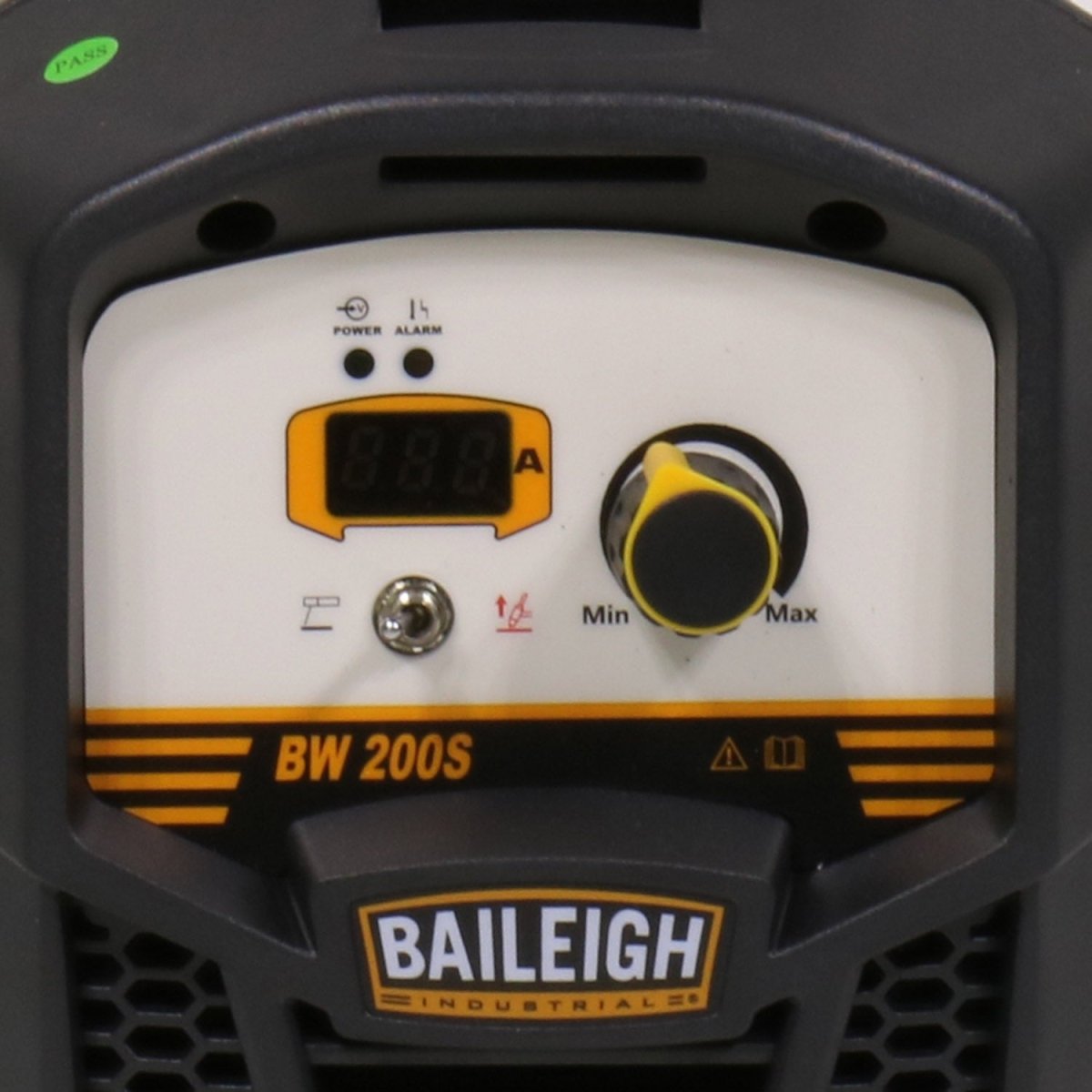

  • Step-less Current Adjustment - adjustments are infinite and do not “click” between only a few options
  • Thermal Overload Protected, will shut down welding if its temperature is too high
  • Fan Cooled
  • Anti-Stick / Hot Start - automatically increases output at the beginning of a weld to pre-heat the weld and electrode
  • Arc Force, keeps arc more stable, with less sticking, when the electrode is close
  • Lift ARC TIG capable – Torch not included
  • High Open Circuit Voltage
  • Generator safe and will tolerate large voltage variations
  • Easily sourced consumables

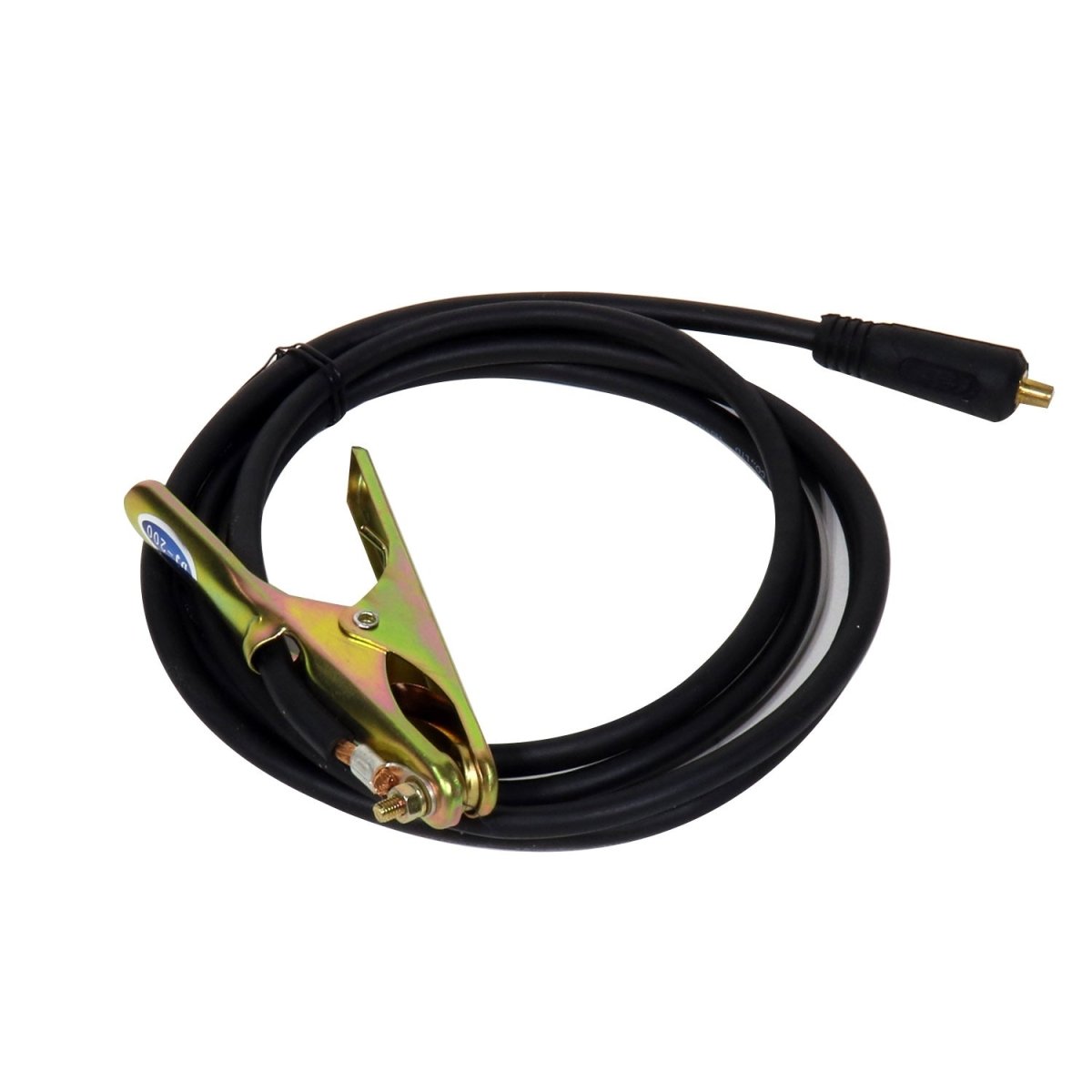

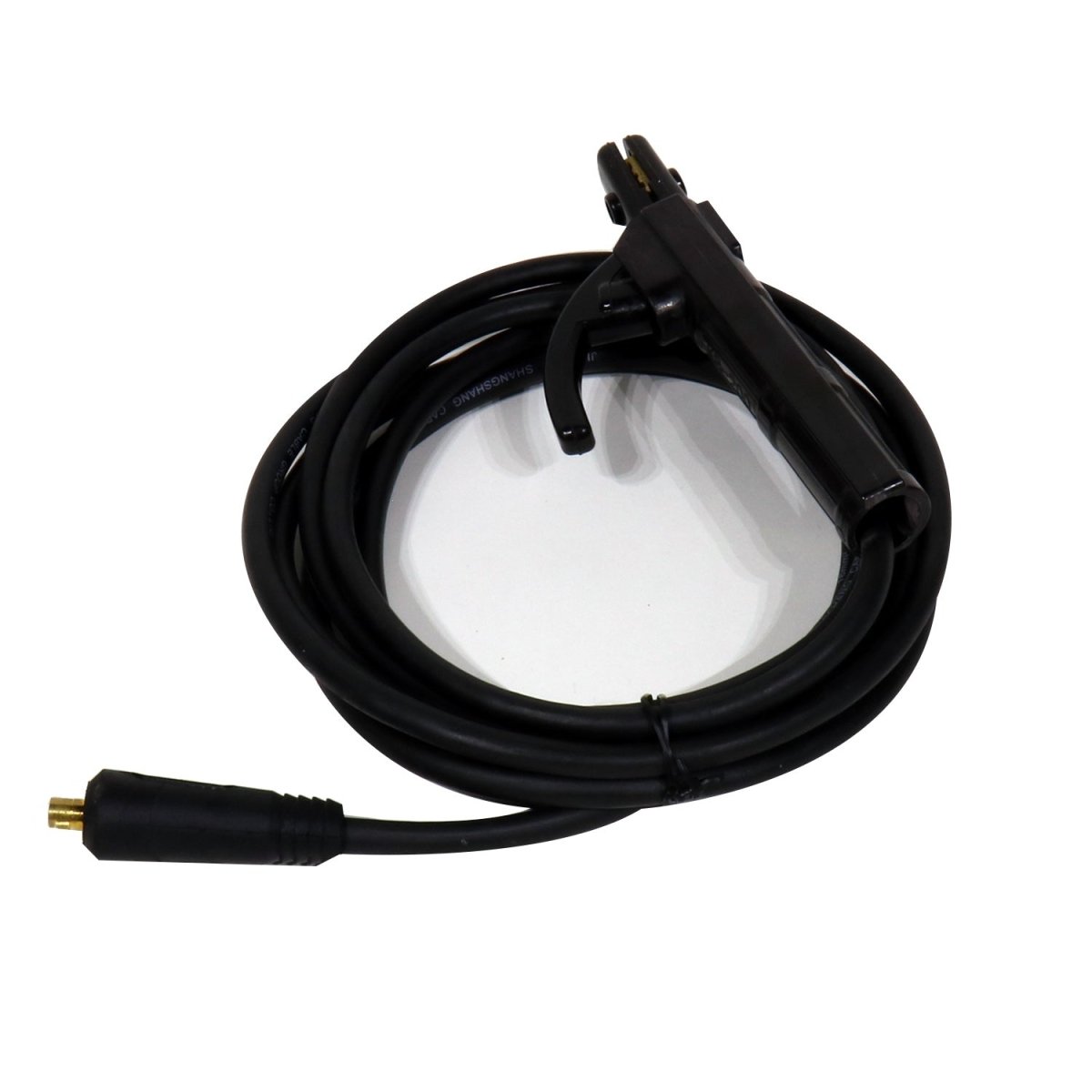

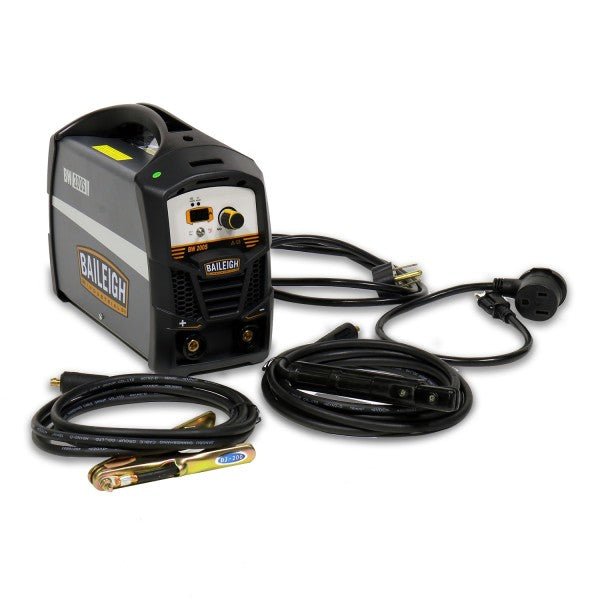

  • Includes electrode holder, ground clamp, 6-50P 250V plug, and adaptor to 120V plug
Item Number BW-200S
Cooling System Fan Cooled
Maximum Current 200 Amps
Power Dual Voltage - 120V/230V Single Phase
Shipping Weight 20lbs
Rated Input Current 20A (120V) / 40A (230V)
Rated Input Capacitance 4.4KVA (120V) / 9.2KVA (230V)
No-Load Voltage 78V (120V) / 78V (230V)
Rated Working Voltage 23V (120V) / 28V (230V)
Welding Current 15~75A (120V) / 12~200A (230V)
Rated Duty Cycle 100% (120V) / 15% (230V)
100% Rated Duty Cycle 77A (120V) / 77A (230V)
Efficiency 85%
Power Factor .75
Insulation Class H
Enclosure Protection IP21S
Special Notes Includes electrode holder, ground clamp, 6-50P 250V plug, and adaptor to 120V plug
Certification CSA UL
Shipping Dimensions (Inches) 18x10x14
