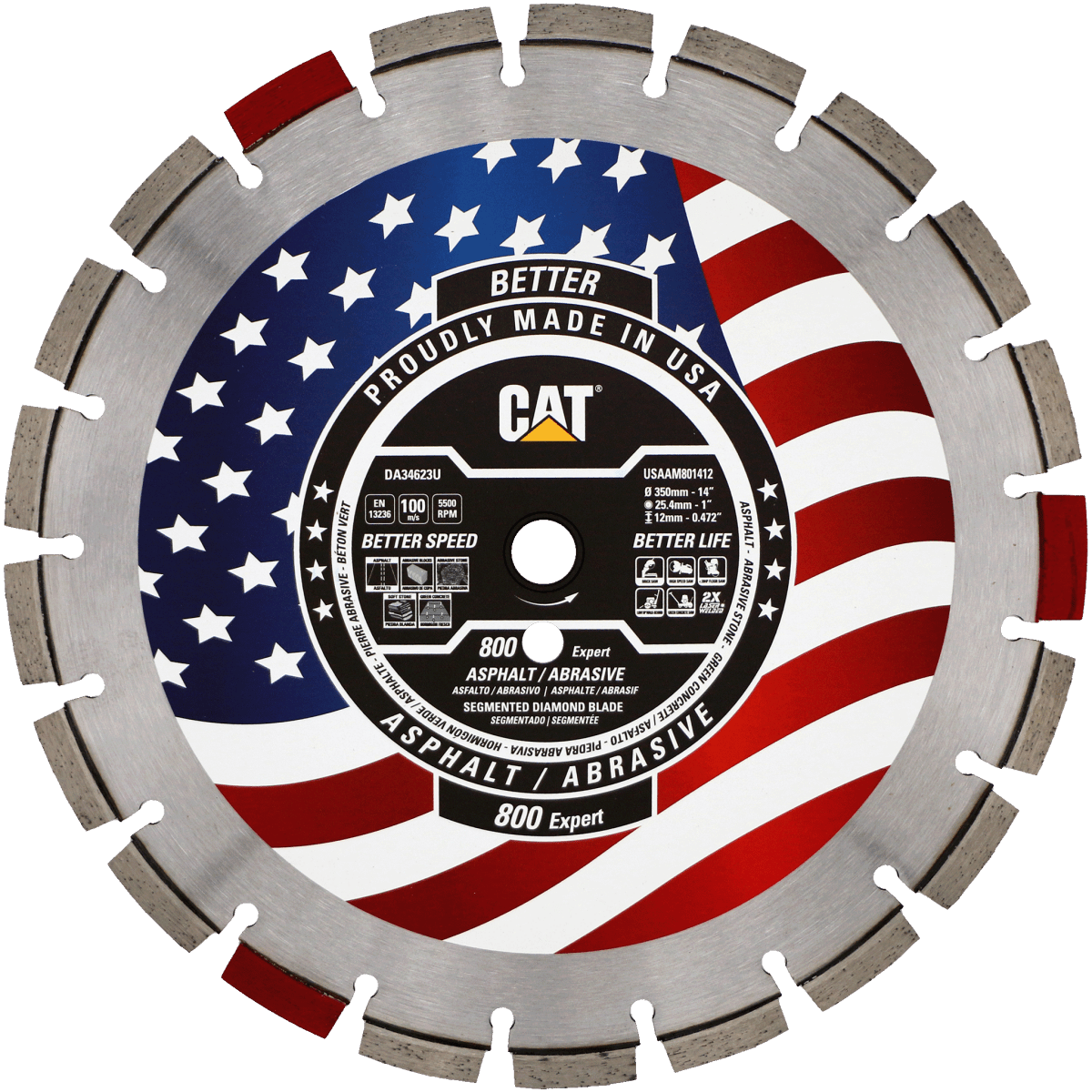

Caterpillar 800 Expert Diamond Blades for Abrasive Materials

Cat® Asphalt / Abrasive blades are able to cut all types of asphalt and abrasive materials.

Cat® Asphalt / Abrasive blades are designed for intensive use across the 3 performance grades: Good, Better and Best. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® Asphalt / Abrasive blades are able to cut all types of asphalt and abrasive materials. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.

ATTRIBUTES

• Very High Diamond Concentration & Diamond Quality

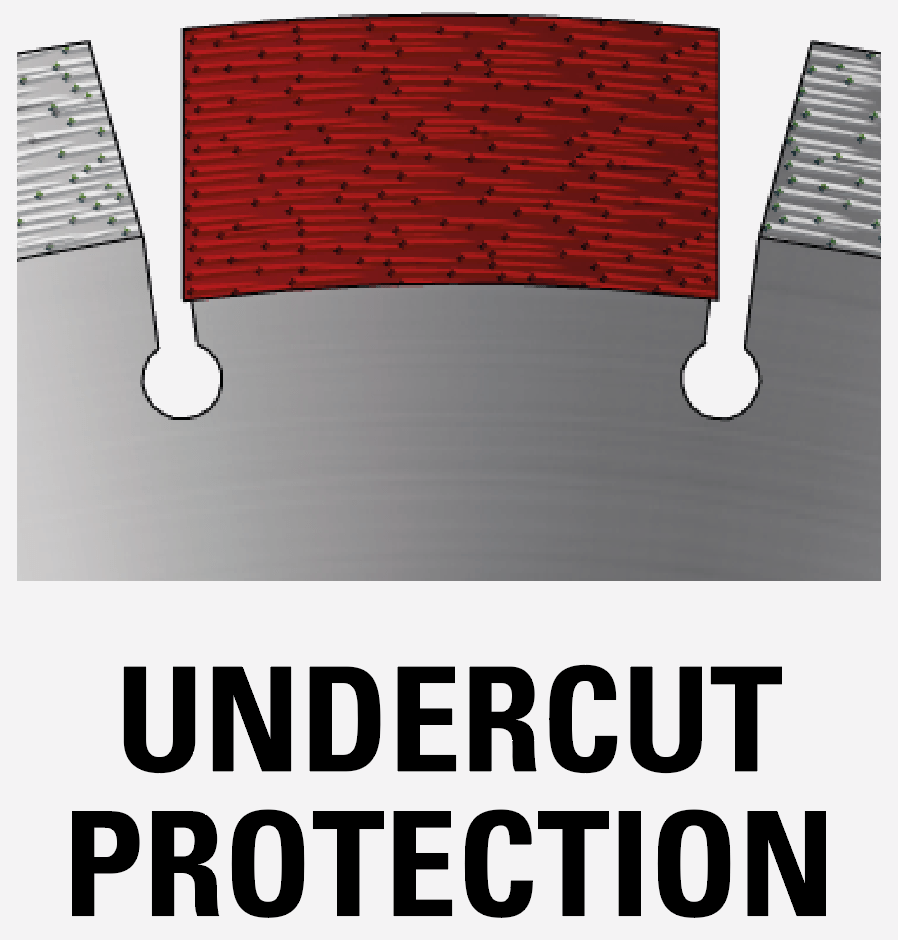

• Undercut Protection Segments To Clear Debris
• Fully Hardened & Heat Treated Steel Core
• Very Long Life, Good Speed Of Cut, Widest Application Span
• Superior Diamond Quality & Bond Formulation
• 2X Laser Welded For Safety & Stability Of Segments
• Keyhole Gullet Design For Dust Extraction From Cut.

Key

★★★★ Correct Bond For Application Optimal Performance, Speed & Life

★★★ Good Match Bond For Application Excellent Performance Speed & Life

★★ Acceptable Bond For Application Reduced Performance, Speed & Life

★Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur

PRODUCT TYPE		DIAMETER		SEGMENT HEIGHT		SEGMENT WIDTH		MAIN ARBOR - BORE		REDUCING RINGS INCLUDED		MACHINES USED SEE KEY
PART NO	CODE NO	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH
DA34622U	USAAM801212	300	12	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34623U	USAAM801412	350	14	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34624U	USAAM801612	400	16	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34625U	USAAM801812	450	18	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78

Available in USA, non-oSa accredited.
