Sale

Cat Diamond Tools

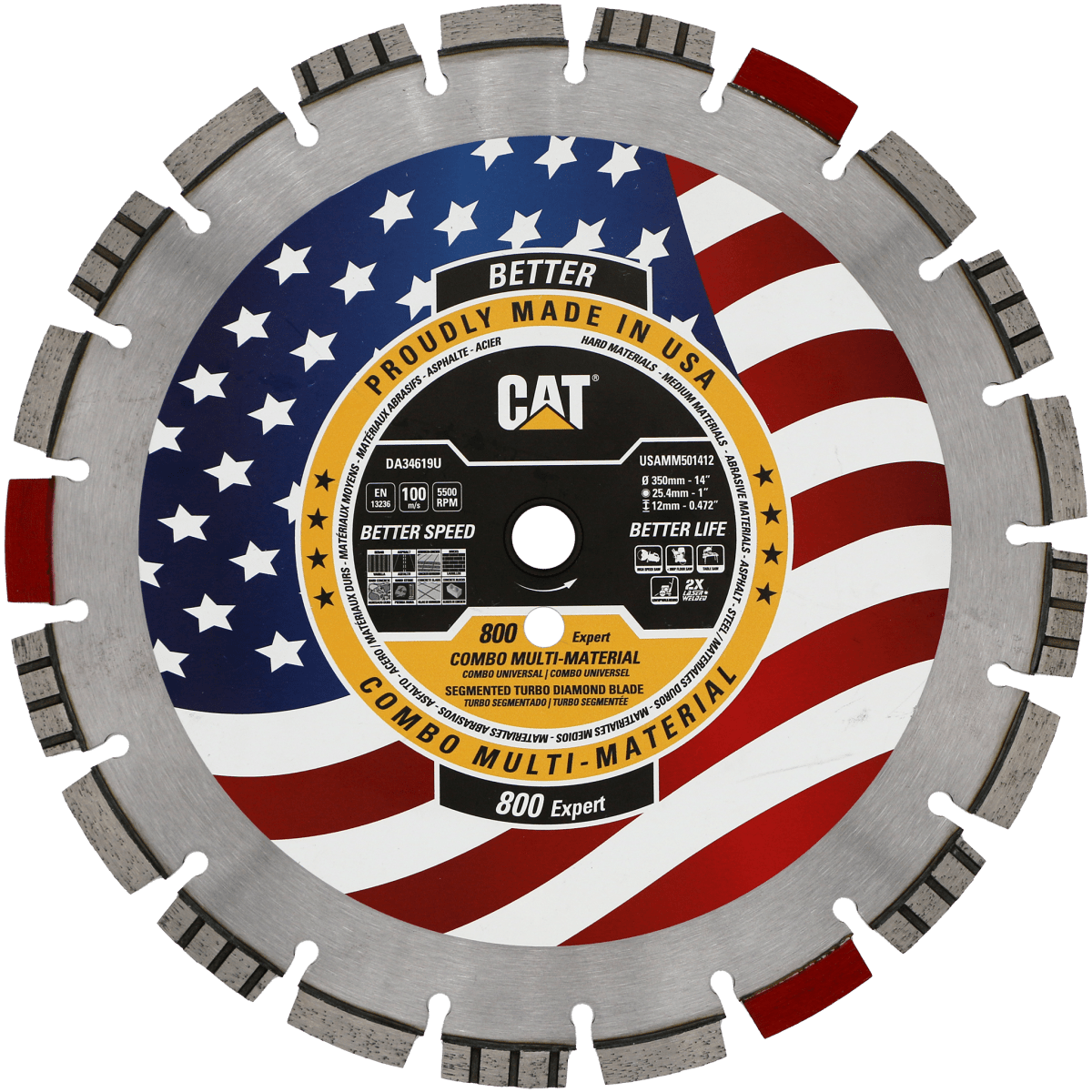

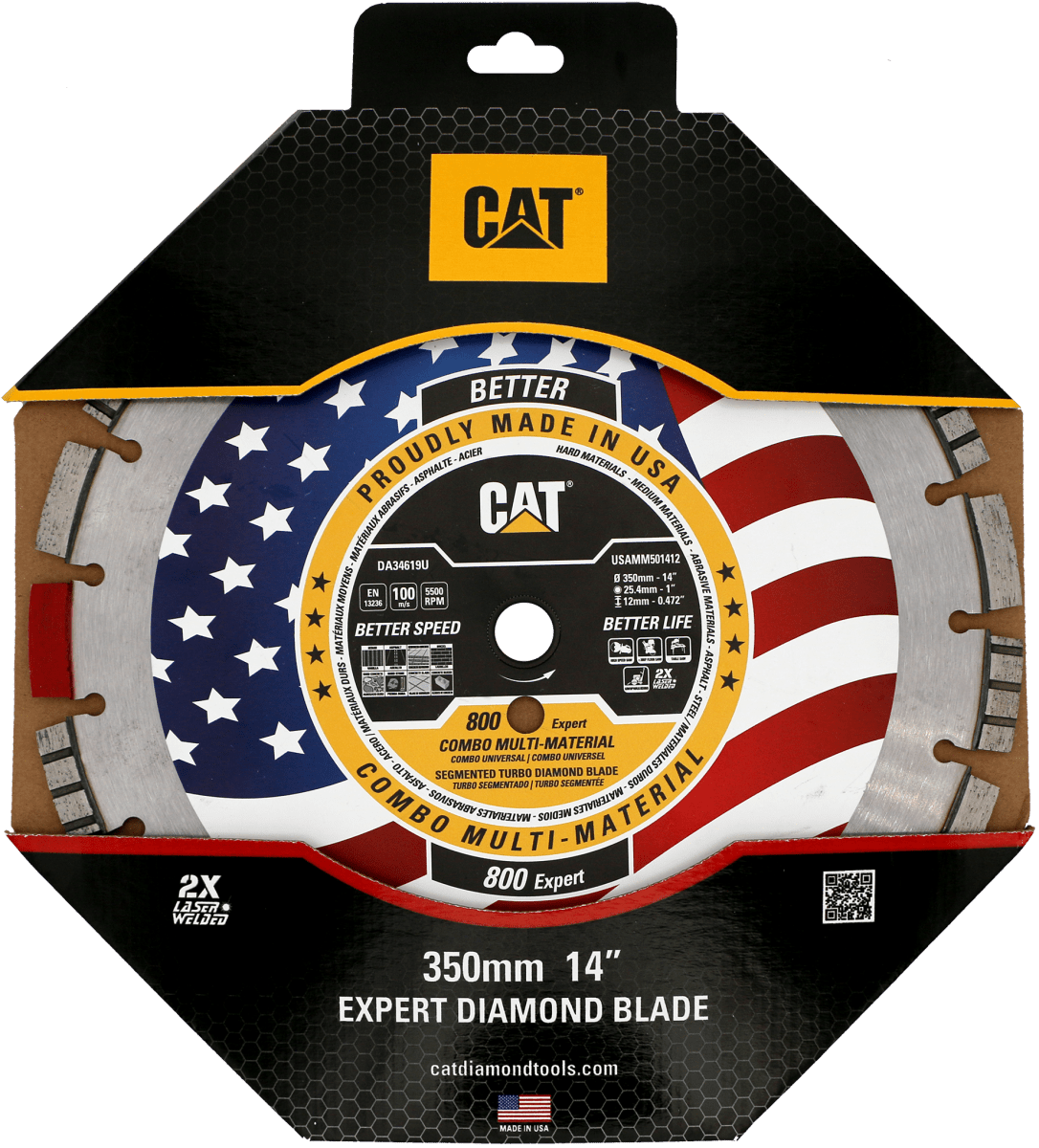

Cat 800 Expert Multi Materials Diamond Blades

SKU# DA34618U

$256.46 Was: $330.88 Save $74.42

Shipping calculated at checkout.

Size

12" 14" 16" 18"

Made in USA - Free Shipping

Safe & Secure Payments

Cat® Combo Multi-Material blades are designed for intensive use across the 3 performance grades:

Better - 12mm (800 Expert)

A true warrior product able to cut virtually everything in its path. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® Combo Multi-Material blades are able to cut a multitude of materials easily and able to cut through the hard materials including all general purpose, abrasive and asphalt applications including items such as steel rebar. Each increase in performance rating increases the speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.

ATTRIBUTES

Very High Diamond Concentration & Diamond Quality

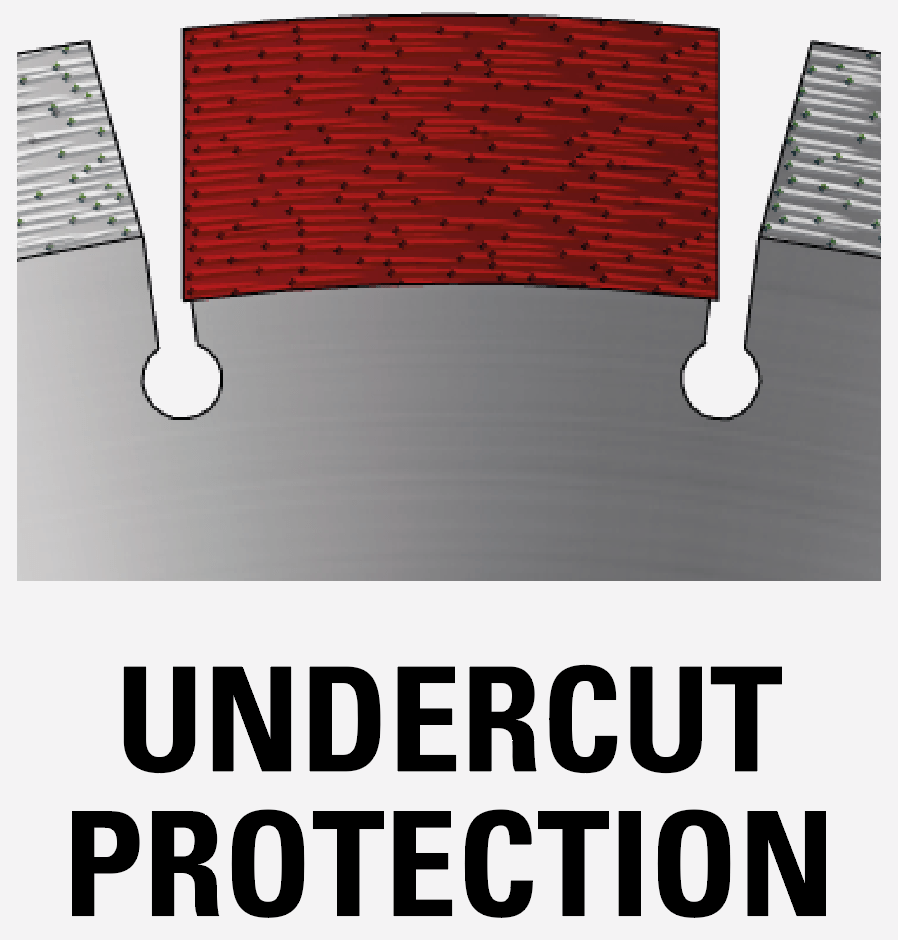

Undercut Protection Segments to Clear Debris
Fully Hardened & Heat-Treated Steel Core
Very Long Life, Very Fast Speed of Cut, Widest Application Span
Superior Diamond Quality & Bond Formulation
2X Laser Welded for Safety & Stability of Segments
Unique Turbo Alternate Standard Segment Design for Aggressive Cutting Action
Keyhole Gullet Design for Dust Extraction from Cut.

PRODUCT TYPE		DIAMETER		SEGMENT HEIGHT		SEGMENT WIDTH		MAIN ARBOR - BORE		REDUCING RINGS INCLUDED
PART NO	CODE NO	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH
DA34618U	USAMM501212	300	12	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34619U	USAMM501412	350	14	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34620U	USAMM501612	400	16	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78
DA34621U	USAMM501812	450	18	12	0.472	3.175	0.125	25.4+P	1+P	20MM	0.78

APPLICATION

★★★★

STEEL REBAR & BOX SECTIONS,DUCTILE IRON, HEAVILY STEEL REINFORCED CONCRETE, CRITICALLY HARD AGGREGATE CONCRETE (FLINT, CHERT), HARD TO MEDIUM AGGREGATE CONCRETE (CHERT - TRAP ROCK - RIVER GRAVEL), MEDIUM AGGREGATE CONCRETE (TRAPROCK - QUARTZ), SOFT - MEDIUM AGGREGATE CONCRETE (GRANITE - LIMESTONE), CLASS A ENGINEERING BRICK 125 N/MM2, REFRACTORY BRICK, CLAY PIPE - ROOF TILES, CLAY PAVIOURS, TERRACOTTA, INDIAN STONE (KOTA), TRAVERTINE, PORPHYRY, CLASS B ENGINEERING BRICK 75N/MM2, BASALT, HARD LIMESTONE, LIMESTONE AGGREGATE CONCRETE, LIGHTLY REINFORCED CONCRETE, CONCRETE PAVIOURS - KERBS - SLABS, CONCRETE ROOF TILES - PIPES, HARD FACING BRICK, MEDIUM FACING BRICK, MEDIUM FACING BRICK, CONCRETE BLOCKS OVER 15N/MM2, HARD SLATE, HARD SANDSTONE (FINE GRIT), MEDIUM SANDSTONE (MEDIUM GRIT).

★★★

ALUMINIUM, GRANITE, QUARTZITE, QUARRY TILES, SOFT FACING BRICKS, SOFT SLATE, MARBLE, SOFT SANDSTONE (COARSE GRIT), CONCRETE SCREED, PLASTER - GROUT, ASPHALT OVER CONCRETE, ASPHALT, CONCRETE BLOCK UNDER 15N/MM2, THERMAL BLOCK 7 N/MM2, GREEN CONCRETE UNIVERSAL, GREEN CONCRETE WITH VERY HARD AGGREGATE, GREEN CONCRETE WITH MEDIUM HARD AGGREGATE, GREEN CONCRETE WITH MEDIUM SOFT AGGREGATE, LIGNACITE BLOCKS, LAVA ROCK, PUMICE.
