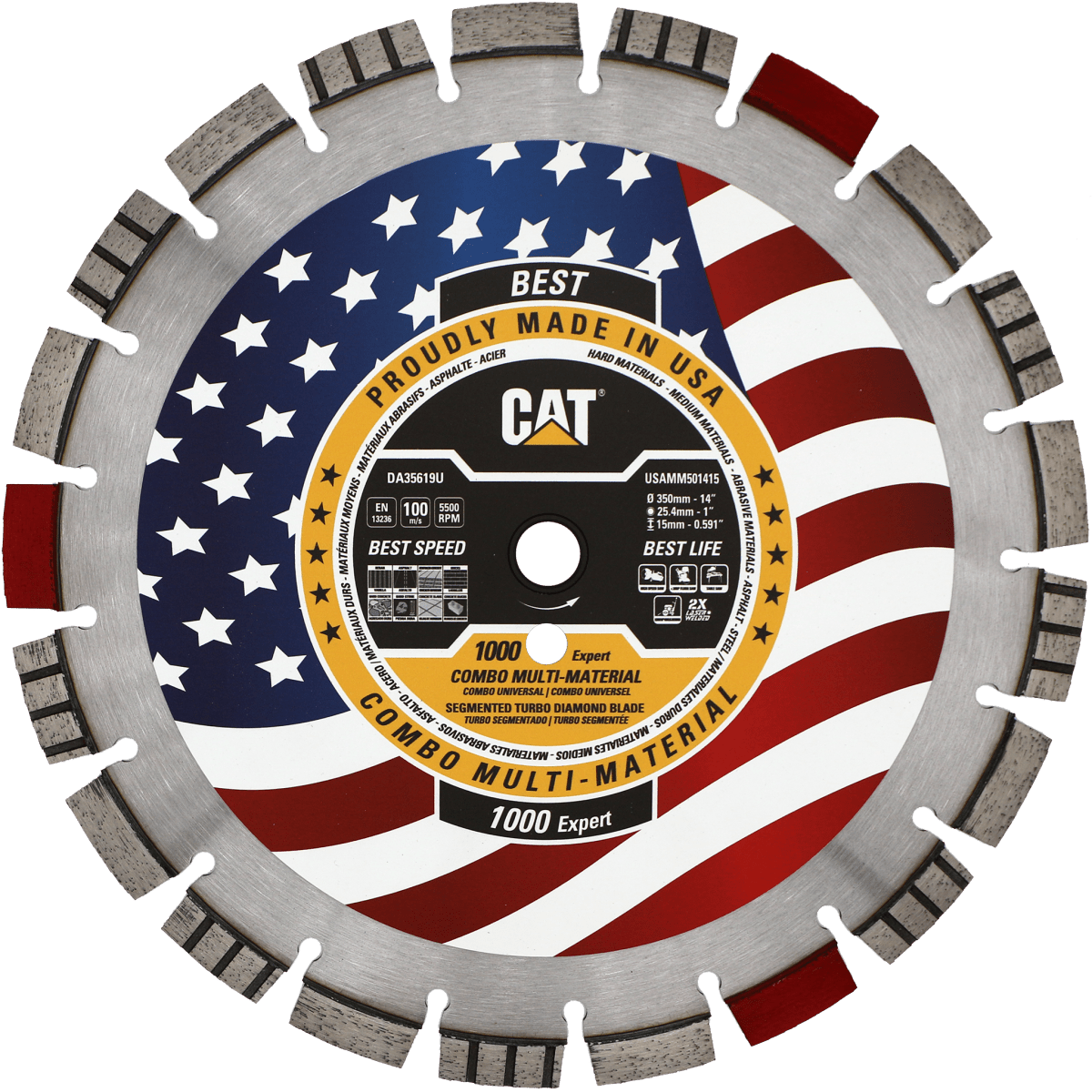

Caterpillar 1000 Expert Multi Materials Diamond Blade

$341³⁸ ~~$385¹⁴~~

Shipping calculated at checkout.

Made in USA

Size

12" 14" 16" 18"

Quantity

Single Pack of 5 Pack of 10

Product variants

Safe & Secure Payments.

Cat® Combo Multi-Material blades are designed for intensive use across the 3 performance grades: Good, Better and Best.

This is blade has a 15mm segment height. The blade is also available in 12mm and 10mm.

A true warrior product able to cut virtually everything in its path. Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® Combo Multi-Material blades are able to cut a multitude of materials easily and able to cut through the hard materials including all general purpose, abrasive and asphalt applications including items such as steel rebar. Each increase in performance rating increases the speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height. All blades have special undercut protection segments for clearing debris from the cut alleviating undercutting of the segments.

ATTRIBUTES

Ultra High Diamond Concentration & Diamond Quality

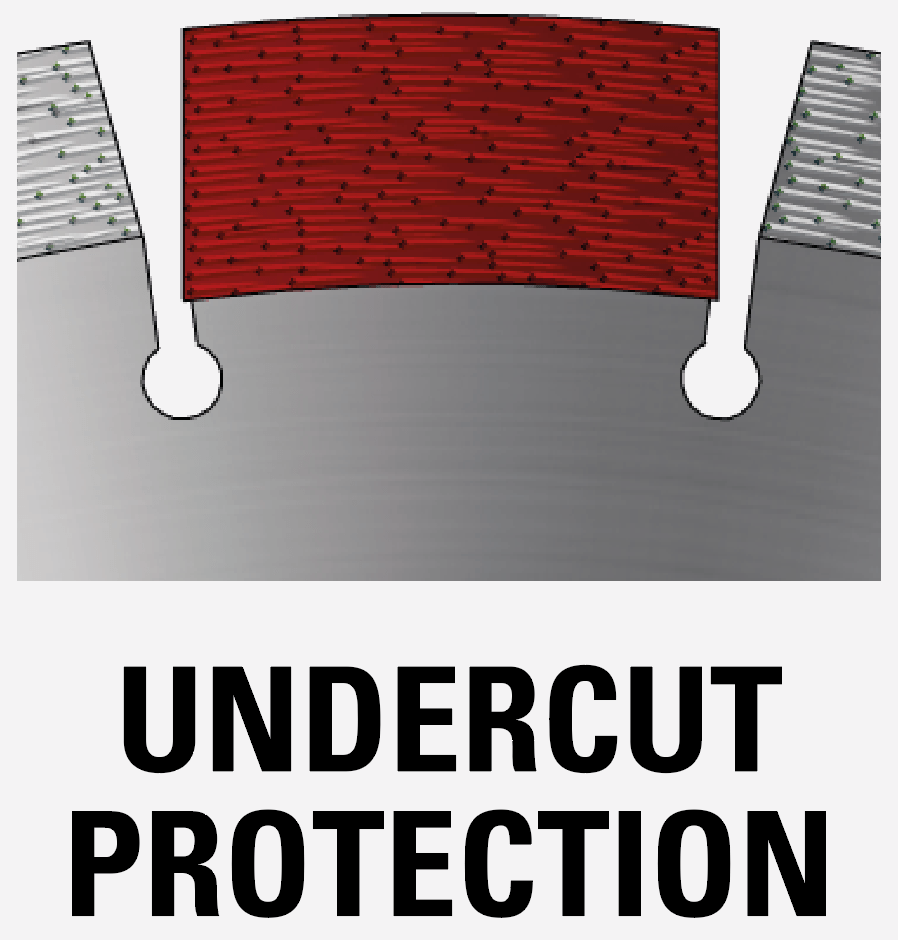

Undercut Protection Segments To Clear Debris
Fully Hardened & Heat Treated Steel Core
Ultra Long Life & Speed Of Cut, Widest Application Span
Ultimate Diamond Quality & Bond Formulation
2X Laser Welded For Safety & Stability Of Segments
Unique Turbo Alternate Standard Segment Design For Aggressive Cutting Action
Keyhole Gullet Design For Dust Extraction From Cut.
APPLICATION

★★★★

Steel Rebar & Box Sections,Ductile Iron, Heavily Steel Reinforced Concrete, Critically Hard Aggregate Concrete (Flint, Chert), Hard To Medium Aggregate Concrete (Chert - Trap Rock - River Gravel), Medium Aggregate Concrete (Traprock - Quartz), Soft - Medium Aggregate Concrete (Granite - Limestone), Class A Engineering Brick 125 N/Mm2, Refractory Brick, Clay Pipe - Roof Tiles, Clay Pavers, Terracotta, Indian Stone (Kota), Travertine, Porphyry, Class B Engineering Brick 75N/Mm2, Basalt, Hard Limestone, Limestone Aggregate Concrete, Lightly Reinforced Concrete, Concrete Pavers - Curbs - Slabs, Concrete Roof Tiles - Pipes, Hard Facing Brick, Medium Facing Brick, Medium Facing Brick, Concrete Blocks Over 15N/Mm2, Hard Slate, Hard Sandstone (Fine Grit), Medium Sandstone (Medium Grit).

★★★

Aluminum, Granite, Quartzite, Quarry Tiles, Soft Facing Bricks, Soft Slate, Marble, Soft Sandstone (Coarse Grit), Concrete Screed, Plaster - Grout, Asphalt Over Concrete, Asphalt, Concrete Block Under 15N/Mm2, Thermal Block 7 N/Mm2, Green Concrete Universal, Green Concrete With Very Hard Aggregate, Green Concrete With Medium Hard Aggregate, Green Concrete With Medium Soft Aggregate, Lignacite Blocks, Lava Rock, Pumice.

Key

★★★★

Correct Bond For Application Optimal Performance, Speed & Life

★★★

Good Match Bond For Application Excellent Performance Speed & Life

★★

Acceptable Bond For Application Reduced Performance, Speed & Life

★

Occasional Use Only - Much Reduced Performance, Speed & Short Life - Glazing & Premature Wear Will Occur

PRODUCT TYPE		DIAMETER		SEGMENT HEIGHT		SEGMENT WIDTH		MAIN ARBOR - BORE		REDUCING RINGS INCLUDED
PART NO	CODE NO	MM	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH
DA35618U	USAMM501215	300	12	15	0.591	3.175	0.125	25.4+P	1+P	20MM	0.78
DA35619U	USAMM501415	350	14	15	0.591	3.175	0.125	25.4+P	1+P	20MM	0.78
DA35620U	USAMM501615	400	16	15	0.591	3.175	0.125	25.4+P	1+P	20MM	0.78
DA35621U	USAMM501815	450	18	15	0.591	3.175	0.125	25.4+P	1+P	20MM	0.78
