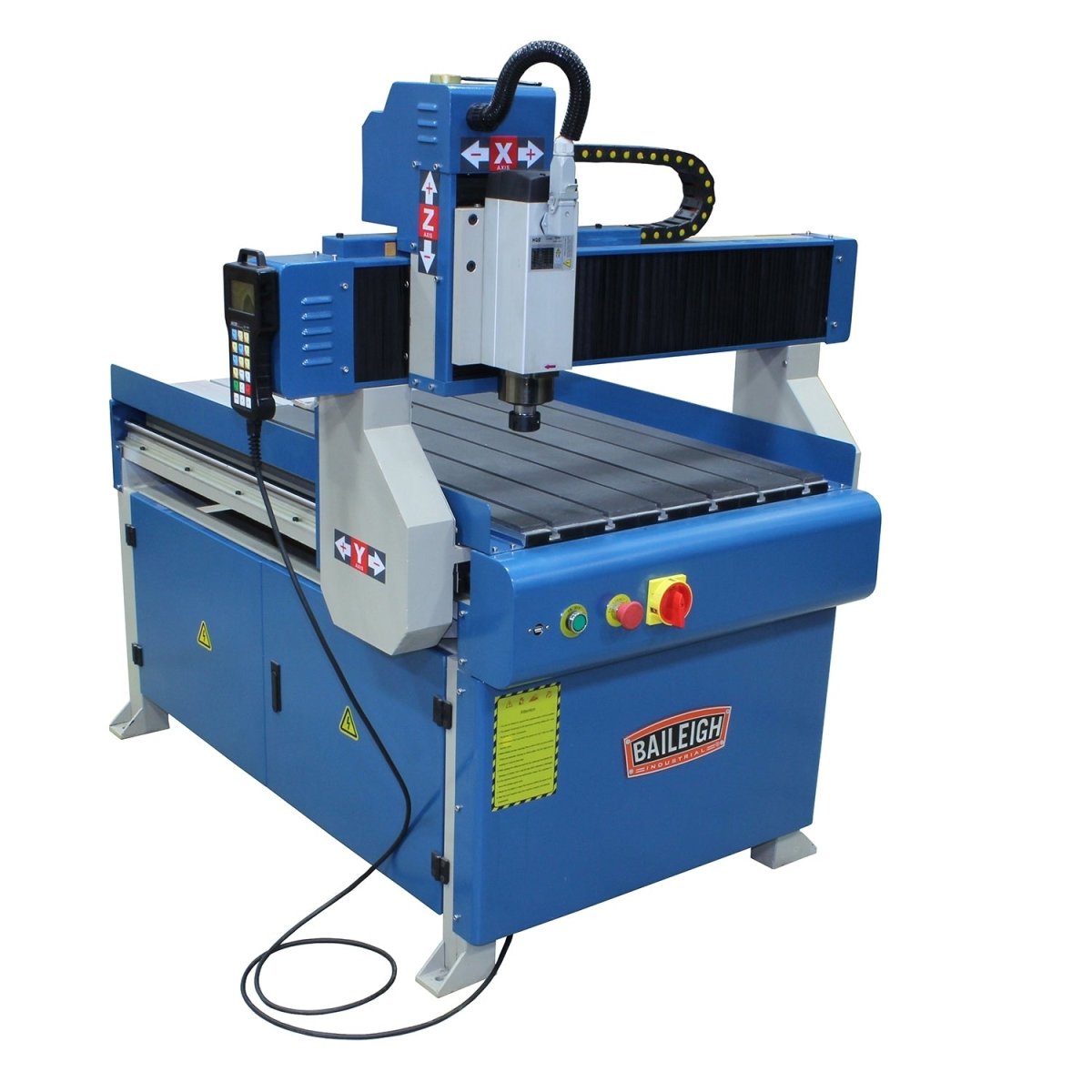

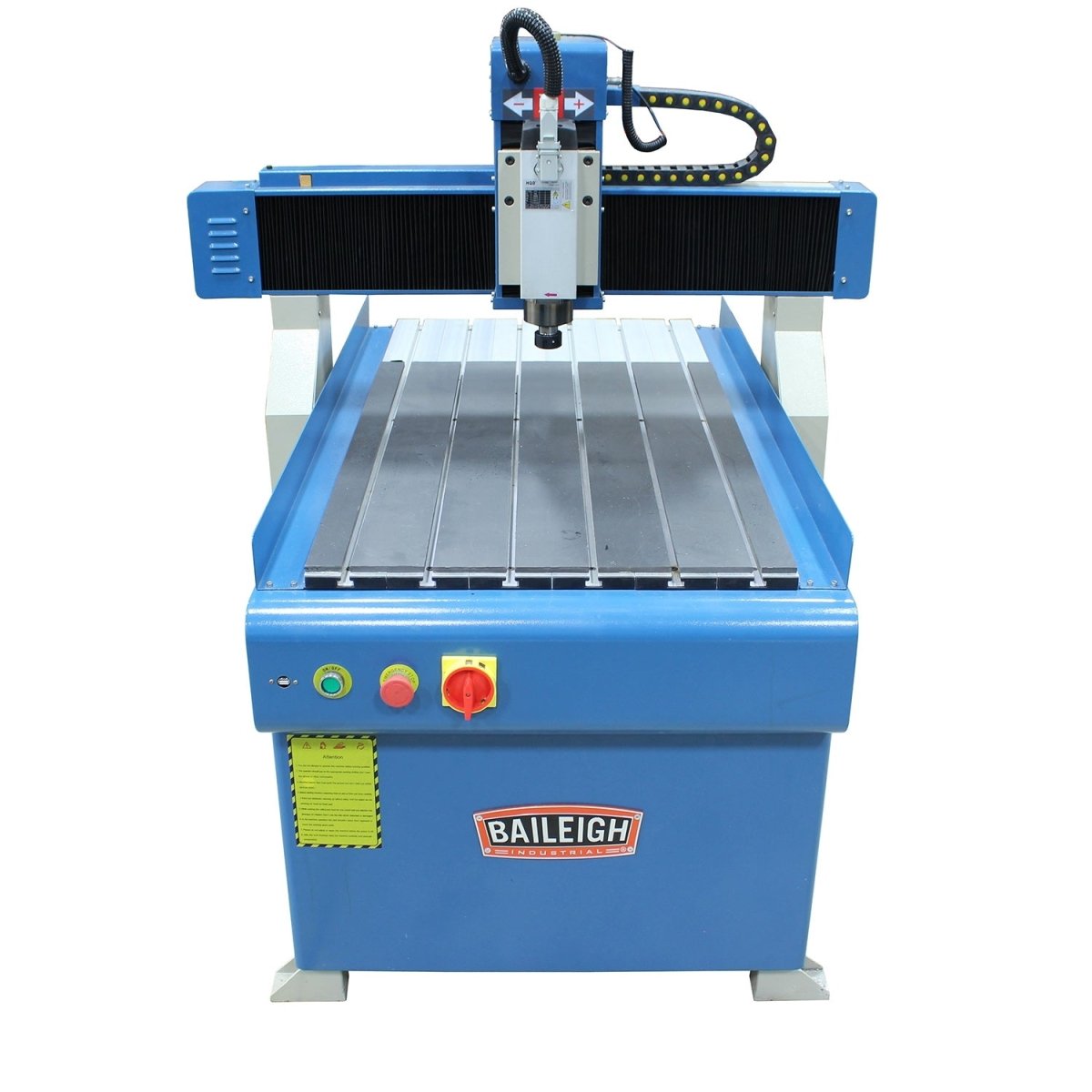

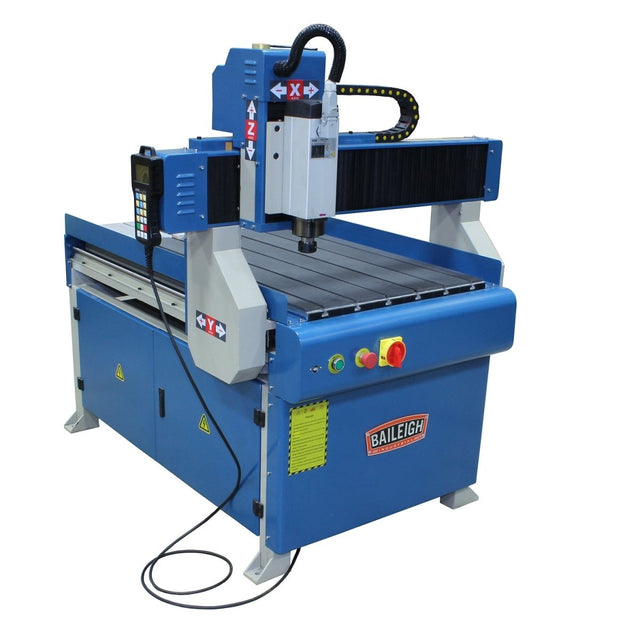

CNC Router Table WR-32

The WR-32 CNC router table comes with software, tooling, and a dust shroud—often not included with competing tables that cost more. Built to last with a cast iron base, the metal router arrives fully assembled.

• 2’ x 3’ CNC router table for metal
• Recommended for sign-makers, hobbyists, molding companies (plastic parts), research and development (R&D) shops, and industrial wood shops.

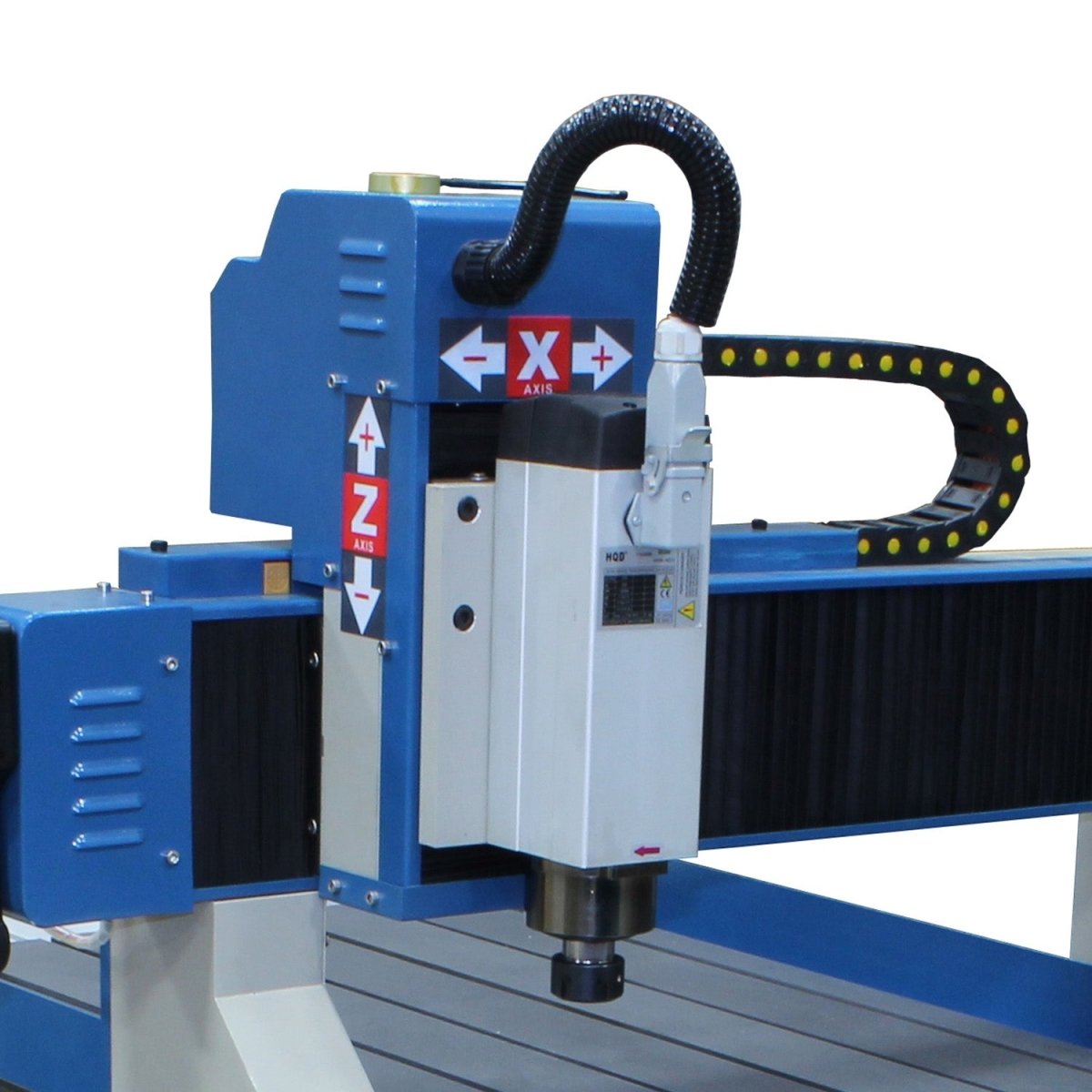

• Powerful 4.75 hp spindle.
• Up to 18,000 rpm variable spindle speed.
• Runs on 220-volt single-phase power.
• Easy-to-learn design software; just install it onto your computer and start creating patterns. (Details below.)

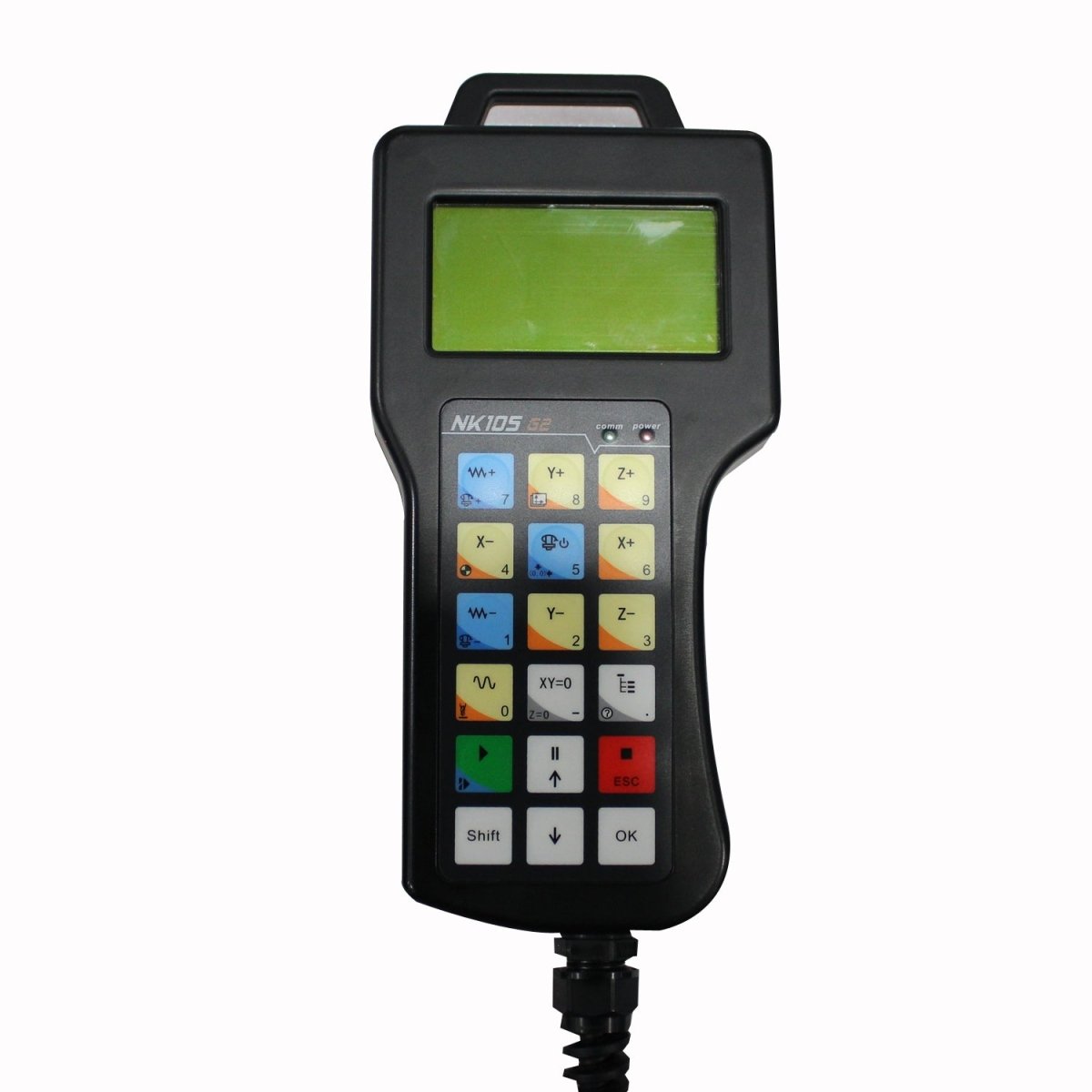

• Upload your design file to the table via a USB drive, then use the convenient handheld controller to move the spindle.
• Stepper motors move the spindle at a maximum speed of 6.5" per second.
• Ball screw X and Y-axis movement for accurate positioning.
• Square slideways clamp the material down and keep it in alignment.
• 4 collets choices,1/8”, 4mm, 6mm, and 1/2" (1 each) in the ER25 style.
• Comes standard with 15 starter router profiles.
• Air-cooled spindle prolongs machine life and helps to maintain high cut quality down the road.
• 4 T-slotted clamps fit on the table to hold the material down for clean cuts.
• The structurally strong extruded aluminum table won’t buckle under material weight or spindle pressure.
• The table ships pre-built with correct alignment for a fast and simple set-up—just an hour or so to uncrate the table and get started with the software.

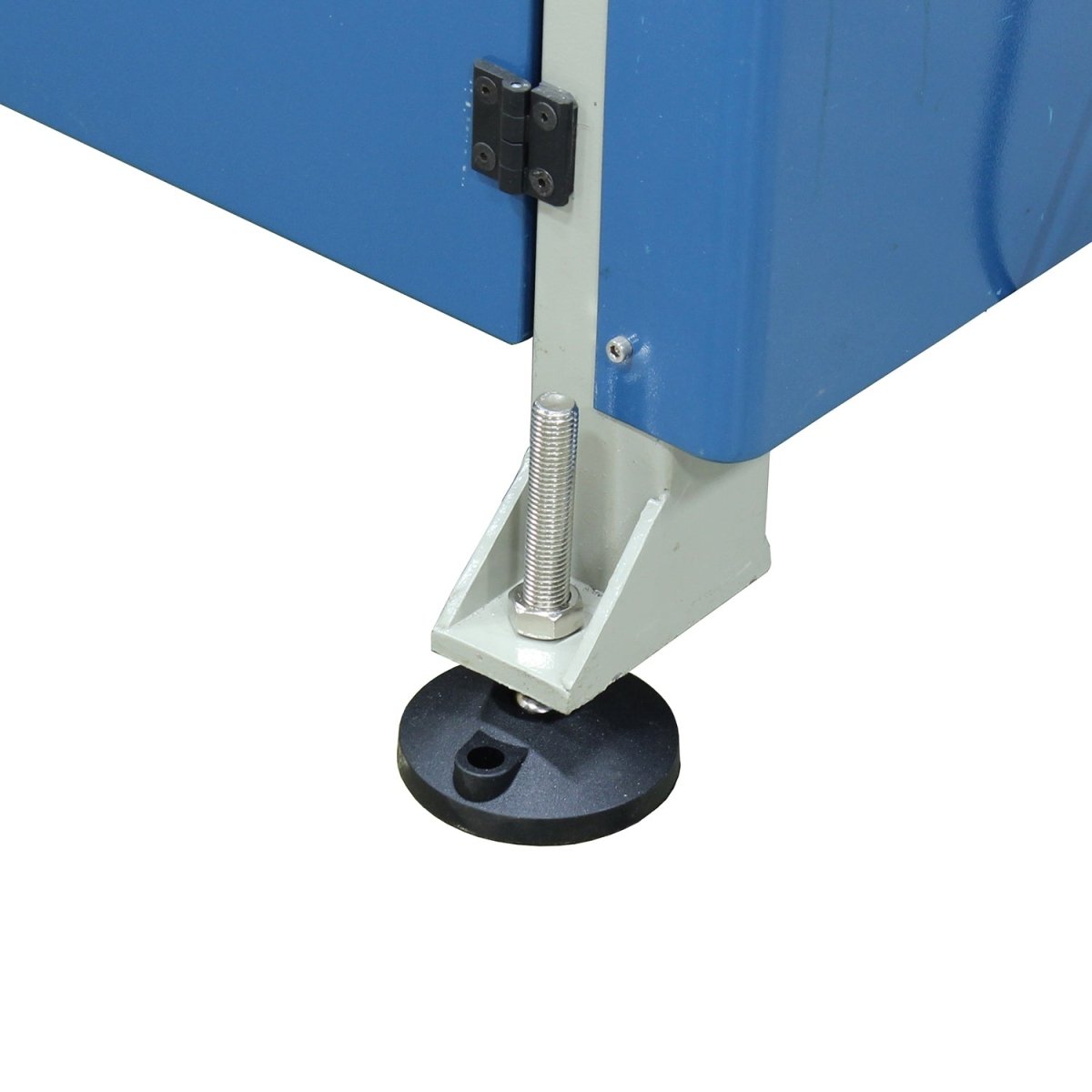

• Rigid cast base and fully-welded steel frame reduce vibrations, so the table can cut correctly over decades of use.
• Dust shroud fits over the spindle and vacuums sawdust off the table while you cut, keeping your shop neat.
• Covered by a 1-year parts warranty.
• Lifetime technical support by phone: you can call our experienced reps whenever you have a question or need troubleshooting.



BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)

The WR-32 CNC router table comes standard with BobCAD-Cam V29 Express programming software. You can design or plot out your project on any computer and load the table via a USB drive.  To learn more or download a free trial, click the BobCAD-Cam logo above.



Specs

Item Number	WR-32
Shipping Weight	1100lbs
Actual Working Area	23.6” x 35.4” x 5.12”
Table Size (Length)	53.5"
Table Size (Width)	43.25"
Spindle	Air cooled spindle
Z Axis Stroke	3.1"
Maximum Moving Speed (Inches Per Minute)	590
Maximum Engraving Speed (Inches Per Minute)	394
Reposition Accuracy	.0019"
Tool Diameters	ER25 Style in 1/8”, 4mm, 6mm, and 1/2" (1 each)
Power	220V Single Phase
Horse Power	4.75hp (3.5kw)
Weight (lbs)	728
Table Style	T-Slot
Notes	Applicable Material: Acrylic, Copper, Aluminum, Wood, PVC, ABS, Insulation Plate, Bakelite Plate, Honeycomb Plate, Resin, Organic Board, Aluminum Composite Panel
Shipping Dimensions (Inches)	59x48x59

* specifications subject to change without notice.
