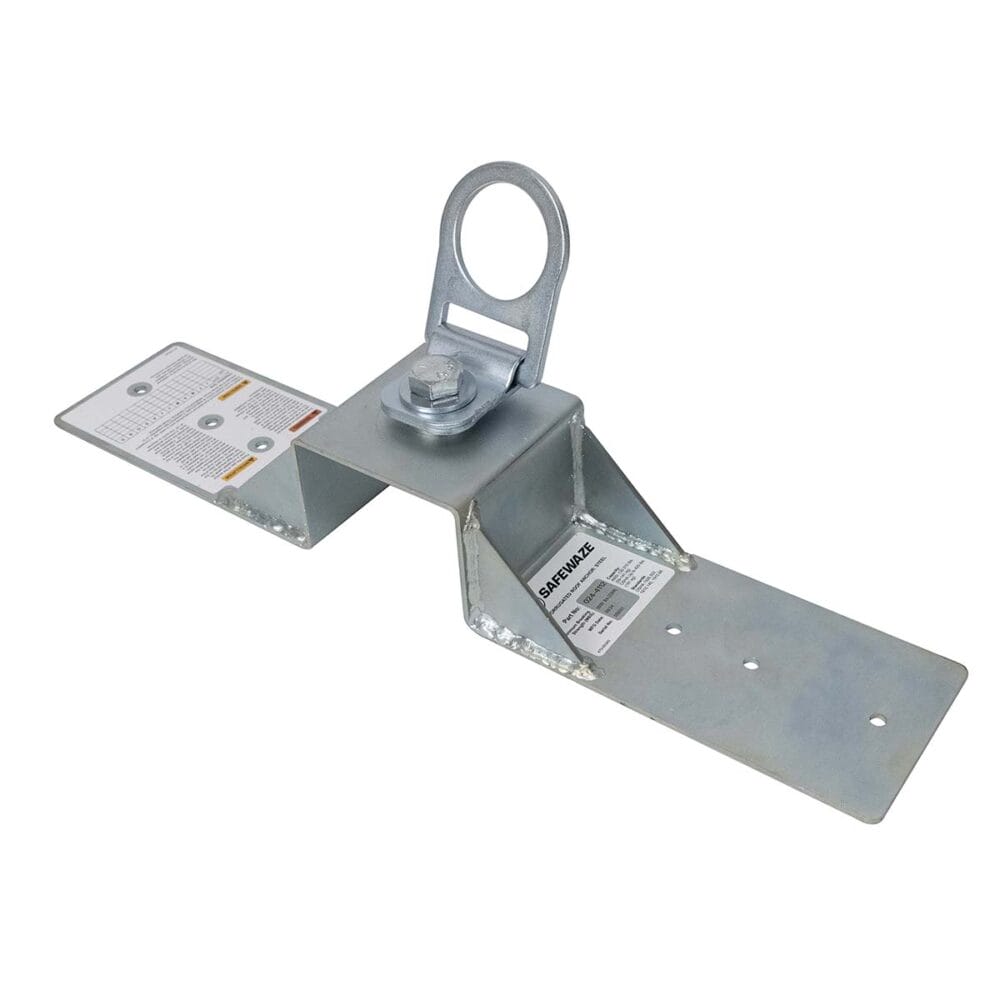

Corrugated Roof Anchor
SKU# 024-4112
$13.32 off
$23.68 off
$7546
$8878
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Corrugated Roof Anchor
From
$7546
$8878
Unit price
/
Make a Selection
Roofing
The Corrugated Roof Anchor is a versatile, reusable solution designed for secure attachment on corrugated metal roofs. With a 360° rotating swivel D-ring, it provides maximum mobility while ensuring reliable fall protection. Engineered for compatibility with most corrugated roofs, it allows you to use your own fasteners to suit the specific roof type while maintaining waterproofing. Designed to reinstall fasteners after detachment, preventing leaks and preserving the roof’s integrity.
Features:
-
Designed for use on corrugated roofs with maximum ridge height of 1-3/4” and width of 3-3/4”
- 360⁰ rotating swivel D-ring
- Allows use of your own fasteners to ensure compatibility with your specific roof type. Designed for easy removal - simply reinstall the fasteners after detaching the anchor to maintain the roof’s integrity and prevent leaks.
- Minimum valley spacing of 8” between ridges
- Temporary and reusable
- Not suitable for Horizontal Lifeline (HLL) or material hauling use.
Specifications:
| Materials: | Stainless steel |
| Weight: | 5.8 lbs. (2.6 kg) |
| Dimensions: | 20.1" x 4" x 2.9" (510 mm x 101.5 mm x 74 mm) |
| Minimum Breaking Strength: | 5,000 lbs. (22 kN) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | OSHA Weight Capacity: Up to 420 lbs. (191 kg)) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Fastener Requirements: | Requires (6) #12 or #14 metal-to-metal self-drill HWH screws with integrated EPDM washers. Length of screw is dependent on the roof gauge and purlin thickness with an anchor depth of 1/8”. Minimum embedment of 1/4” into purlin is required. |
