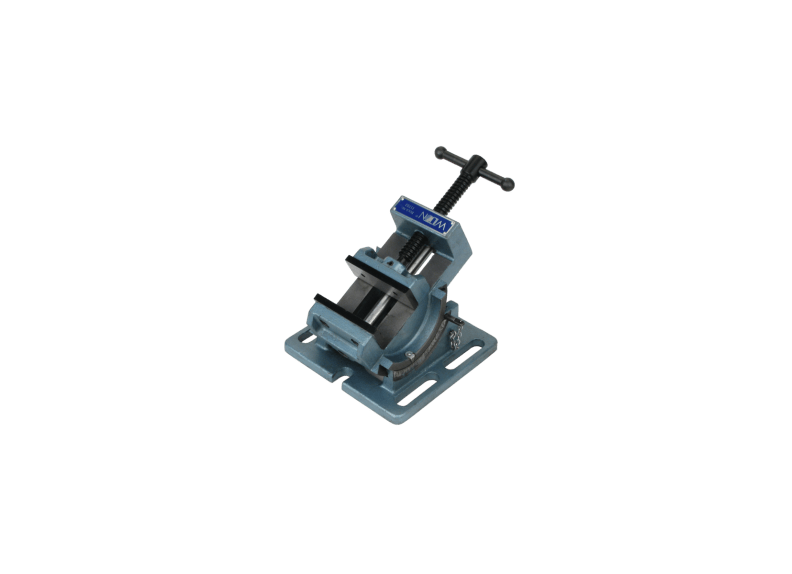

Cradle Style Angle Drill Press Vise
SKU# WL9-11753
$46.20 off
$72.60 off
$11329
$15949
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Cradle Style Angle Drill Press Vise
From
$11329
$15949
Unit price
/
Make a Selection
Details
The cradle style drill press vise is designed for angled drilling and tapping applications. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton's lifetime warranty.
Features
- Base has four ½” shoulder slots for quick, easy positioning on the machine table
- Cradle design with 90° vertical indexing, scaled in 1° increments
- Designed for applications including drilling, tapping, and reaming
- Designed for applications including drilling, tapping, and reaming requiring angle setup
- Durable construction with fine grain cast iron castings
- Durable construction with fine grain cast iron castings and hardened smooth vise jaws
- Highly accurate with beds and bases parallel to ±.001”
- Pin hard stops at 0°, 15°, 30°, 45°, 60°, 75° and 90° for common applications
- Side tommy bar allows secure locking at any increment from 0° - 90°
Specifications
| Stock Number | 11753 |
|---|---|
| Jaw Depth (In.) | 1-1/8 |
| Jaw Width (In.) | 3 |
| Opening Capacity Max (In.) | 3 |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) |
12 |
| Manual |
| Stock Number | 11754 |
|---|---|
| Jaw Depth (In.) | 1-1/2 |
| Jaw Width (In.) | 4 |
| Opening Capacity Max (In.) | 4 |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) |
17 |
| Manual |
