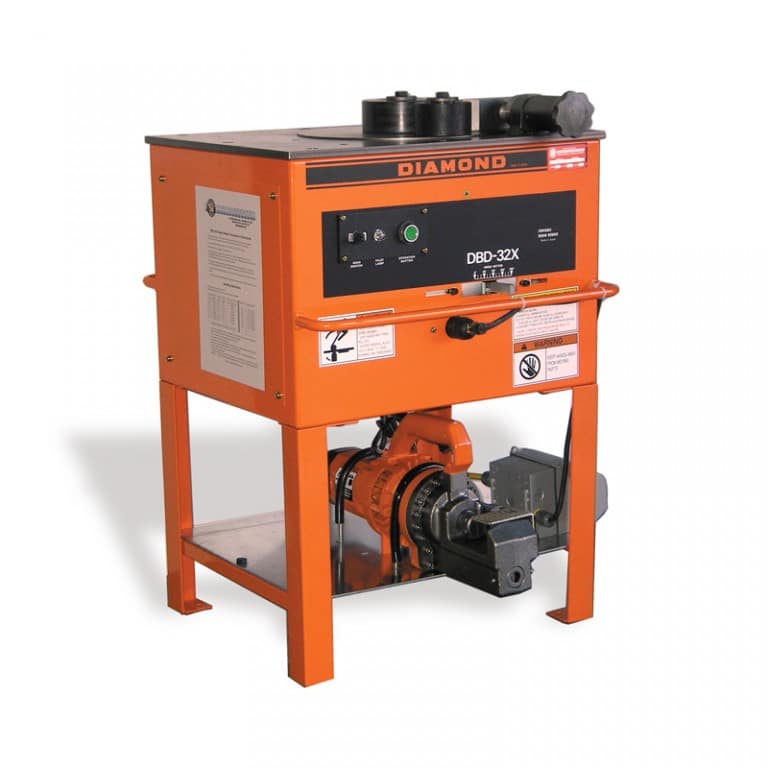

This is a combination of the very popular DC-25X  OR the DC32WH rebar cutter, and our newer DBD-32X rebar bender contained together in a heavy-duty, stationary housing.

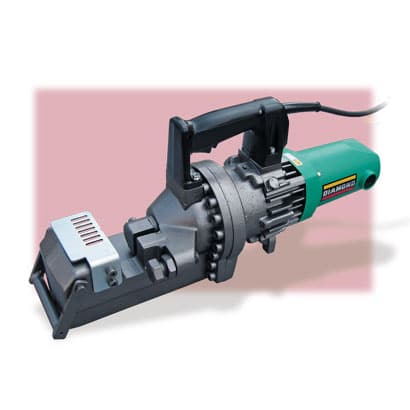

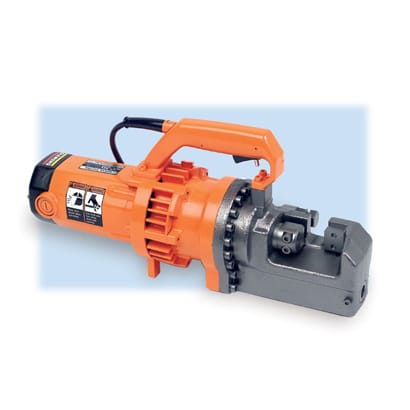

  • The rebar cutter can be removed and used in a portable application or secured in the stationary position for use with a foot pedal switch (included).
  • In a production environment, the bender table is at the ideal working height

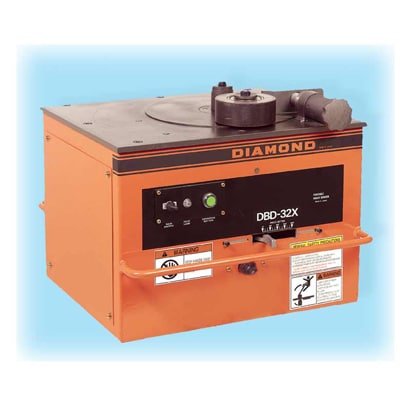

  • The DBD-32X bends rebar from 0 -180 degrees.
  • The BCSE-32X combination stand allows both machines to be used in tandem at a single, powerful and efficient work station
PRODUCT LINKS
  • Printable Parts Breakdown for the DBD-32X Bender: CLICK HERE
  • Printable DC-25X Rebar Cutter Parts Guide: CLICK HERE
  • PDF Rebar Cutter Product Manual: CLICK HERE
Specifications
    DBC-3225
    Max. Cutting #8 or 1 ” Grade 60
    Max. Bending #9 or 1-1/8″ Grade 60
    Cutter Power 115 Volt 50/60 Hz -12 amps
    Bender Power 115 Volt 50/60 Hz -12 amps
    Total Weight (kg) 482 lbs. (219 kg)
    Dimensions (mm) LxWxH 23″ (590 mm) x 27″ (686 mm) x 37.25 (946 mm)

    DBC-3232
    Max. Cutting #10 or 1-1/4″ Grade 60
    Max. Bending #9 or 1-1/8″ Grade 60
    Cutter Power 115 Volt 50/60 Hz -18 amps
    Bender Power 115 Volt 50/60 Hz -12 amps
    Total Weight (kg) 511 lbs. (232 kg)
    Dimensions (mm) LxWxH 23″ (590 mm) x 27″ (686 mm) x 37.25 (946 mm)
