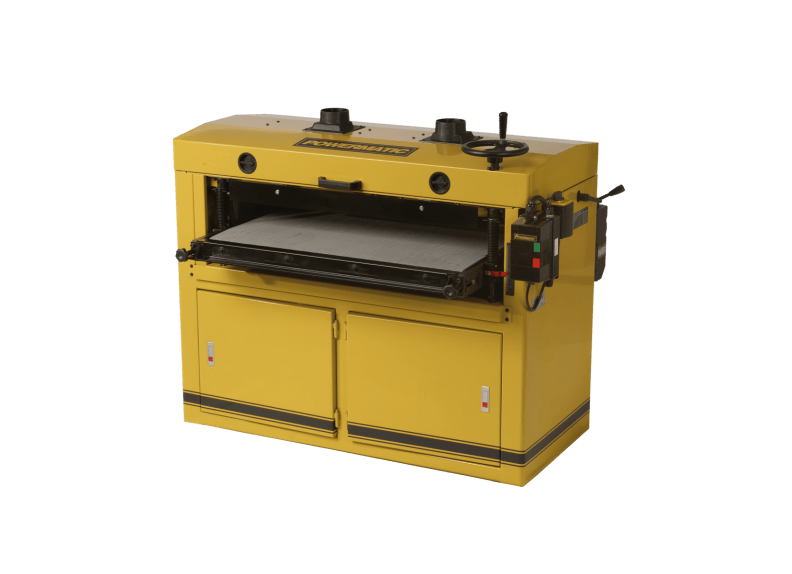

DDS-237 Drum Sander, 10HP 3PH 230V
SKU: PM9-1791321
The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features.
A 10HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath.
Features
- Dual drum head for superior finish
- Dual dust ports with directional baffles for more efficient dust removal
- Forward/reverse conveyor belt grips stock evenly
- Full size cast iron table for solid support
- Hard durometer rubber coating on steel drums provides flat, smooth finish
- Independently adjustable rear drum for fine tuning
- Two-speed gearbox for wide range of sanding projects.
Specifications
| Stock Number | 1791321 |
|---|---|
| Conveyor Speed (FPM) | 8 and 12 |
| Drum Diameter (In.) | 6 |
| Drum Length (In.) | 37 |
| Drum Speed (RPM) | 1,700 |
| Dust Collection Minimum CFM Required (CFM) | 1,200 |
| Maximum Board Thickness (In.) | 5-1/4 |
| Maximum Board Width (In.) | 37" |
| Minimum Board Length (In.) | 9 |
| Minimum Board Thickness (In.) | 1/32 |
| Motor Power (HP) | 10 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Dual Drum |
| Weight (Lbs.) | 962 |
