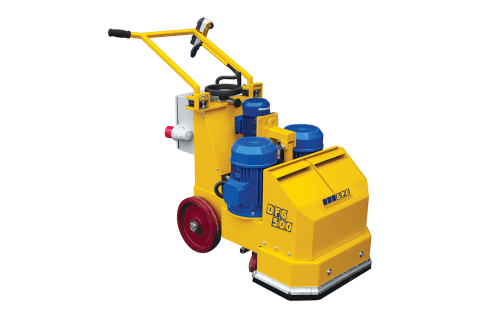

To successfully grind large floor areas a heavy duty floor grinder is required. The DFG 500 gives complete operator control and at the same time has the correct weight to act directly onto the grinding plates to facilitate accurate and rapid grinding.
- 500mm (19.7") working width twin head design
- 3Ø, high power single and twin speed designs
- Removeable ballast weights and hydraulic raise/lower facility.
- Push button hydraulic raise and lower facility
- Anti vibration handle bar mounts
- Screw type hand wheel allows machine to be accurately set to the surface
- 50mm dust extraction port
- Dust free when operated with SPE316 vacuum
- Multi purpose
- Dust free
- Thermal overload protection
- Maintenance free
- Low noise
- Low vibration
- Safety start mechanism
Features
Push button hydraulic raise and lower facility Anti-vibration handle bar mounts
Screw type handwheel allows machines to be accurately set to the surface
50mm (2") dust extraction port
Dust free when operated with SPE 316 Vacuum
Applications
Removal of dry crystalized (ATA) and wet adhesives Slurry grinding on water miscible products
Provides superb preparation profile for thin film coatings (eliminates shadowing)
Accurate grinding of large concrete areas Re-profiling of old concrete floors
Removal of old coatings and contaminates Grinding and finishing of resin based terrazzo
The unique design of the DFG 500 has two ballas weights that can be removed, together with precise adjustment of the fulcrum for the rear wheels, allows for perfect grinding in all types of situations. Environmental consider- ations are fully controlled with an adjustable dust skirt for dry use and a facility for using water when wet grinding. Noise is kept to a minimum by use of high power 3 phase electric motors and drive belt systems.
The DFG 500 is manufactured to a high specification and operates using two grinding heads. A hydraulic raise and lower facility is easily operated by push button switches mounted on the handle bars. The net weight is in excess of 300kg but one operator can easily control
the machine.
Low operational noise, little or no impact vibrations, consistent diamond wear rates, and ease of operation make the DFG 500 an excellent choice for economical and productive floor grinding.
Twin Speed Option
The DFG 500 is also produced ina twin speed version, giving operation speeds of 700 and 1400rpm. The slower speed being designed and introduced for the grinding of terrazzo and marble applications when using the SPE polymer diamond system. Optional higher rpm head speeds are available upon request.
|
Specifications |
||
|
Type |
Electric |
Electric Twin Speed |
|
Part Number |
DFG 500-1 |
DFG 500-2 |
|
Power Output |
2 x 5.5kw |
2 x 4.5kw 2 x 3.2kw |
|
Voltage |
400 |
400 |
|
Cycles |
50hz |
50hz |
|
Head Speed |
1400rpm |
700/1400rpm |
|
Motor Speed |
2800rpm |
1400/2800rpm |
|
Machine Dimensions |
||
|
Length Width Height Weight |
1400mm (55.1") |
1400mm (55.1") |
|
725mm (28.5") |
725mm (28.5") |
|
|
1100mm (43.3") |
1100mm (43.3") |
|
|
300kg (661lbs) |
300kg (661lbs) |
|
|
Ballast Weight |
2 x 20kg (2 x 44lbs) |
2 x 20kg (2 x 44lbs) |
|
Machine |
Volts |
Plug Size |
Cable Size |
Max Cable Length |
Transformer |
Generator |
|
DFG 500-1 |
400 |
32A 5 Pin |
6mm (0.3") 4 Core |
75m (246') |
- |
20 kva |
|
DFG 500-2 |
400 |
32A 5 Pin |
6mm (0.3") 4 Core |
75m (246') |
- |
20 kva |
