Husqvarna DM 400

SKU# 967910303

$3,325⁰⁰

Shipping calculated at checkout.

Items

Husqvarna DM 400 Husqvarna DM 400 Stand

Product variants

Safe & Secure Payments.

Finance this today with Centra Funding Logo Apply Here

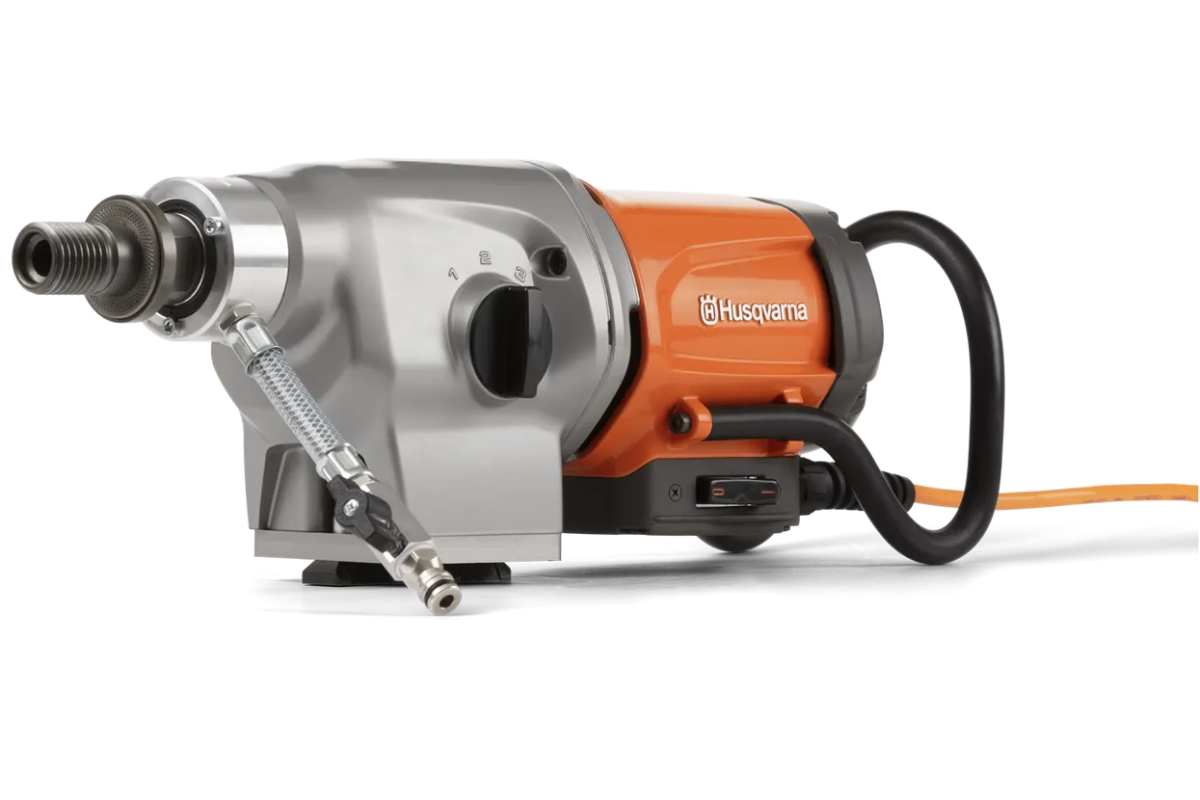

DM 400 is a powerful and sturdy electric core drill for medium to heavy core drilling where reliability and high productivity is needed.

Recommended diameter 55-350 mm. With aluminum motor housing to withstand tough handling and a carrying handle for ergonomic usage and additional impact protection of the drill motor. Equipped with Embedded Connectivity, an enhanced version of Husqvarna Fleet Services™ for data analytics and insights into the health of the machine. Suitable for water evacuation, ventilation, angle drilling , stitch drilling and when you need to cut close to corners.

FEATURE OVERVIEW

Sturdy and durable
Ergonomic
Optimized RPM's
Embedded Connectivity
Quick connection
Quick-release washer
Functional design
Load indicator
Elgard™
Reliable gearbox
Easy start with reduced speed
Angle drilling
Barriers
Horizontal drilling
Stitch drilling
Water evacuation
Vertical drilling

TOP SPECIFICATIONS

Power source - Corded

Rated input power - 4.29 hp

Weight - 31 lbs

Drill bit diameter with stand, max14 in

ALL PRODUCTS SPECIFICATION DM 400	DM 400 100-120V \| 1-PH \| 50-60HZ \| US \| 1 1/4" 967 91 03‑03
MOTOR
Rated input power	4.29 hp
Frequency	50-60 Hz
Voltage	100-120 V
Phases	1 ph
Power source	Corded
EQUIPMENT
Drill bit diameter with stand, max	14 in
Recommended drill bit diameter, min	2 in
Coolant	Wet
TRANSMISSION
Number of gearbox speeds	3
Spindle speed unloaded gear 1	420 rpm
Spindle speed unloaded gear 2	820 rpm
Spindle speed unloaded gear 3	1,250 rpm
PRODUCT DATA
Water connector	G 1 / 4"
Water pressure, max	43.5 psi
Spindle thread, outer	1 1/4" 7 UNC
DIMENSIONS
Product size length	21.5 in
Product size width	5.5 in
Product size height	7.3 in
Weight	31 lbs
SOUND AND NOISE
Sound power level, guaranteed (LWA)	112 dB(A)
Sound power level, measured	110 dB(A)
Sound pressure level at operators ear	92 dB(A)
