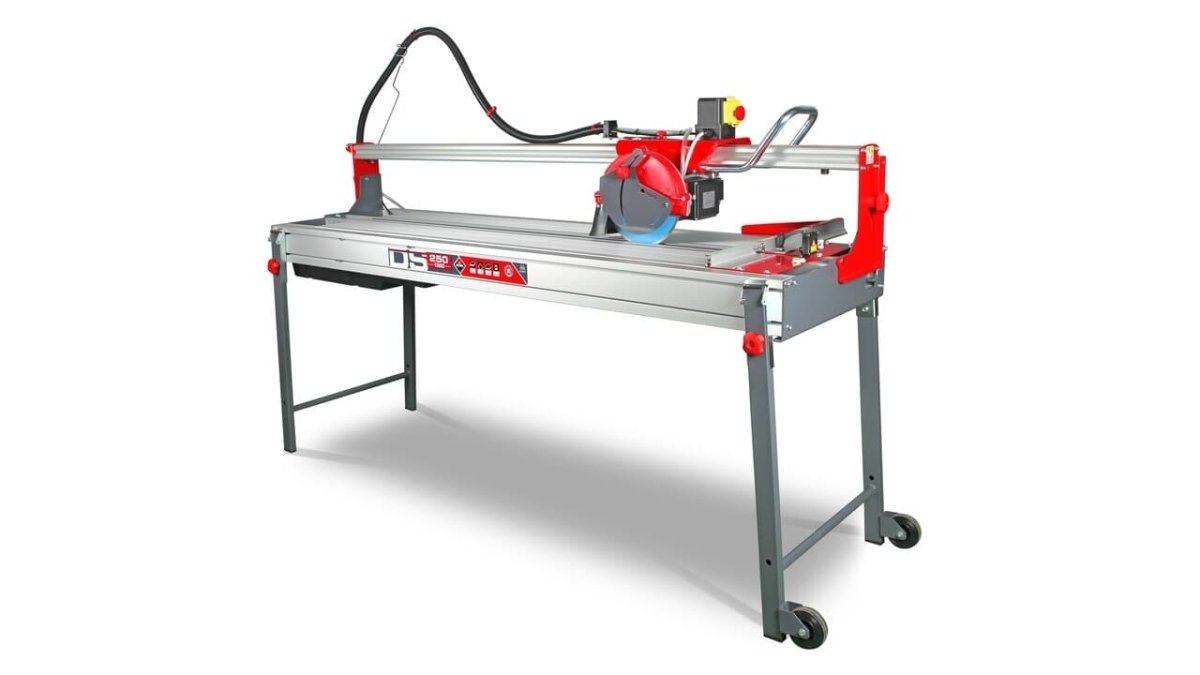

RUBI offers the professional its range of DS-250-N Laser&level tile saws. A range of cutters with highly accurate mobile heads that is ideal for miter cuts.

Its powerful 3 HP motor makes the DS-250-N Laser&Level range by RUBI ideal for cutting and miter cuts of all types of ceramic tiles and especially porcelain tiles. Of course, the DS-250-N are also an ideal solution for cutting natural stones such as marble, granite, slate, etc.

The DS-250-N Laser&Level has a motor assembly, mounted on sliding bearings, of maximum precision and cutting quality, which helps obtain perfect cuts.

The aluminum structure of the DS-250-N by RUBI is lighter and offers high resistance to normal working conditions in construction.

Thanks to the protector that includes the cutting head, the DS-250-N Laser&Level tile saws can hold blades of all types; continuous rim, turbo, segmented, etc.

The DS-250-N works with 10 in. diameter blades (included).

The system of retractable legs offers extra protection during transport and storage of the tile saw. And its built-in wheels facilitate handling and movement over short distances at the same site.

Maintenance of the DS-250-N Laser&Level tile saws is minimal, thanks to the aluminum chassis, and daily cleaning is very practical and easy due to their removable tables and trays.

The DS-250-N LASER & LEVEL includes a 2mW power laser tracer (Class 2) that facilitates cutting visibility and positioning, as well as a spirit level system for installing the tile saws at the work site.

Available in three models: 1000, 1300 and 1500, with cutting lengths of 40.16, 51.97 and 59.84 in. respectively.

RUBI is now present in over 120 countries, thanks to our network of sales offices, subsidiaries and authorized dealers. For this reason, we make it easy for users around the world to find our tools and spare parts.

Main Features

  • Motor assembly mounted on sliding bearings for maximum precision and reliability. Perfect finishes.
  • Aluminium structure. Lighter cutter with maximum resistance to working conditions.
  • Wheels and handle included. Easy transport.
  • Equipped with ZERO DUST system. Tested and certified by TNO.
  • Aluminium structure. Lighter cutter with maximum resistance to working conditions.


  • For Wall tiles, Floor tiles, Porcelain tiles, Marble, Granite and other materials.


  • Extruded aluminum tables,removable for easy cleaning of the machine.
  • With thermic and overload security switches. Except three-phase motors.
  • Blade cooling by water pump with regulating tap
  • Diamond blade Ø10" (250mm) not included.
  • With a double set of flanges, one especially designed for miter cuts.
  • Motor assembly mounted on sliding bearings and foldable for maximum accuracy miter cuts.
  • Safety protector for segmented blades.
  • With lateral stop for repetitive cuts.
  • Retractile legs with "shield" function and wheels for transportation.
  • Removable water tank system.
  • 2mW line laser.
  • Circular level for easy field installation.
  • Machine supplied without cable (remember to include the cable in your order)
  • It comes with the new ZERO DUST system mounted, as well as a second set of standard splash skirt.
