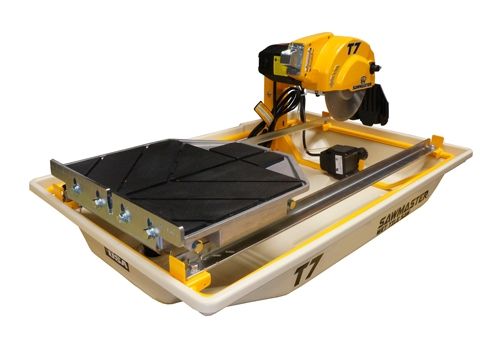

The T7 is the successor to the portable 710 series saw. It retains the powerful lightweight design of the previous model, while adding some improvements.

Power is now delivered from the powerful 1 HP brush motor via a gear system, instead of a belt assembly. This in turn improves the saw's efficiency, which can be felt by the increase in torque while cutting. In addition the water delivery system and blade guard assembly has been changed to make the saw more user friendly, yet versatile. All of which are still mounted on the dependable all steel frame construction.

  • Efficient gear driven blade shaft
  • Rigid welded internal frame
  • Injected durable rubber mat
  • Easy access blade guard assembly
Motor Carbon brush motor
Power 1.0 HP (0.75kW)
Voltage 115 V
Amperage 8.5 A
Rotation per minute -- RPM
Rip Cut (Max cut parallel to tile edge) 20 in (508 mm) tiles
Diagonal Cut (max cut 45 degree to tile edge) 14 in (355,6 mm) tiles
Max Cutting Depth 1.75 in (44.5 mm)

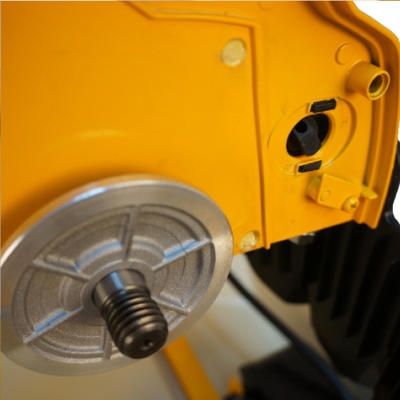

Arbor Diameter 0.625 in (15.88 mm)
Blade Shaft Rotation per Minute 600 RPM
Water Tray ABS/PP External tray
Weight 45 lbs (20.5 kg)
Blade Guard Capacity 7 in (178 mm)
