Mobile head cutter for renovations and light works

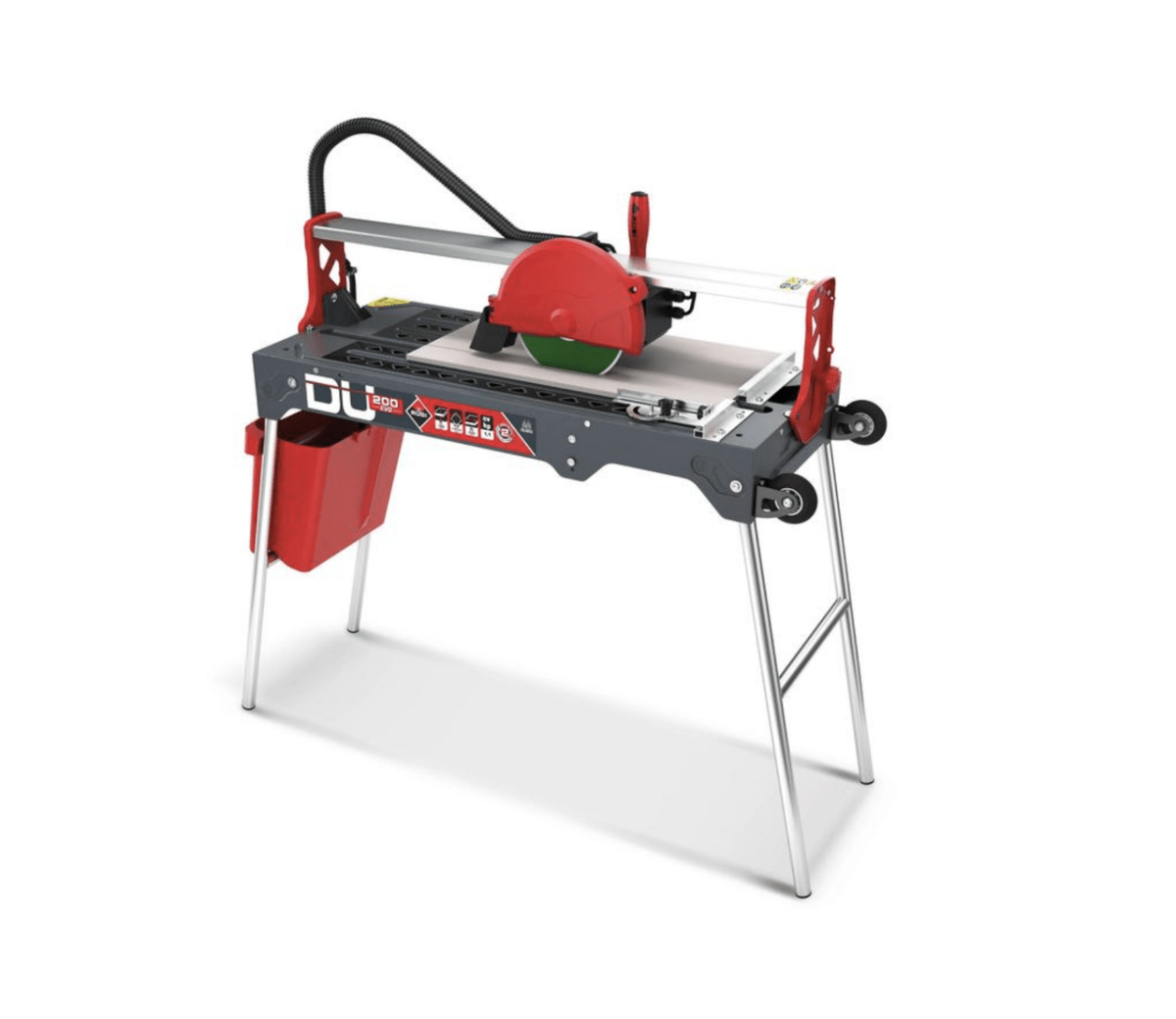

The RUBI DU-200 EVO is a tile saw with a mobile head, designed for renovations and light work.

It's perfect for general ceramic tile cutting. The DU-200 EVO tile saw is especially suitable for cutting floor BIII type tiles and glazed stoneware (BIIa type) tiles.

The RUBI DU-200 EVO tile saw is equipped with a 1.1 hp (0.8 kW) direct-drive motor, and thermal protector.

The head of the DU-200 EVO RUBI tile saw slides on 4 bearings, and is hinged at 45º to perform miter cuts, also being equipped with a bi-material handle to give the user greater ergonomic comfort.

The DU-200 EVO RUBI tile saw includes a 8 in. continuous rim diamond blade as standard, for general cutting of ceramic tiles. (CEV-PRO type). 8 W water pump refrigeration of the blade with flow control valve to adapt the flow rate to each type of ceramic material.

The innovative chassis design includes a more efficient water collection system, allowing you to recover up to 50% more water. The 8 litre tank is easily removable, both for filling and for cleaning and transport.

The RUBI DU-200 EVO tile saw includes a system of folding legs, which besides providing the tool with greater stability, also offers professionals a working height of 35.43 in.

The wheels and handle built into the chassis greatly facilitate the handling and transport of the DU-200 EVO.

The DU-200 EVO tile saw incorporates a aluminium square as standard, and an adjustable lateral stop for repetitive and angular cuts, with a range of action from 0 ° to 45 °.

The RUBI brand is known for the great durability and quality of its tools. For more than 65 years, RUBI has only manufactured products of high durability and strength, to give the best performance in the toughest working conditions and adapting to the demands of each market.

Main Features

  • Built-in foldable legs. Very easy to fix.
  • With wheels and handle for a more comfortable transport and handling.
  • Bi-material handle, better ergonomics.
  • External water tank, easy to handle and clean.


  • For cutting ceramic tiles, ideal for Floor and Wall tiles.


  • Motor assembly mounted on sliding bearings and foldable for miter cuts.
  • With lateral stop for repetitive cuts and adjustable square from 0 to 45°.
  • Direct drive motor with thermal protector and reinforced chassis.
  • Corrugated tube to protect power cable and water pipe.
  • Served with cable and Ø200mm diamond blade type CEV-PRO.

DU-200 EVO 650 120V 60Hz tile saw

  • Ref. - 55907
  • EAN-13 -8413797559071
  • Cutting length -25.59"
  • Diagonal cutting length - 17.7 x 17.7"
  • Cutting height - 1.4"
  • Miter Thickness cut -8"
  • Power supply - 120V-60Hz.USA
  • Revolutions per minute - 3200 RPM
  • With blade -
  • Outside diameter -7.87 "
  • Length Width Height (machine overall dimensions) - 46 x 15.3 x 40.1 inch
  • Net weight without packaging - 49.60"
  • Units per box - 1
  • Units per pallet - 9
