Economical Material Racks

by Vestil
SKU

Original price $124.85 - Original price $279.92
Original price
$124.85
$124.85 - $279.92
Current price $124.85
Choose a Option
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

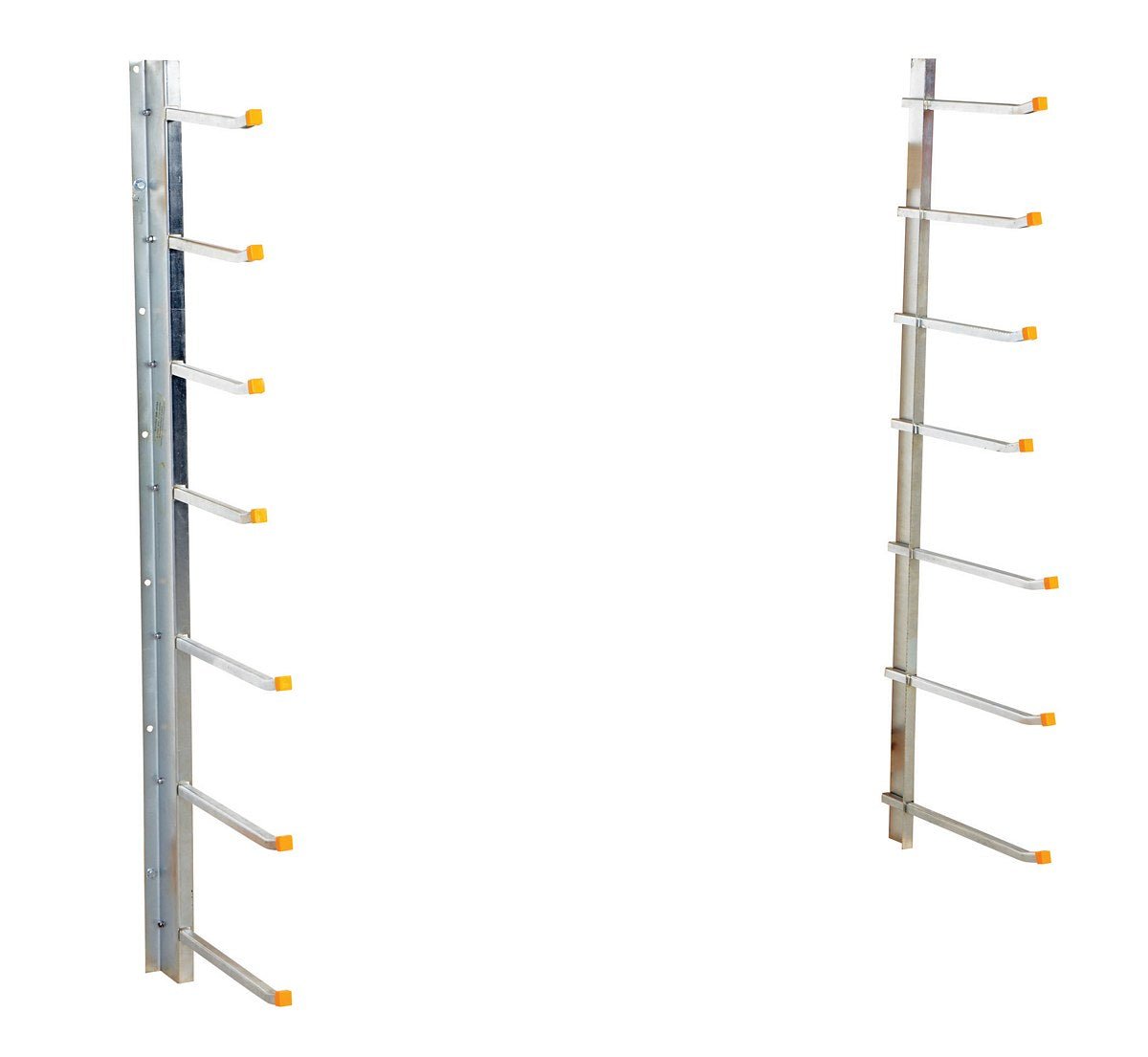

Model SR-WM is a wall mounted unit with dual 60" high supports. They come with three (3) 18" arms and four (4) 15" arms.

The 18" arms have 9" height clearance and the 15" arms have 7-1/4" clearance. Uniform load capacity is 1,000 pounds. The bright zinc plating provides a long term, attractive appearance. Shipped knocked down with convenient and quick assembly.

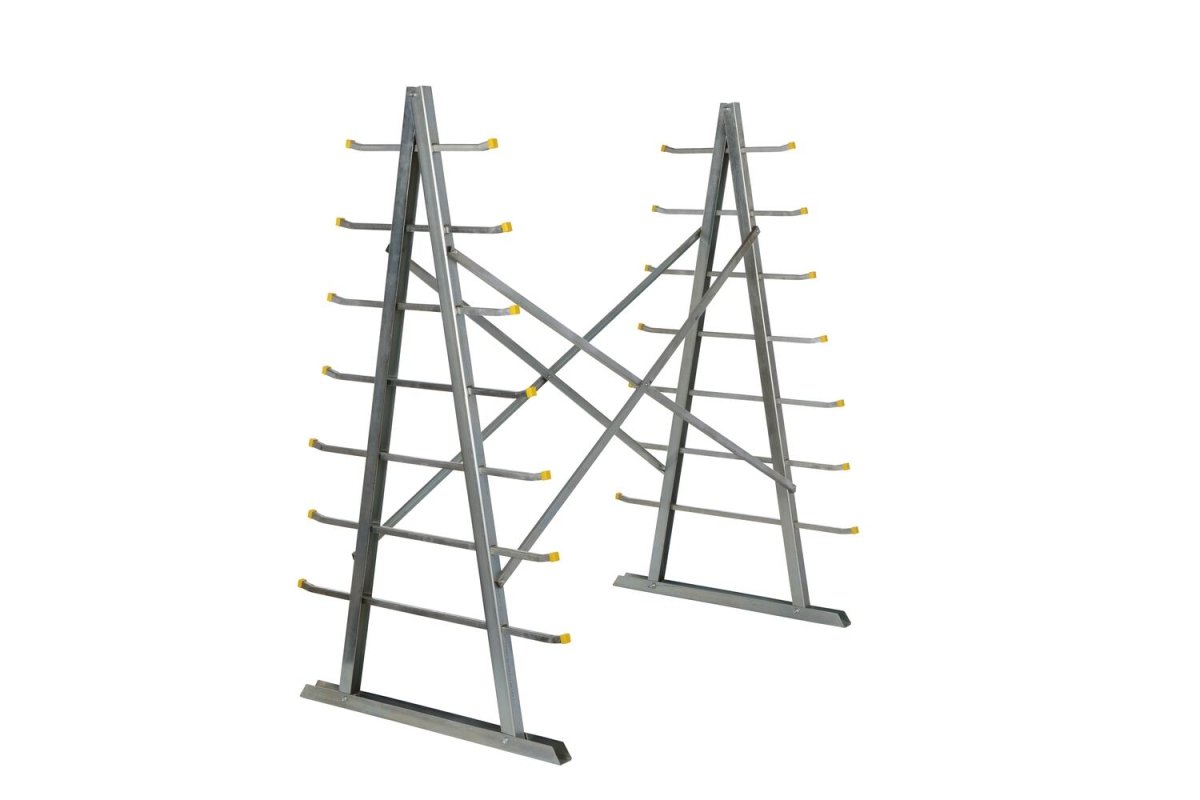

Model SR-SS is a self-supporting 66" high A-frame with 7 storage levels. Arms extend up to 12" beyond A-frame. Base dimensions are 60" by 36". Shipped knocked down with convenient and quick assembly. Bright zinc plated finish.

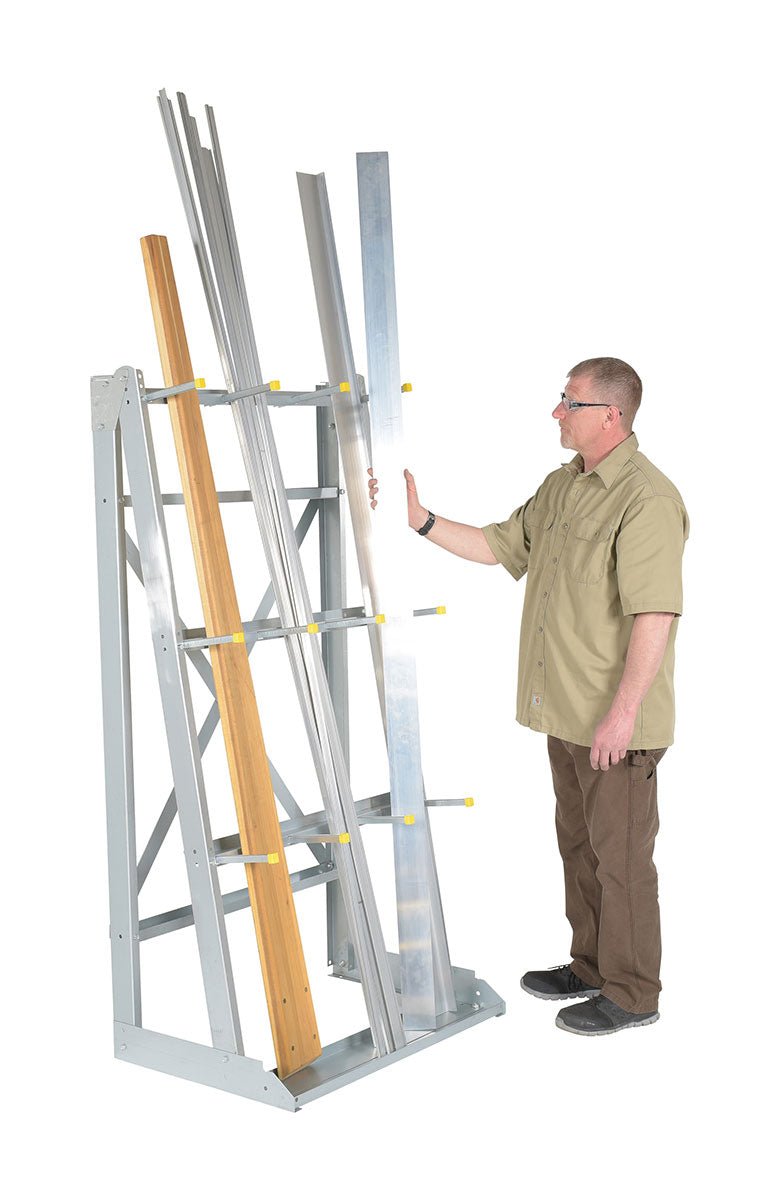

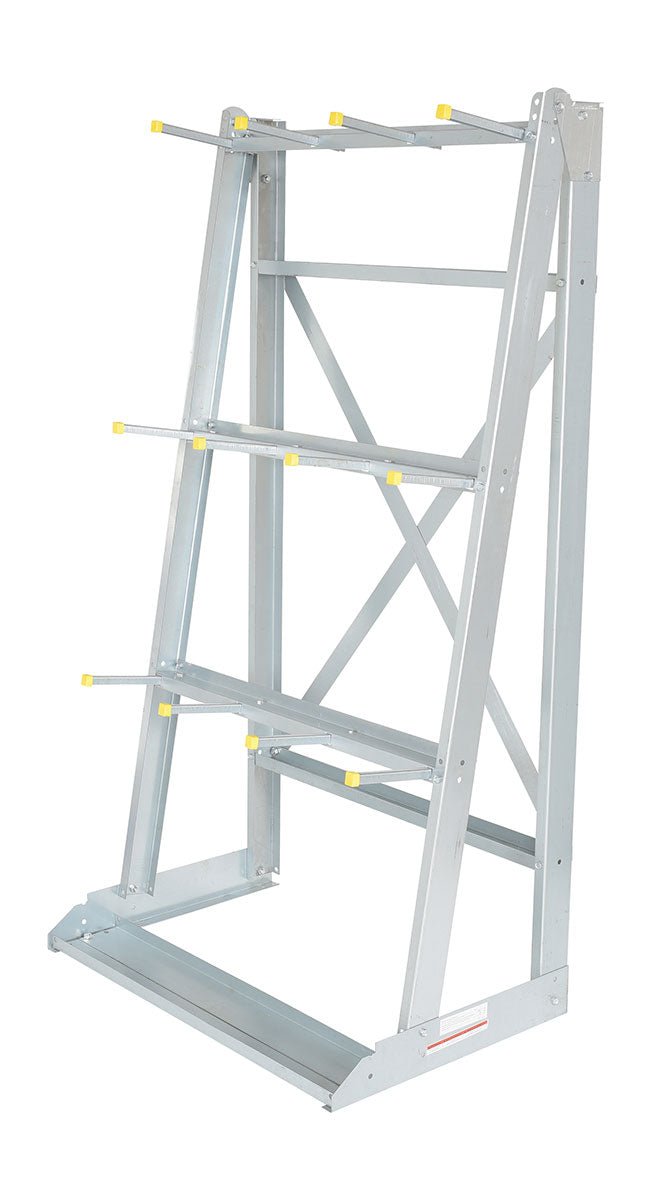

Model SR-V is a floor-mounted vertical material rack. Features three storage bays. Shipped knocked down with convenient and quick assembly. Bright zinc plated finish.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Economical Material Racks

Model Image PDFs Description Height Capacity
(lbs)
Wt.
(lbs)
SR-WM icon_approvaldrawings.jpgWarranty PDF Wall Mount 60" 1,000 24
SR-SS icon_approvaldrawings.jpgWarranty PDF Self Supporting 66" 2,000 61
SR-V icon_approvaldrawings.jpgWarranty PDF Floor Mounted Vertical 72" 2,000 57

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
