Edge-O-Dock Levelers

Edge-O-Dock Levelers are permanently attaches to face of dock and is the easiest to operate

It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. Concrete recess is not required. It comes complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping is twenty-nine (29) inches, (29-13/16" with 30,000 lb. capacity), with a (36-5/8") inch long ramping length available for smaller grade. A steel dock edge, or approach ramp is required for proper installation.

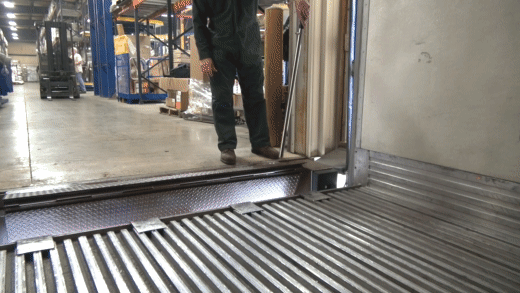

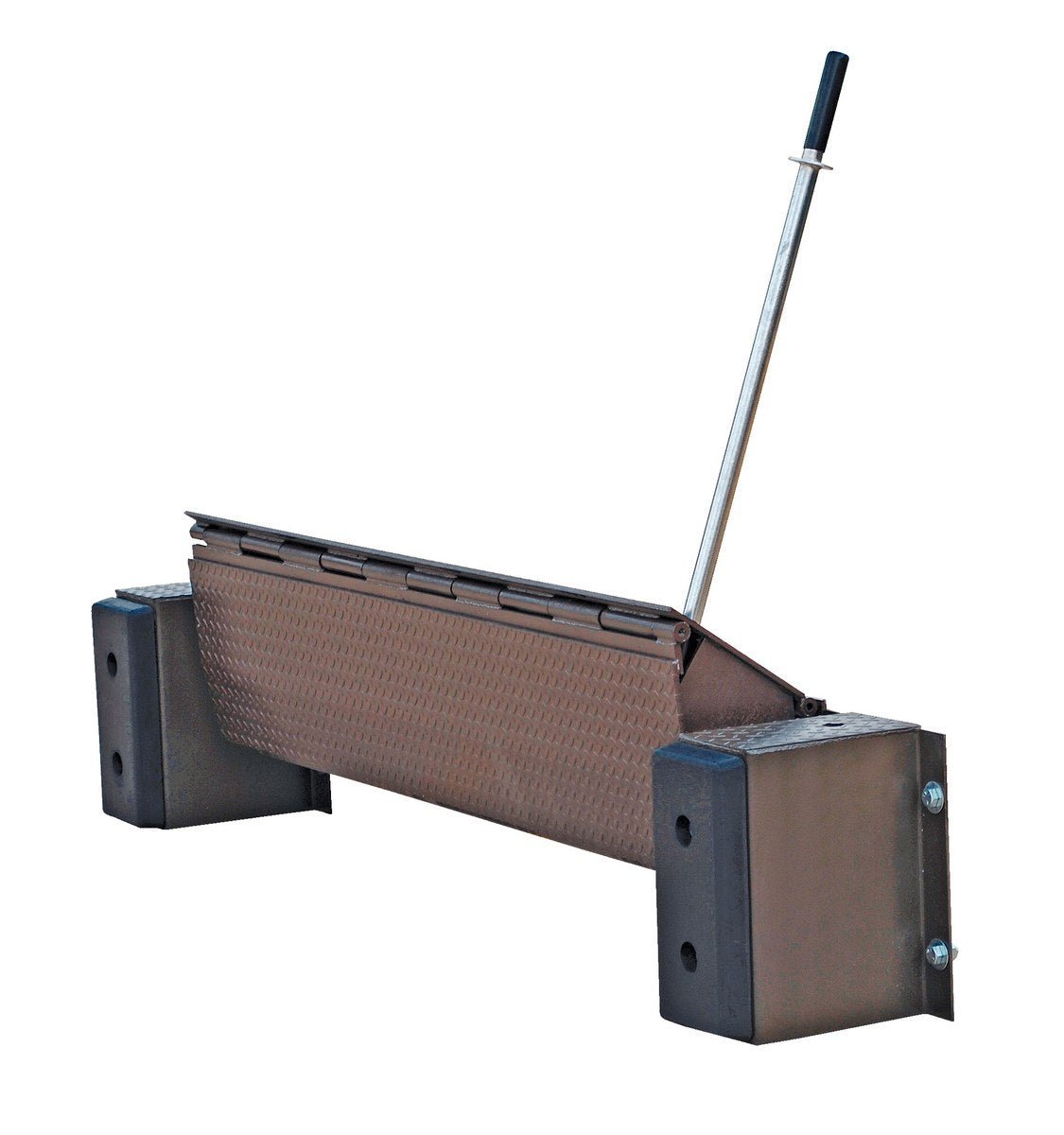

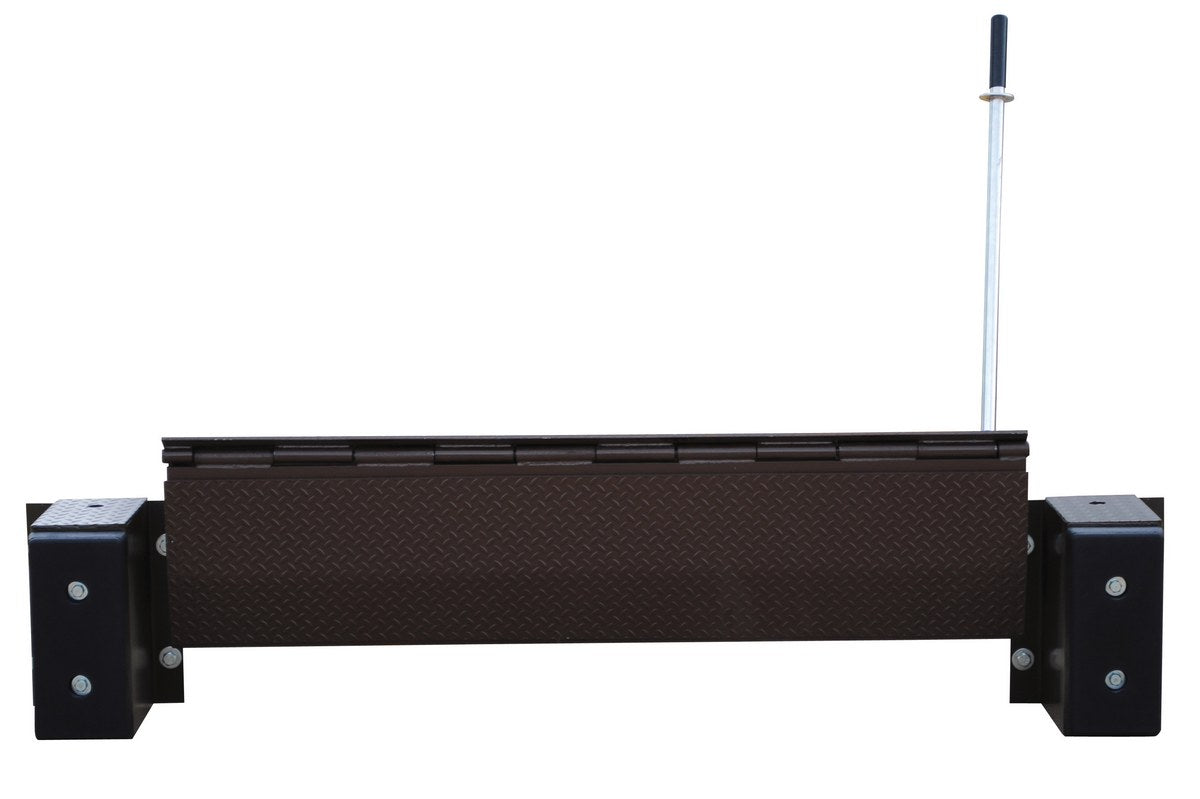

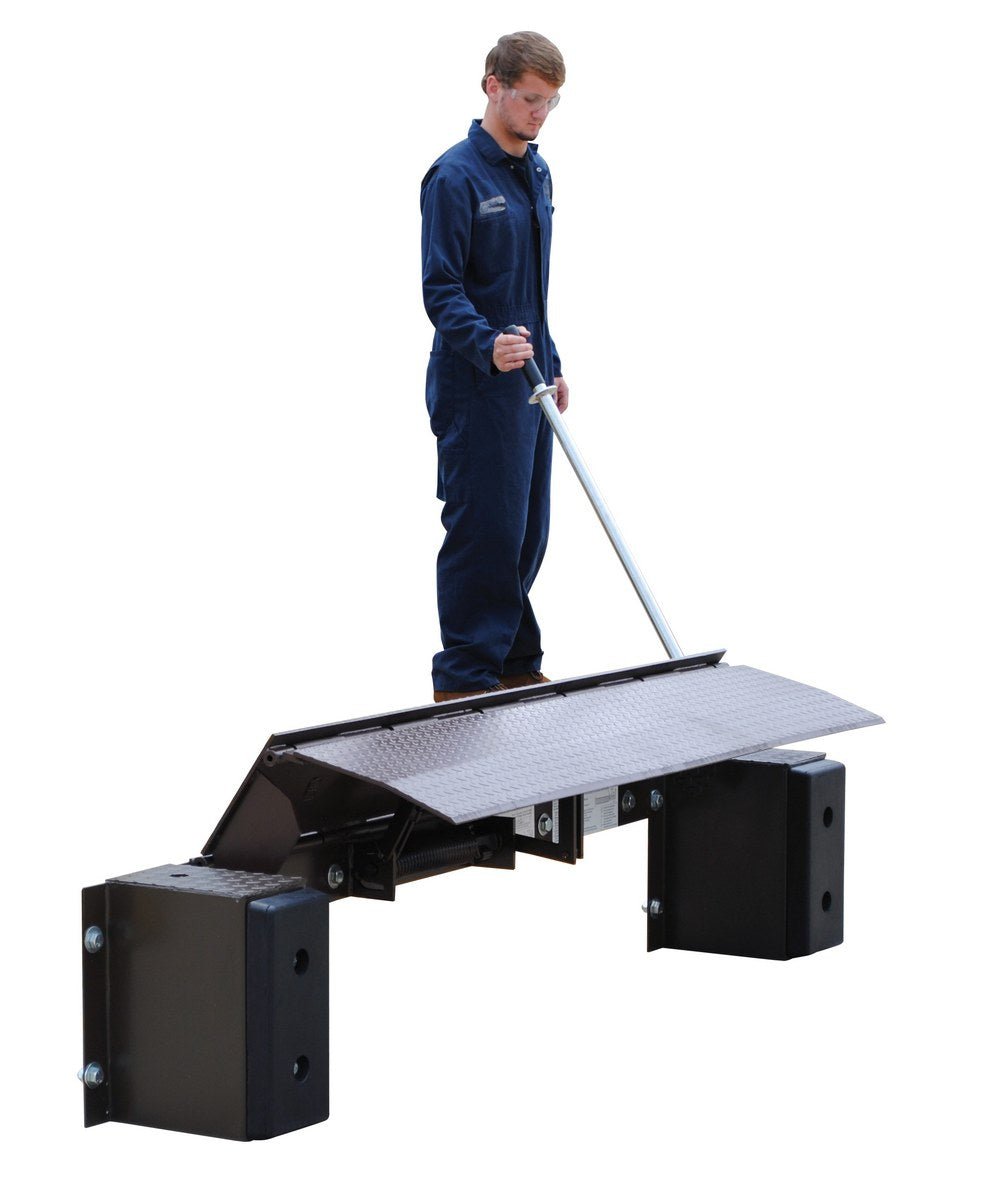

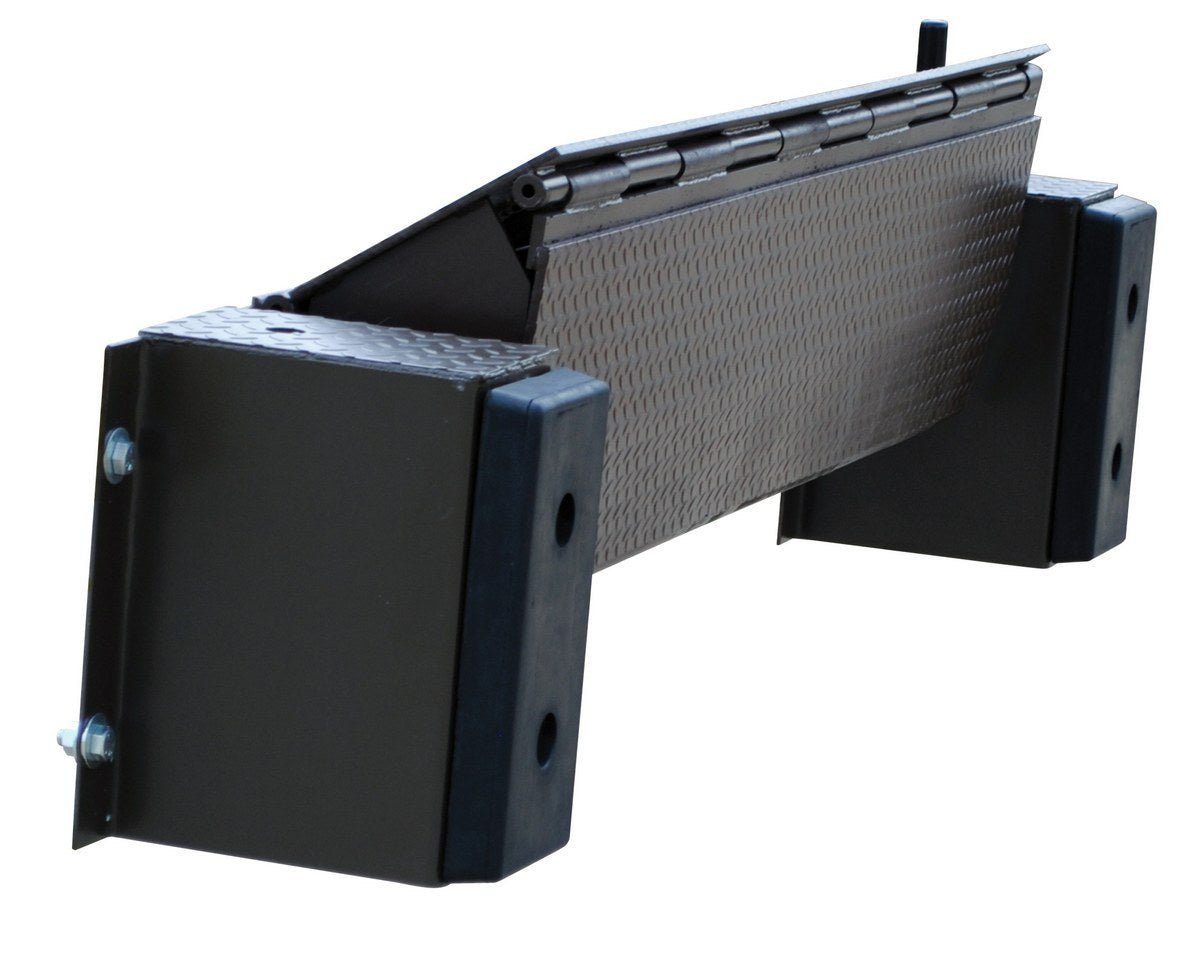

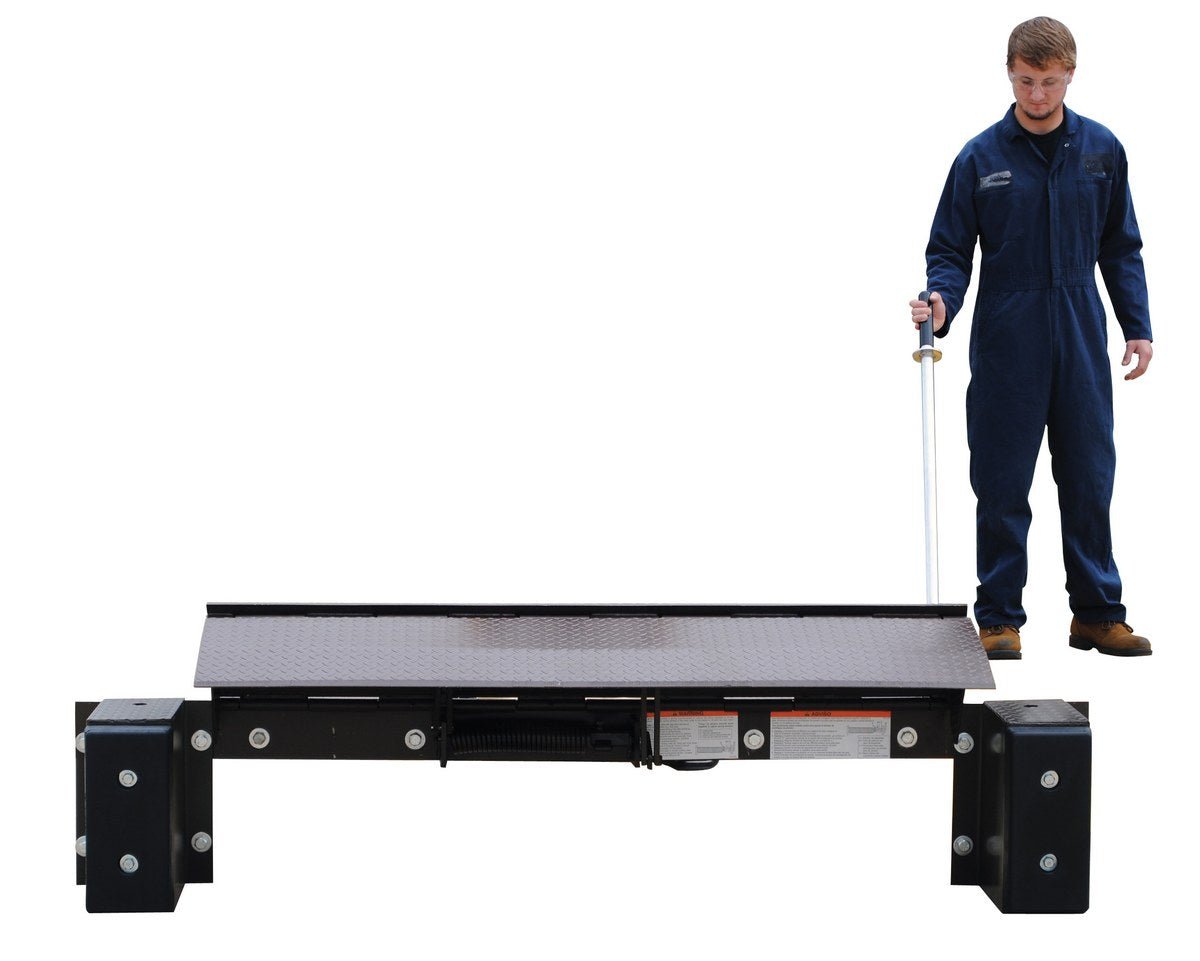

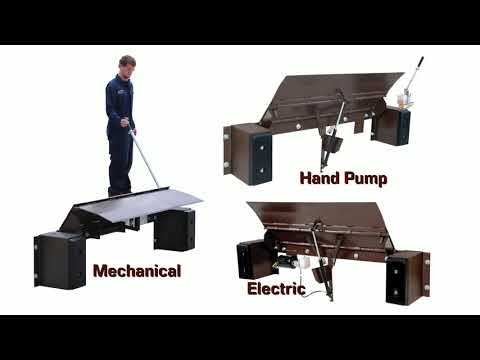

The Mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.

The Manual Hydraulic Hand Pump system is used to lift the leveler and extend the lip. The operator actuates the lowering valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall-mount brackets, cylinder, 15 feet of hydraulic line and oil. Truck must pull out for leveler to return to stored position.

The Electric Hydraulic Edge-O-Dock is the easiest to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend. 115V, 1-phase power standard. Unit comes complete with motor, pump, control box, cylinder, lines, and oil. Truck must pull out for leveler to return to stored position.

Model	Image	Description	*	Net Wt. (lbs)
FM-0648		MECHANICAL EDGE-O-DOCKLEVELERS 6K 48 IN	Uniform Capacity (lb.): 6000	348
FM-2066		MECHANICAL EDGE-O-DOCKLEVELERS 20K 66 IN	Uniform Capacity (lb.): 20000	514
FM-2072		MECHANICAL EDGE-O-DOCKLEVELERS 20K 72 IN	Uniform Capacity (lb.): 20000	523
FM-2078		MECHANICAL EDGE-O-DOCKLEVELERS 20K 78 IN	Uniform Capacity (lb.): 20000	560
FM-2566		MECHANICAL EDGE-O-DOCKLEVELERS 25K 66 IN	Uniform Capacity (lb.): 25000	556
FM-2572		MECHANICAL EDGE-O-DOCKLEVELERS 25K 72 IN	Uniform Capacity (lb.): 25000	575
FM-3066		MECHANICAL EDGE-O-DOCKLEVELERS 30K 66 IN	Uniform Capacity (lb.): 30000	663
FM-3072		MECHANICAL EDGE-O-DOCKLEVELERS 30K 72 IN	Uniform Capacity (lb.):30000	709
PE-1572-36		ELECTRIC EDGE-O-DOCKLEVELER 15K 72 X 36	Uniform Capacity (lb.):15000	749
PE-2066		ELECTRIC EDGE-O-DOCKLEVELER 20K 66 X 29	Uniform Capacity (lb.): 20000	581
PE-2072		ELECTRIC EDGE-O-DOCKLEVELER 20K 72 X 29	Uniform Capacity (lb.): 20000	601
PE-2566		ELECTRIC EDGE-O-DOCKLEVELER 25K 66 X 29	Uniform Capacity (lb.): 25000	619
PE-2572		ELECTRIC EDGE-O-DOCKLEVELER 25K 72 X 29	Uniform Capacity (lb.): 25000	649
PE-2572-36		ELECTRIC EDGE-O-DOCKLEVELER 25K 72 X 36	Uniform Capacity (lb.): 25000	826
PE-3066		ELECTRIC EDGE-O-DOCKLEVELER 30K 66 X 29	Uniform Capacity (lb.): 30000	745
PE-3072		ELECTRIC EDGE-O-DOCKLEVELER 30K 72 X 29	Uniform Capacity (lb.): 30000	782
PP-1572-36		HAND PUMP EDGE-O-DOCK LEVELER 15K 72X36	Uniform Capacity (lb.): 15000	752
PP-2066		HAND PUMP EDGE-O-DOCK LEVELER 20K 66X29	Uniform Capacity (lb.): 20000	583
PP-2072		HAND PUMP EDGE-O-DOCK LEVELER 20K 72X29	Uniform Capacity (lb.): 20000	627
PP-2566		HAND PUMP EDGE-O-DOCK LEVELER 25K 66X29	Uniform Capacity (lb.): 25000	622
PP-2572		HAND PUMP EDGE-O-DOCK LEVELER 25K 72X29	Uniform Capacity (lb.): 25000	671
PP-2572-36		HAND PUMP EDGE-O-DOCK LEVELER 25K 72X36	Uniform Capacity (lb.): 25000	1168
PP-3066		HAND PUMP EDGE-O-DOCK LEVELER 30K 66X29	Uniform Capacity (lb.): 30000	998
PP-3072		HAND PUMP EDGE-O-DOCK LEVELER 30K 72X29	Uniform Capacity (lb.): 30000	1061
