The hydraulic design is state of the art and consists of a simple push of the button operation

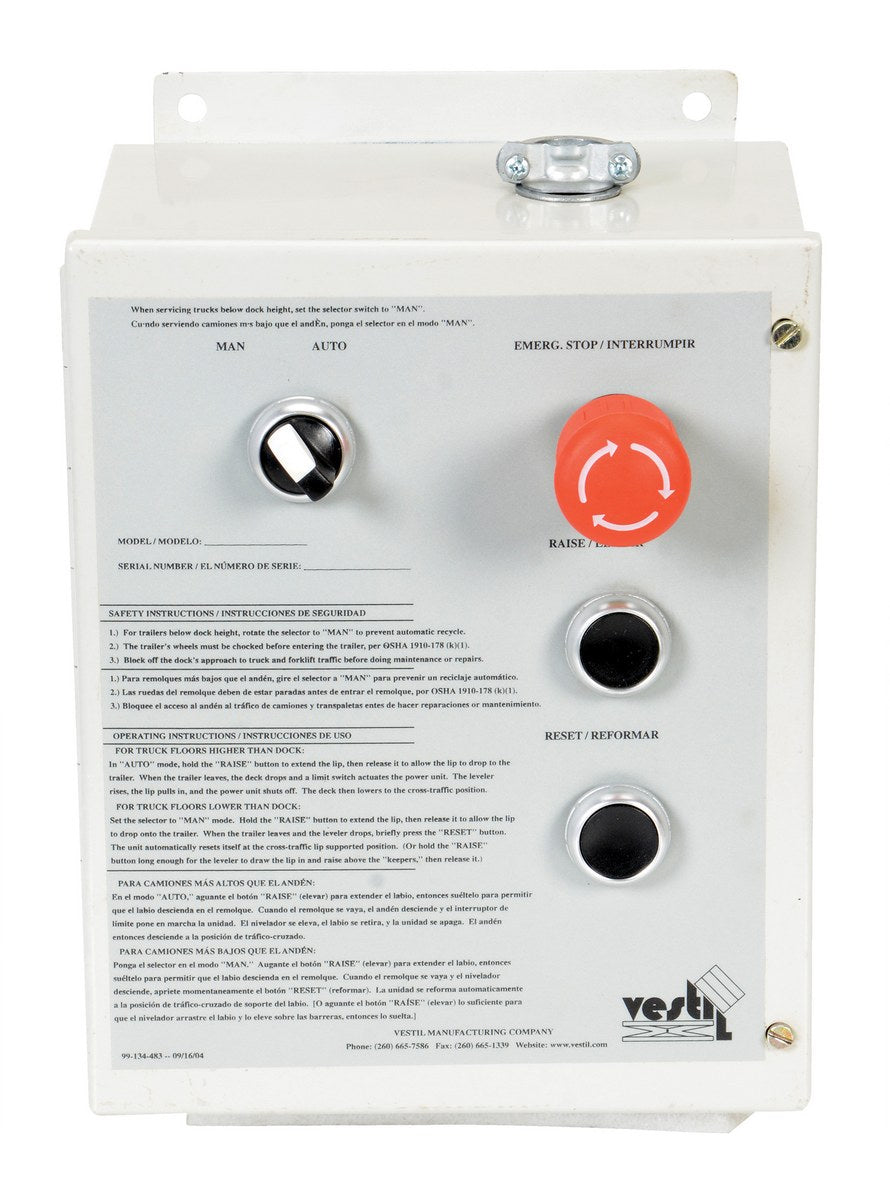

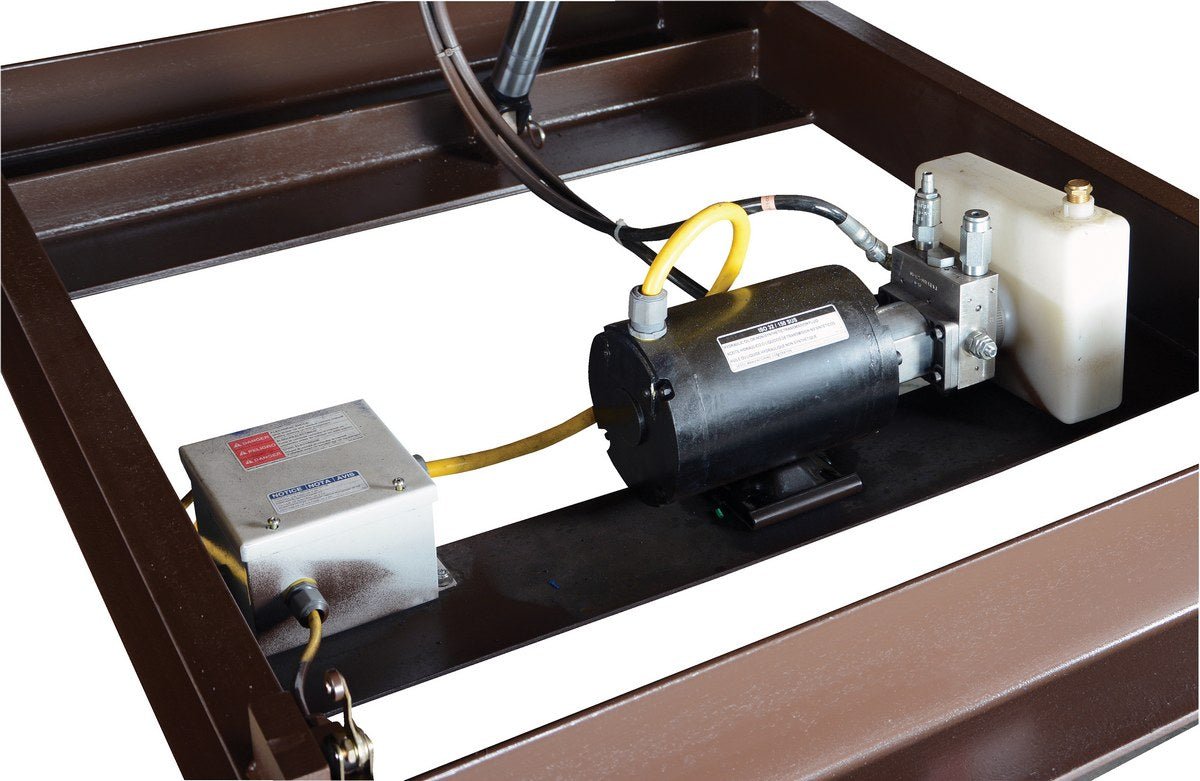

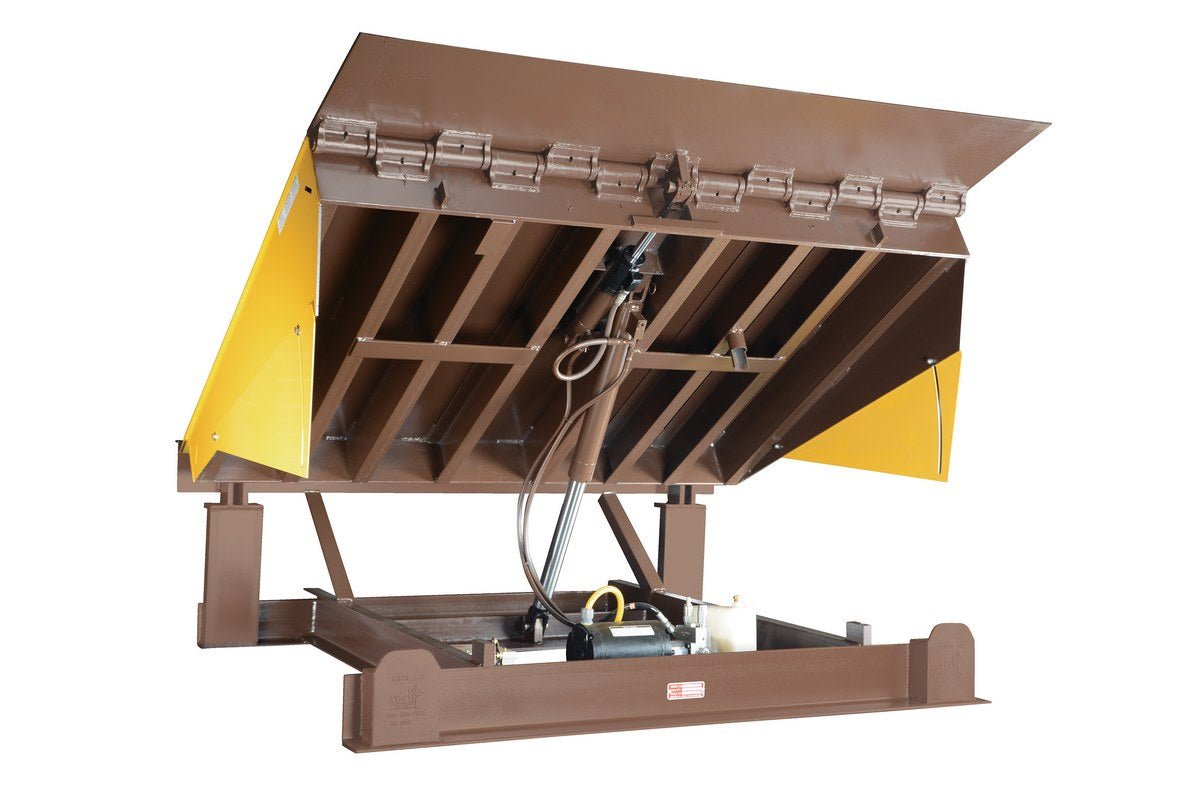

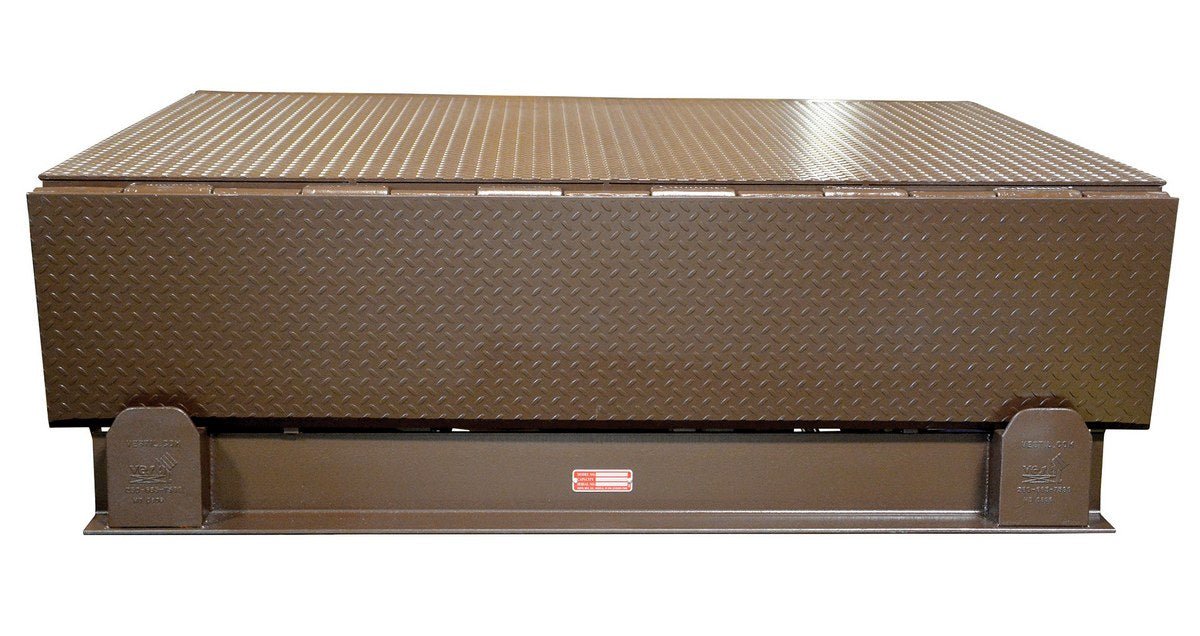

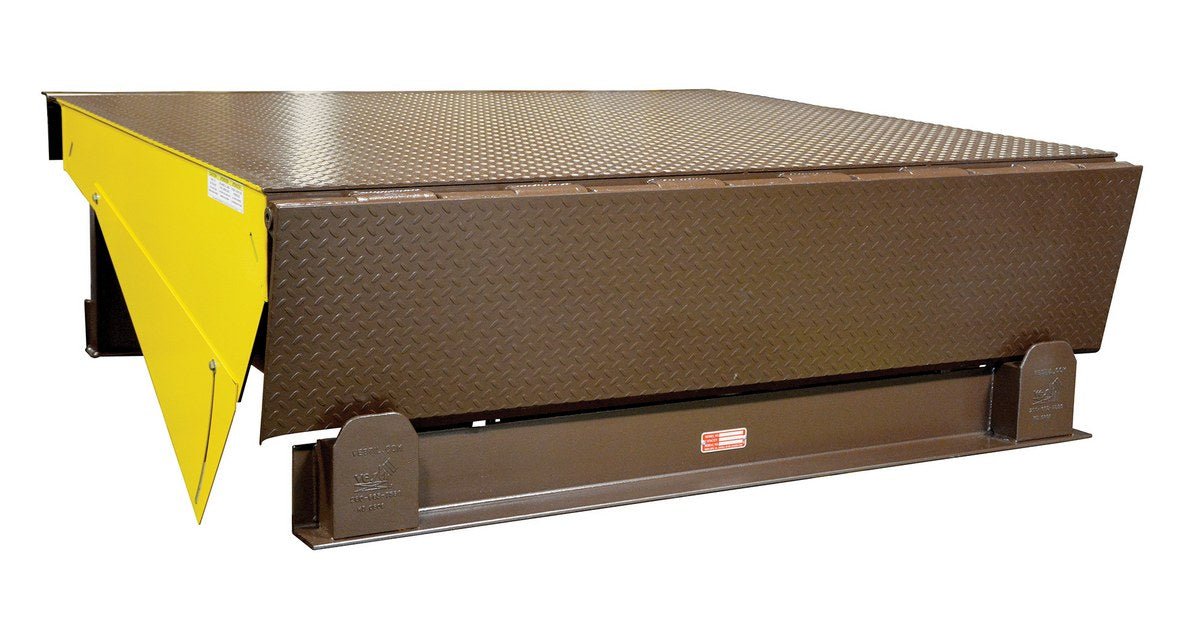

The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a simple push of the button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge, service range of +/- 12" and two (2) laminated bumpers. 460V 3-Phase standard. Uniform capacities available up to 80,000 pounds, contact factory.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Electric Hydraulic Dockleveler
Model Image Operation Capacity Size Wt. (lbs)
EH-65-20 Electric Hydraulic 20,000 6'W x 5'4"L 1407
EH-66-20 Electric Hydraulic 20,000 6'W x 6'4"L 1568
EH-68-20 Electric Hydraulic 20,000 6'W x 8'4"L 1907
EH-610-20 Electric Hydraulic 20,000 6'Wx10'4"L 2267
EH-610-25 Electric Hydraulic 25,000 6'Wx10'4"L 2267
EH-610-30 Electric Hydraulic 30,000 6'Wx10'4"L 2267
EH-610-35 Electric Hydraulic 35,000 6'Wx10'4"L 2267
EH-610-40 Electric Hydraulic 40,000 6'Wx10'4"L 2267
EH-610-45 Electric Hydraulic 45,000 6'Wx10'4"L 2267
EH-610-50 Electric Hydraulic 50,000 6'Wx10'4"L 2267
EH-75-20 Electric Hydraulic 20,000 7'W x 5'4"L 1566
EH-76-20 Electric Hydraulic 20,000 7'W x 6'4"L 1753
EH-78-20 Electric Hydraulic 20,000 7'W x 8'4"L 2145
EH-710-20 Electric Hydraulic 20,000 7'Wx10'4"L 2558
EH-710-25 Electric Hydraulic 25,000 7'Wx10'4"L 2558
EH-710-30 Electric Hydraulic 30,000 7'Wx10'4"L 2558
EH-710-35 Electric Hydraulic 35,000 7'Wx10'4"L 2558
EH-710-40 Electric Hydraulic 40,000 7'Wx10'4"L 2558
EH-710-45 Electric Hydraulic 45,000 7'Wx10'4"L 2558
EH-710-50 Electric Hydraulic 50,000 7'Wx10'4"L 2558
