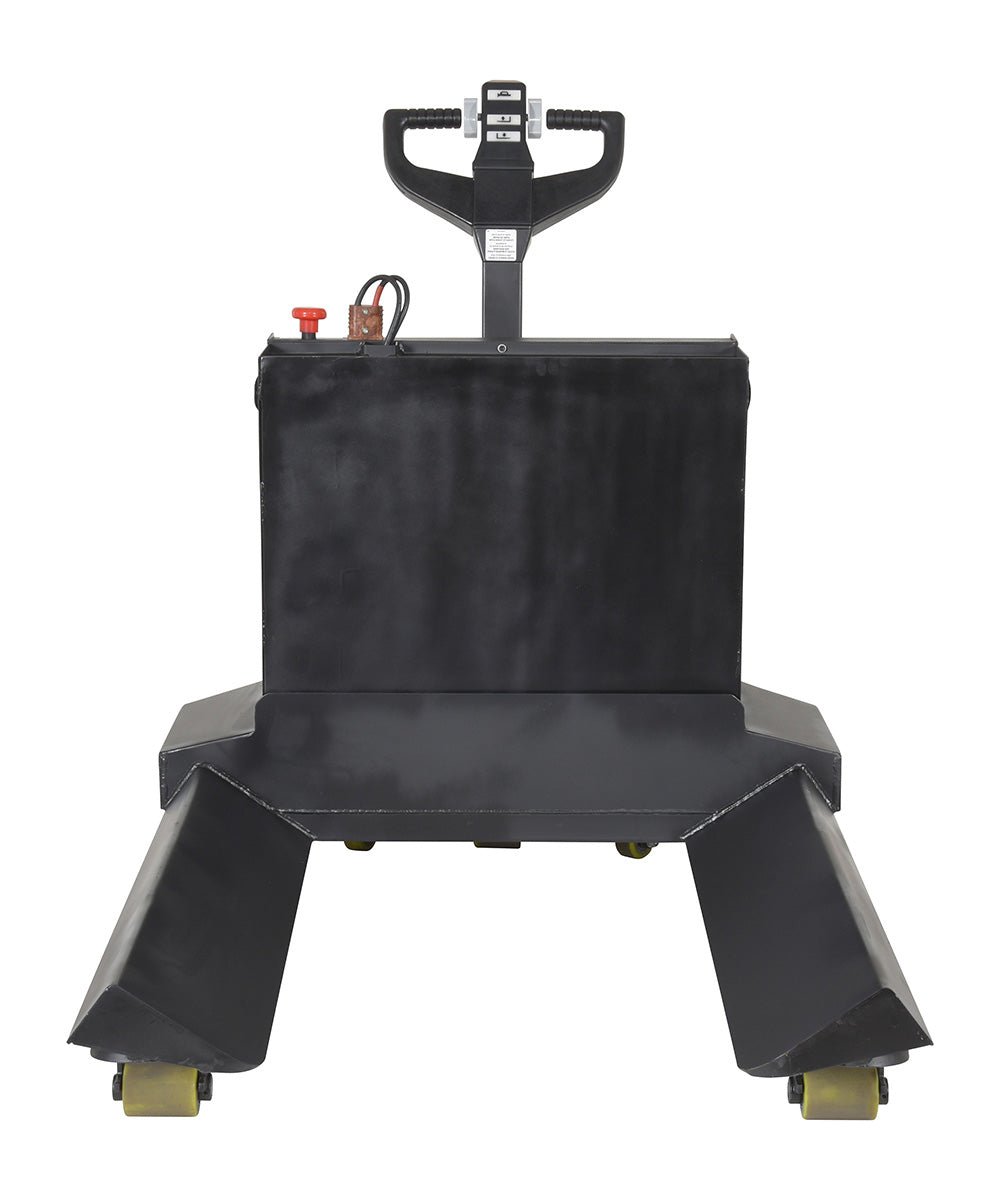

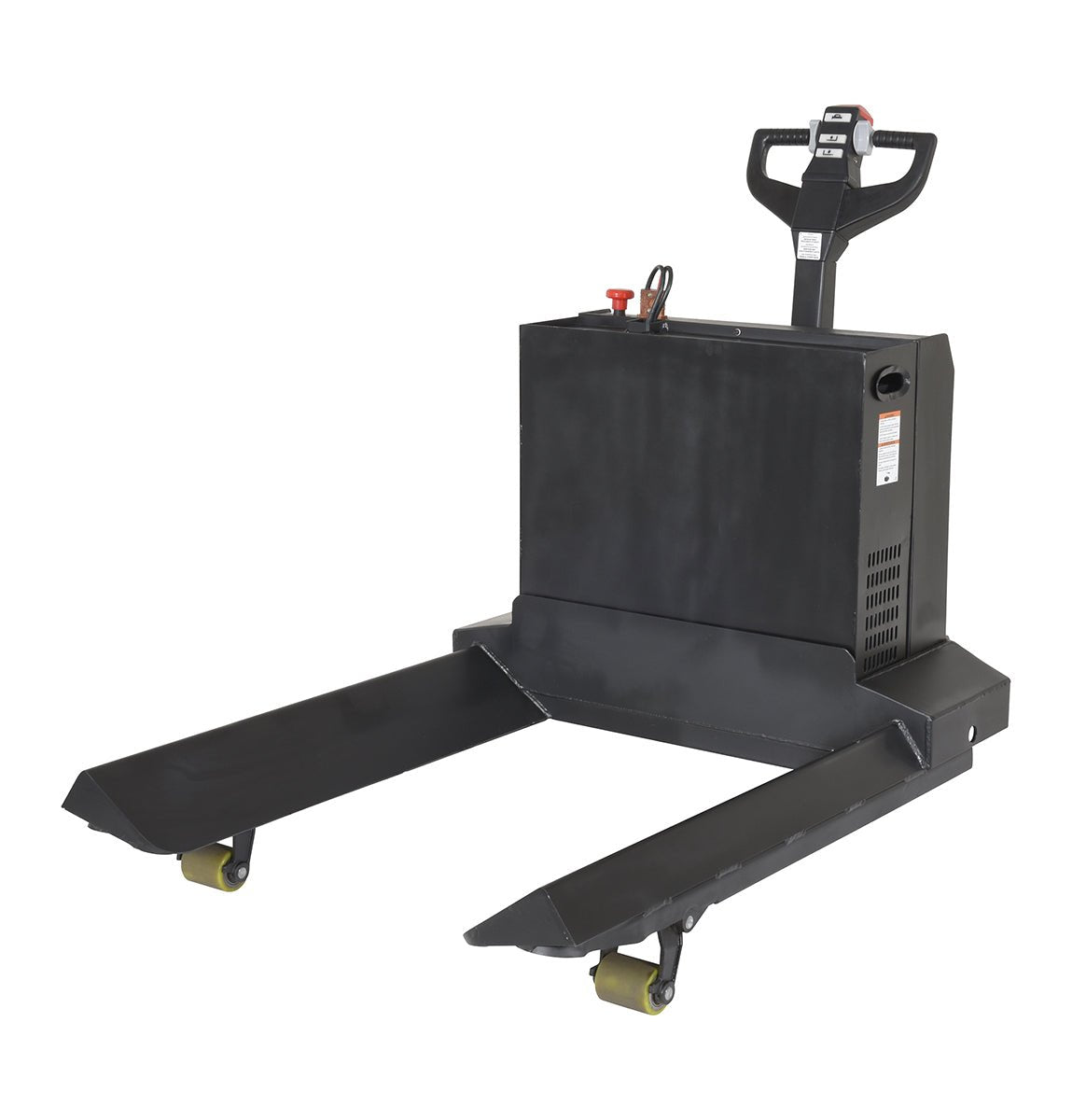

Electric Powered Roll Pallet Trucks

The Electric Powered Roll Pallet Trucks have an easy and quick operation. The unit raises and lowers loads with a push of a button. It can maneuver loads in warehouses and trailers.

The reinforced welded forks have adjustable tie-rods that provide long service. The high-torque DC drive and lift motors handle heavy-duty jobs. The truck rolls smoothly on poly-on-steel, steer and load wheels. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the Proprietary Safety-enhancing Emergency Reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Fully-powered roll truck makes movement of rolls quick and easy. Includes fingertip RAISE and LOWER buttons for operator convenience. Safety belly reverse button improves worker safety. Easy-to-operate throttle for forward and reverse direction

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Electric Powered Roll Pallet Trucks
Model	Image	PDF	Fork Size	Accommodates Roll Size (Dia.)	Service Range	Uniform Capacity (lbs)	Wt. (lbs.) Pair
EPT-4048-45-RL			40"x48"	35-1/2" to 51"	0" to 7-7/8"	4,500	1270
EPT-4548-45-RL			45"x48"	47-1/2" to 63"	0" to 7-7/8"	4,500	1320

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
