Electric Straddle Stacker with 138" Lift Height and Lithium Battery

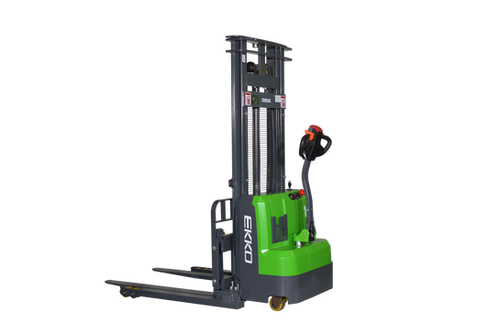

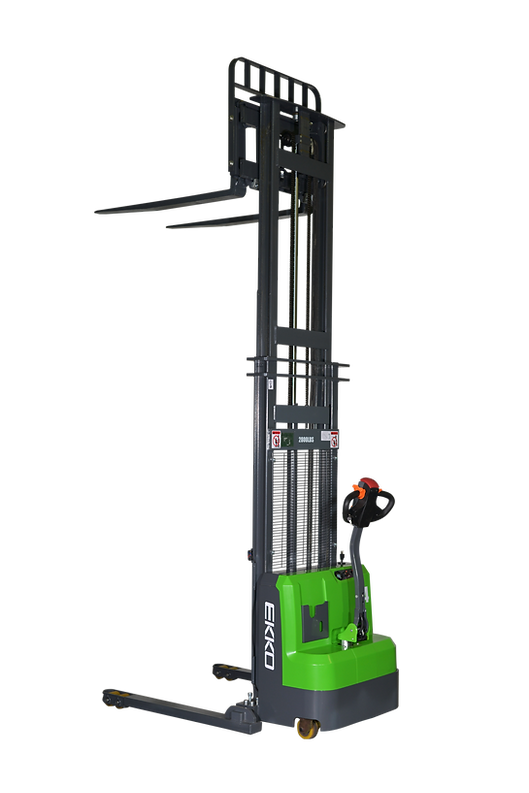

EKKO EB14CS-138Li Electric Straddle Stacker — 3,000 lb Capacity with 138" Lift Height and Lithium Battery

The EKKO EB14CS-138Li Electric Straddle Stacker is a heavy-duty, battery-powered material handling machine engineered for contractors and trades professionals who require reliable lifting and positioning in demanding environments. With a 3,000 lb load capacity and a maximum raised height of 138" (11.5 ft.), it combines the functional versatility of a forklift, reach truck, and walkie stacker into a single unit. It is well-suited for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing operations.

Unlike conventional walkie stackers, the EB14CS-138Li integrates side shift capability, adjustable forks, and adjustable straddle legs, giving operators the flexibility to handle varied pallet sizes and configurations without changing equipment. The 24V/50Ah lithium battery and Curtis Instrument Controller deliver consistent, efficient power management across extended work cycles.

Technical Specifications

Key Features & Benefits

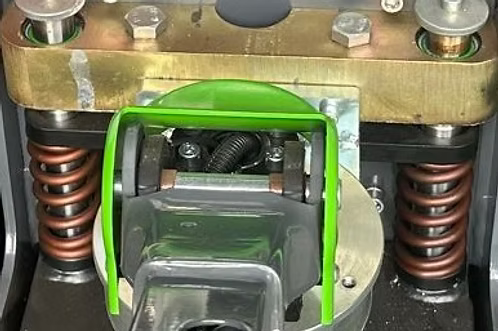

Dual Damping Drive System

The dual damping drive system is specifically designed to absorb shock and vibration during operation, providing stronger handling performance and improved comfort for the operator. For contractors working long shifts on varied flooring, this translates to reduced operator fatigue and more precise load placement.

Side Shift Capability

The integrated side shift allows operators to laterally reposition the forks without moving the entire machine, enabling accurate pallet placement in tight rack aisles or on loading docks. This feature reduces the need for repeated repositioning maneuvers, improving workflow efficiency.

Adjustable Forks and Legs

Forks adjustable from 8.7" to 32.1" and straddle legs adjustable from 35.4" to 51.2" allow the EB14CS-138Li to accommodate a wide range of pallet widths and configurations. This versatility reduces the need for multiple machines across different material handling tasks on the same jobsite.

24V / 50Ah Lithium Battery

The lithium battery provides efficient, low-maintenance power compared to traditional lead-acid alternatives, with no watering requirements and a more stable discharge curve. This supports consistent performance throughout the work cycle and reduces downtime associated with battery maintenance.

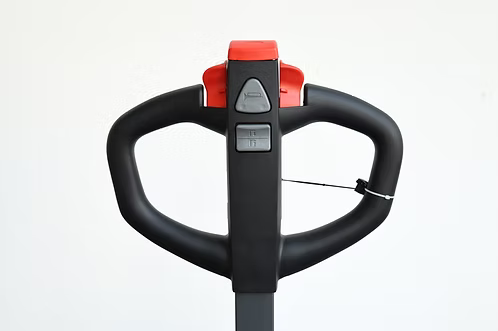

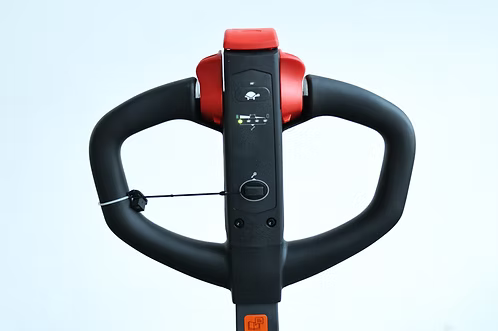

Curtis Instrument Controller

The Curtis Instrument Controller is an industry-recognized component used across professional-grade electric material handling equipment, providing precise drive and lift control. Contractors benefit from reliable, responsive operation and the availability of a well-supported control platform.

High-Quality Steel Construction with Polyurethane Wheels

The all-steel frame is built to withstand impact, directional changes, and the rigors of continuous commercial use. Polyurethane wheels provide traction and durability on smooth warehouse and dock surfaces without marking floors.

Common Applications

Loading and Unloading Trucks

The EB14CS-138Li's 3,000 lb capacity and adjustable legs make it effective for loading and unloading freight from delivery and flatbed trucks at grade or from a loading dock.

Loading Dock Operations

Its compact straddle design and side shift enable efficient pallet transfer and positioning in the confined space of a loading dock environment.

Stock Rooms

The 138" raised height allows operators to place and retrieve palletized loads on elevated racking in stock room and back-of-house storage areas.

Manufacturing Floors

The dual damping drive system and adjustable fork and leg widths allow for maneuvering around equipment and handling varied load footprints common in manufacturing floor environments.

Warehousing

Adjustable forks and straddle legs paired with side shift capability allow the EB14CS-138Li to service standard and non-standard pallet rack configurations in warehouse storage facilities.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized boxed goods
• Palletized bagged materials
• Palletized construction materials
• Smooth concrete and finished warehouse flooring (polyurethane wheels)
