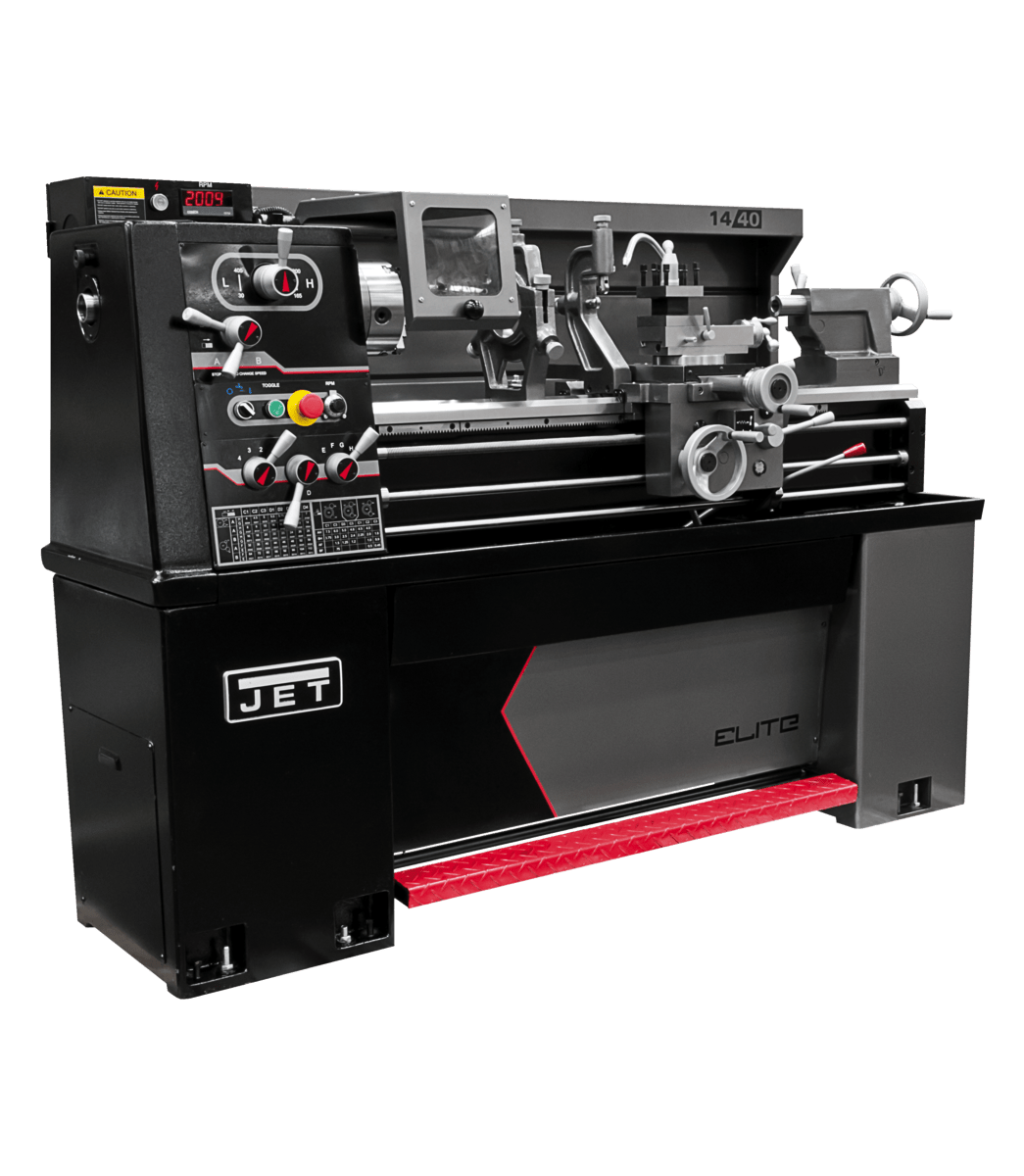

Elite 13" x 40" EVS Lathe With ACU-RITE 303 DRO | E-1340VS

by Jet
SKU 892411
Save $5,500.42 Save $5,500.42
Original price $28,551.40
Original price $28,551.40 - Original price $28,551.40
Original price $28,551.40
Current price $23,050.98
$23,050.98 - $23,050.98
Current price $23,050.98
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs.

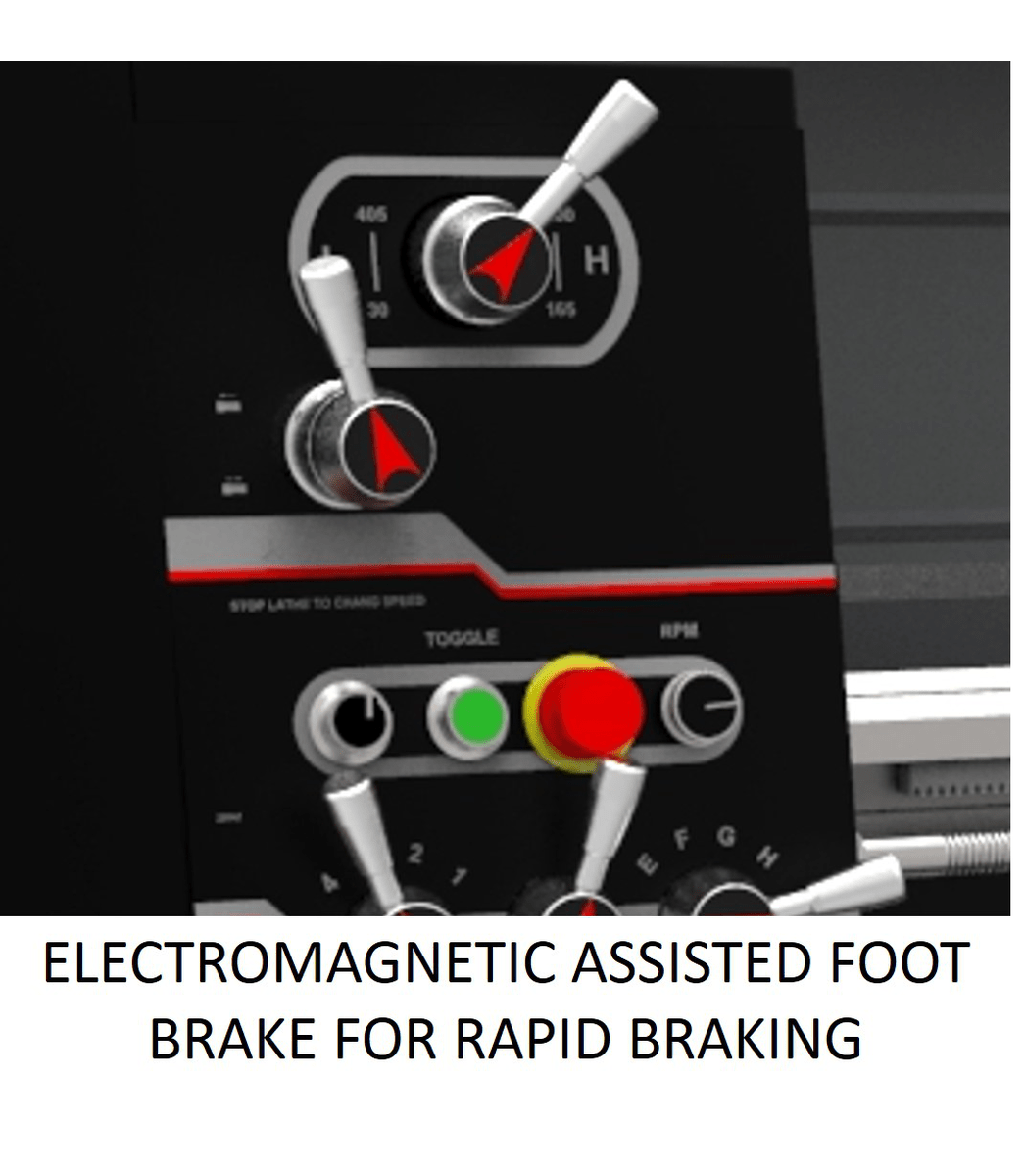

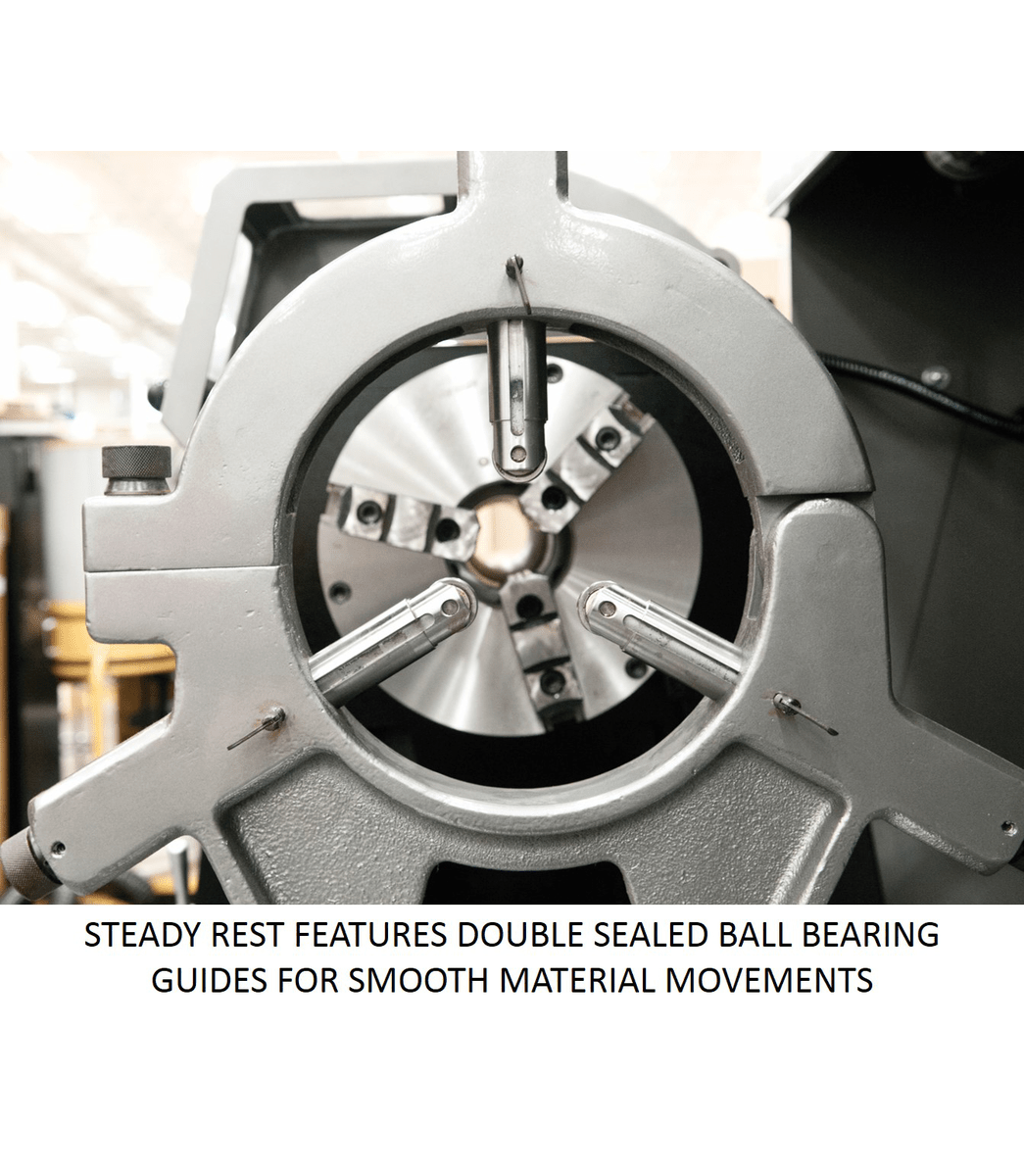

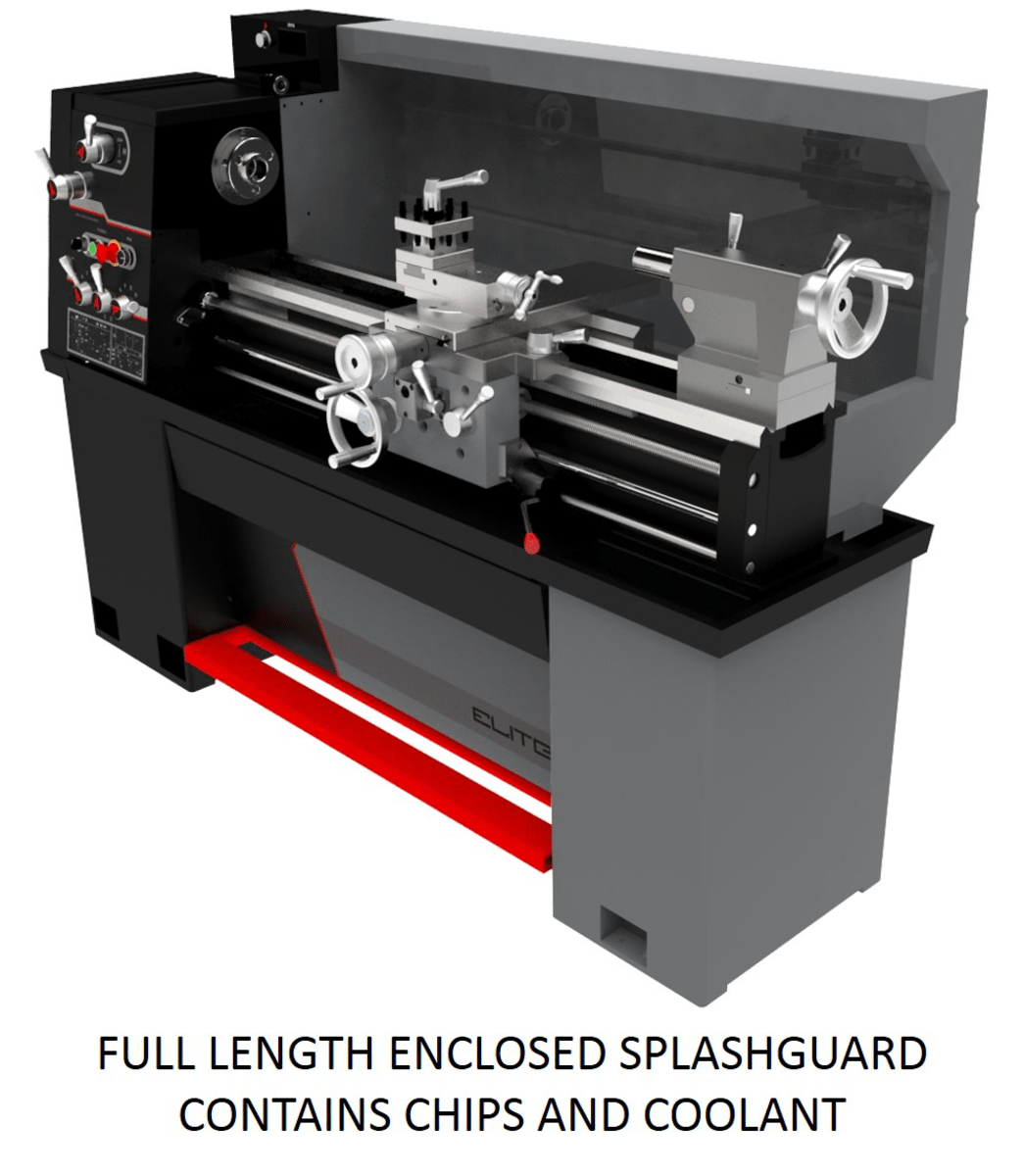

Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

  • 4-Position Carriage Stop
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine

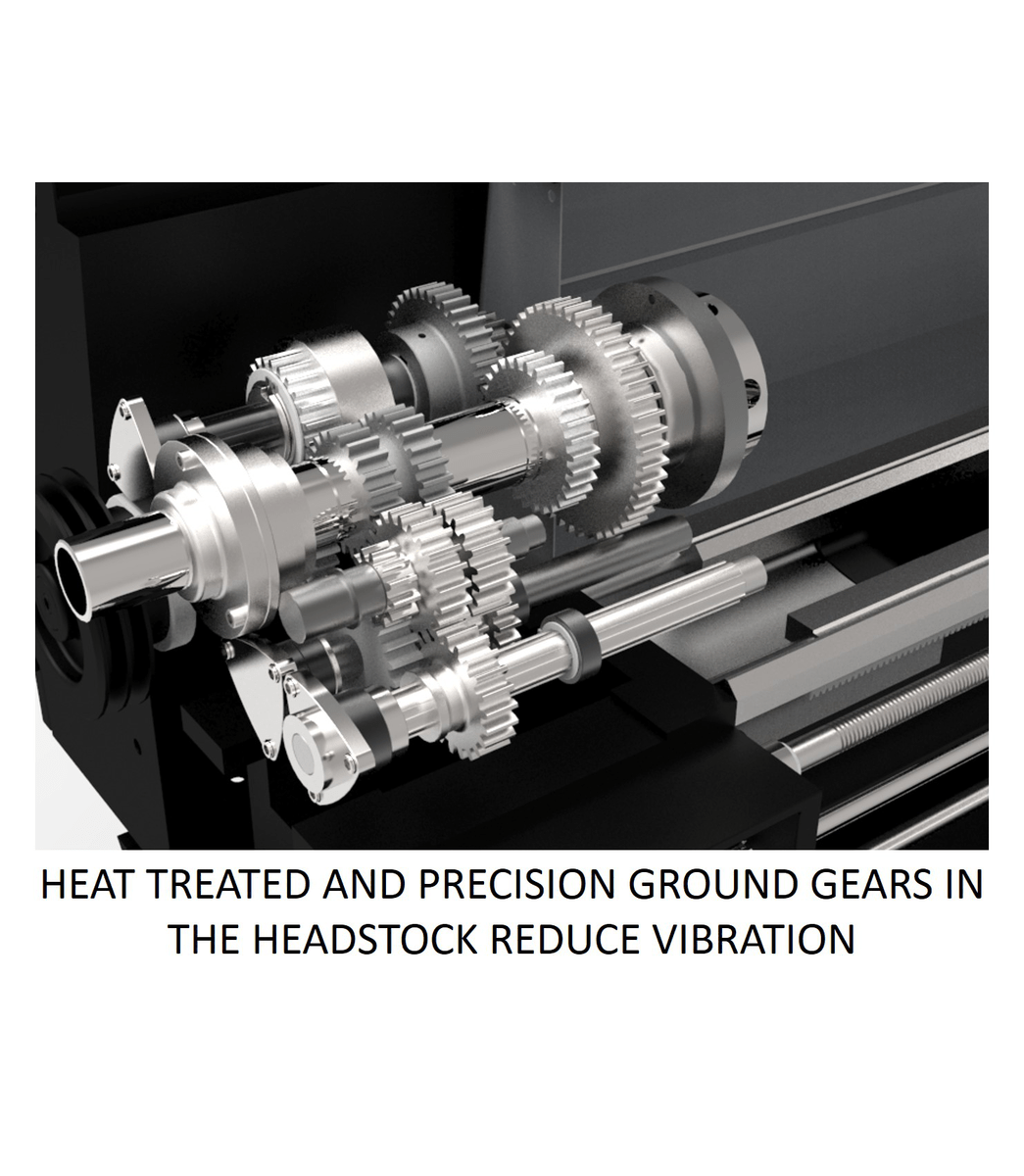

  • Hardened and ground gears in headstock reduce vibration and deflection
  • Inverter drive system provides infinitely variable spindle speeds
  • LED RPM readout allows for precise turning speeds
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Stock Number 892411
Amperage Draw @ 230V 3Ph 19
Compound Slide Travel (In.) 3-1/2
Drive EVS
Length of Gap (In.) 9
Max Tool Size (In.) 5/8 x 5/8
Motor (HP) 3 HP, 230V, 3Ph
Number of Inch Threads 40.0000
Number of Longitudinal and Cross Feed Rates 80
Number of Metric Threads 22.0000

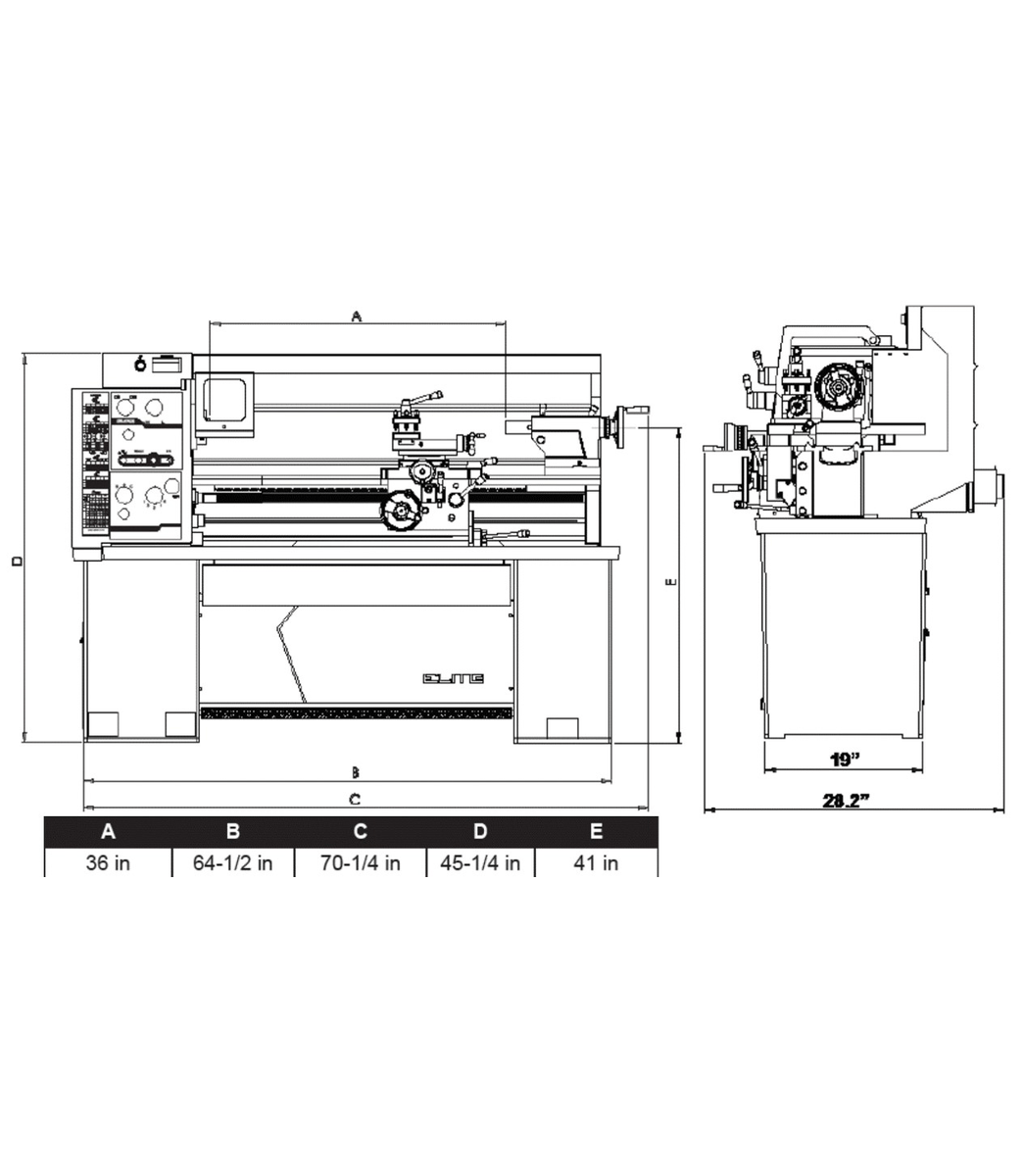

Overall Dimensions (L x W x H) (In.) 67 x 30 x 57
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0003 - 0.01
Range of Inch Threads (TPI) 4 - 112
Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294
Range of Metric Threads 0.45 - 7.5
Range of Spindle Speeds (RPM) 0 - 2,200
Size 13 x 40
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 1/4 - 2-3/4
Style (Type) ELITE EVS
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-5/8
Swing Through Gap (In.) 19
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 1433
Width of Bed (In.) 8-1/2
