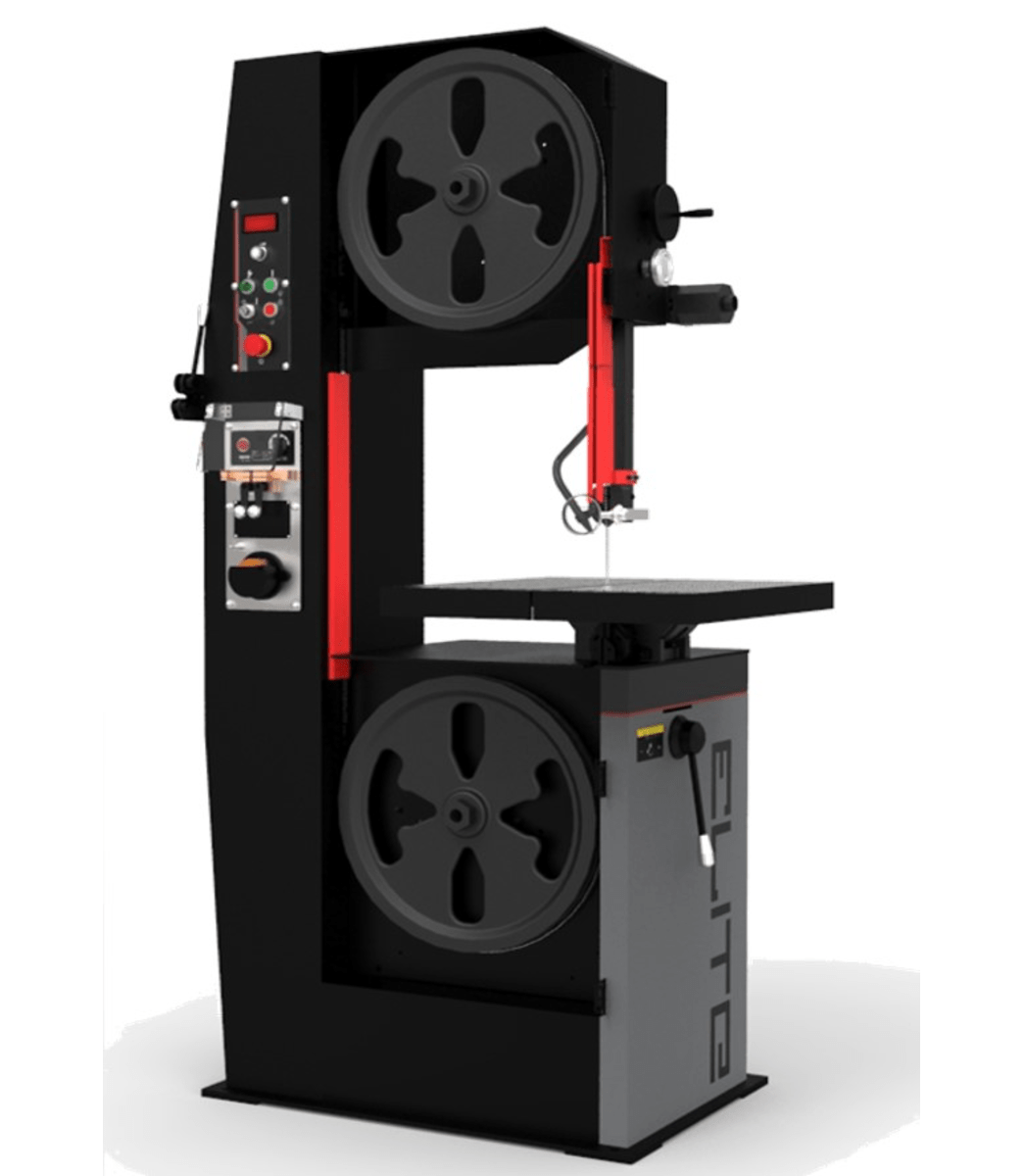

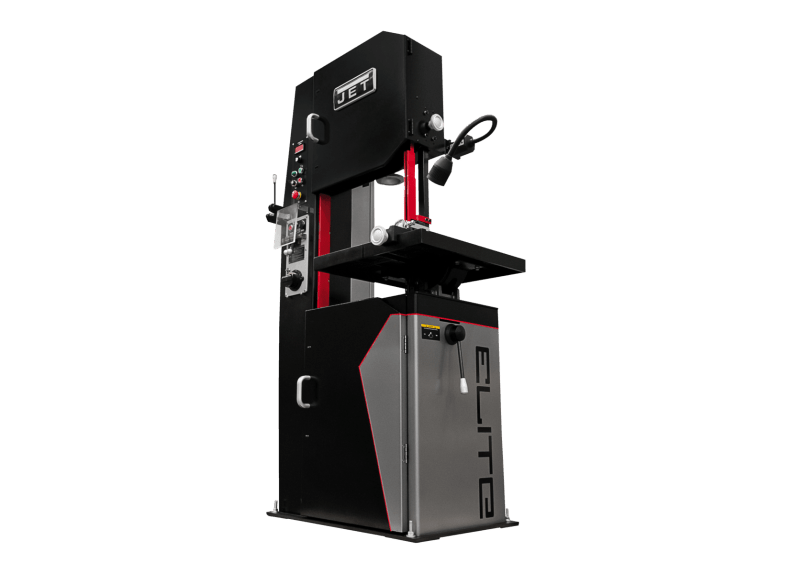

EVBS-20, 20" Vertical Bandsaw

Elite Vertical Bandsaws are the perfect blend of power and balance.

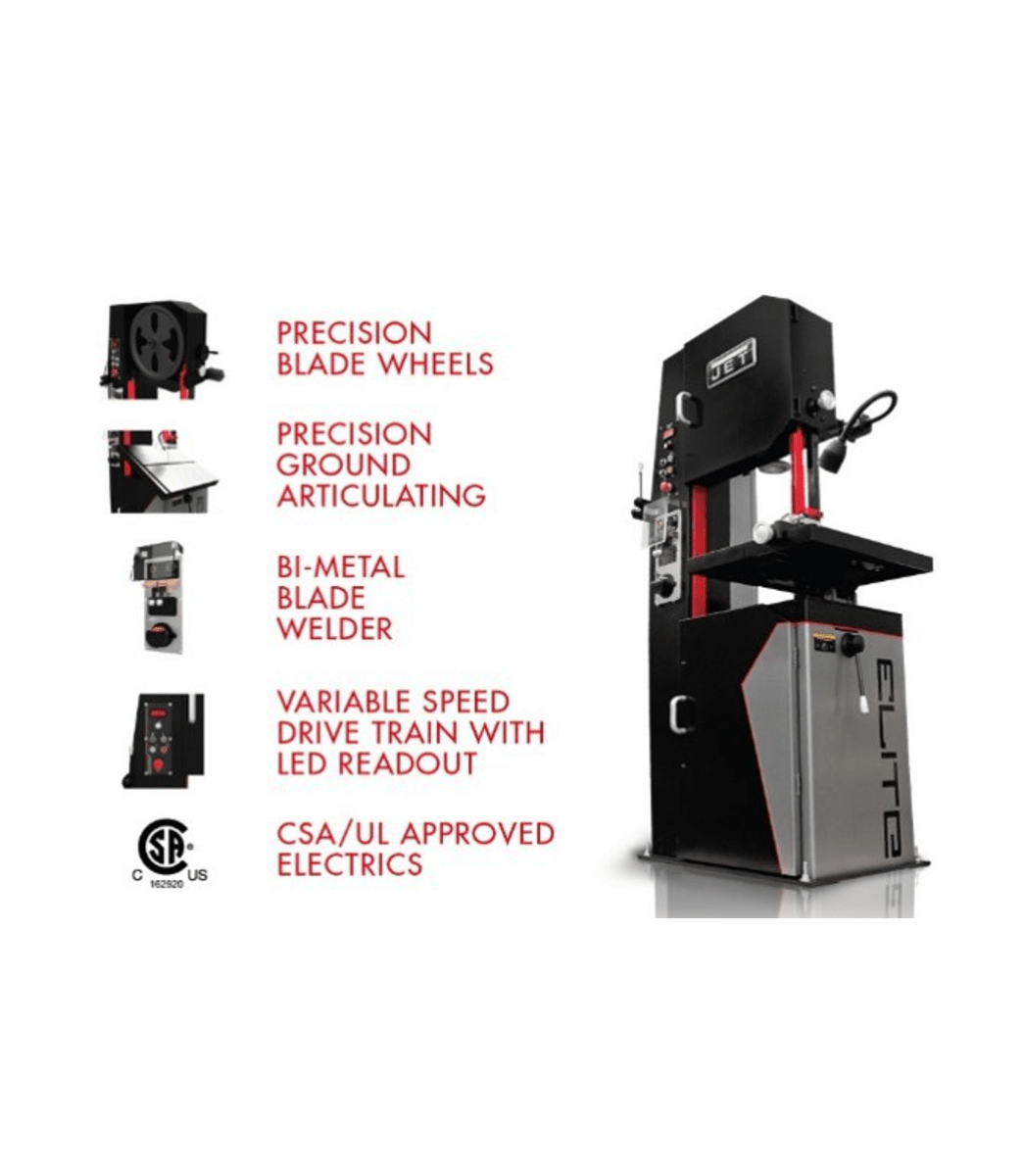

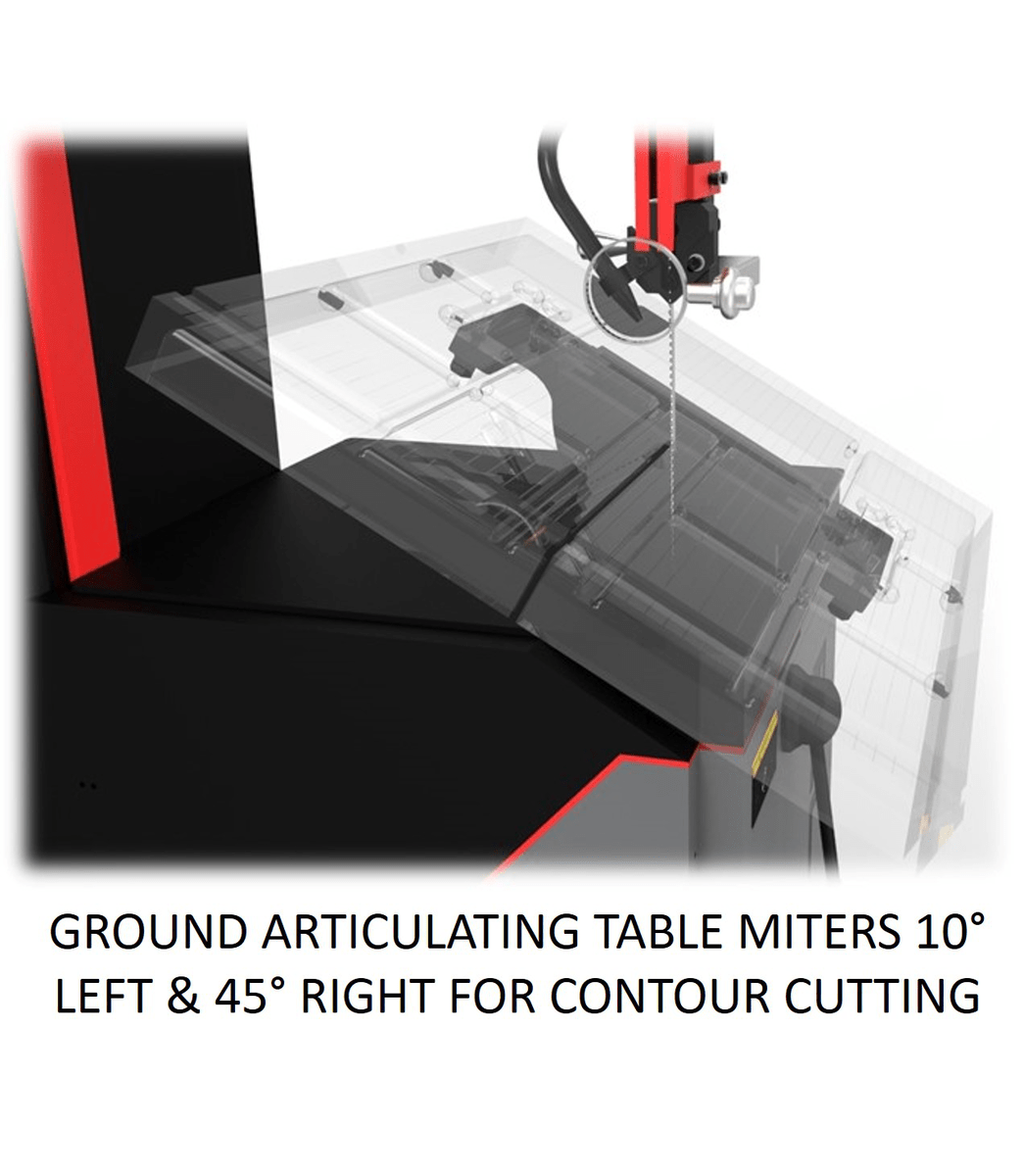

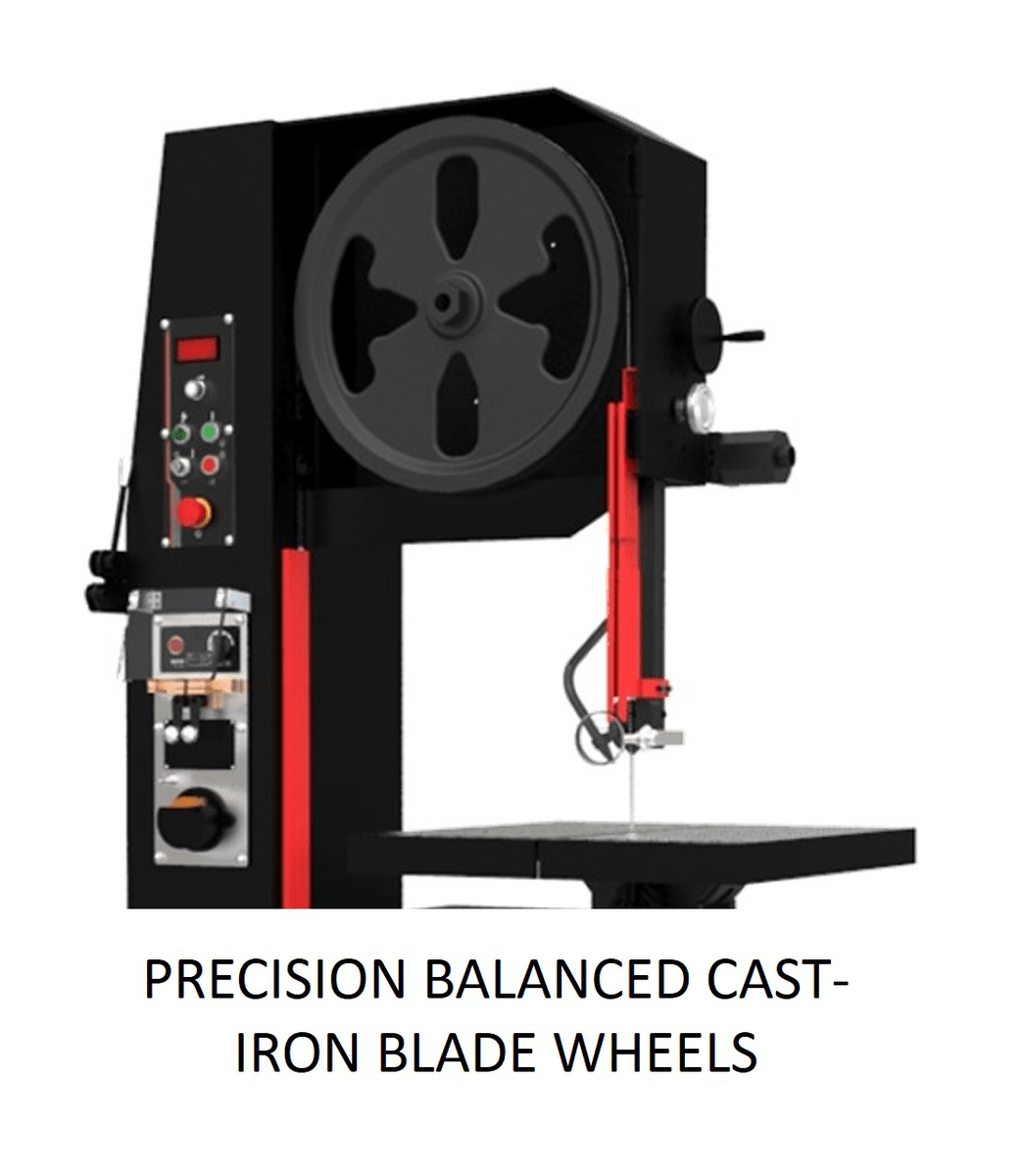

Featuring variable speed drivetrains with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations, and CSA / CUS Certification make Elite vertical bandsaws the choice for precision sawing of ferrous and non-ferrous materials.

More Information

Stock Number	891100
Blade Length (In.)	151-1/2
Blade Speeds (SFPM)	Variable 50-5000
Blade Width (Min.-Max.) (In.)	1/8 - 1
Gross Weight (Lbs)	1356
Height Capacity (Max.) (In.)	13
Motor (HP)	2 HP, 230V, 3Ph
Net Weight (Lbs.)	1102
Overall Dimensions (L x W x H) (In.)	40 x 29 x 77-1/2
Overall Height (In.)	77-1/2
Prop 65	Cancer and Reproductive Harm
Table Height (In.)	39-3/8
Table Size (L x W) (In.)	24 x 22
Throat Capacity (In.)	20
Weight (Lbs.)	1102

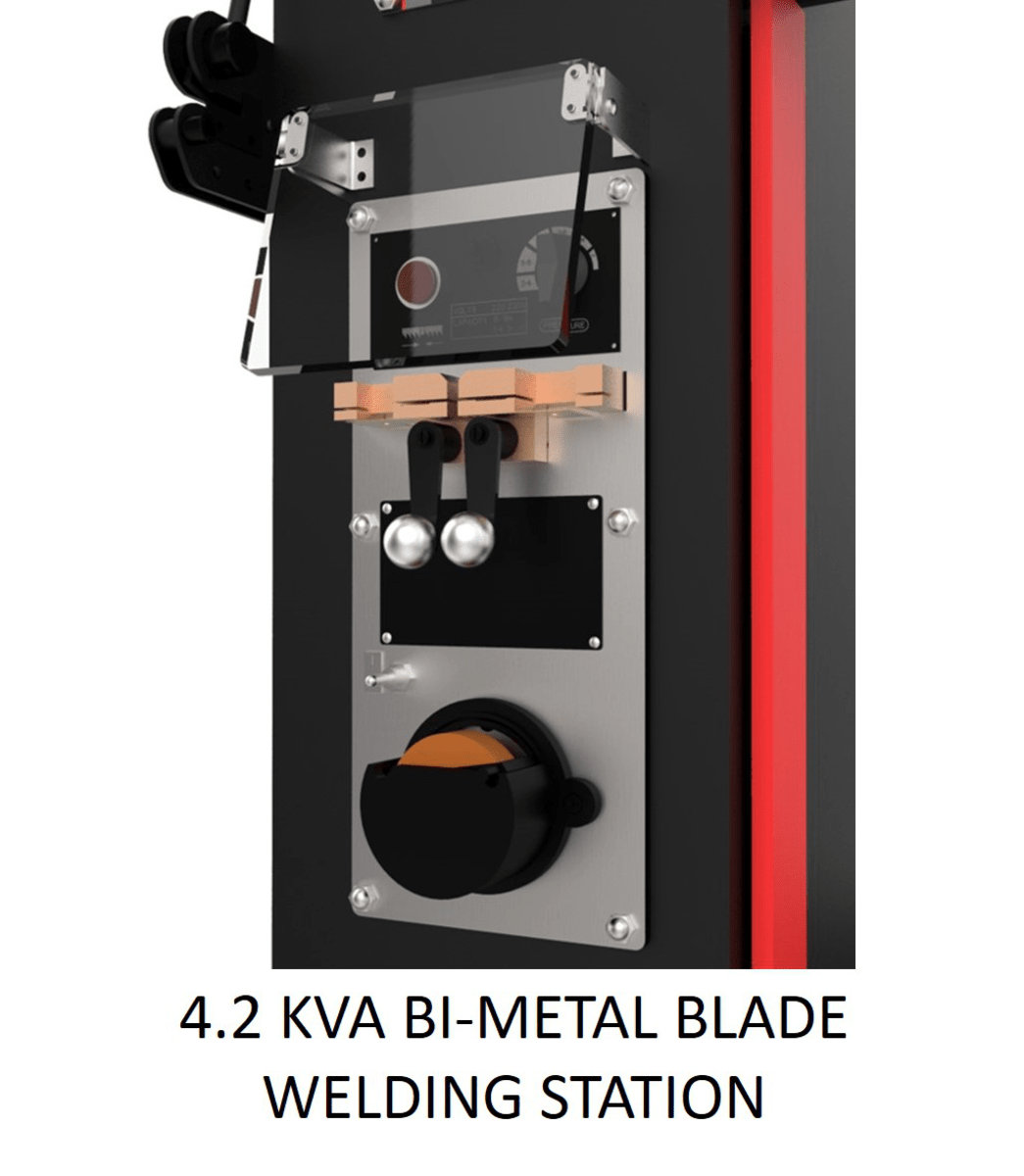

Welding voltage (V)	4.2 KVA Bi-Metal Welder
Electrics	2HP, 230/460V, 3 Phase
Prewired Voltage (V.)	230
