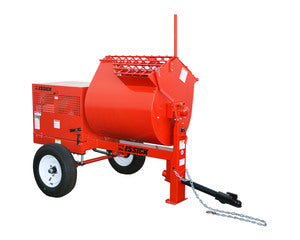

EM12M Essick Steel-Drum Plaster/Mortar Mixer

12cf Mortar, Mechanical gear box Drive, Honda GX390

Used by the professional mason for over 90 years. The ultimate in heavy-duty plaster/mortar mixers. Essick has delivered mixers with your engine, horsepower and drive-system preference.

  • Thick 3/16-inch (4.76 mm) steel drum wrap
  • 12-cubic foot (340 liters) plaster/mortar mixer
  • Reliable 11.7 hp Honda engine
  • Reduced maintenance, longer life as gears and clutch are fully immersed in oil
  • Maintenance-free shaft seal system no greasing required
Unit Specifications
Drive System Mech. Gearbox
Drum Capacity 12 cu. ft
339.8 L
3 1/2 - 4 bags
Dump Type Manual
Discharge Height 17 in 430 mm
Drum Type Steel
Drum Thickness 9 gauge
Engine Cover Thickness 12 gauge
Tire Size B78x13
Frame Type Rectangular
Paint Type Powder coat
Power Source Honda GX390UT Special
Notes:Heavy Duty Safety Chains included. All mixers available with loop couper, 2" ball coupler, or pin-type coupler.
Dimensions & Weights
Overall Length 105 in 2667 mm
Overall Width 56 in 1422 mm
Overall Height 60 in 1520 mm
Overall Height
w/Dump Handle
75 in 1910 mm
Operating Weight 1040 lb 471.7 kg
Engine Specifications
Engine Make/Model Honda GX390UT
Start Method Recoil
Engine Power 11.7 HP 8.72 kW
Engine RPM 3600
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
