Filter Regulator Manifold System

Parts for Alpha Tools

In a proactive step for pneumatic tool longevity, Alpha® has created Filter/Regulator (F/R) manifold systems to help eliminate potential issues caused by rust or contamination in the pipes or connectors feeding the pneumatic tools. The Filter/Regulator also helps prevent pressure drops when using a large volume of air, so the pressure can be set on the tools at 85 PSI, while the main system can run at 125 PSI. The systems, which comes in two sizes (53 CFM & 106 CFM), consist of a Filter/Regulator with a shut off/dump valve, and an aluminum manifold with three or more aluminum quick disconnects. The Alpha® F/R Manifold System and is designed for installation at the point of use and is configured to adapt to the existing shop piping and increase the life of the tools. Keep your system clean and get the maximum performance from your pneumatic tools!

• Protects Your Tools From Contaminants
• Helps Prevent Pressure Drops When Using A Large Volume of Air
• Adapts To The Existing Shop Piping and Increases The Life of The Tools
• Makes It Easy To Get The Maximum Performance From Your Pneumatic Tools
• Comes in Two Sizes (53 CFM and 106 CFM)



Part No.	Size	Type	Threads	Description

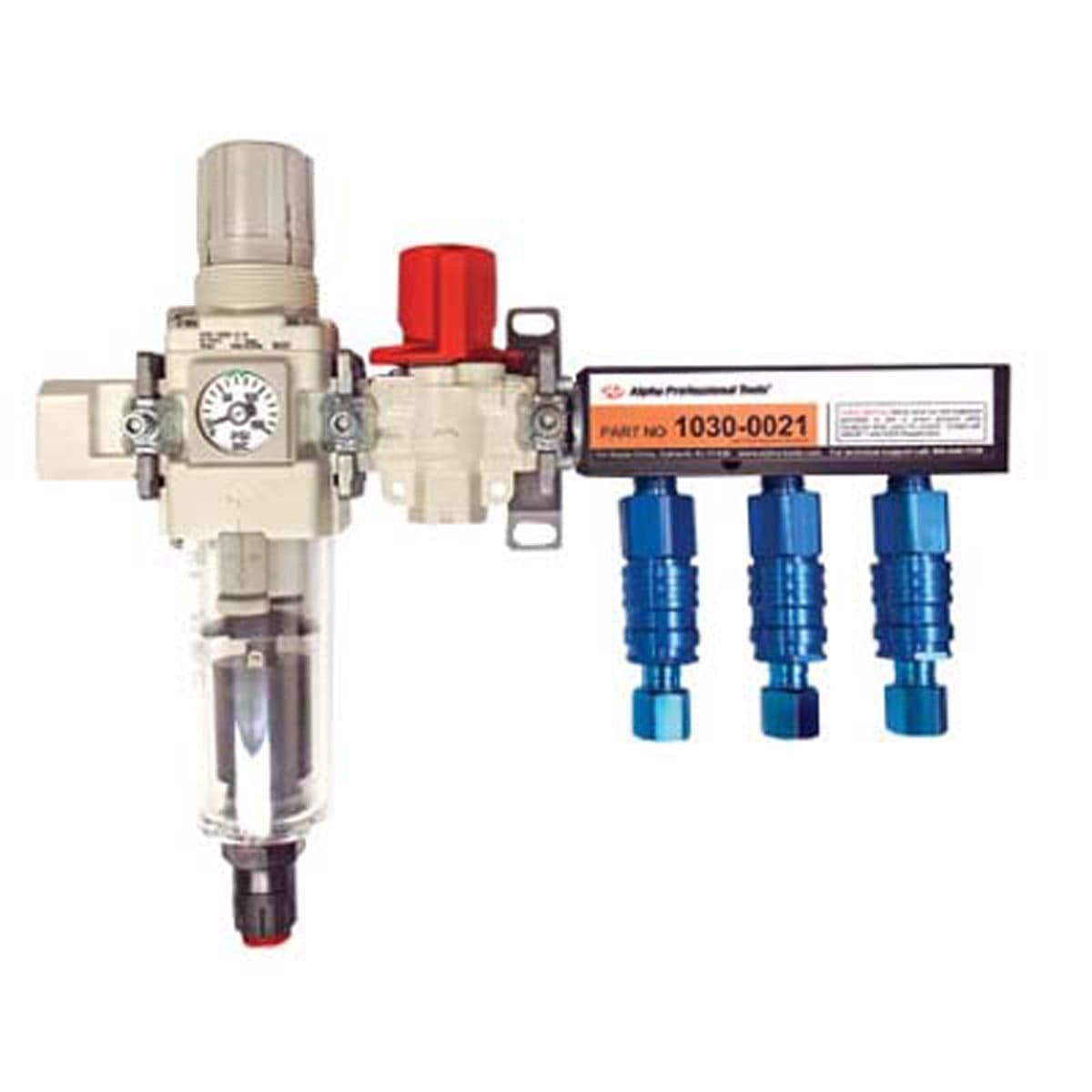

1030-0021	53 CFM	3/8" Filter/Regulator Manifold System	3/8" NPT	Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers & (3) 1/4" Female NPT Plugs
1030-0022	53 CFM	3/8" Filter/Regulator Manifold System	1/2" NPT	Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers & (3) 1/4" Female NPT Plugs

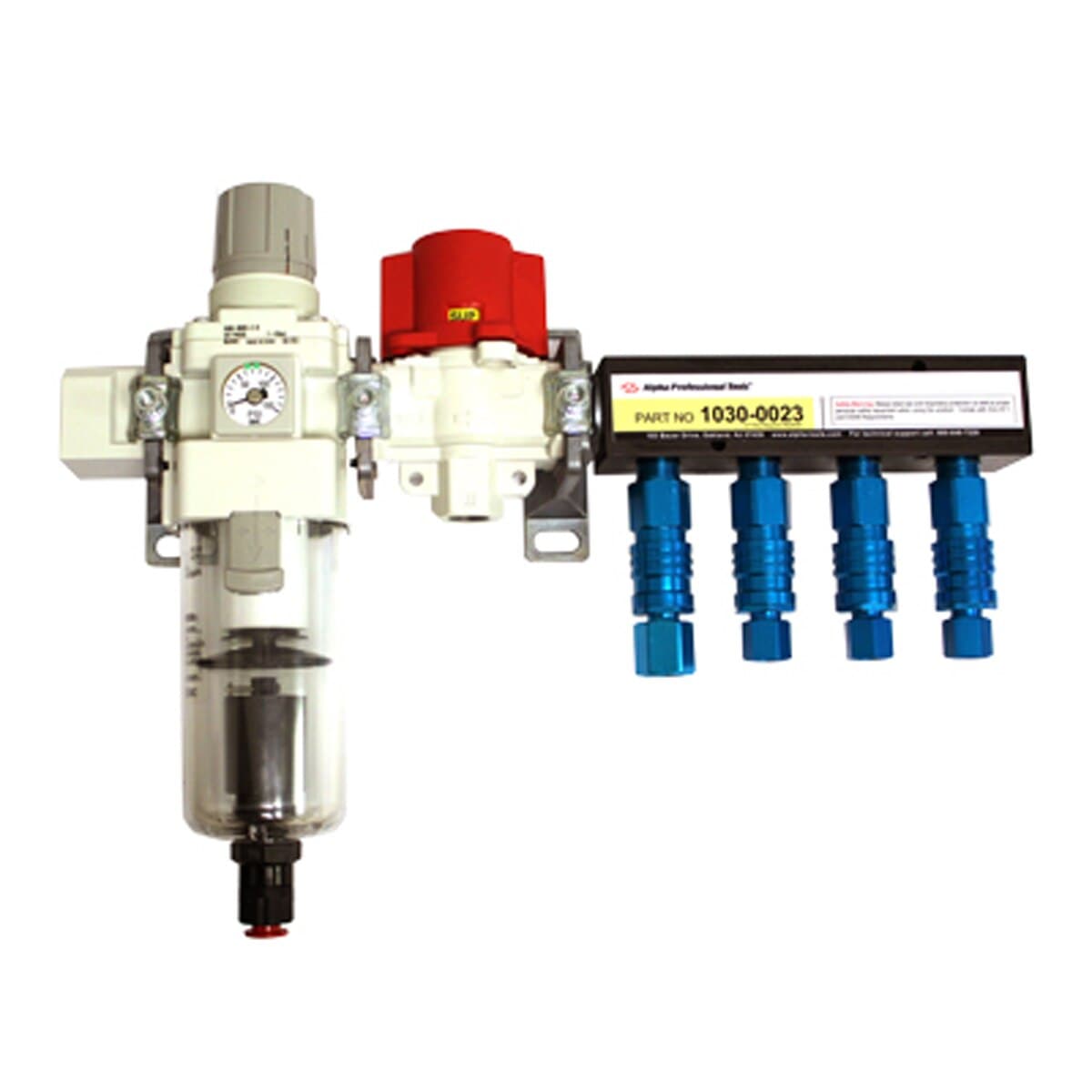

1030-0023	106 CFM	1/2" Filter/Regulator Manifold System	1/2" NPT	Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers, (3) 1/4" Female NPT Plugs & (1) 3/8" Female NPT Plug
1030-0024	106 CFM	1/2" Filter/Regulator Manifold System	3/4" NPT	Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers, (3) 1/4" Female NPT Plugs & (1) 3/8" Female NPT Plug
1030-0070	53 CFM	3/8" Filter/Regulator Kit	3/8" IN-3/8" OUT	Filter/Regulator, Adapter Blocks & T-Clamps
1030-0071	53 CFM	3/8" Filter/Regulator Kit	1/2" IN-3/8" OUT	Filter/Regulator, Adapter Blocks & T-Clamps
1030-0072	53 CFM	3/8" Filter/Regulator Kit	1/2" IN-1/2" OUT	Filter/Regulator, Adapter Blocks & T-Clamps
1030-0073	106 CFM	1/2" Filter/Regulator Kit	1/2" IN-1/2" OUT	Filter/Regulator, Adapter Blocks & T-Clamps
1030-0074	106 CFM	1/2" Filter/Regulator Kit	3/4" IN-1/2" OUT	Filter/Regulator, Adapter Blocks & T-Clamps
1030-0075	106 CFM	1/2" Filter/Regulator Kit	3/4" IN-3/4" OUT	Filter/Regulator, Adapter Blocks & T-Clamps
