Air Manifold (30 Gal, ASME Tank)

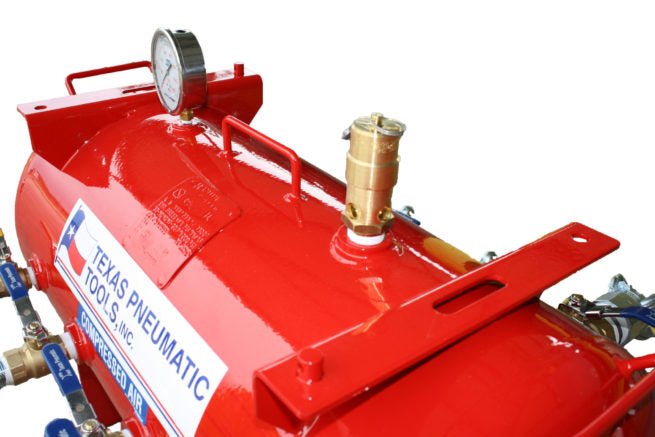

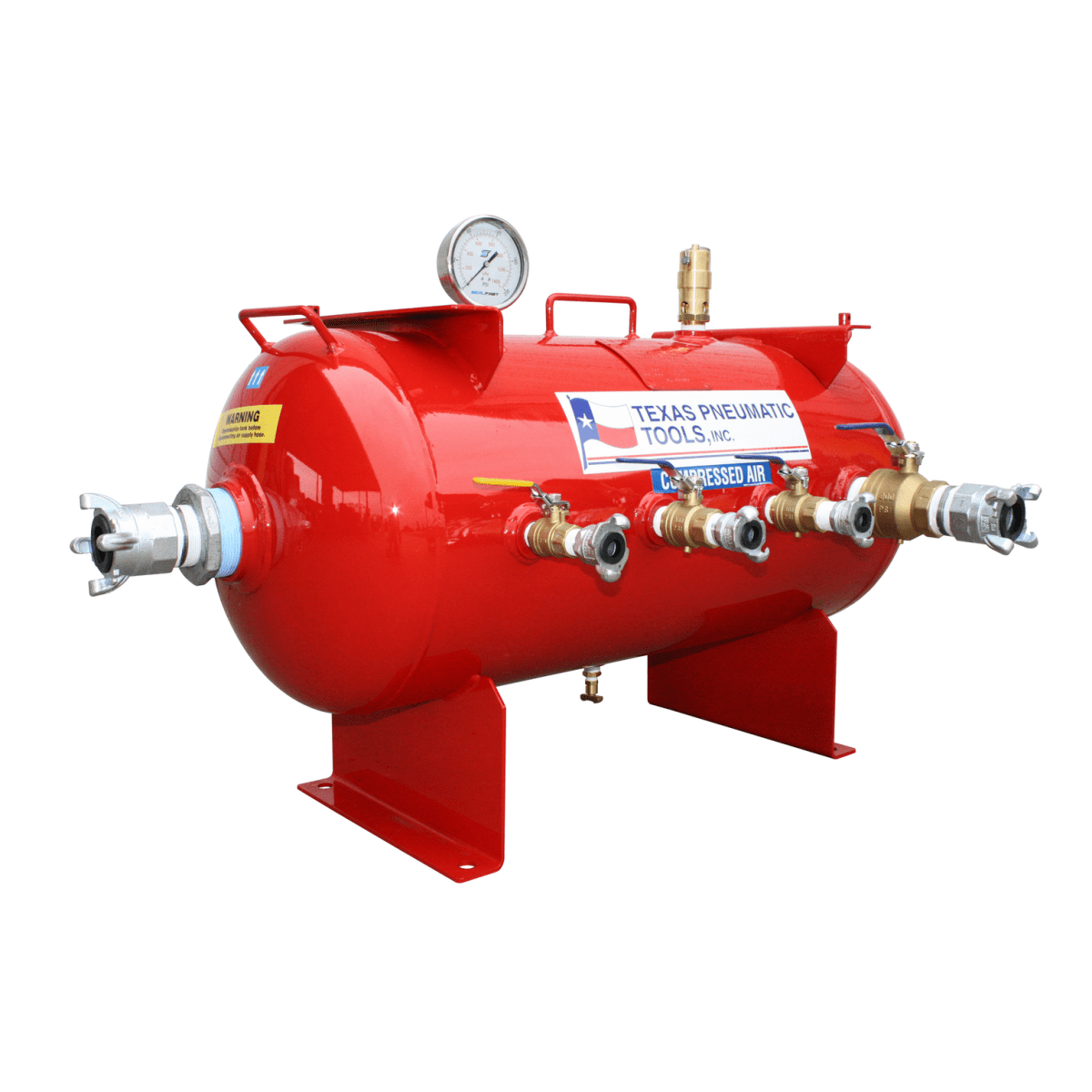

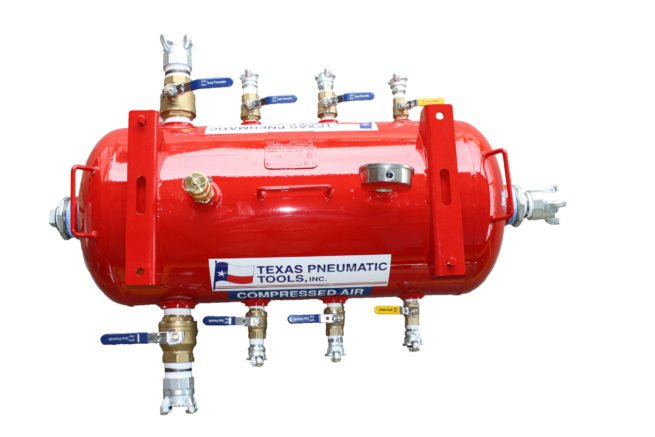

Texas Pneumatic Air Manifold, 30 Gal ASME Tank

Designed for professional compressed air distribution, the Texas Pneumatic 30 gallon Air Manifold combines a durable storage tank with an integrated manifold configuration for demanding pneumatic tool environments.

The ASME-coded tank provides a dependable foundation for air handling and distribution. It is suited to construction, stone fabrication, concrete work, restoration, and other applications requiring organized compressed air service.

With a 30-gallon capacity, this air manifold helps support pneumatic equipment by providing a centralized air vessel within the work area. The configuration is intended for practical installation and efficient connection of air lines.

The tank measures 44 inches in length and 27 inches in height, with a 16-inch tank diameter. Its footprint provides substantial capacity while remaining suitable for many shop, jobsite, and equipment-support layouts.

Overall width with fittings is 36 inches. This dimension should be considered when planning clearance, access, hose routing, and placement near pneumatic tools or other compressed air equipment.

Built for industrial use, the manifold is appropriate for professional operators who require a robust compressed air distribution component rather than a basic portable tank.

Product Specifications

• Product: Air Manifold
• Tank capacity: 30 gallons
• Tank certification: ASME coded
• Height: 27 inches
• Length: 44 inches
• Tank diameter: 16 inches
• Width with fittings: 36 inches
• Weight: 190 lbs.

Verify connection requirements, available clearance, and system compatibility before installation. The Texas Pneumatic Air Manifold is a specialized component for centralized compressed air distribution in professional pneumatic systems.
